Description:

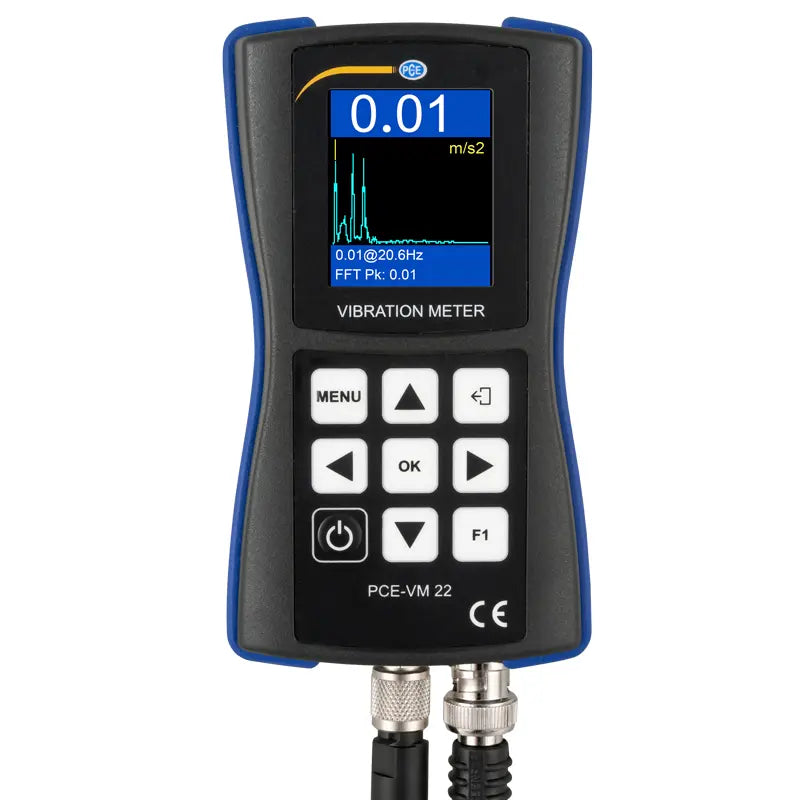

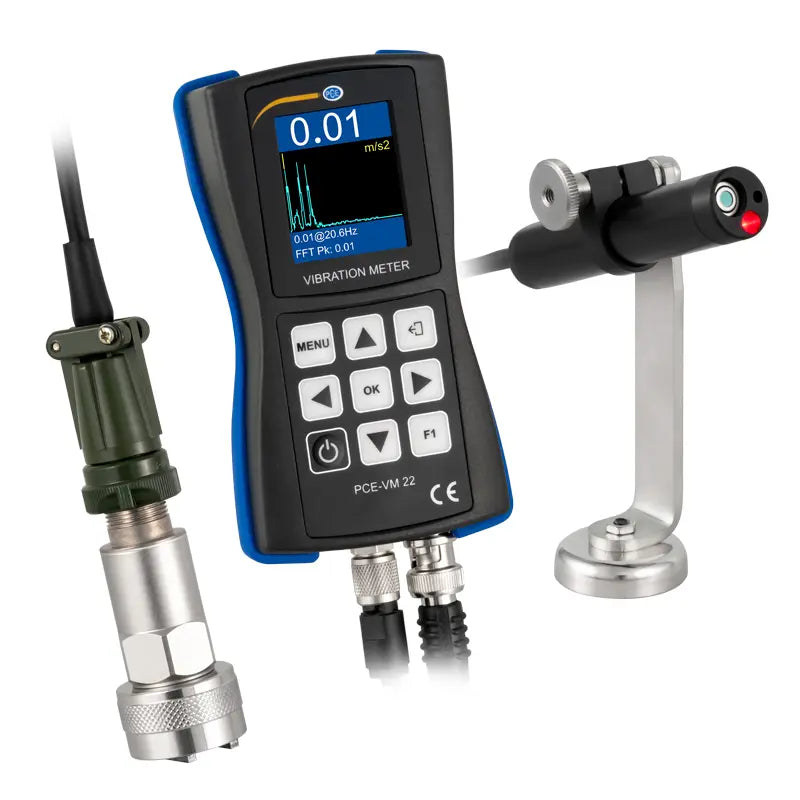

Introducing a state-of-the-art accelerometer equipped with 4 GB of data storage, enabling efficient FFT analysis and waveform visualization With a measurement range spanning from 0 to 200 mm/s², it provides reliable readings while boasting an impressive 8-hour battery life This versatile device is enhanced with a micro USB interface and a magnetic holder for easy attachment, along with capabilities for optical speed measurement.
It can simultaneously assess acceleration, speed, displacement, and frequency, all while delivering an FFT view in real time The infrared temperature sensor measures surface temperatures ranging from -70 to 380 °C, making it ideal for maintenance tasks involving generators and engines Plus, it can come with an ISO certification, ensuring its credibility for professional use.
Features and Benefits:
•Measuring range of 0 ... 200 m/s² for acceleration.

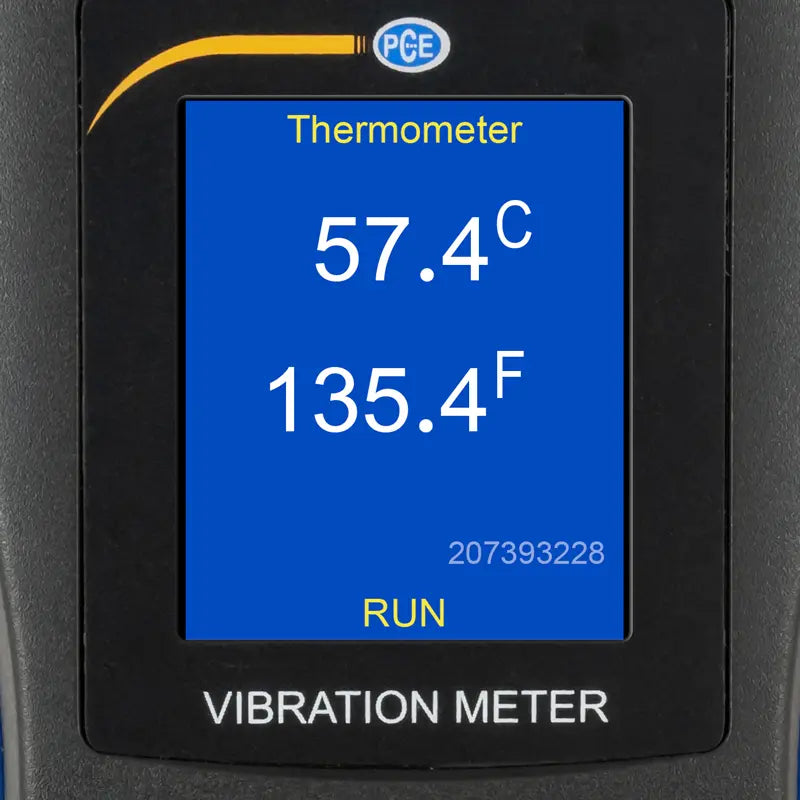

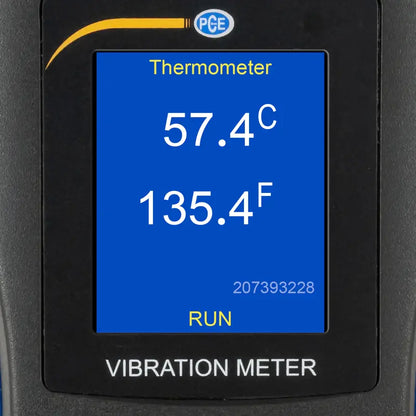

•Infrared temperature measurement capability.
•4 GB data storage.
•8 hours of battery life.
•Optionally available with ISO calibration certificate.

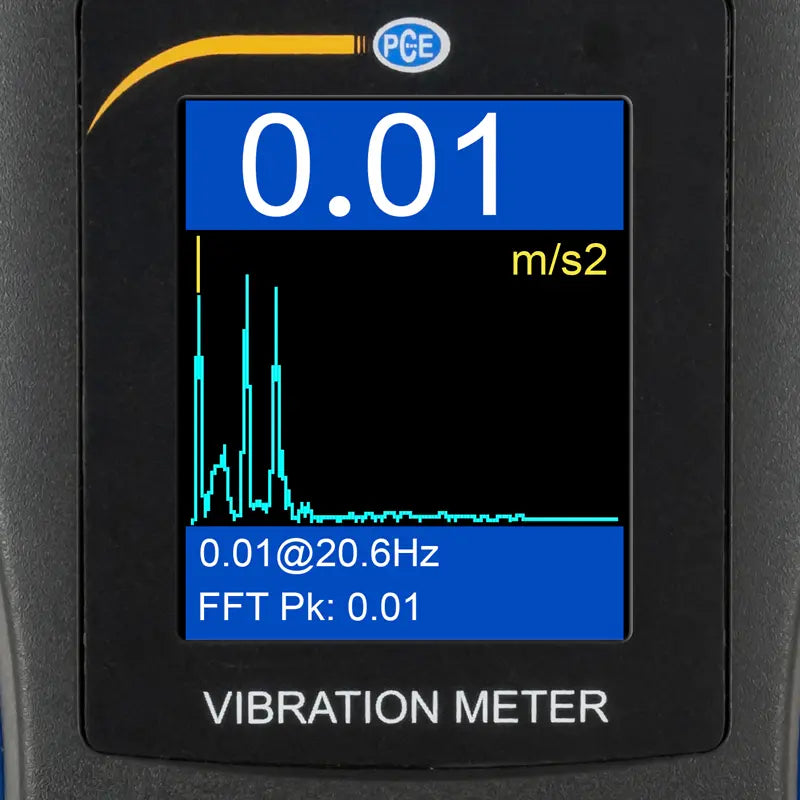

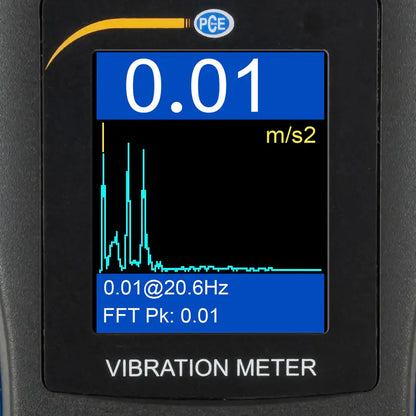

•FFT analysis and wave view functionality.

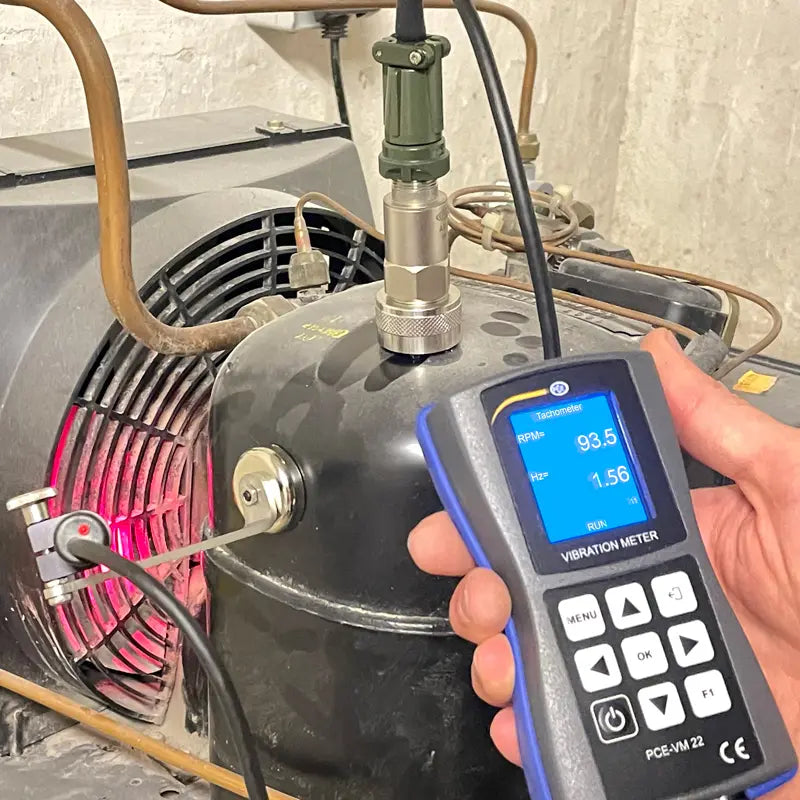

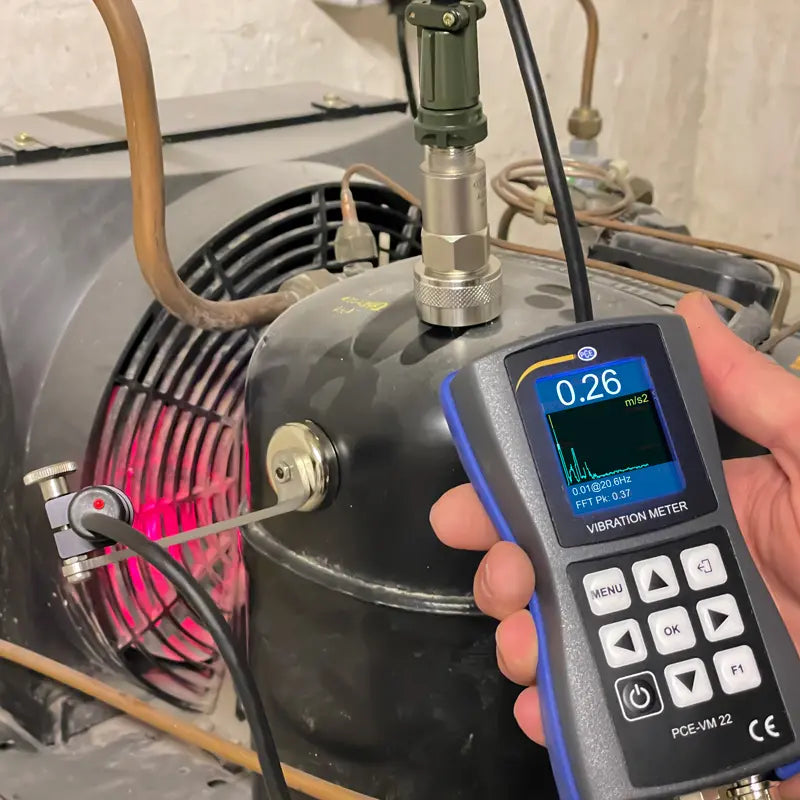

•Universal measuring tool for maintenance work on generators or engines.
•Vibration measurement and analysis.
•Monitoring of ventilation systems and machinery.
Specifications:
| Frequency Measuring range | 1 ... 10,000 Hz |
| Frequency Resolution | 0.1 Hz |
| Frequency Accuracy | ±5 % |
| Acceleration Measuring range | 0 ... 200 m/s² |
| Acceleration Resolution | 0.01 m/s² |
| Acceleration Accuracy | ±5 % |
| Speed Measuring range | 0 ... 200 mm/s |
| Speed Resolution | 0.01 mm/s |
| Speed Accuracy | ±5 % |
| Displacement Measuring range | 0 ... 2000 µm |
| Displacement Resolution | 0.01 µm |
| Displacement Accuracy | ±5 % |
| Infrared temperature measurement Measuring range | -70 ... 380 °C / -94 ... 716 °F |
| Infrared temperature measurement Resolution | 0.1 °C / °F |
| Infrared temperature measurement Accuracy | ±0.5% at (0…+60°C), ±1% at (-40 ... 0, 60 ... 120 °C), ±2% at (-70 … -40, 120 ... 180 °C), ±4% at (180 ... +380 °C) |

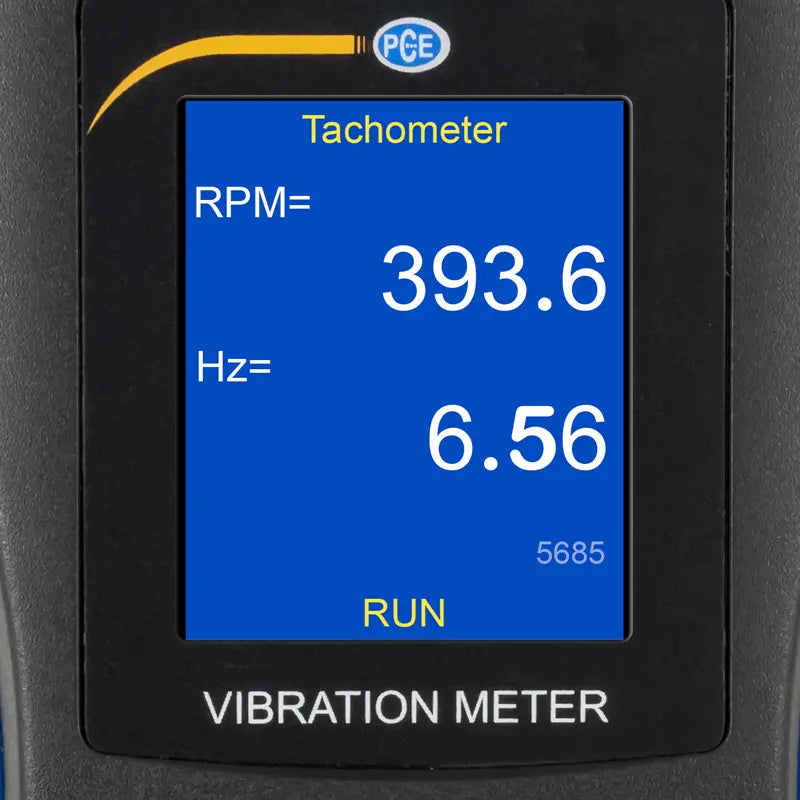

| Tachometer Measuring range | 10 … 200,000 RPM |
| Tachometer Resolution | 0.1 RPM |
| Tachometer Accuracy | ±0.1% and ±1 RPM |
| Further specifications FFT spectrum resolution | 400, 800, 1600 lines |
| Dynamic range | 106 dB |
| A/D converter resolution | 24 bit |
| Storage space | 4 GB |
| Display | 128 x 160 pixels |

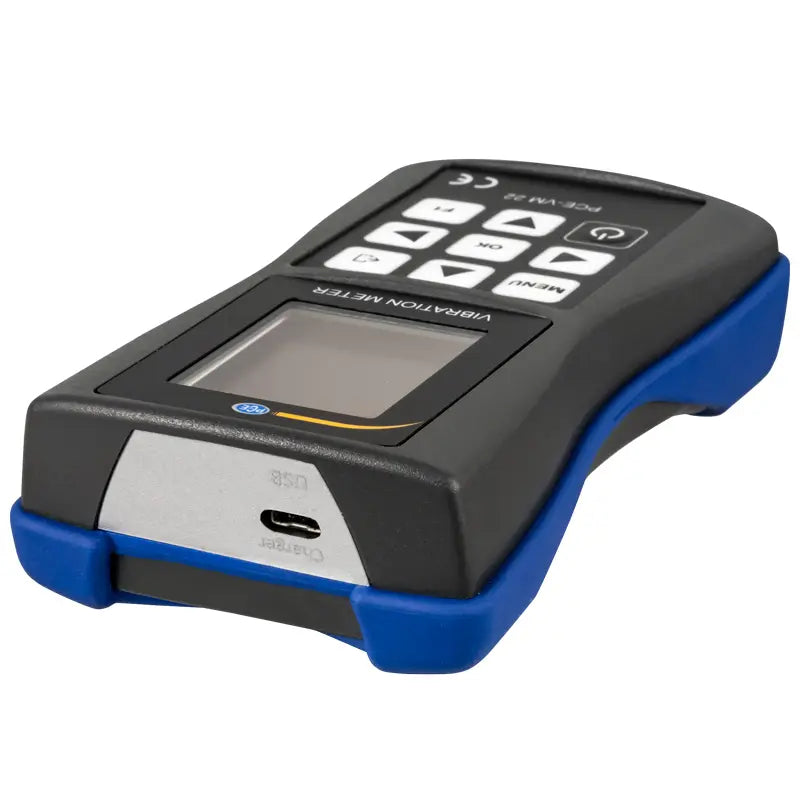

| Interfaces | Micro USB interface |
| Power supply battery | 3.7 V, 1000 mAh battery |
| Power supply for power pack | 5 V DC, 1 A |
| Operating conditions | 0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing |
| Storage conditions | -20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing |
| Dimensions | 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3" |

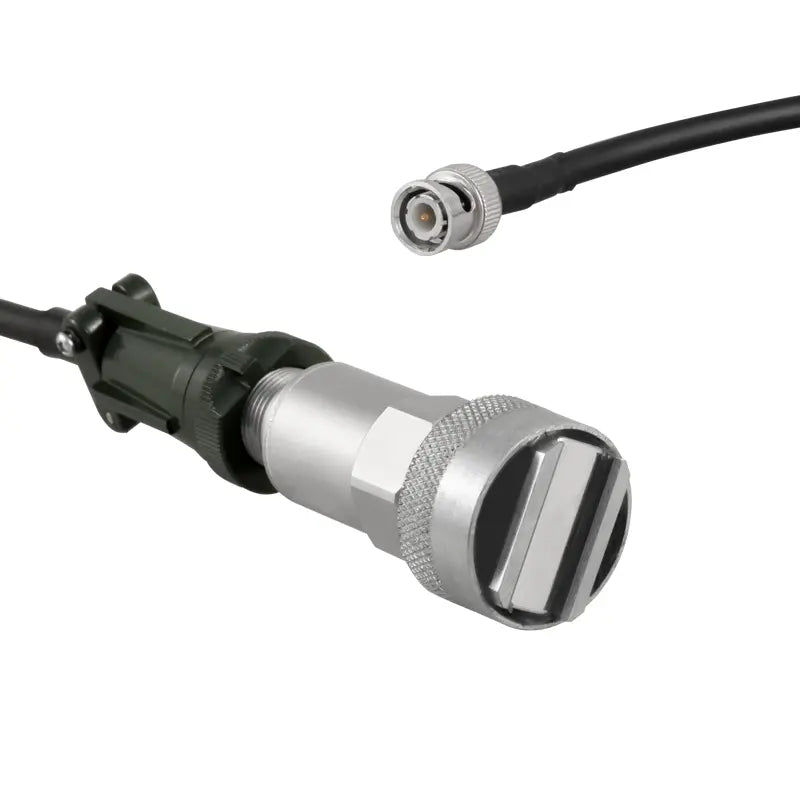

| Vibration sensor specifications Sensitivity | 100 mV/g |
| Vibration sensor specifications Cable length | ca. 1.5 m / 4.9 ft |
| Vibration sensor specifications Connection | 2 pin MIL-DTL-5015 |
| Vibration sensor specifications Case material | 316L stainless steel |
| Vibration sensor specifications Dimensions | Ø25 x 53 mm / Ø0.98 x 2.08" |
| Vibration sensor specifications Weight | 86 g / 3.0 oz |
| Magnetic holder specifications Diameter | 30 mm / 1.18" |
| Magnetic holder specifications Magnetic force | 20 kg / 44 lbs |
| Magnetic holder specifications Connection thread | 1/4"-28 UNF female |
| Magnetic holder specifications Smallest radius | 20 mm / 0.78" |

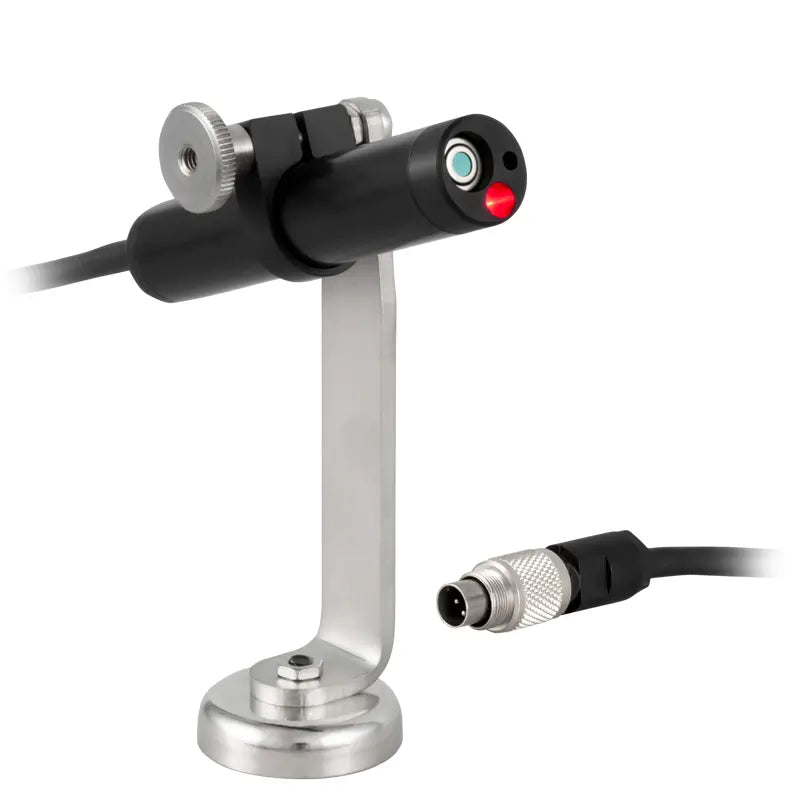

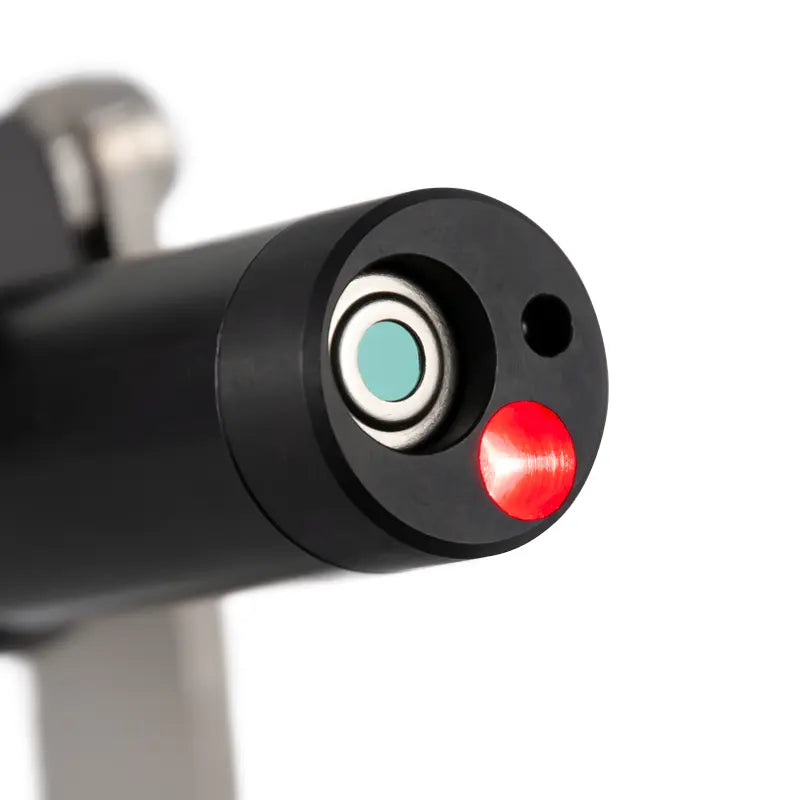

| Infrared and RPM sensor specifications Cable length | ca. 1.2 m / 3.9 ft |
| Infrared and RPM sensor specifications Dimensions | Ø16 x 83 mm / Ø0.63 x 3.26" |
| Infrared and RPM sensor specifications Weight | 75 g / 2.6 oz |
