Product Information

Description:

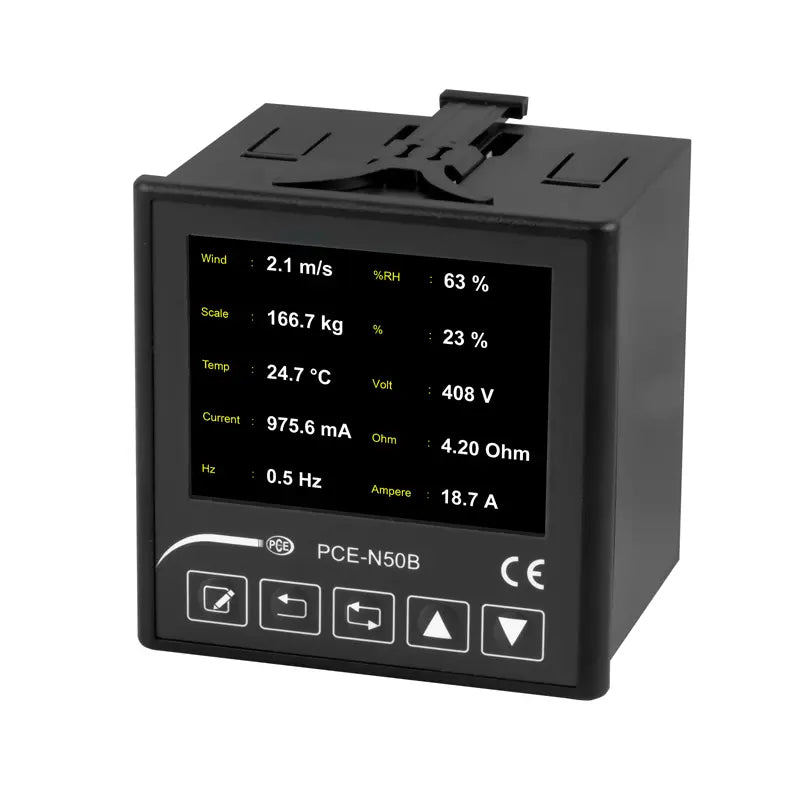

Introducing the PCE-N50B Panel Indicator, a sophisticated monitoring solution designed for overseeing up to 10 slave devices This unit boasts a vibrant 35" graphic LCD screen and fits into a panel cutout of 905 x 905 mm (36 x 36 in) You can easily view individual measurements or multiple data points at once, enhancing your monitoring capabilities With an RS485 Modbus interface, this device allows seamless data queries from slave devices, making it versatile for both single and multiple displays.

Built to endure, its IP65 protection rating ensures exceptional durability and reliability across various working conditions.

Features and Benefits:

•Modbus RTU Master functionality.

•3.5" LCD display.

•Supports querying of 10 registers or slave devices.

•Adjustable baud rate for flexible communication.

•Enhanced power supply area.

•Easy settings via buttons.

Specifications:

Interface	RS 485 Modbus RTU Master
Number of slave devices / registers	10
Operating conditions	0 ... 50°C / 32 ... 122°F, max 80% RH
Storage conditions	-25 ... 70°C / -13 ... 158°F, max. 80% RH
Degree of protection	Front: IP65, Rear: IP20
Power supply	90 ... 250V AC
Input	Max. 7 VA

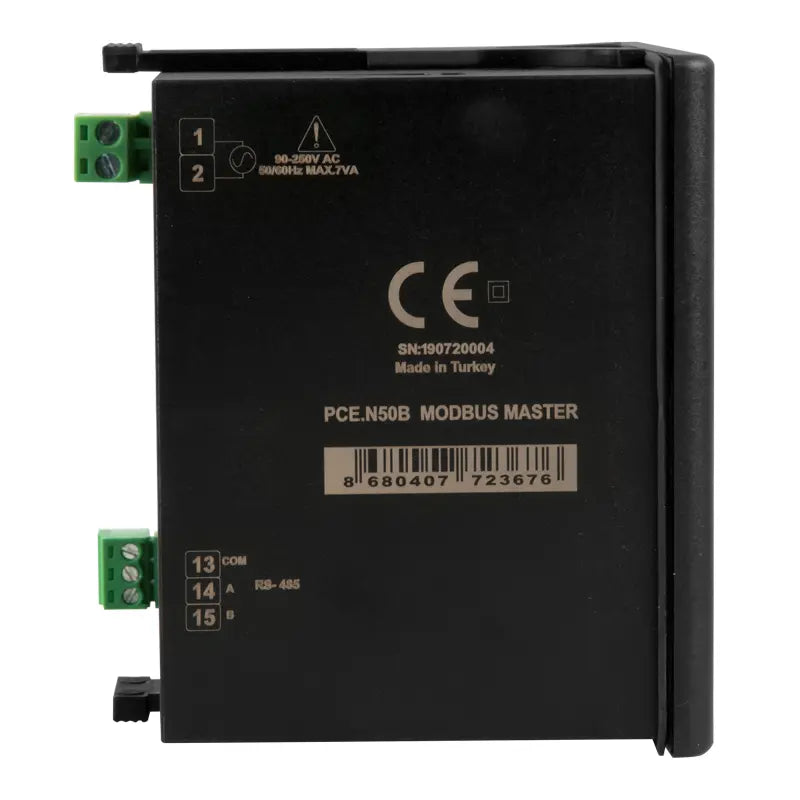

Connections	Screw, Voltage supply: max. 2.5 mm², Signal input: max. 1.5 mm²
Panel cut	90.5 x 90.5 mm / 3.6 x 3.6 in
Dimensions	96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
