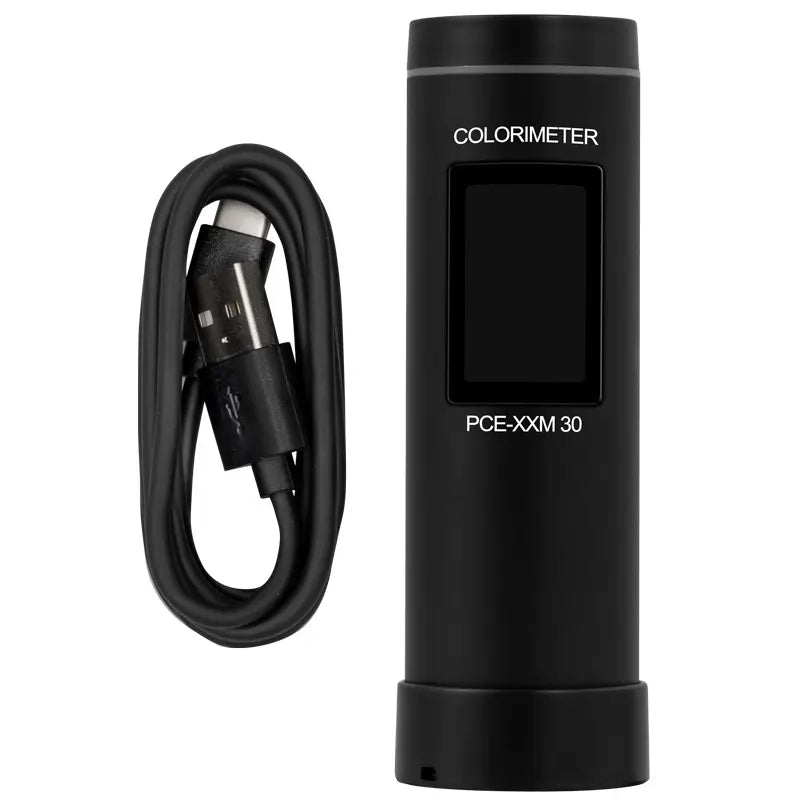

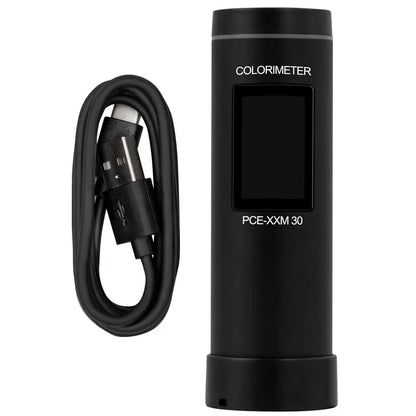

PCE-XXM 30 - Bluetooth Colorimeter, 10,000 Measurements, Ø8mm Opening

PCE-XXM 30 - Bluetooth Colorimeter, 10,000 Measurements, Ø8mm Opening

SKU: SKU: PCE-XXM 30   Download PDF

Select a Variant:
  • PCE-XXM 30 - Bluetooth Colorimeter, 10,000 Measurements, Ø8mm Opening
Qty:
Regular price Now $425.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $425.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover precision color measurement with this innovative colorimeter featuring Bluetooth technology Designed to handle approximately 10,000 measurements on a single battery charge, it operates seamlessly within a wavelength range of 400 to 700 nm This device retains a memory of your recorded values and accurately identifies various color metrics, including CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, and RGB, allowing for thorough surface analysis.

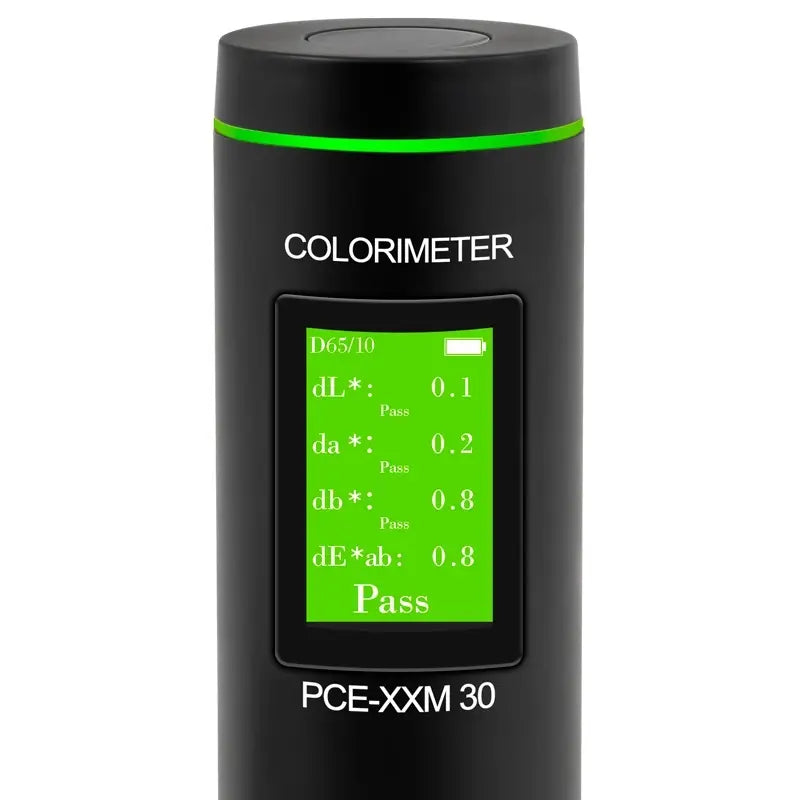

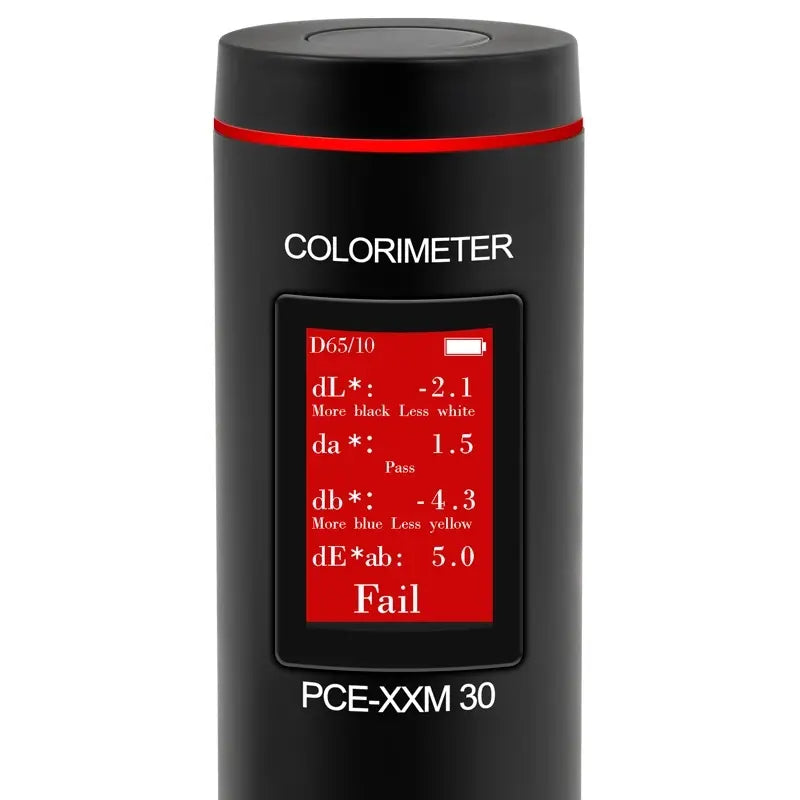

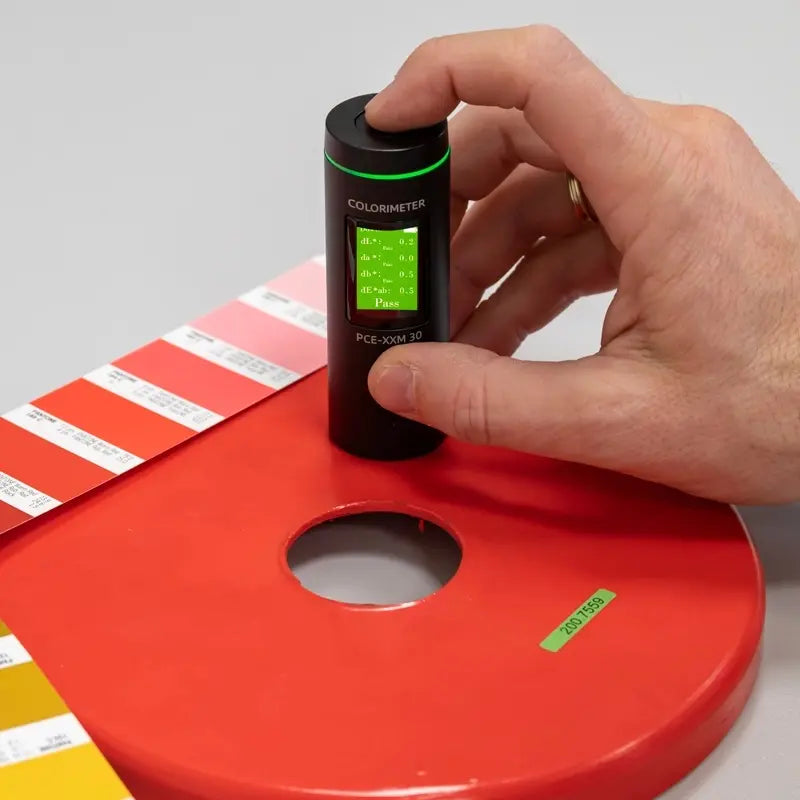

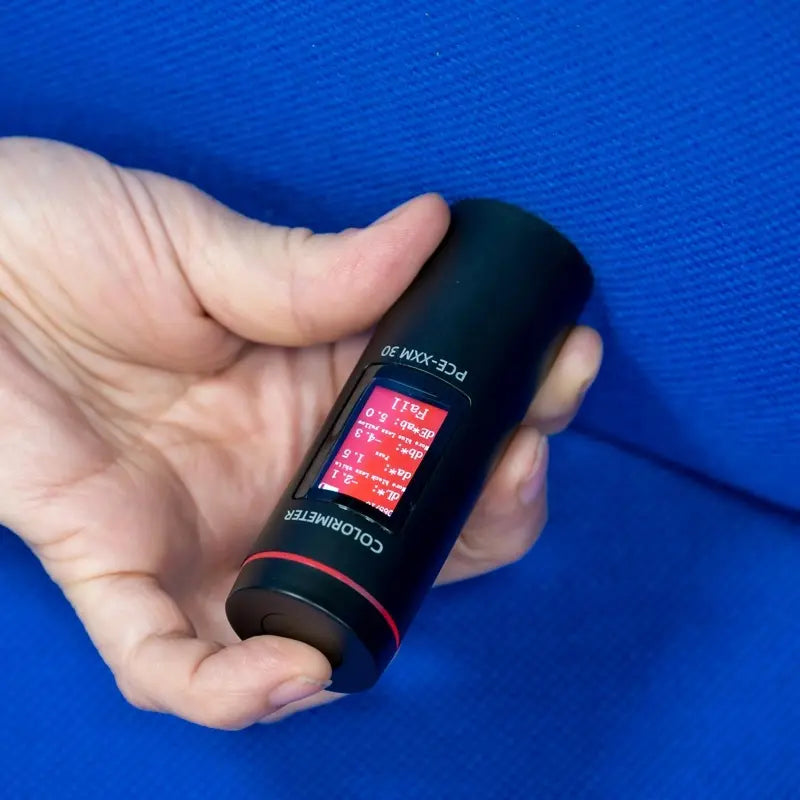

Its compact structure includes a measuring opening of Ø8 mm and achieves exceptional repeatability with ΔE* values of ≤01 For added functionality, the device enables color difference detection by first taking a reference measurement and then comparing it to the tested object Users benefit from a clear display that indicates compliance with tolerance using green lighting and highlights deviations with red.

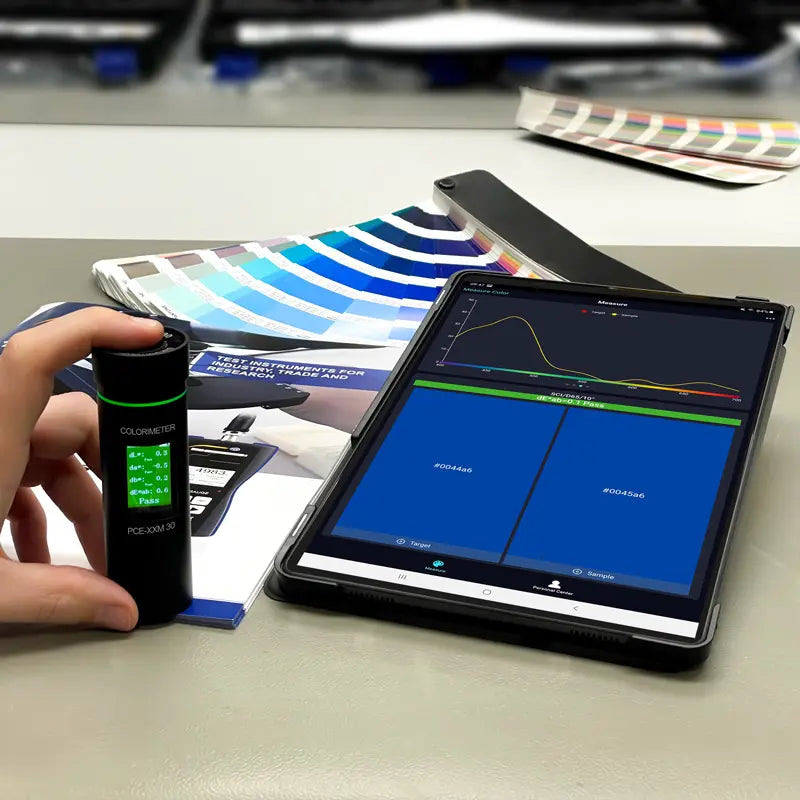

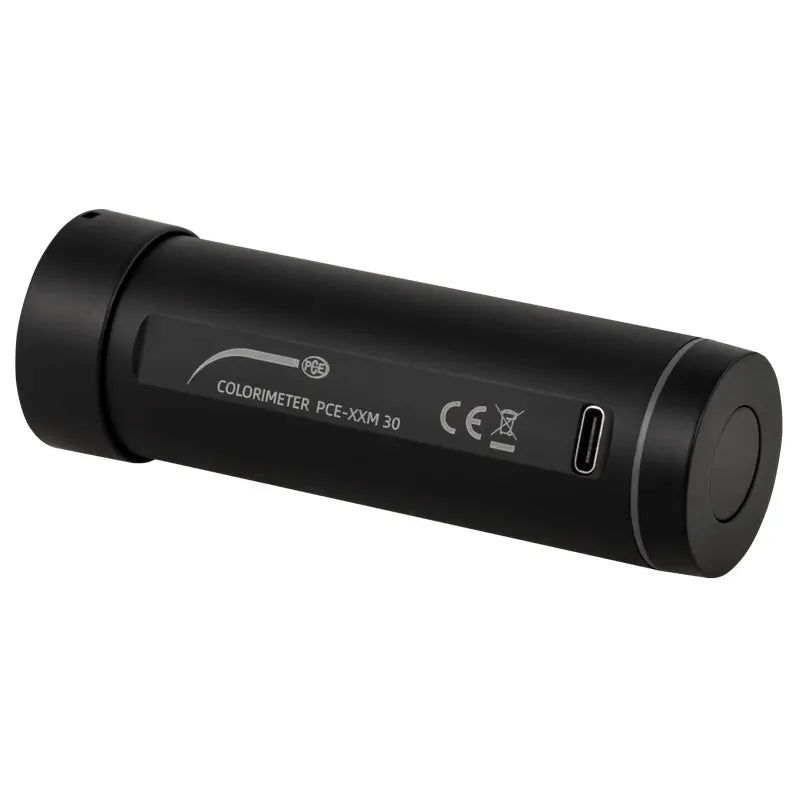

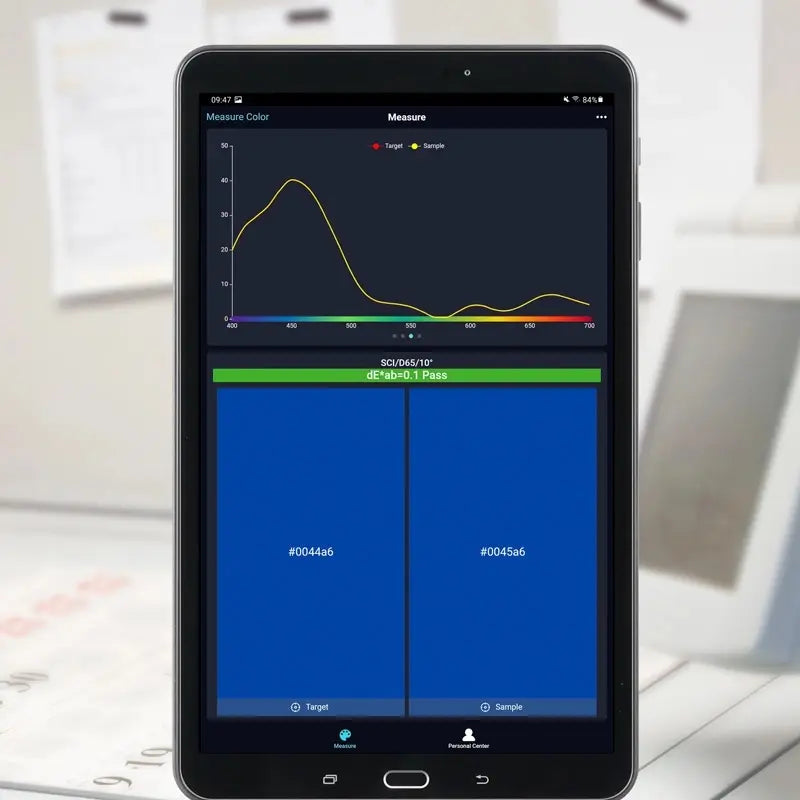

Thanks to Bluetooth connectivity, sync this colorimeter with a complimentary app on your Android device for easy adjustments to measurement settings and real-time result visualization Perfectly suited for quality assurance in sectors such as printing and automotive, this device charges conveniently via USB-C, offering extensive usability on every charge.

Features and Benefits:

    •Bluetooth interface with free app for Android.

    •10,000 measurement battery life.

    •Pass/Fail function for quality control.

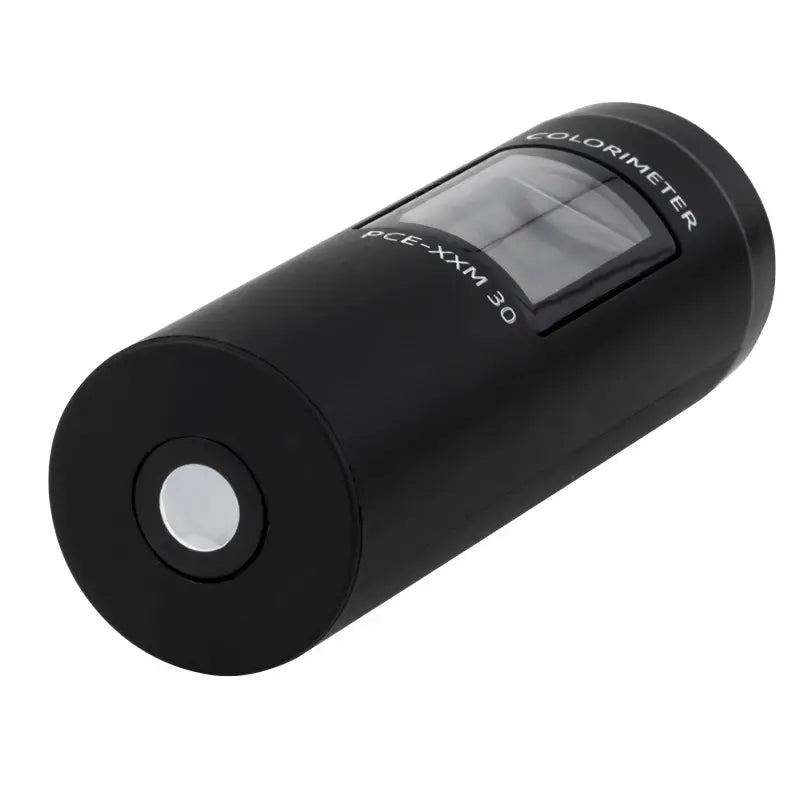

    •Compact measuring opening of Ø8 mm.

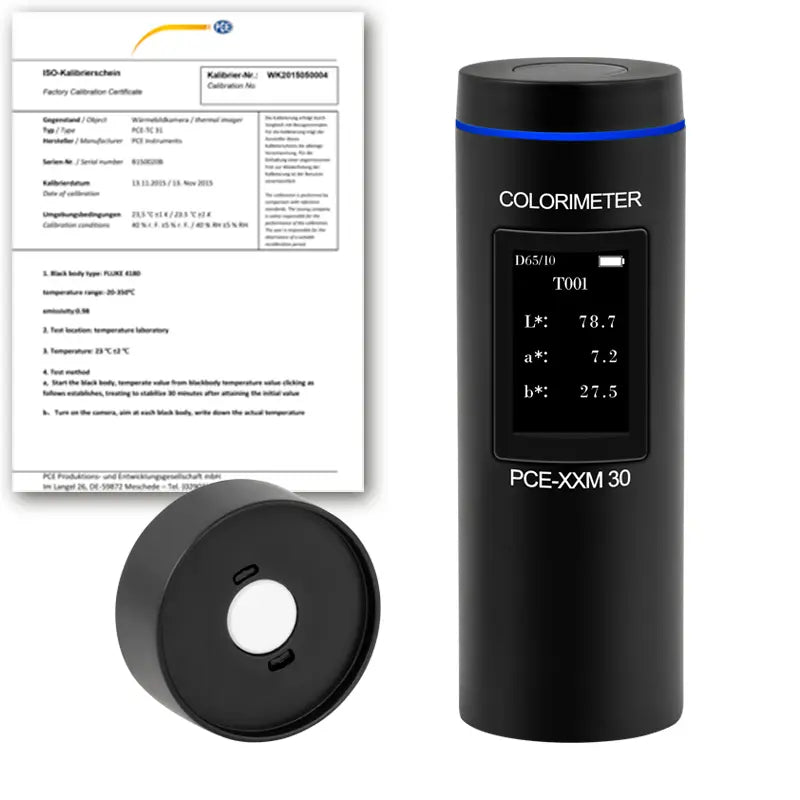

    •Integral ISO Calibration Certificate.

    •Quality control in print shops.

    •Automotive paint inspection.

Specifications:

 Measurement geometry and angle D/8-SCI

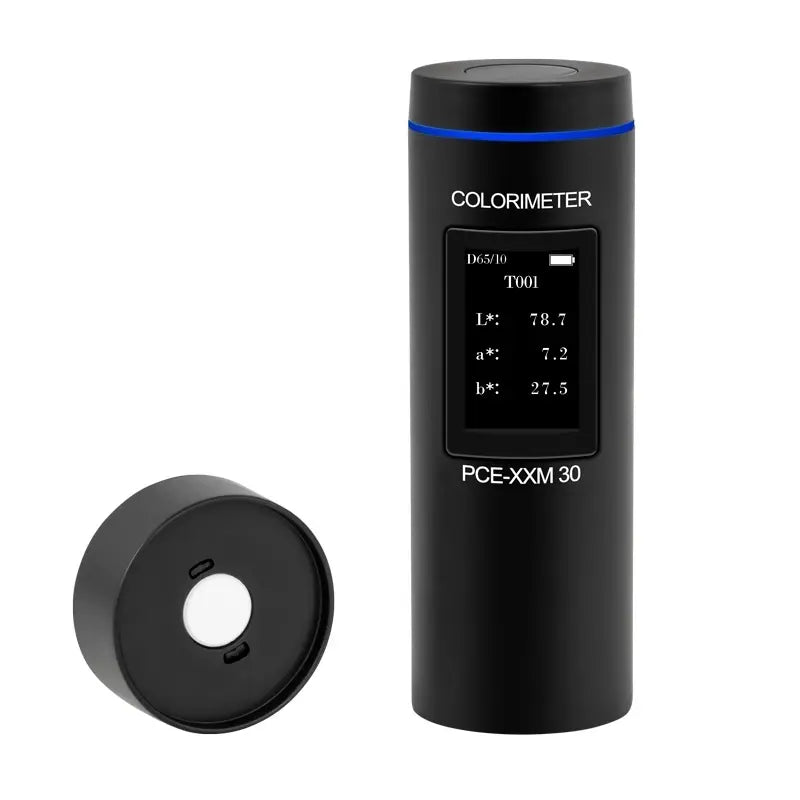

 Calibration black and white
 Color ranges CIE-LAB, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy RGB
 Formulas for color inequality ΔE*ab, ΔE*cmc, ΔE*94, ΔE*00
 WI ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby
 YI ASTM D1925, ASTM E313-00, ASTM E313-73
 Blackness My, dM
 Color shade ASTM E313-00
 Color density CMYK (A, T, E, M), Metamerism Index Milm, Munsell, opacity, dye strength, color strength
 Type of light source LED (full and visible wavelength range)
 Light source A, B, C D50, D55, D65, D75, F1 … F12, CWF, U30, DLF, NBF, TL83, TL 84, U35
 Measuring angle 2°, 10°
 Repeatability ΔE* from ≤0.1
 Difference between two different color meters (IIA) ΔE* 00 <0.4
 Accuracy refers to the average measurement of 12 BCRA Series II references
 Measurement opening Ø8 mm / 0.31"
 Wavelength interval 10 mm / 0.39"
 Wavelength 400 … 700 nm
 Memory 10 measured values, redundant
 Measurement time <1 s
 Display LC display, 135 x 240 p, 1.14"
 Interfaces Bluetooth, USB-C
 Power supply 5 V DC, 1 A
 Battery life ca. 10,000 measurements
 Ambient conditions 5 … 45 °C / 41 … 113 °F, <90 RH, non-condensing
 Dimensions Ø35 x 130 mm / Ø1.37 x 5.11"
