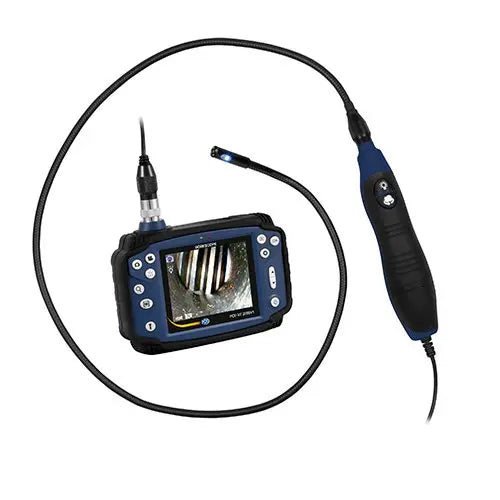

PCE-VE 200SV1 - 1m Nondestructive Inspection Camera with LED Illumination

PCE-VE 200SV1 - 1m Nondestructive Inspection Camera with LED Illumination

SKU: PCE-VE 200SV1   Download PDF

Select a Variant:
  • PCE-VE 200SV1 - 1m Nondestructive Inspection Camera with LED Illumination
Qty:
Now $607.00   Web pricing policy
BEFORE   $0.00 Now $607.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-VE 200SV1 nondestructive inspection camera, expertly engineered for examining those hard-to-reach spaces in mechanical engineering, plumbing, heating, and construction Its 1-meter long camera tube allows for thorough inspections without disassembling machinery or motors, ultimately saving you both time and money This model is equipped with bright, adjustable LED lights for exceptional visibility and features digital magnification capabilities.

You can easily capture images and save them to the included micro SD card for efficient documentation of your findings.

Features and Benefits:

    •9 mm / 0.4 in cable diameter.

    •3.5" LCD display.

    •Brightness adjustable on the camera head.

    •2600-mAh battery.

    •Cable length 1 m / 3.3 ft.

    •SD card slot for Micro SD card.

    •Zoom up to 4 times.

    •Image rotation and mirror function available.

    •Freeze function included.

    •Relatively humidity less than 75%.

    •Nondestructive inspections in mechanical engineering.

    •Plumbing and heating diagnostics.

    •Building and construction site evaluations.

    •Automotive industry applications.

Specifications:

 Display 3.5" LCD
 Resolution video function AVI (640x480)
 Resolution picture function JPEG (1600x1200)
 Image rotation 180° rotation and mirror function
 Freeze function Yes
 Zoom Up to 4 times
 Storage medium Micro SD card
 Menu languages English, German, Spanish, French, Russian, Japanese, Simplified Chinese, Traditional Chinese
 Interfaces Micro USB 2.0, TV out, Micro SD card slot
 TV output PAL
 Power supply Li-ion battery
 Battery Capacity 2600-mAh
 Operating conditions -10 ... 40°C / -10 ... 104°F, relative humidity <75%
 Cable diameter 9 mm / 0.4 in
 Image sensor 1/8" CMOS chip
 Resolution camera 640 x 480 pixels

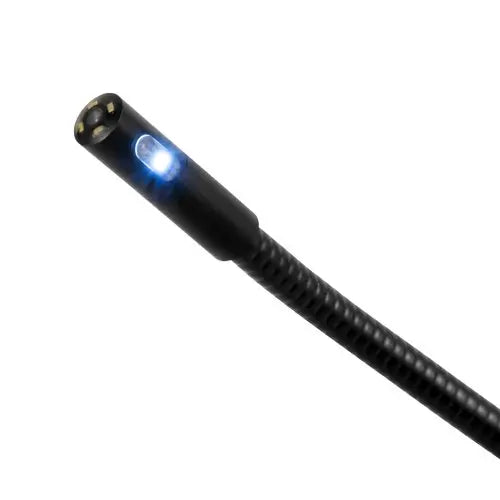

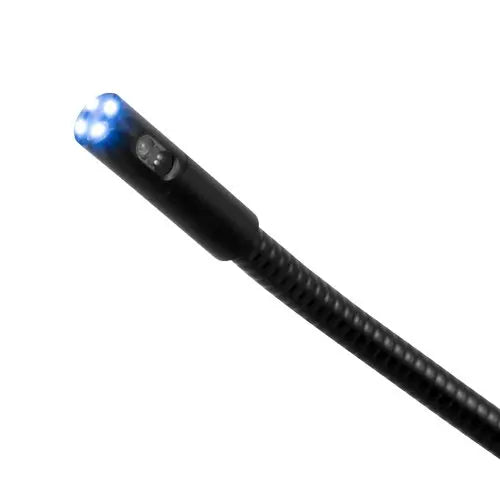

 Lighting the camera 4 LEDs on the front, 2 LEDs on the side
 Field of view / angle of view 90°
 Brightness control Manually
 Sight depth 15 ... 100 mm / 0.6 ... 3.9 in, front camera; 3-50 mm / 0.1 ... 2 in side camera
 Length of camera tube 1 m / 3.3 ft
 Push cable Malleable, soft metal
 Fluid resistance Machine oil, light oil or saline 5%
 Protection against intrusion Water, oil and dust, according to protection class IP67
