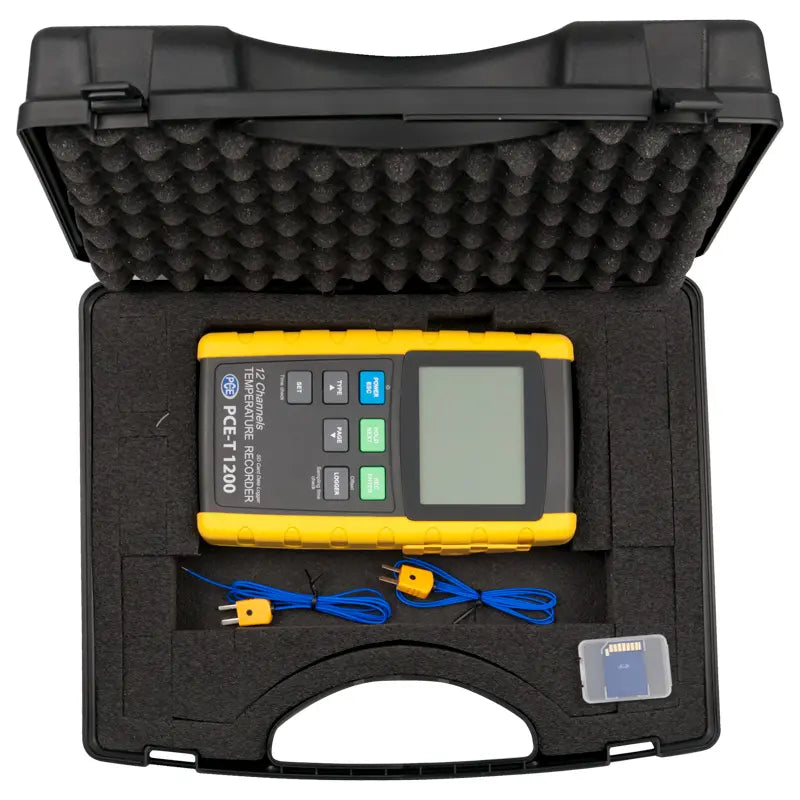

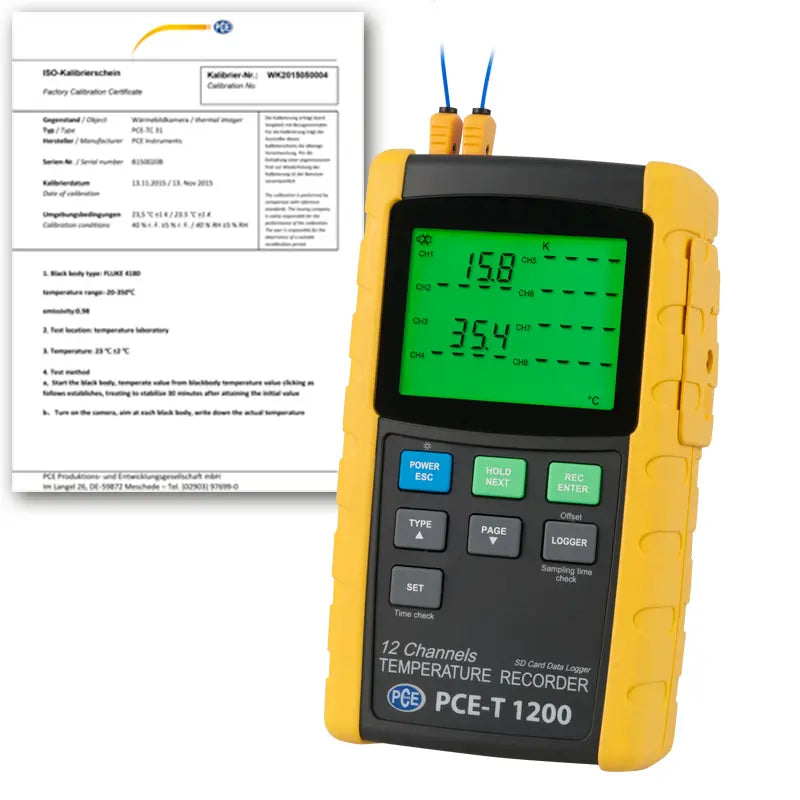

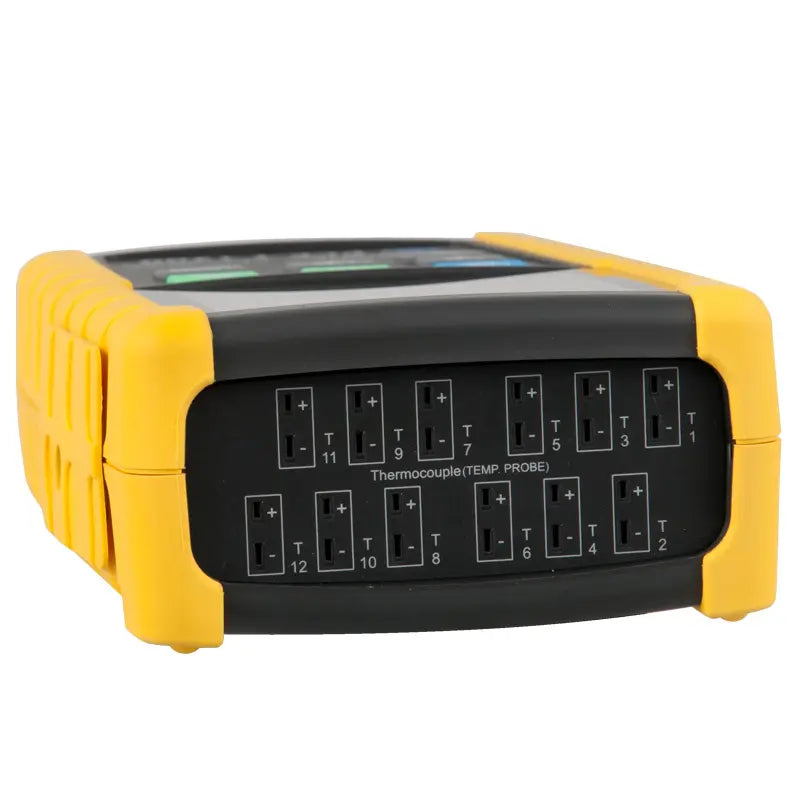

PCE-T 1200 - 12-Channel Datalogging Climate Meter with LCD Display

PCE-T 1200 - 12-Channel Datalogging Climate Meter with LCD Display

SKU: SKU: PCE-T 1200 Download PDF

Variant:
  • PCE-T 1200 - 12-Channel Datalogging Climate Meter with LCD Display
Regular price Now $1,319.00
Regular price BEFORE   $0.00 Sale price Now $1,319.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PCE-T 1200 Climate Meter, a versatile multichannel temperature datalogger that excels in precision and functionality Featuring a vibrant backlit display, this device is equipped to record data across 12 channels, with the capability to support SD cards of up to 16 GB It offers automatic temperature compensation (ATC) for enhanced accuracy, and allows you to transfer recorded data to a PC via USB for seamless analysis using Microsoft Excel.

You can easily customize the data logging intervals, ranging from just 1 second to a full hour, ensuring it meets your specific needs The generous 45" LCD screen conveniently displays measurements from up to seven channels simultaneously, while additional channels can be accessed with a simple button press Compatible with six types of thermocouples—Type K, Type J, Type T, Type E, Type R, and Type S—the PCE-T 1200 comes with two Type K sensors included.

Additional features include adjustable recording intervals, alarm settings for inputs, tracking of maximum and minimum values, an integrated calendar, and a hold function that freezes the current displayed values for easy reference This comprehensive tool is perfect for any serious temperature monitoring application.

Features and Benefits:

    •12-channel datalogging for temperature measurement in °C and °F.

    •Includes 2 Type K sensors of 1-meter length.

    •4.5" graphic LCD display with backlight.

    •Adjustable data recording timer interval.

    •Compatible with 6 different types of thermocouples.

    •High and low alarm for each input.

    •Indication of maximum and minimum values.

    •Accommodates up to 16 GB SD memory card for data saving.

    •Integrated calendar and automatic temperature compensation.

    •Hold function to retain displayed values.

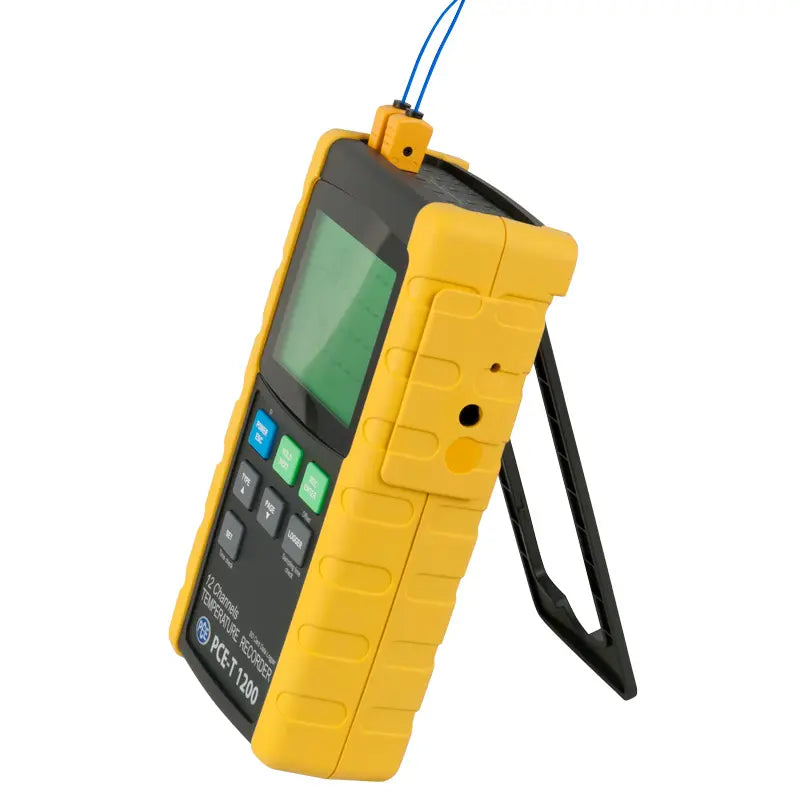

    •Integrated stand for convenience.

Specifications:

 Sensor type Various thermocouples (Type K, J, T, E, R, S)
 Resolution 0.1°C / 0.18°F
 Measurement range Type K -50.1 to 1300°C / -58.2 to 2372°F
 Accuracy Type K ± (0.4% + 1°C / 0.8°F)
 Measurement range Type J -50.1 to 1150°C / -58.2 to 2102°F
 Accuracy Type J ± (0.4% + 1°C / 0.8°F)
 Measurement range Type T -50.1 to 400°C / -58.2 to 752°F
 Accuracy Type T ± (0.4% + 1°C / 0.8°F)
 Measurement range Type E -50.1 to 900°C / -58.2 to 1652°F
 Accuracy Type E ± (0.4% + 1°C / 0.8°F)
 Measurement range Type R 0 to 1700°C / 32 to 3092°F
 Accuracy Type R ± (0.5% + 3°C / 7.4°F)
 Measurement range Type S 0 to 1500°C / 32 to 2732°F
 Accuracy Type S ± (0.5% + 3°C / 7.4°F)
 Power consumption (lights off / logging off) 7.5-mA
 Power consumption (lights off / logging on) 25-mA
 Dimensions 225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in
 Operation conditions 0°C to 50°C / 32°F to 122°F, 85% rH
