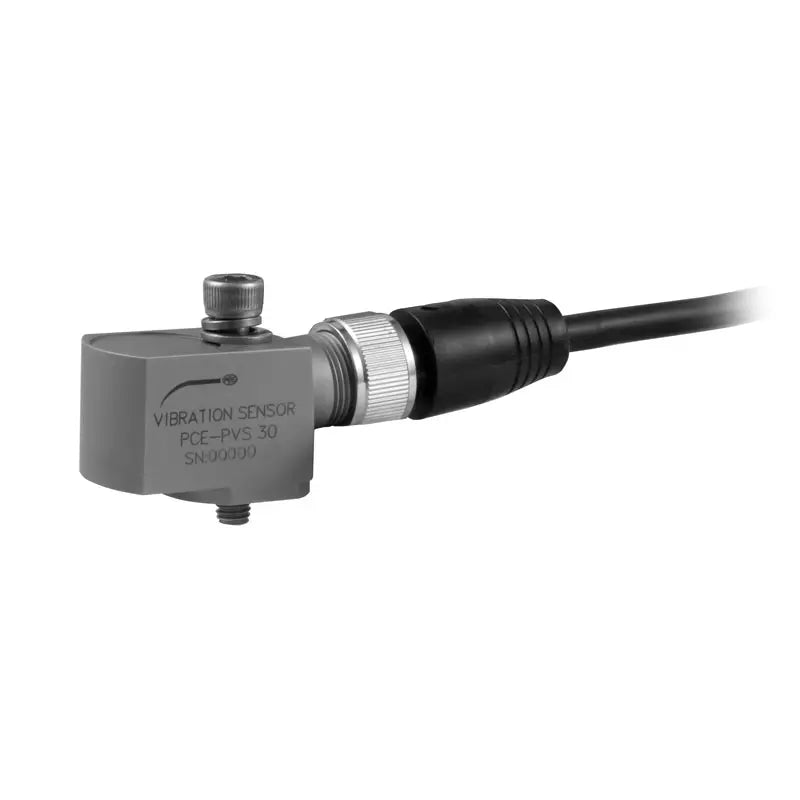

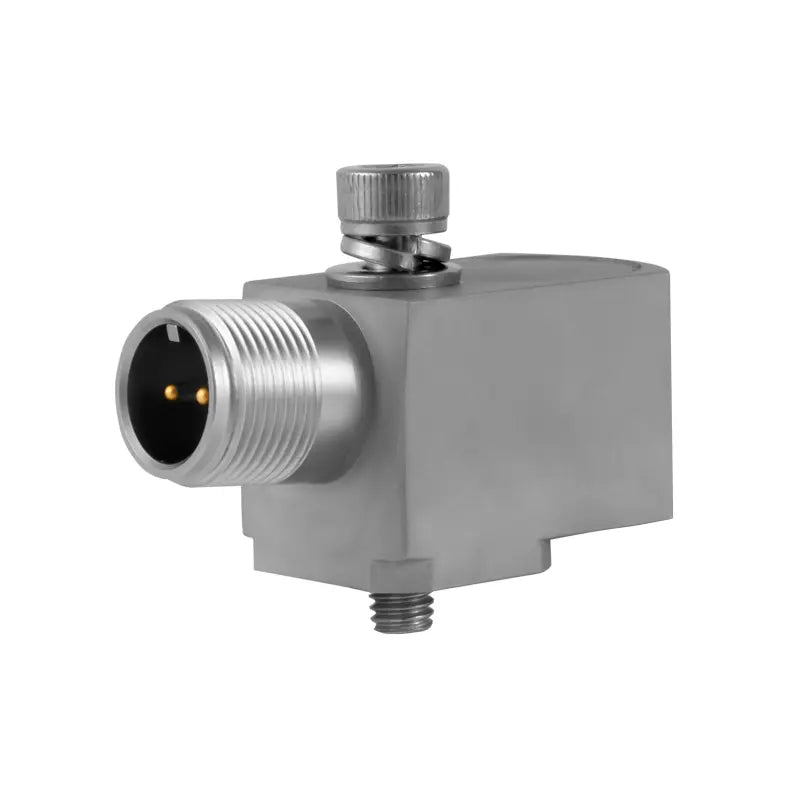

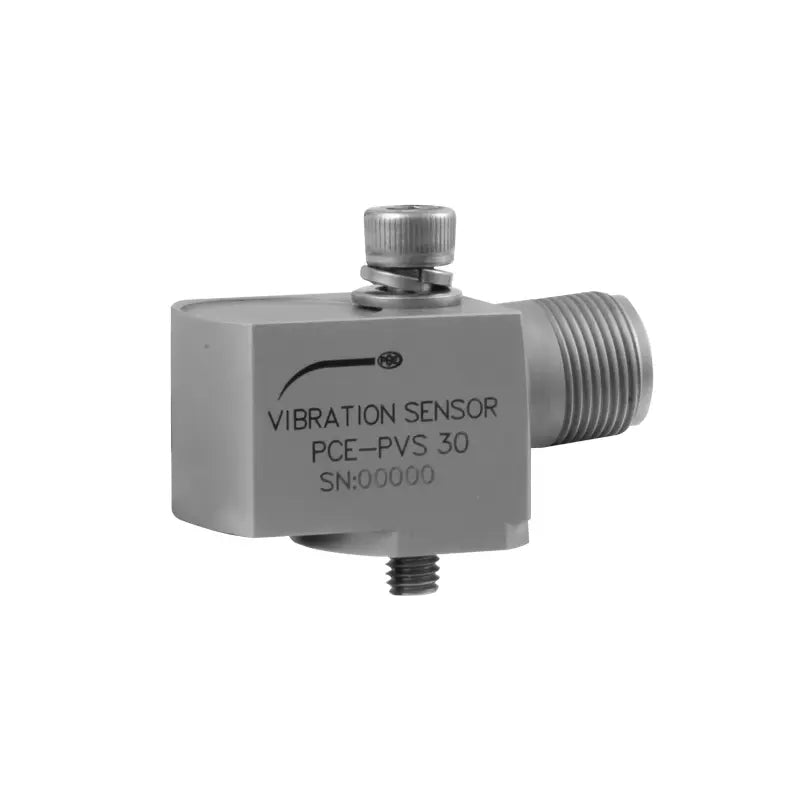

PCE-PVS 30 - Robust Vibration Sensor, 4-20 mA, ±12.7/±25.4 mm/s

SKU: SKU: PCE-PVS 30 Download PDF

Select a Variant:

PCE-PVS 30 - Robust Vibration Sensor, 4-20 mA, ±12.7/±25.4 mm/s

SET THE QTY:

Now $645.00 Web pricing policy

~~BEFORE $0.00~~ Now $645.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Monitor vibration with precision using the Acceleration Sensor, perfect for continuous tracking of vibration speed With an output range of 4 to 20 mA, it seamlessly connects through a MIL-C-5015 interface and operates over a frequency bandwidth of 3 to 1500 Hz This versatile sensor offers vibration speed measurements of ± 127 mm/s or ± 254 mm/s, providing reliable data output as a 4 to 20 mA process current.

Suitable for various installations—both horizontal and vertical—it is designed to withstand demanding conditions and operates on 12 to 24 V DC power supply.

Features and Benefits:

•Horizontal or vertical installation options.

•4 ... 20 mA process signal output.

•MIL-C-5015 connector for reliable connection.

•M6 process connection for easy mounting.

•Multiple measuring ranges for versatility.

•Robust construction for durability.

Specifications:

Measuring range	± 12.7 mm / s
Frequency range	3 ... 1500 Hz
Output	2 conductors 4 ... 20 mA
Sensitivity	<5%
Shock limit	± 1000 g
Power supply	12 ... 24 V DC in current loop
Isolation from ground	> 108 ohms
Output impedance	<100 ohms
Design	horizontal connection
Electrical connections	Pin A: + 4 ... 20 mA, Pin B: - 4 ... 20 mA
Connection type	2 pin MIL-C-5015
Operating temperature	-40 ... 85 ° C
Dimensions	Ø22 x51
Mounting thread	M6
