PCE-PHD 1-O2 - Portable Dissolved Oxygen Meter for Water Quality Testing

PCE-PHD 1-O2 - Portable Dissolved Oxygen Meter for Water Quality Testing

SKU: SKU: PCE-PHD 1-O2   Download PDF

Select a Variant:
  • PCE-PHD 1-O2 - Portable Dissolved Oxygen Meter for Water Quality Testing
Qty:
Regular price Now $620.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $620.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

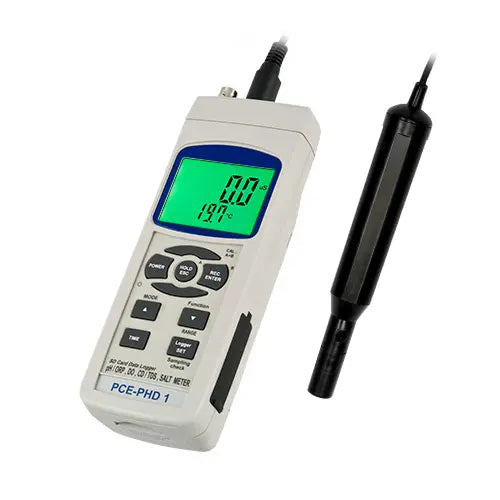

Introducing the PCE-PHD 1-O2 Dissolved Oxygen Meter, a versatile and portable device designed for thorough water quality assessments This reliable meter offers impressive accuracy at a budget-friendly price, making it suitable for both laboratory use and on-site evaluations It measures several parameters including pH, redox potential, conductivity, salinity, dissolved oxygen levels, and water temperature.

With built-in temperature compensation, you can trust its precision even when temperature fluctuates The device comes equipped with an oxygen electrode, and you can purchase additional electrodes separately to enhance its functionality Optional accessories like a mains adapter for direct power and a software kit with an RS-232 cable are available to expand its capabilities further The PCE-PHD 1-O2 also functions as a real-time data logger, allowing you to store measurements directly onto the included SD card in a Microsoft Excel format or transfer data to your PC via the RS-232 port, eliminating the need for extra software for data analysis.

Keep your water quality testing efficient and straightforward with this essential tool.

Features and Benefits:

    •Real-time data logger.

    •Compatibility with SD cards up to 16 GB.

    •Stored data is saved directly as an Excel file on the SD card (no software needed for evaluation).

    •RS-232 interface for online data transmission.

    •High precision.

    •Low battery indication.

    •Large LC display.

    •Adjustable measuring rate.

    •Easy to use.

    •Robust housing.

    •Automatic calibration.

    •Manual or automatic temperature compensation.

    •BNC connector.

    •Suitable for laboratory and suburban measurement.

    •Electrode for oxygen included.

    •Laboratory testing of water quality.

    •In situ inspection of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.

Specifications:

 Oxygen Measurement range 0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 °C
 Resolution 0.1 mg/l, 0.1 %, 0.1 °C
 Accuracy ± 0.4 mg/l, ± 0.7 %, ± 0.8 °C
 Calibration in the air
 Temperature compensation Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF)
 Measurement rate 1 second up to 8 hrs 59 mins 59 secs
 Display LCD 52 x 38 mm / 2 x 1.5"
 Memory SD card up to 16 GB (2 GB card included)
 Interface RS-232
 Software Optional
 Power supply 6 x 1.5 V AA batteries (optional power adapter)
 Operating conditions 0 ... +50 ºC / < 85 % RH
 Dimensions 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
