Description:

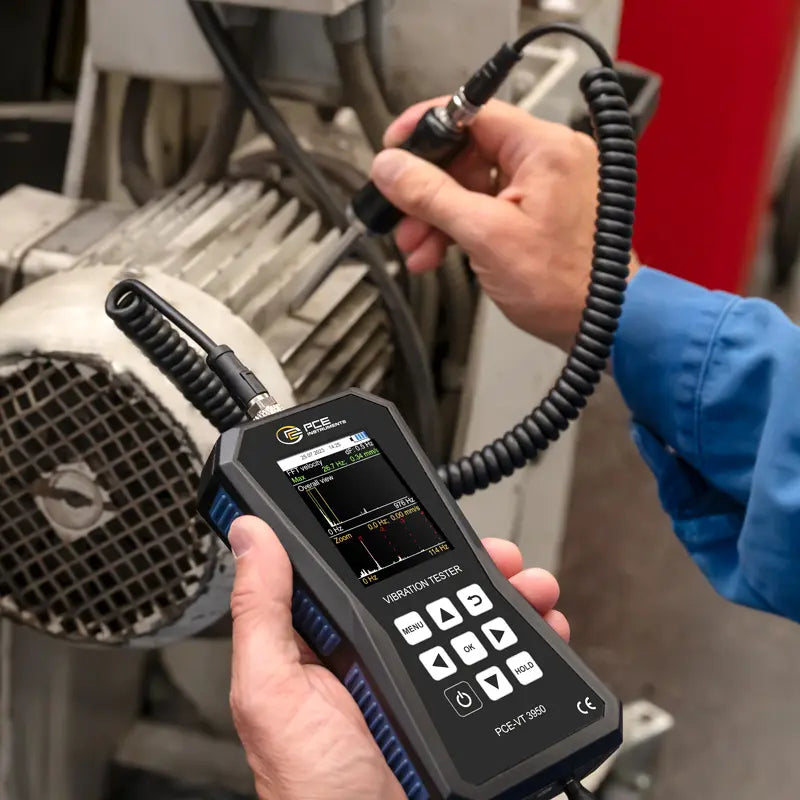

Monitor your machinery with precision using this advanced accelerometer, specifically crafted for tracking vibration in components, machines, and plants The device boasts an external vibration sensor that can accurately assess vibration displacement up to 39 mm, velocity reaching 3999 mm/s, and acceleration up to 3999 m/s² Featuring multiple measurement parameters like RMS, peak, peak-to-peak, and crest factor, it simplifies the evaluation process by adhering to ISO 10816-3 standards, providing a clear good/bad indication of vibration status—perfect for maintenance and repair needs.

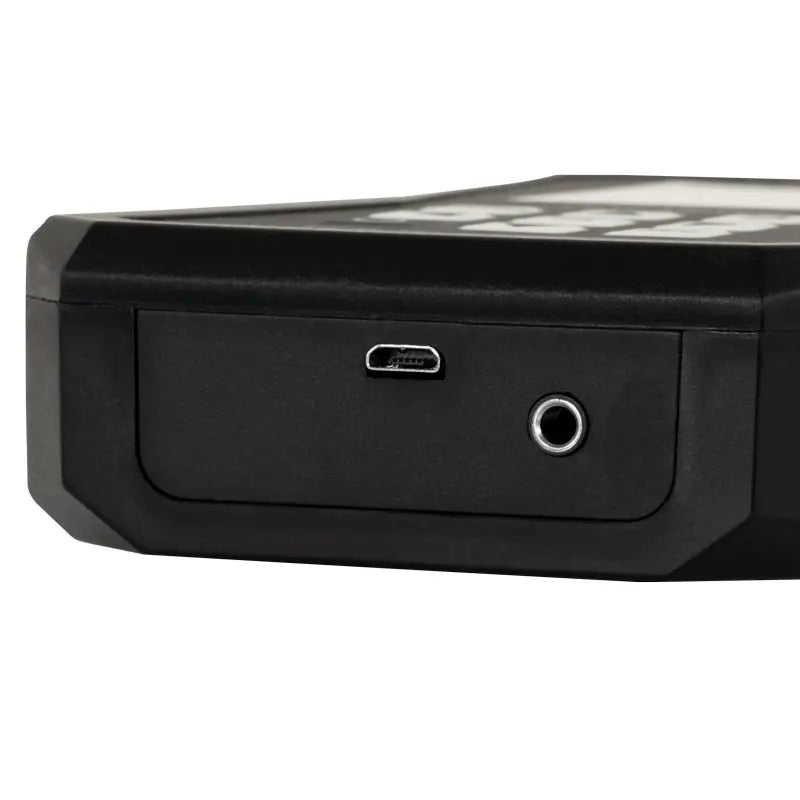

Powered by a robust 2500 mAh LiPo battery, this accelerometer offers an impressive runtime of 20 hours and charges conveniently through a micro-USB port You can effortlessly store your data directly on the unit, choosing between manual or automatic saving options Additionally, the data can be analyzed and exported effortlessly on your PC using the provided software, making it a versatile tool for professionals.
Features and Benefits:
•Data logger function.
•Automatic ISO 10816-3 evaluation.
•Measuring range up to 399.9 m/s² / 15744 in/s².
•Hand-held device for mobile vibration measurement.
•Rechargeable battery.
•2.8" LC display.

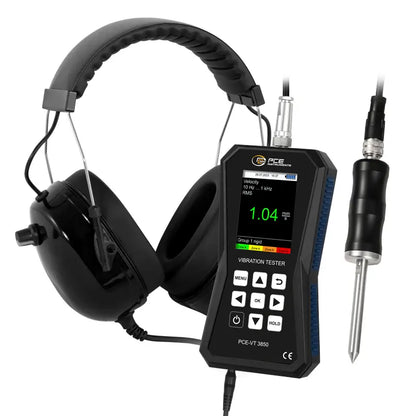

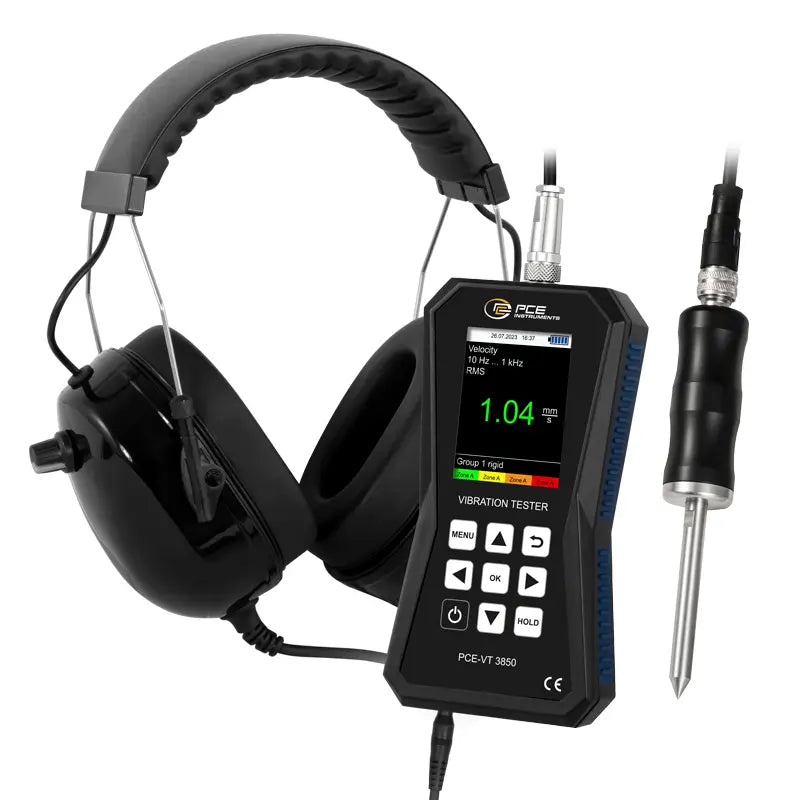

•Includes headset.

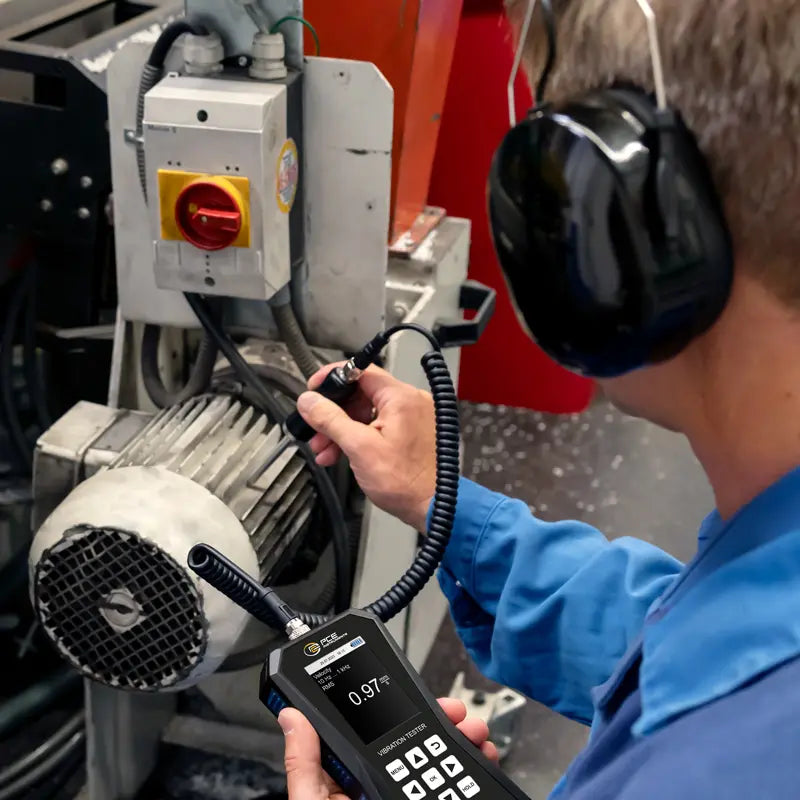

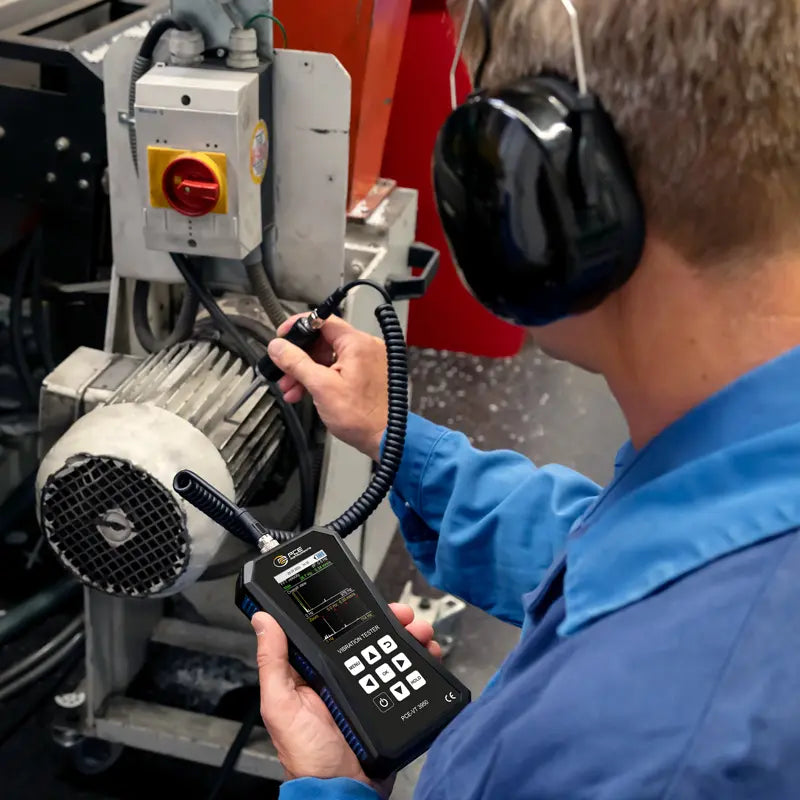

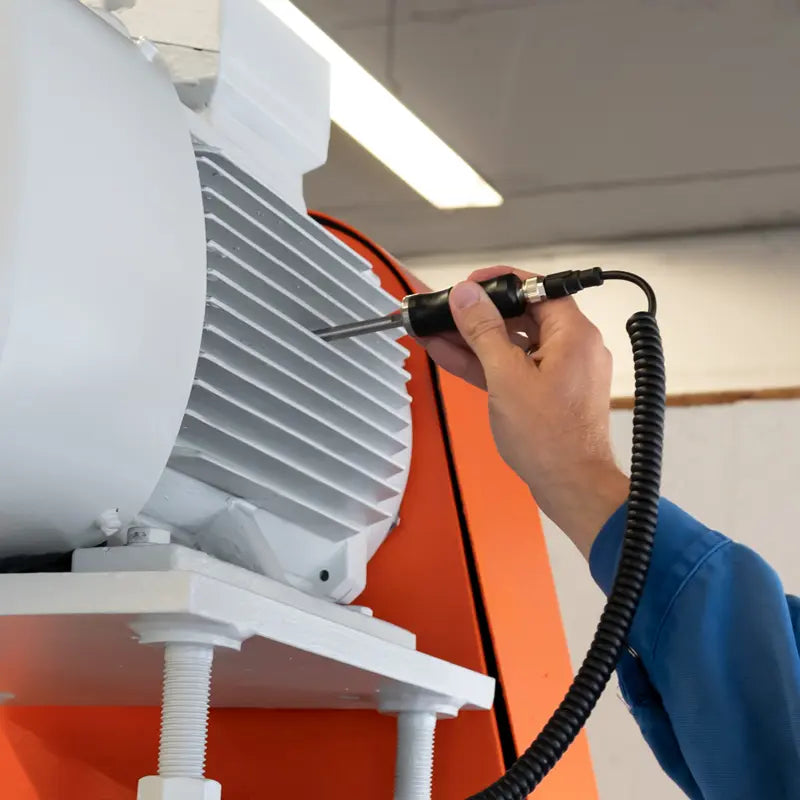

•Checking and monitoring vibrating parts and machines.
•Repair and maintenance work on machines.
Specifications:
| Measuring range Acceleration | 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² |
| Resolution Acceleration | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz Acceleration | ±2 % |
| Frequency range Acceleration | 10 Hz ... 10 kHz |
| Measuring range Velocity | 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s |
| Resolution Velocity | 0.1 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz Velocity | ±2 % |
| Frequency range Velocity | 10 Hz ... 1 kHz |
| Measuring range Rotational Speed | 600 ... 50000 RPM |
| FFT acceleration | 10 Hz ... 8 kHz |
| FFT velocity | 10 Hz… 1 kHz |
| Accuracy @ 160 Hz | ± 2% |
| Number of FFT lines | 2048 |
| Route measurement | 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each |
| Measuring range Displacement | 0.000 ... 3.9 mm / 0.000 - 0.154 in |
| Resolution Displacement | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz Displacement | ±2 % |
| Frequency range Displacement | 10 Hz ... 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak, Crest factor |
| Manual memory | 99 folders with 50 measured values each |
| Data logger | Various start/stop triggers |
| Measurement interval | between 1 s … 12 h |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Power supply internal | LiPo battery (3.7 V, 2500 mAh) |
| Power supply external | USB 5 VDC, 500 mA |
| Headset connection | 3.5 mm jack plug |
| Operating time | ca. 15 … 20 h (depending on display brightness) |
| Operating and storage conditions temperature | -20 ... +65 °C / -4 ... 149 °F |
| Operating and storage conditions humidity | 10% RH ... 95% RH, non-condensing |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Weight | 239 g / 8.4 oz |

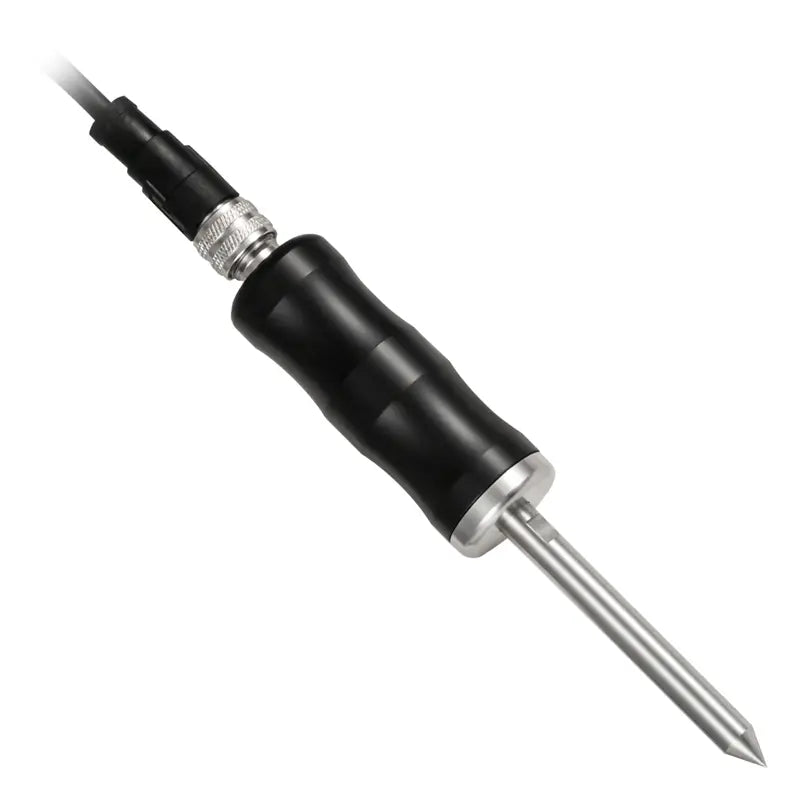

| Technical Data Vibration Sensor Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 °C … +150 °C / -67 °F ... 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions Vibration Sensor | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight (without cable) | 52 g / 1.8 oz |
