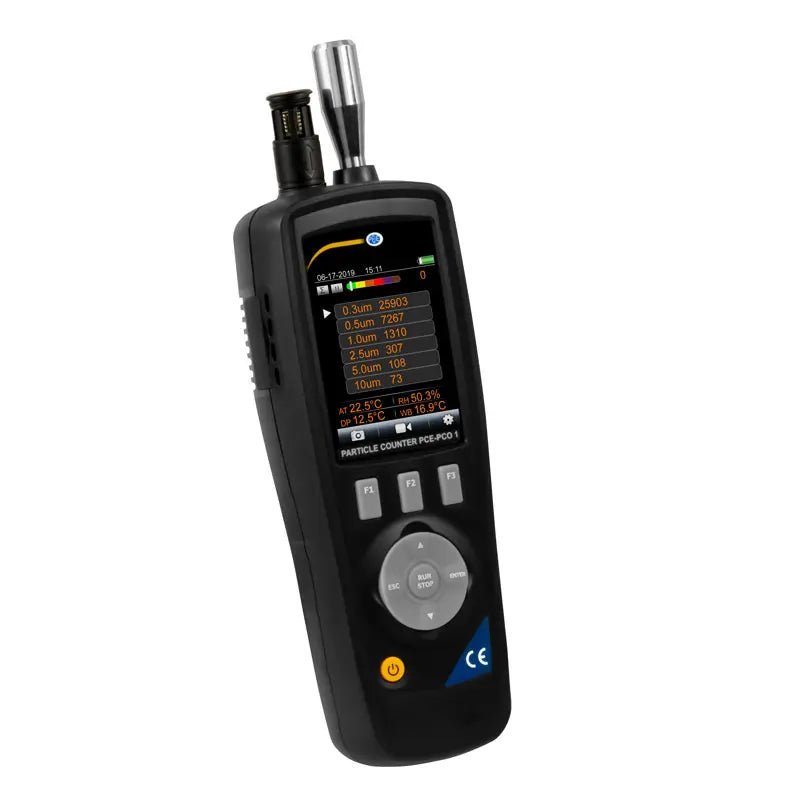

PCE-PCO 1 - Handheld Laser Particle Counter for Air Quality Monitoring

PCE-PCO 1 - Handheld Laser Particle Counter for Air Quality Monitoring

SKU: SKU: PCE-PCO 1   Download PDF

Select a Variant:
  • PCE-PCO 1 - Handheld Laser Particle Counter for Air Quality Monitoring
Qty:
Regular price Now $1,121.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,121.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience efficient air quality monitoring with the PCE-PCO 1 Air Sampler, a portable laser particle counter specifically engineered for detecting particulate concentrations in clean rooms and assessing indoor air quality This innovative device functions as both an air sampler and a dust measurement tool, essential for environments where air purity is crucial It effectively measures airborne particles between 0.

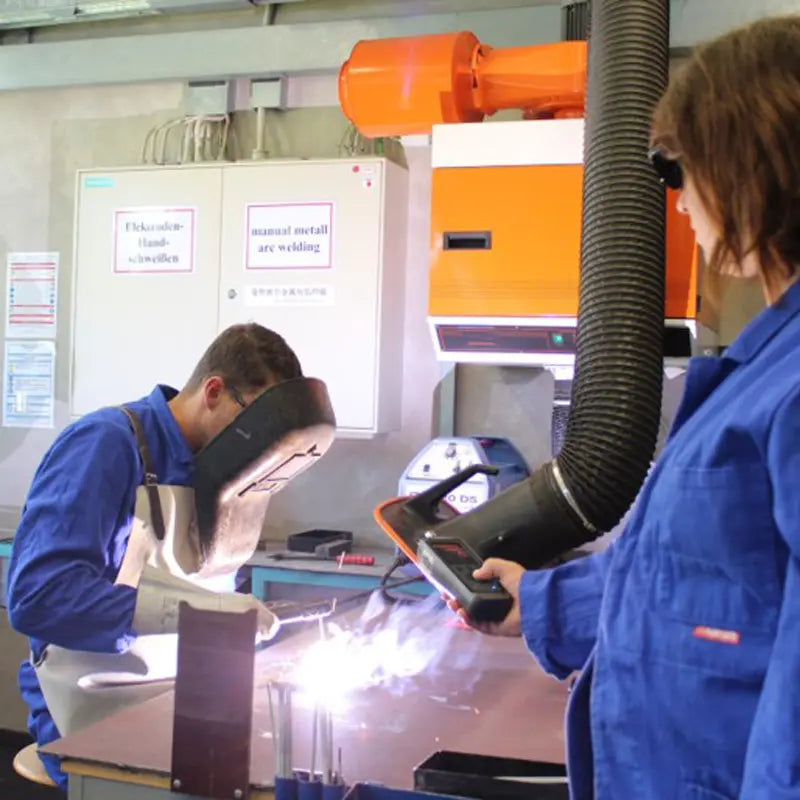

1 and 10 micron, including those typically found in cigarette smoke, making it ideal for identifying harmful pollutants Furthermore, it can detect hazardous dust from various sources such as food products, tobacco, plastics, and metals, serving a wide range of industries like agriculture, pharmaceuticals, and recycling.

Features and Benefits:

    •Measures particle sizes of 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, and 10 µm.

    •Features robust 80 MB internal memory with microSD card slot for expansion.

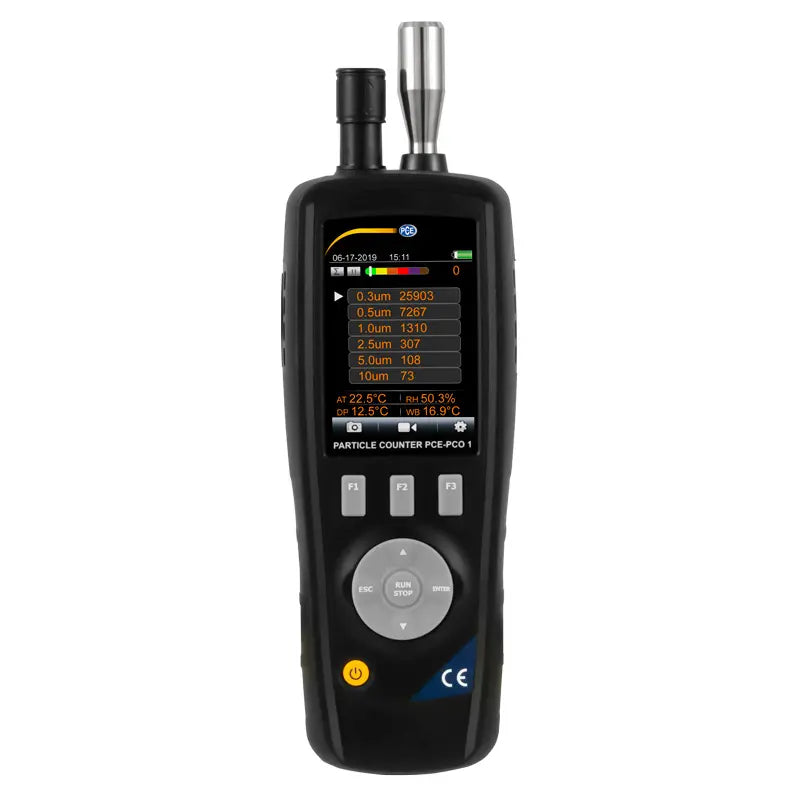

    •Equipped with a large, full-color LCD display that has a backlight.

    •Integrates a built-in camera for recording images and videos.

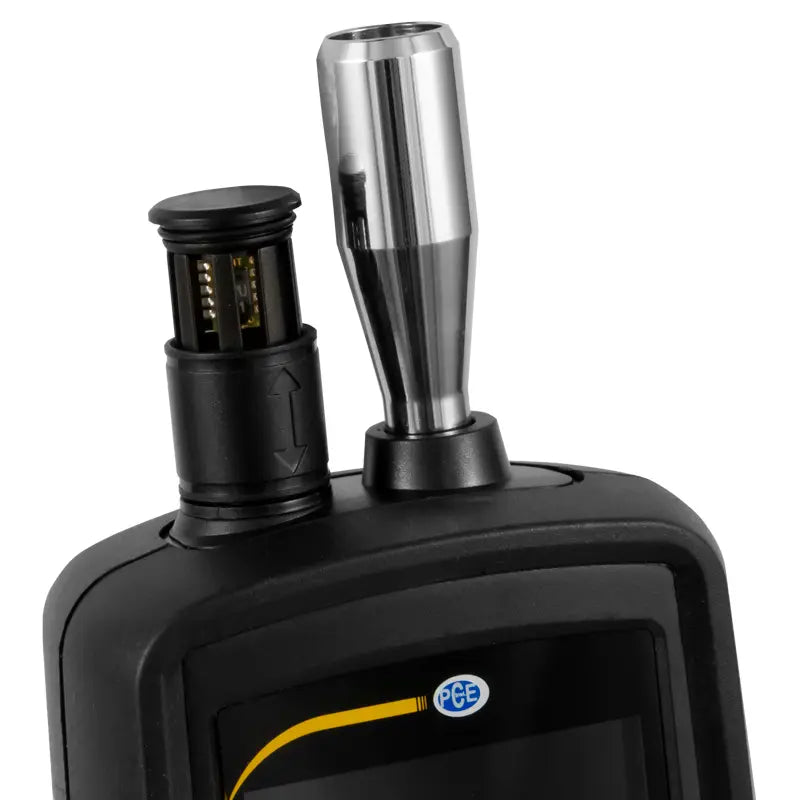

    •Contains sensors for measuring air temperature, dew point, and relative humidity.

    •Displays temperature readings in both degrees Celsius and Fahrenheit.

    •Monitoring clean rooms.

    •Assessing indoor air quality.

    •Tracking exposure to harmful air pollutants.

    •Measuring airborne dust concentrations.

Specifications:

 Environmental conditions 0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH (non-condensing)
 LCD display 2.8 " / 320 x 240 pixels, back-lit, color
 Rechargeable battery 7.4 V, 1200 mAh (Li-Polymer), operating time appr. 4 hours
 Dimensions 240 x 75 x 55 mm / 9.45 x 2.95 x 2.17"
 Memory Internal: 80 MB, External: Micro SD card up to 8 GB (optional)
 Measurable particle sizes 0.3 µm / 0.5 µm / 1.0 µm / 2.5 µm / 5.0 µm / 10 µm
 Flow rate 0.1 cfm (2.83 L/min)
 Coincidence error <5% at 2,000,000 particles per cubic foot
 Counting efficiency 50 % at particle size 0.3 µm, 100 % at particle size > 0.45 µm (per ISO 21501)
 Data storage 5000 records
 Counting modes Cumulative, differential, concentration
 Air temperature measuring range 0 ... +50 °C / +32 ... +122 °F
 Air temperature accuracy ±0.5 °C with +10 ... +40 °C / +50 ... +104 °F, Otherwise ± 1 °C
 Dew point measuring range 0 ... +50 °C / +32 ... +122 °F
 Dew point accuracy ±0.5 °C with +10 ... +40 °C / +50 ... +104 °F, Otherwise ± 1 °C
 Relative humidity measuring range 0 ... 100 % RH
 Relative humidity accuracy ±3 % RH with 40 ... 60 % RH, ±3.5 % RH with 20 ... 40 % and 60 ... 80 % RH, ±5 % RH with 0 ... 20 % and 80 ... 100 % RH
