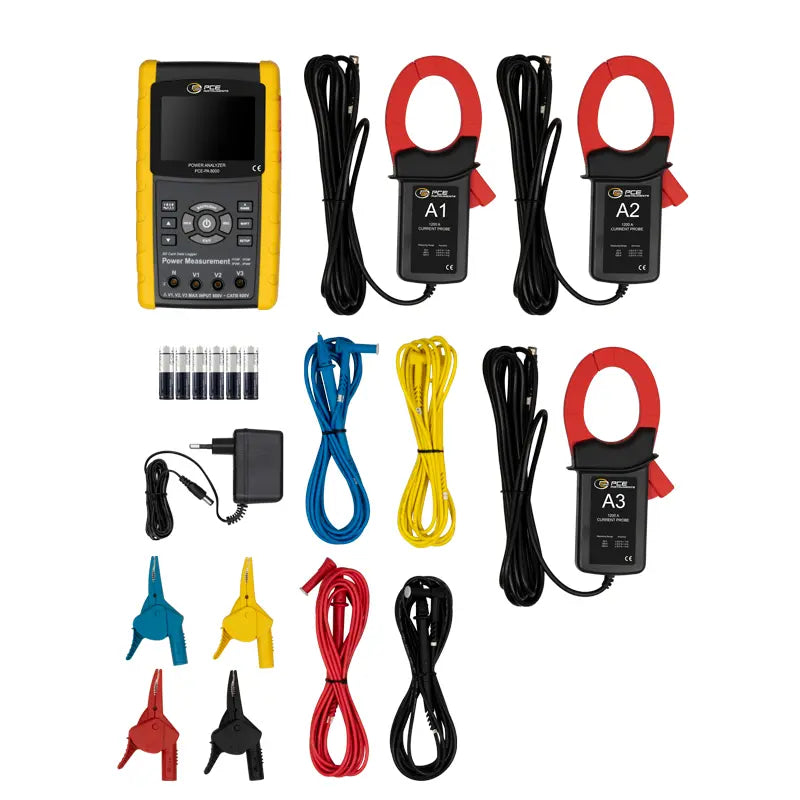

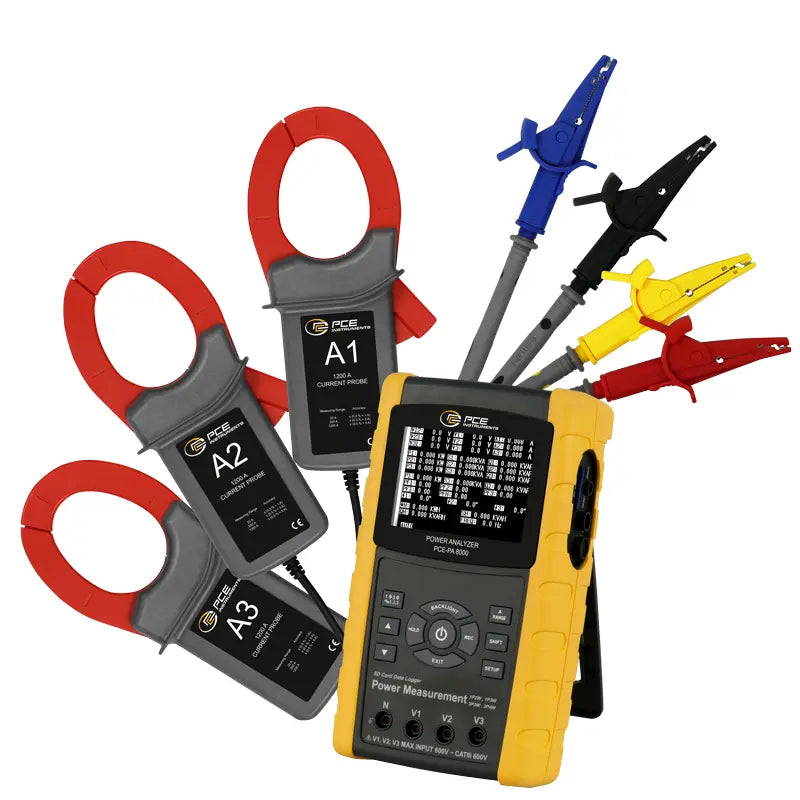

PCE-PA 8000 - Clamp Meter with SD Card Logging & 3.7" Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the PCE-PA 8000 Clamp Meter, an advanced tool for real-time measurement and data logging directly onto an SD card Equipped with a built-in timer and calendar, this device effectively records active, apparent, and reactive power, making it suitable for both single-phase and three-phase circuitry With the capability for extended measurement sessions, the recorded data is conveniently stored in xls format on the included SD card for straightforward analysis on your computer.

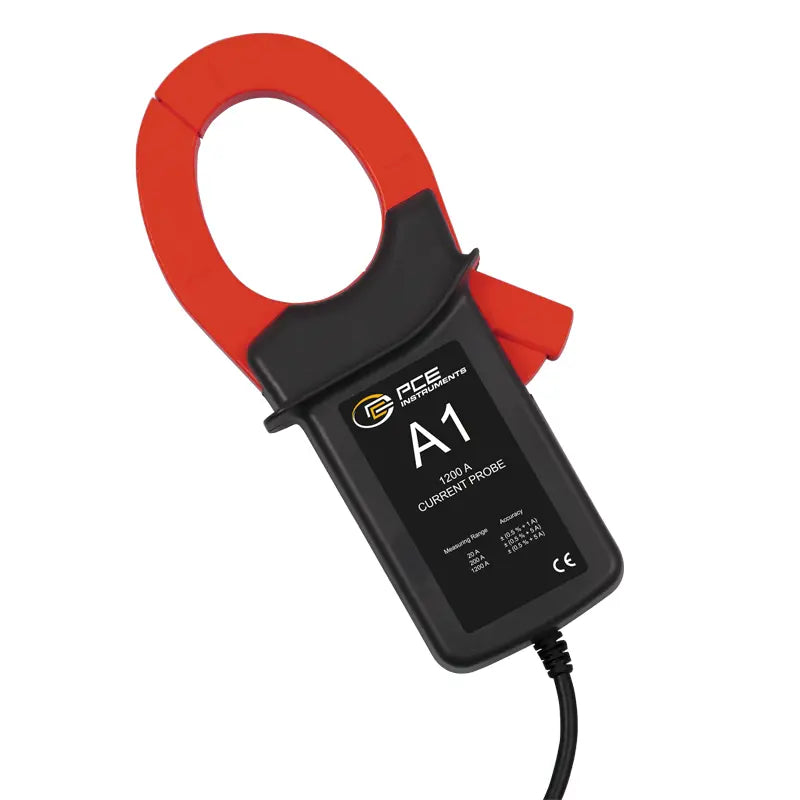

You can customize the measurement frequency, ranging from 2 seconds up to 7200 seconds Additionally, this versatile meter calculates both power factor and phase angle Its clamps accommodate cables with a diameter of up to 50 mm Featuring a 37-inch display, it allows for easy monitoring of current, voltage, and power values, making it an excellent fit for assessing power supply networks.

Features and Benefits:

•Analyzes 3-phase networks with various conductor configurations.

•Measures real values of current and voltage.

•Measures active, apparent, and reactive power.

•Calculates Power Factor and phase angle.

•Supports voltage measurement up to 600 V.

•Supports current measurement up to 1200 A.

•Complies with IEC 1010 and CAT III 600 V standards.

•Integrated timer and calendar for data recording.

•Records measurement values on SD card.

•Exports data in Excel format for analysis.

•Can transfer data to a PC via data cable.

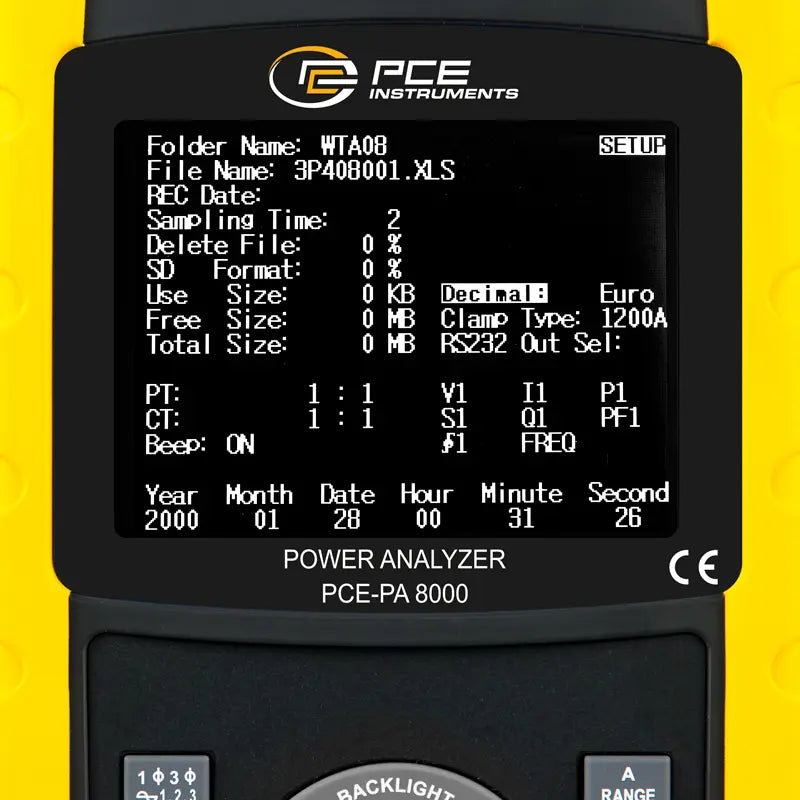

•Features a large 3.7 in LCD display.

Specifications:
