Description:

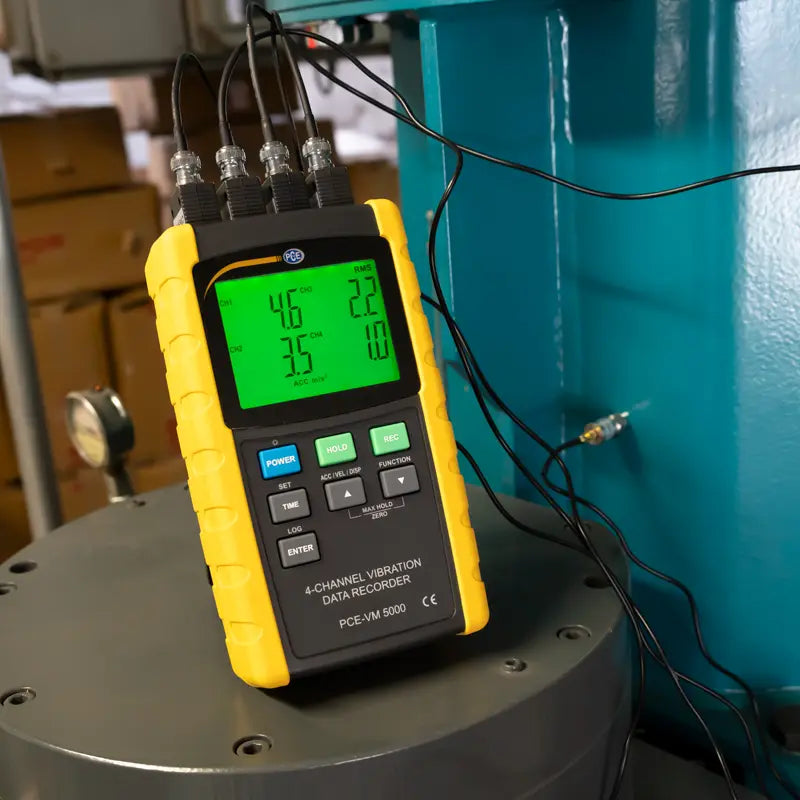

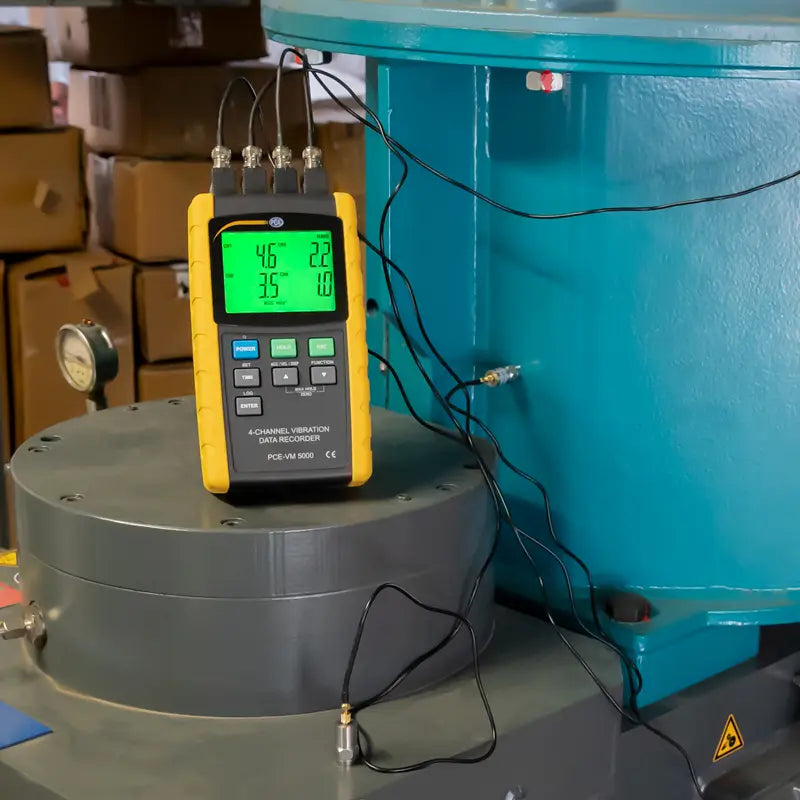

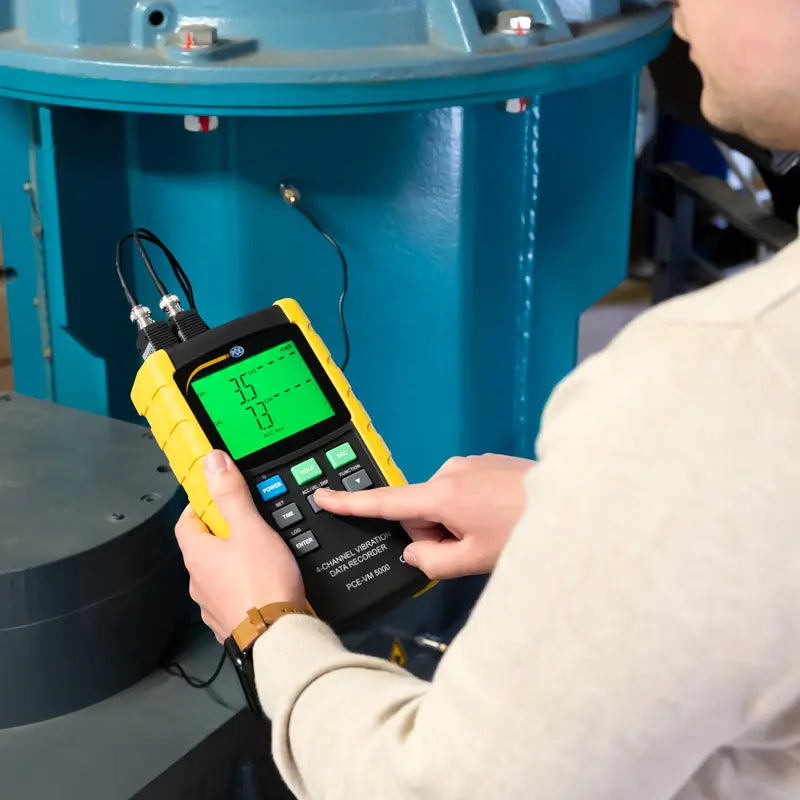

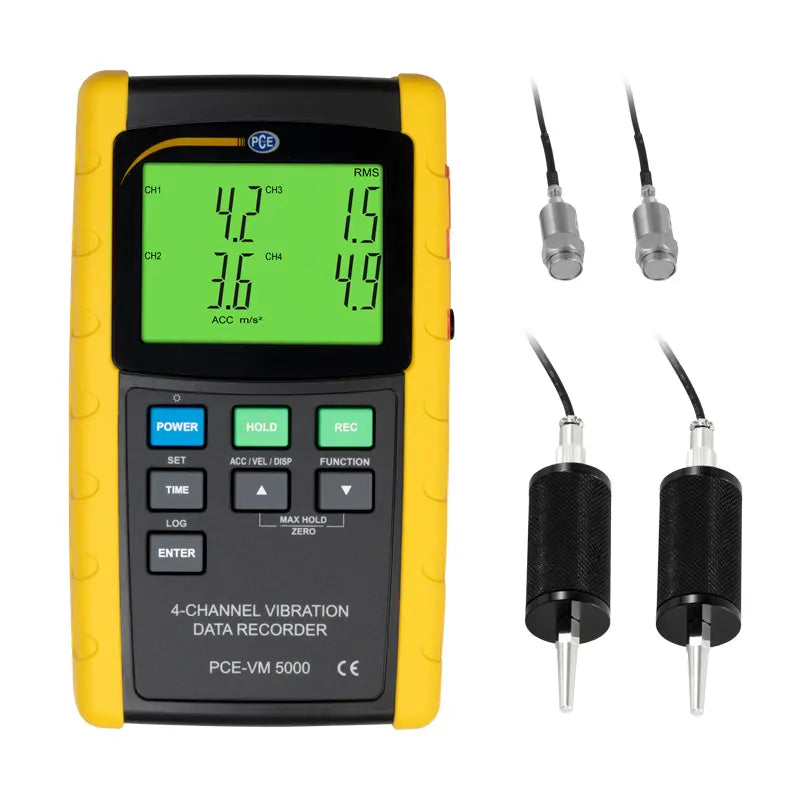

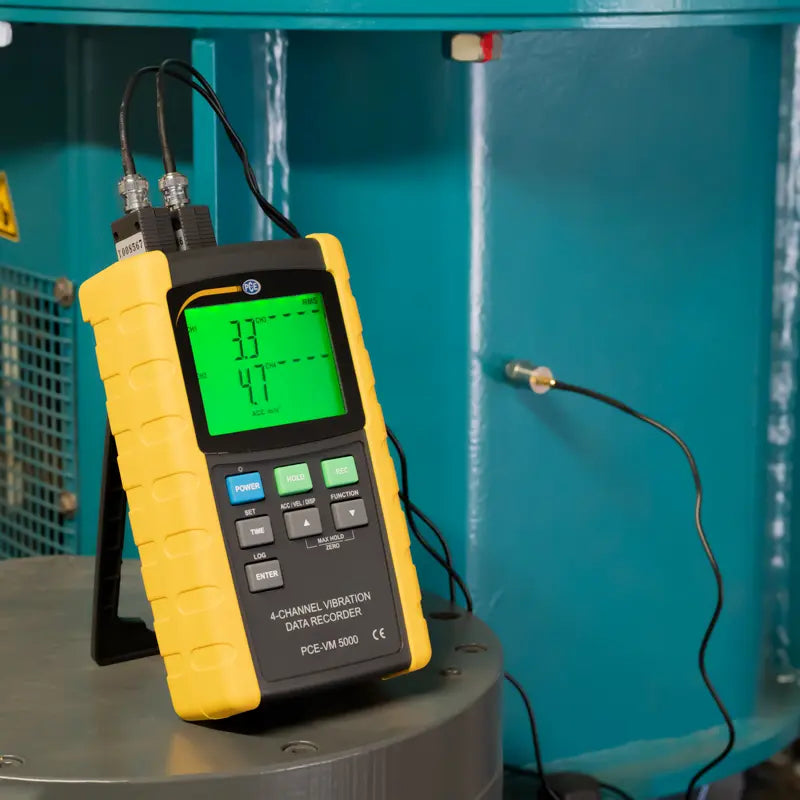

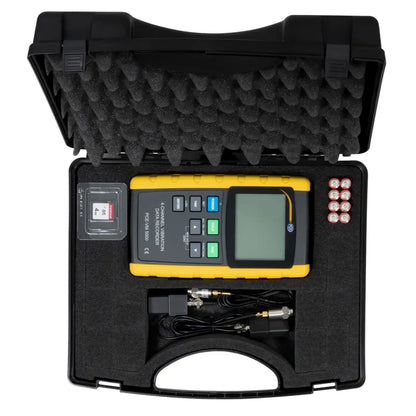

Introducing the PCE-VM 5000, a versatile tool for monitoring acceleration, speed, and displacement in vibration measurements This advanced 4-channel vibration meter allows for real-time reading from remote sensors, providing simultaneous vibration analysis Crafted for accurate performance, the device features a robust design ensuring durability for long-term use The large illuminated LCD screen makes it easy to view measurements across all four channels.

With a frequency range of 10 Hz to 1 KHz, it accommodates various vibration assessments Additionally, you can conveniently save data onto an SD memory card for future analysis on your computer, and the option for multiple unit measurements adds to its user-friendly functionality.

Features and Benefits:

•Measures acceleration, speed, and displacement.

•Long-lasting battery.

•Precise measurement capabilities.

•Large LCD display with background lights.

•Variety of measurement units available.

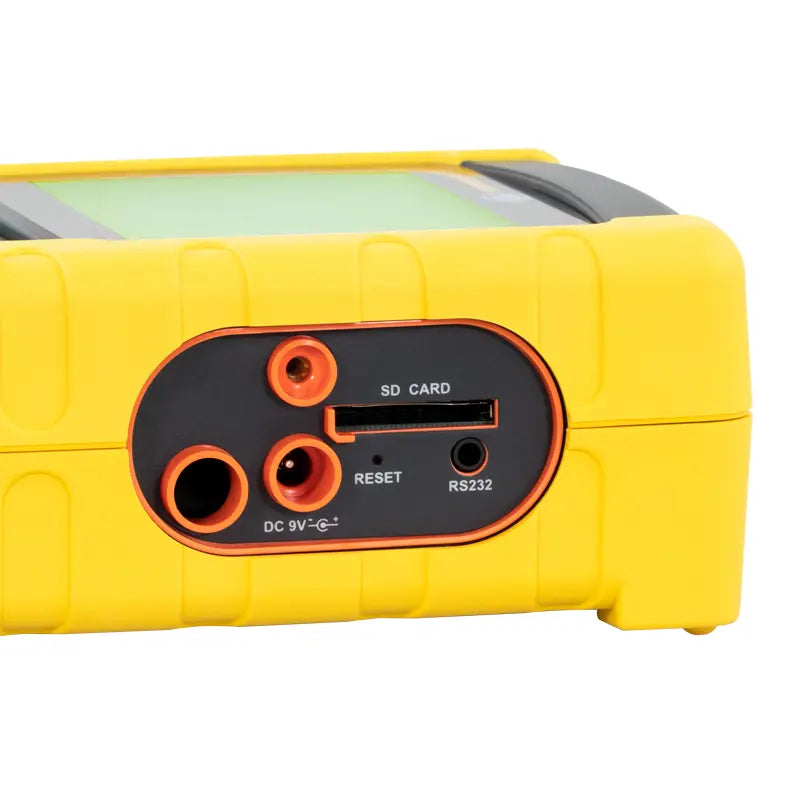

•Data storage option on SD card.

•Wide frequency range from 10 Hz to 1 KHz.

•Data evaluation possible on PC using Excel.

Specifications:

Acceleration Unit (m/s²)	Range: 0.5 ... 199.9 m/s², Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Acceleration Unit (g)	Range: 0.05 ... 20.39 g, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Acceleration Unit (ft/s²)	Range: 2 ... 656 ft/s², Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Speed Unit (mm/s)	Range: 0.5 ... 199.9 mm/s, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Speed Unit (cm/s)	Range: 0.05 ... 19.99 cm/s, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Speed Unit (inch/s)	Range: 0.02 ... 7.89 inch/s, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Expansion Unit (mm)	Range: 1.999 mm, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Expansion Unit (inch)	Range: 0.078 inch, Accuracy: ± (5 % rdg + 5 d) @ 80 and 160 Hz
Display Dimensions	82 x 61 mm / 3.22 in x 2.4 in LCD with background light
Number of Channels	4 input channels
Measurement Types	Speed, acceleration, expansion
Frequency Range	10 Hz ... 1 kHz
Operating Temperature	0 ... +50 °C / 32 ... 122 °F
Operating Humidity	85 % r.H. max.
Power Supply	8 x 1.5 V AA batteries or 9 V power adapter
Weight of Meter	515 g / 1.1 lbs
Weight of Probe	99 g / 0.2 lbs
Dimensions of Main Unit	203 x 76 x 38 mm / 8.0 x 3.0 x 1.5 in

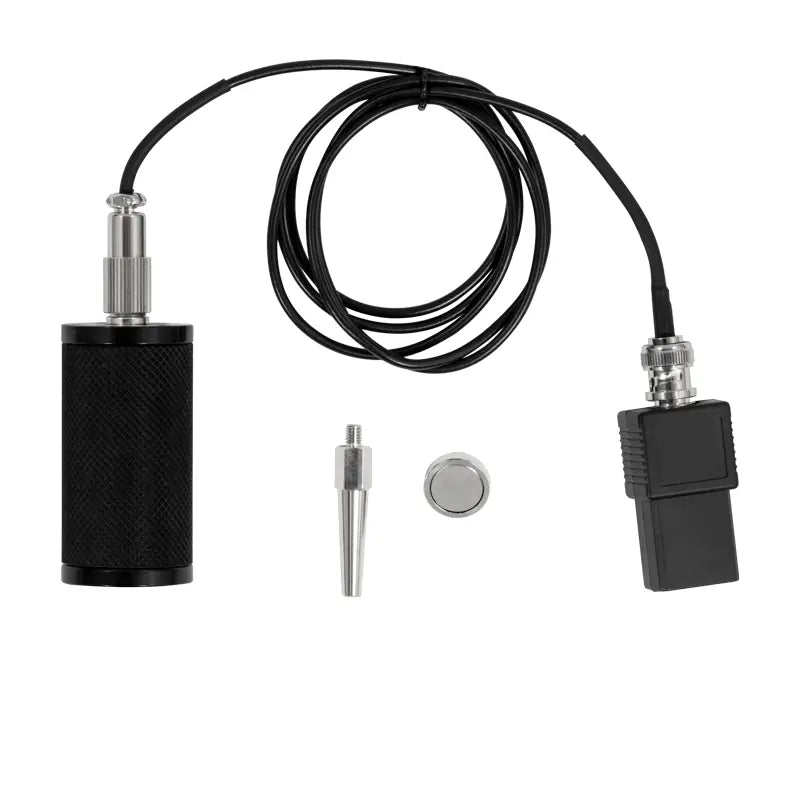

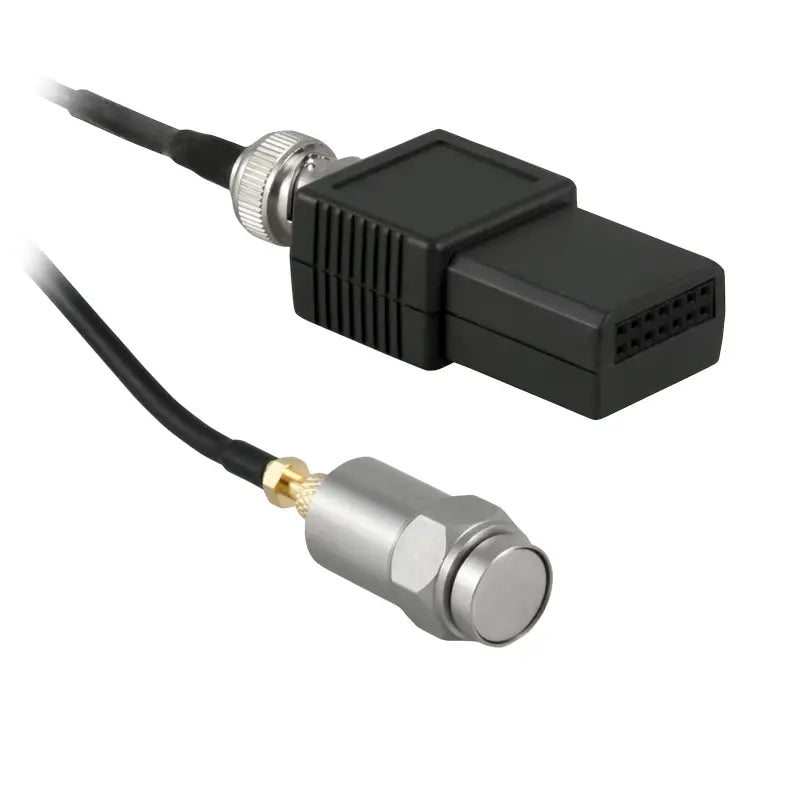

Dimensions of Probe	16 x 37 mm / 0.6 in x 1.5 in diameter
Cable Length	1.2 m / 3.9 ft
