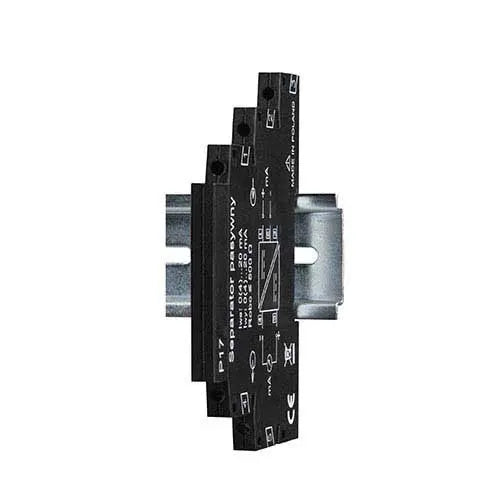

PCE-P17I - 6mm Isolating Transformer for 0-20 mA Signal Isolation

PCE-P17I - 6mm Isolating Transformer for 0-20 mA Signal Isolation

SKU: PCE-P17I

Select a Variant:
  • PCE-P17I - 6mm Isolating Transformer for 0-20 mA Signal Isolation
Qty:
Now $92.00   Web pricing policy
BEFORE   $0.00 Now $92.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Reviews
Product Information

Description:

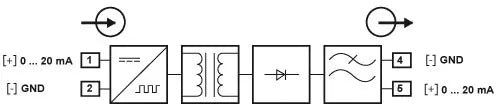

Introducing the PCE-P17I isolating transformer, engineered for effective galvanic isolation of signals ranging from 0 to 20 mA Boasting a slim profile of just 6 mm in width, this device is ideal for rail mounting applications It plays a vital role in eliminating measurement inaccuracies caused by signal interference, especially when transducers or transmitters do not have an isolating transformer This transformer optimally supports both power signals from the PCE-P18, ensuring reliable performance and integrity in your electrical setups.

Features and Benefits:

    •Galvanic isolation of 0 to 20 mA signals.

    •Power supply via current loop.

    •Low installation width.

    •Mounting on DIN rail.

    •Filters out high frequency noise.

    •Simple installation.

Specifications:

 Input signal 0 ... 10 V
 Reaction stream 150 uA
 Max. input electricity 40 mA
 Max. input Voltage 30 V DC
 Output signal 0 ... 20 mA (4 ... 20 mA)
 Load (RLOAD) 0 Ω ... 100 Ω (max. 500 Ω)
 Conductor cross-section 0.2 mm² ... 2.5 mm² (AWG24-12)
 Mounting width 6.2 mm
 Power 19 ... 30 V DC
 Ambient temperature -20 °C ... +65 °C
 Ambient humidity <95% non-condensing
