Description:

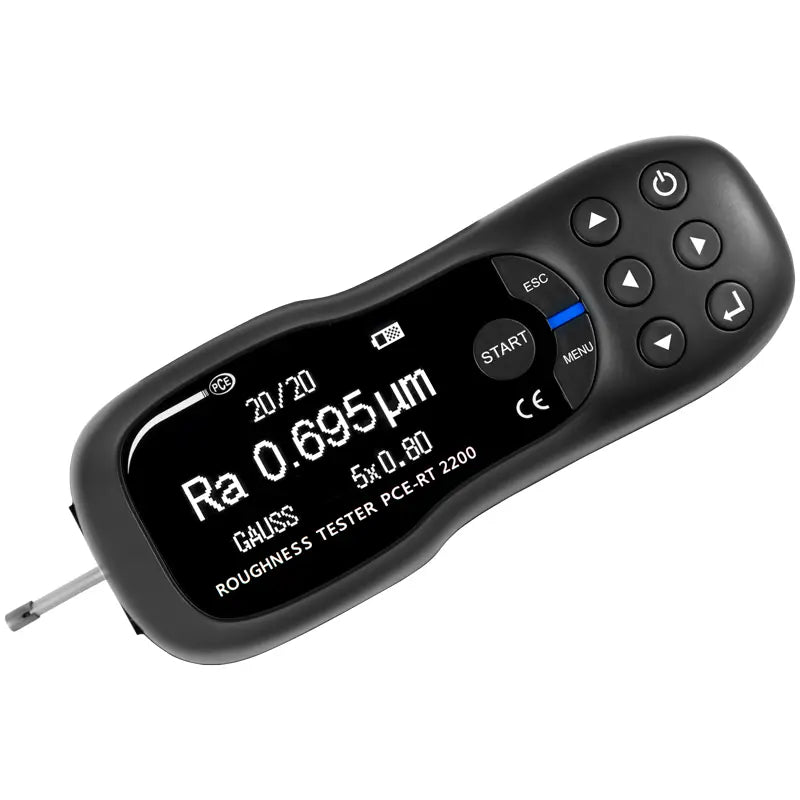

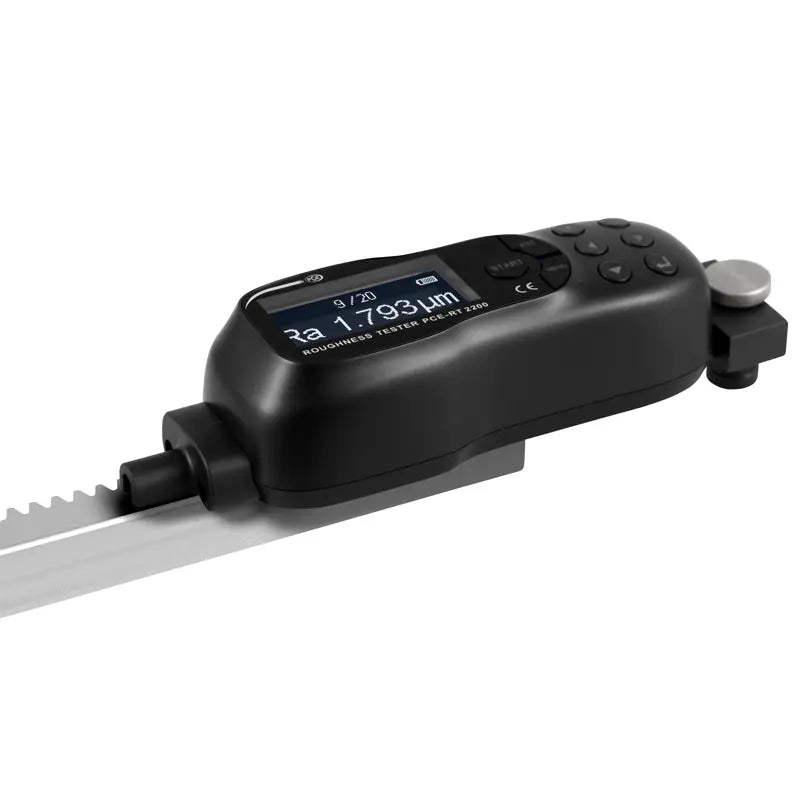

Introducing the Profilometer PCE-RT 2200, equipped with a vibrant graphic OLED display and powered by a rechargeable battery This device can store up to 20 different measurement processes and offers a comprehensive range of parameters for accurate measurement Its portable design integrates a DSP chip that enables quick control and efficient data processing while optimizing energy consumption The profilometer supports numerous roughness parameters such as Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, among others.

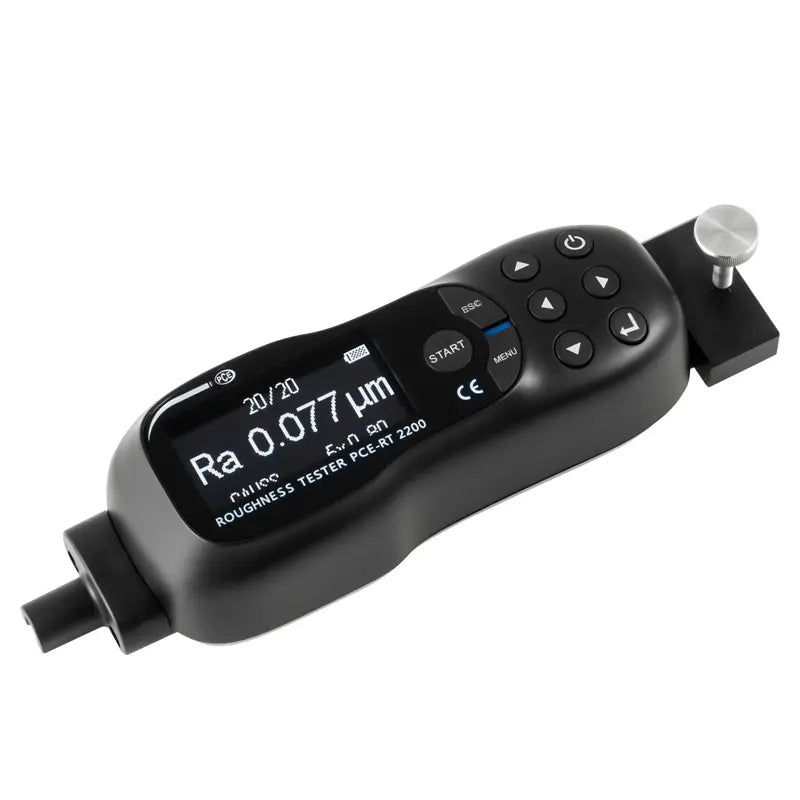

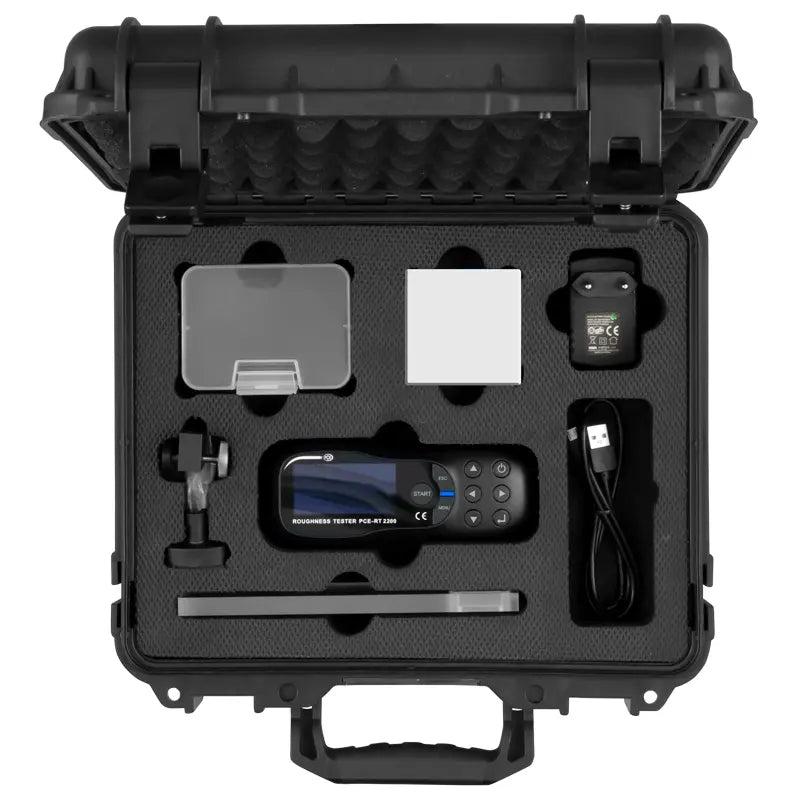

Results can be viewed directly on the OLED screen or easily transferred to a PC using a micro-USB connection Plus, a positioning adapter is included, making it convenient for measuring small test samples.

Features and Benefits:

    •Selection of 21 parameters.

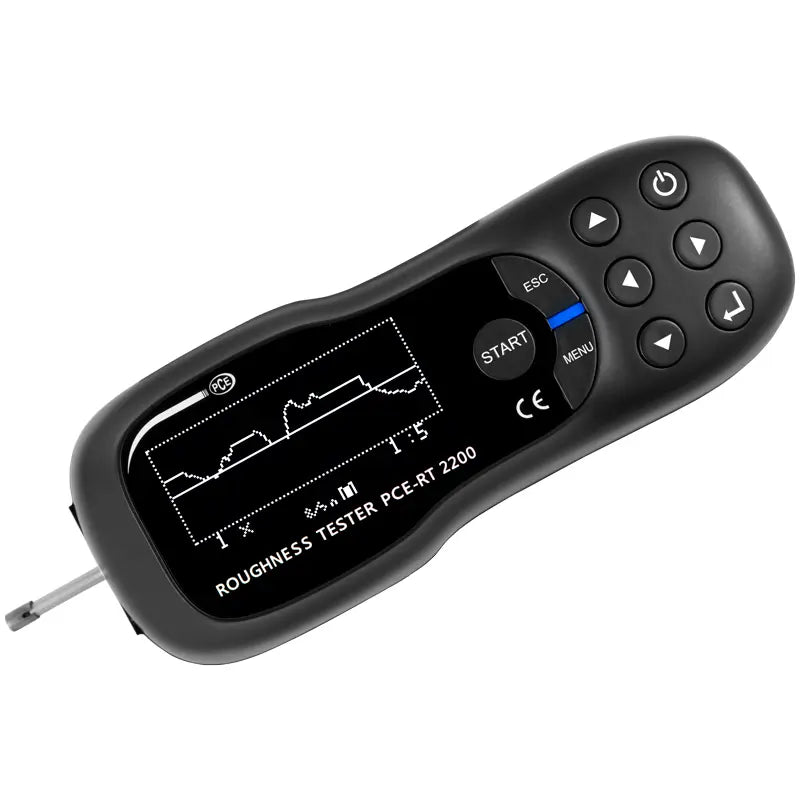

    •Large graphic OLED display.

    •Fast and accurate measurement.

    •3 different cut-off wavelengths.

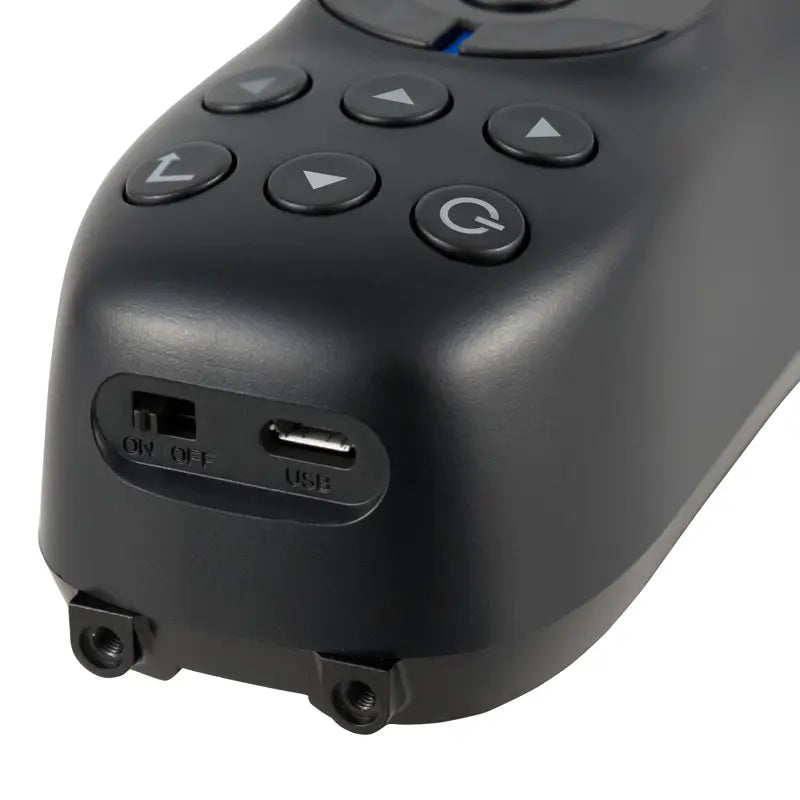

    •Micro-USB interface for PC connection.

    •Storage of 20 measurement curves.

Specifications:

 Measuring range: Ra, Rq, Rc: 0.005 ... 16 µm, Rsm: 5 ... 1000 µm, Rsk: -1 ... 1, Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max, Rdc: 0.02 ... 200 µm, Rmr(c), Rmr: 0 ... 100 %

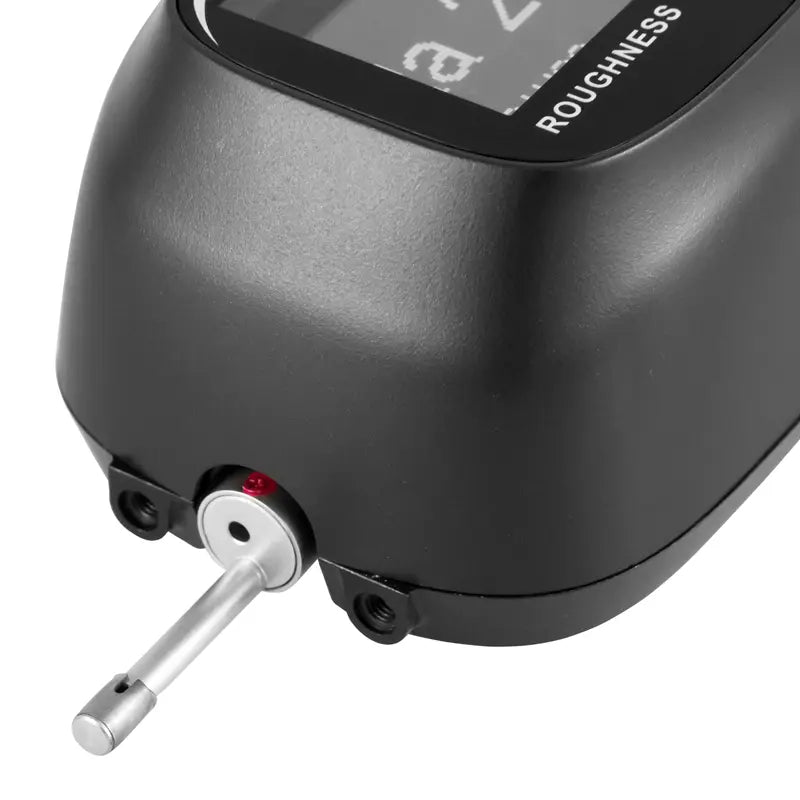

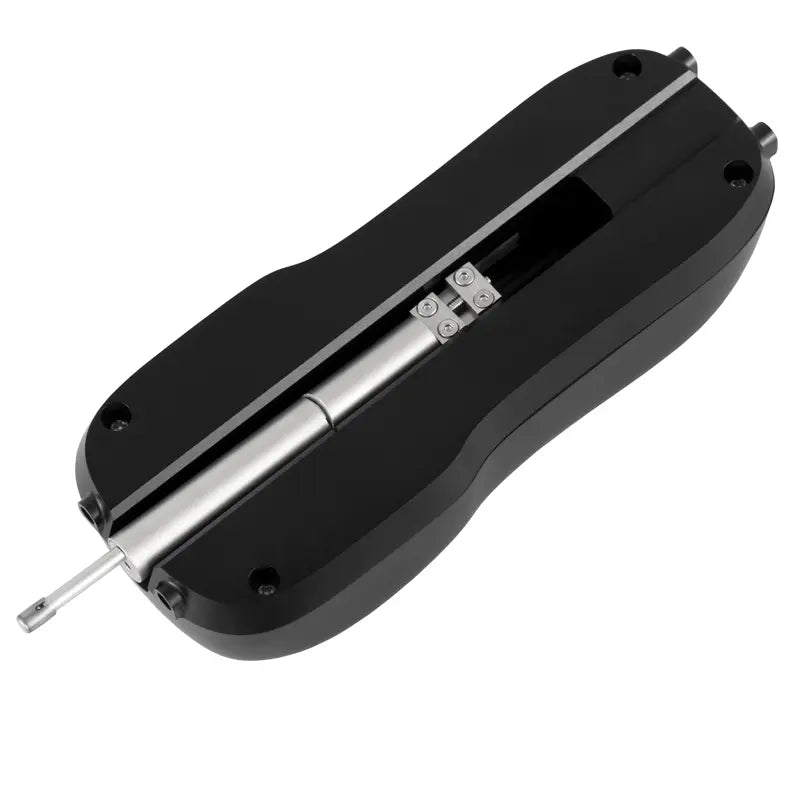

 Probe tip radius: 5 µm
 Probe tip material: diamond, 90° angled
 Max.recommended force: 4 mN (0.4 gf)
 Measuring principle: inductive
 Maximum travel distance: 15 mm
 Cut off wavelength: 0.25 mm / 0.8 mm / 2.5 mm
 Scanning speed: 0.135 mm/s at cutoff wavelength: 0.25 mm, 0.5 mm/s at cutoff wavelength: 0.8 mm, 1 mm/s at cut-off wavelength: 2.5 mm
 Return speed: 1 mm/s
 Memory: 20 measurement runs with all parameters
 Measurement accuracy: <±10 %
 Repeatability: <6 %
 Display: OLED
 Units: μm / μinch (switchable)
 Interface: Micro USB
 Power supply: rechargeable Li-ion battery
