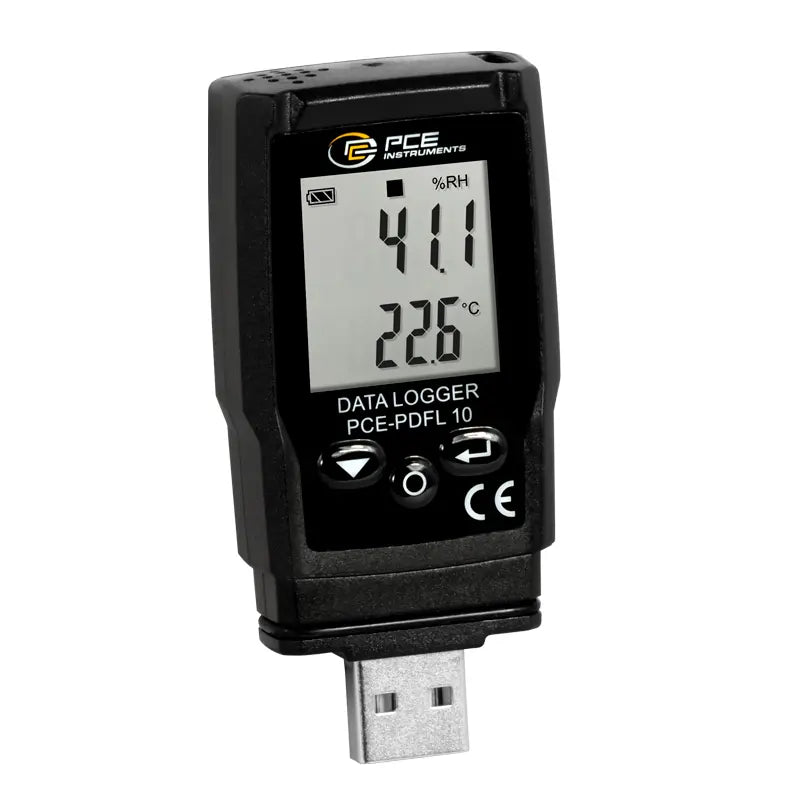

PCE-PDFL 10 - Multi-Function Thermometer with Data Logging & USB Interface

PCE-PDFL 10 - Multi-Function Thermometer with Data Logging & USB Interface

SKU: SKU: PCE-PDFL 10   Download PDF

Select a Variant:
  • PCE-PDFL 10 - Multi-Function Thermometer with Data Logging & USB Interface
Qty:
Regular price Now $116.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $116.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

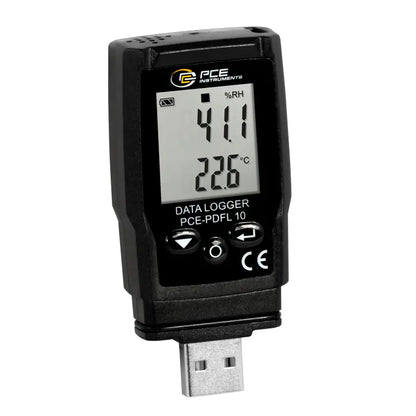

Introducing a versatile thermometer equipped with an advanced ABS air pressure sensor, offering a measurement range of -30 to 60°C (-22 to 140°F) This device allows for instant data export in PDF and CSV formats using its specialized software Features include a clear LC display and a USB-A interface, with the capacity to store up to 13,340 data points This thermometer efficiently measures temperature, humidity, and absolute air pressure within a range of 700 to 1100 hPa, making it an excellent choice for applications such as refrigeration monitoring and greenhouse environment assessment.

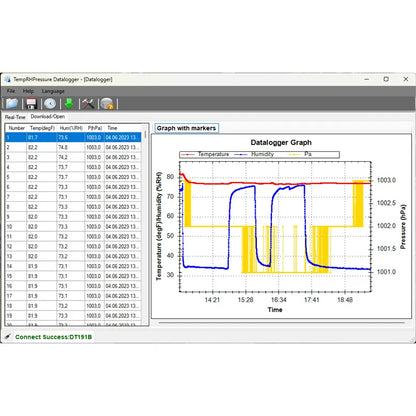

Access your stored data easily, as it functions as a mass data memory compatible with any operating system Additional capabilities include a graphical representation of measured values through the software, customizable settings, and the option to obtain an ISO calibration certificate for added precision.

Features and Benefits:

    •Measures temperature, relative humidity, and air pressure.

    •Data memory capacity of 13340 measurement points.

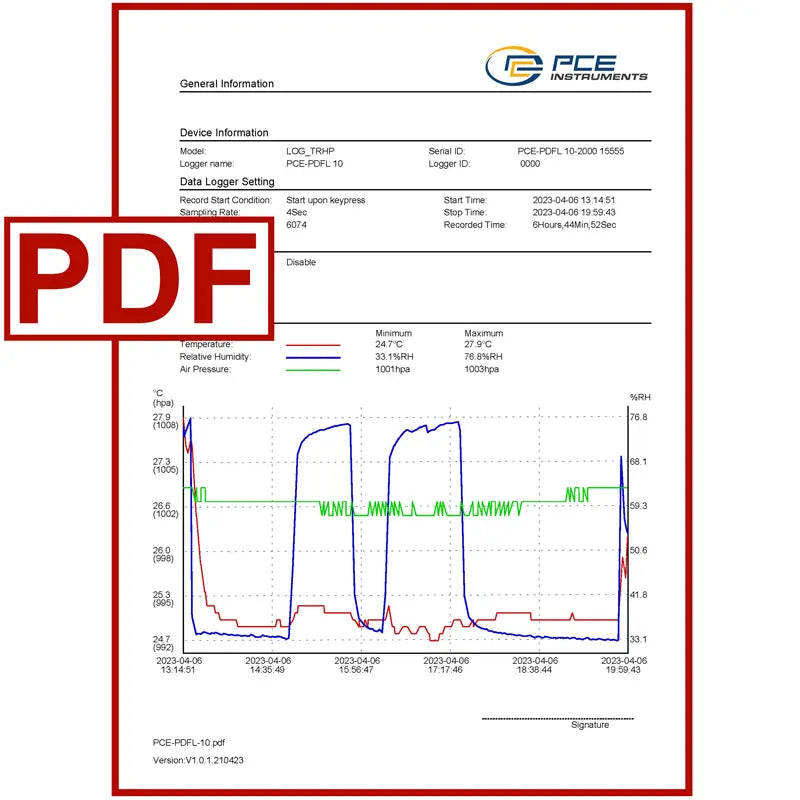

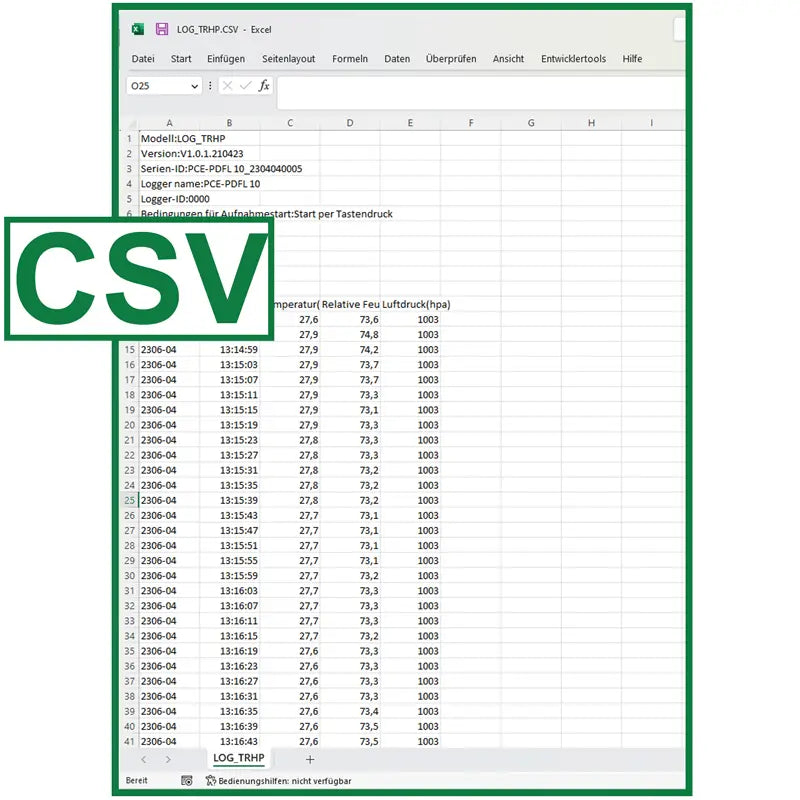

    •Immediate data export in PDF and CSV format.

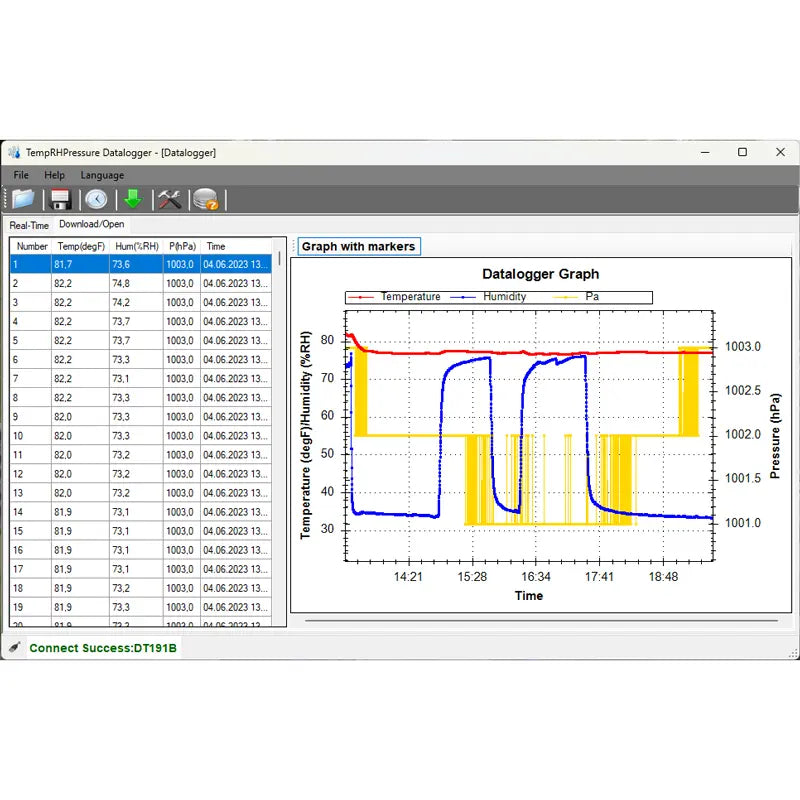

    •User-friendly software for data evaluation and configuration.

    •Optionally includes ISO calibration certificate.

    •Monitoring refrigeration facilities.

    •Monitoring greenhouses.

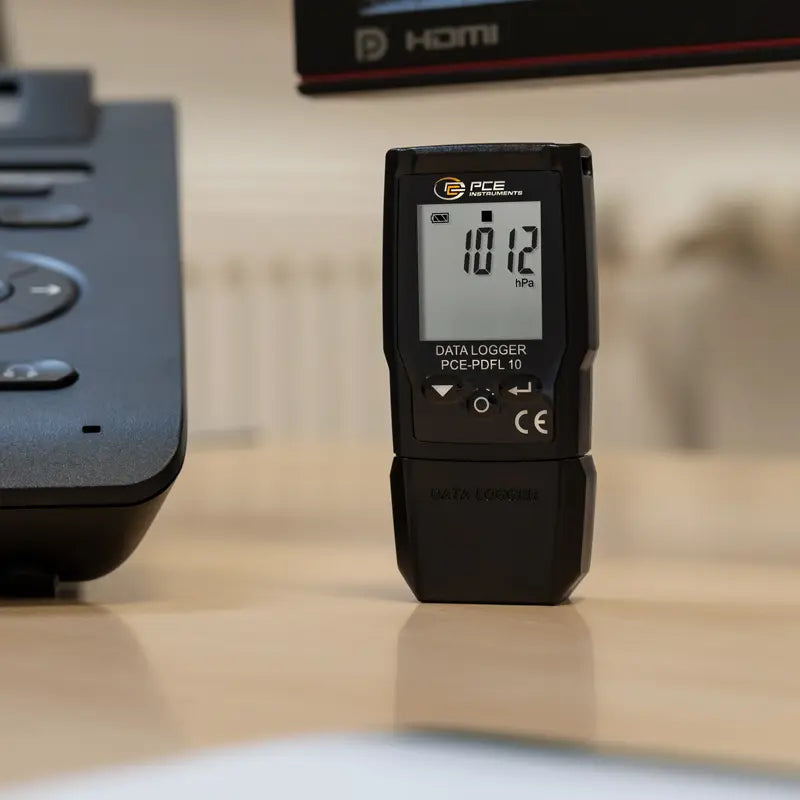

    •Office workplace monitoring.

Specifications:

 Temperature Measuring range -30 ... 60°C / -22 ... 140°F
 Temperature Resolution 0.1°C / °F
 Temperature Accuracy ±1.0°C / 1.8°F bei -30 ... 0°C / -22 ... 32°F; ±0.5°C / 0.9°F bei 0 ... 60°C / 32 ... 140°F
 Relative Humidity Measuring range 0 ... 100% r. F.
 Relative Humidity Resolution 0.1% r. F.
 Relative Humidity Accuracy ±5.0% r. F. bei 0 ... 20% r. F. und 80 ... 100% r. F.; ±3.5% r. F. bei 20 ... 40% r. F. und 60 ... 80% r. F.; ±3.0% r. F. bei 40 ... 60% r. F.

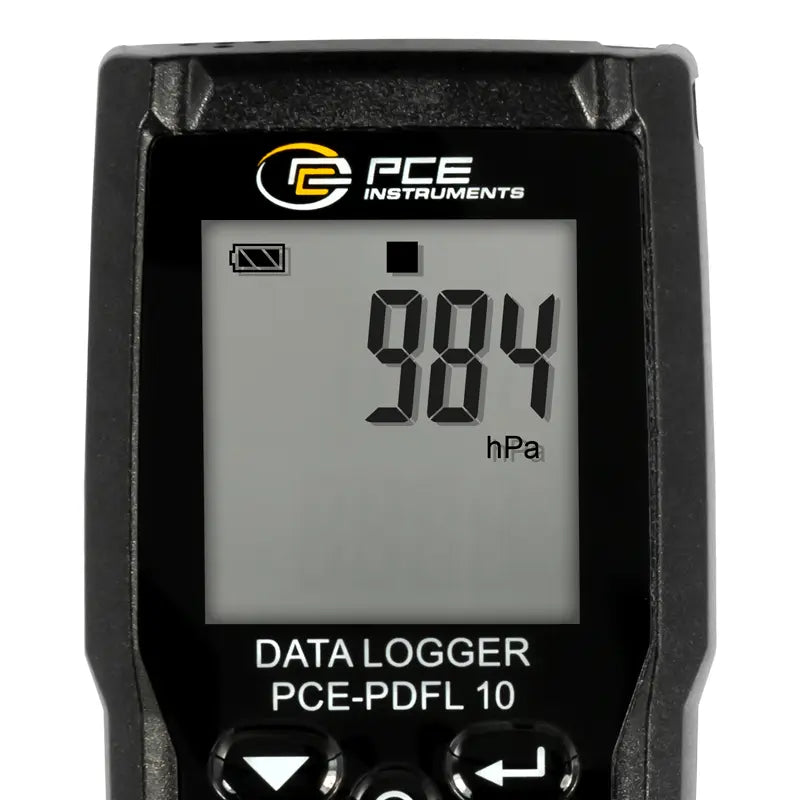

 Absolute Air Pressure Measuring range 700 ... 1100 hPa, 525.0 ... 825.0 mmHg, 20.67 ... 32.48 inHg
 Absolute Air Pressure Resolution 1 hPa, 0.1 mmHg, 0.01 inHg
 Absolute Air Pressure Accuracy ±3 hPa, ±2.5 mmHg, ±0.1 inHg
 Memory 13340 measuring points
 Data Export .pdf, .csv
 Storage Rate 1 minute ... 24 hours

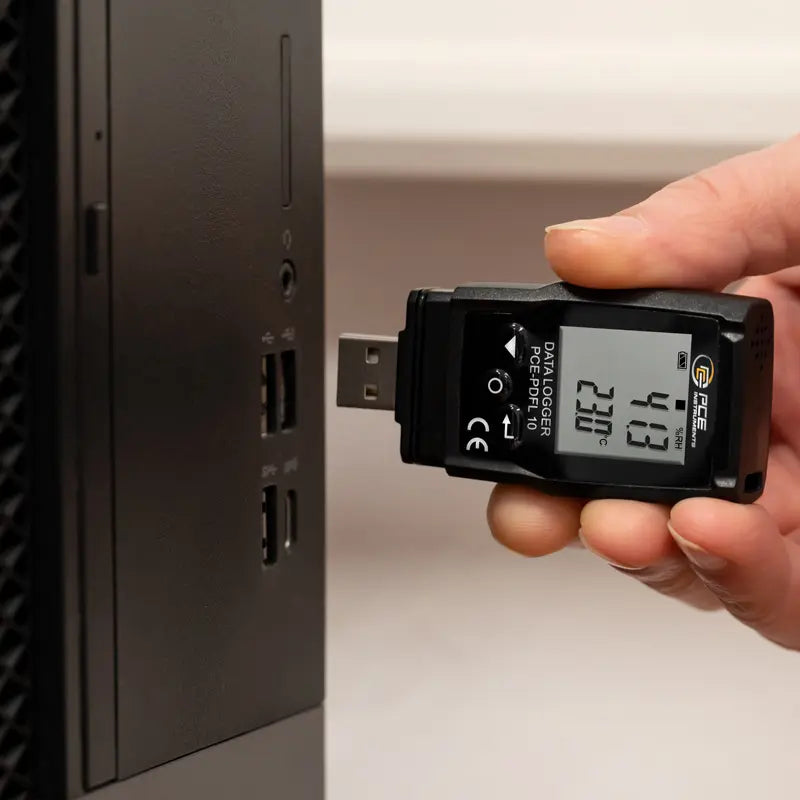

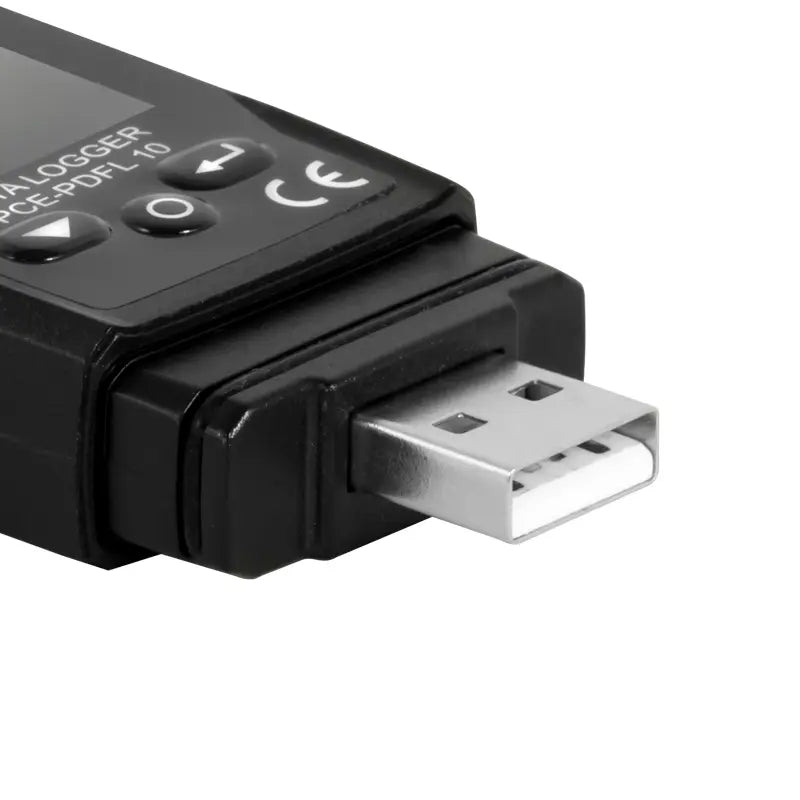

 Interface USB-A
 Power Supply (USB-A) 5V DC, 0.1 A

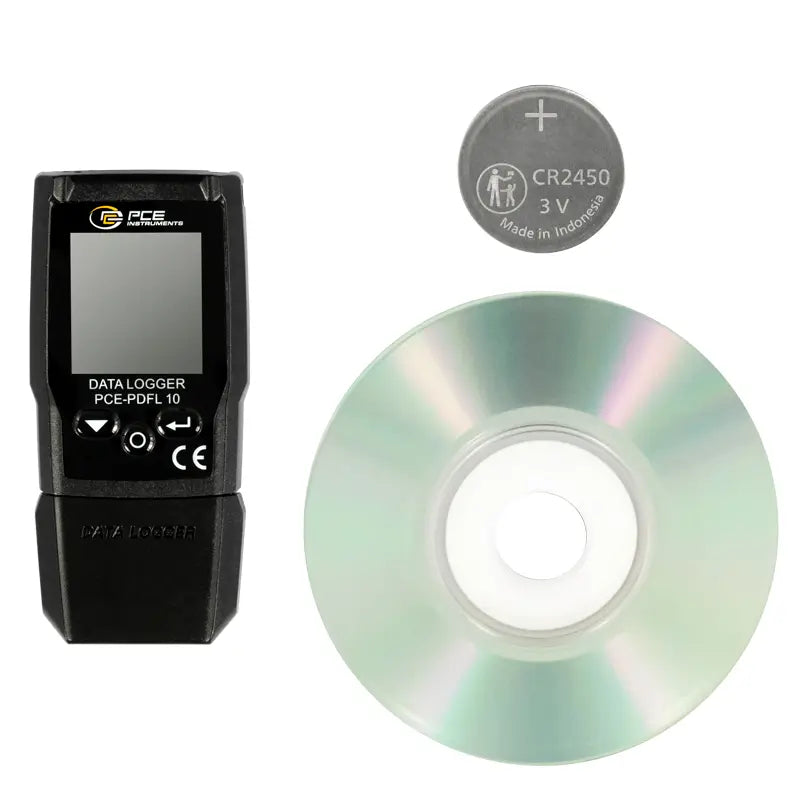

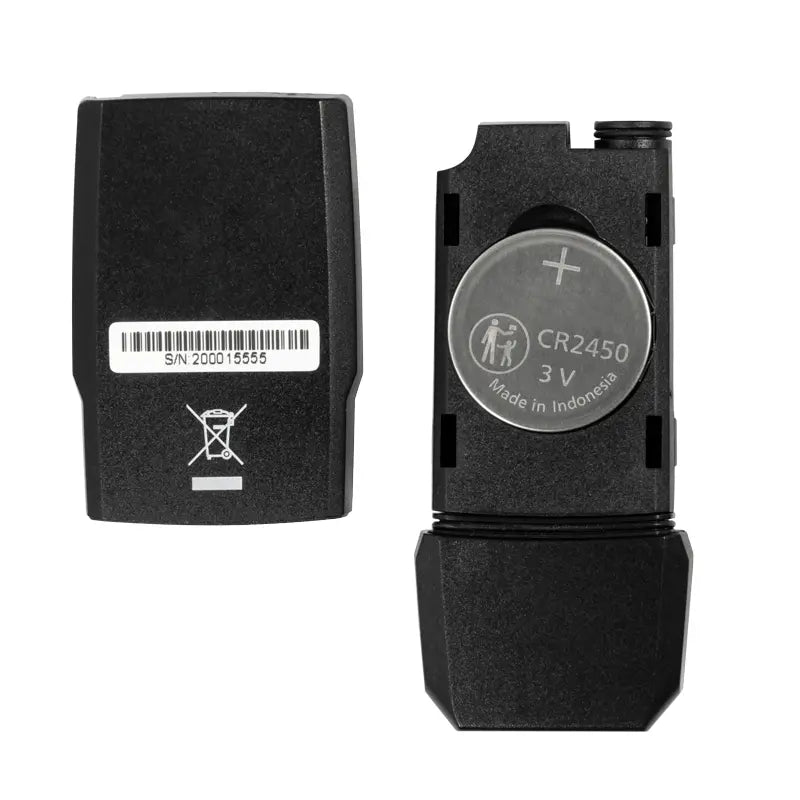

 Power Supply (Battery) 3V battery (CR2450)
 Battery Life Approx. 3 years
 Display 1/4" LCD Display
 Ambient Conditions -30 ... 60°C / -22 ... 140°F, < 95% r. F., non-condensing
 Dimensions 75 x 35 x 15 mm / 3 x 1.4 x 0.6 in
