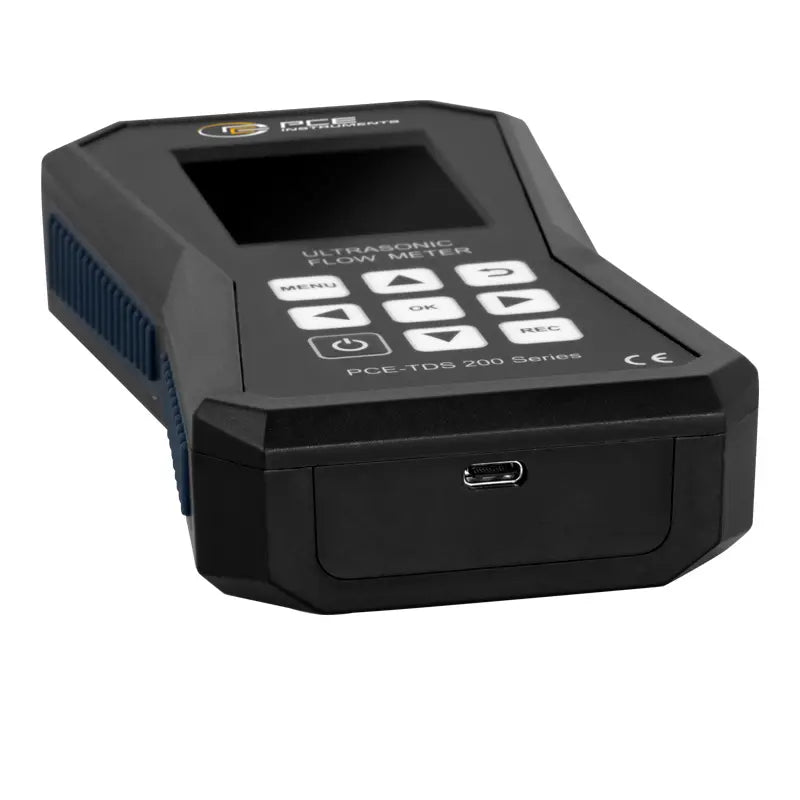

PCE-TDS 200 SL - Precision Ultrasonic Flow Meter with 32GB Data Memory

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

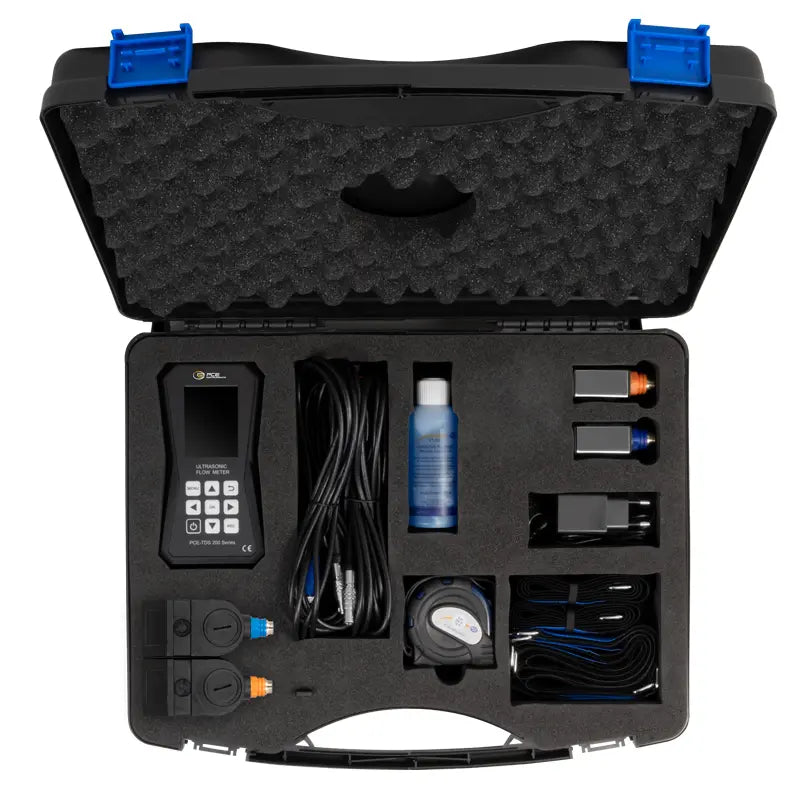

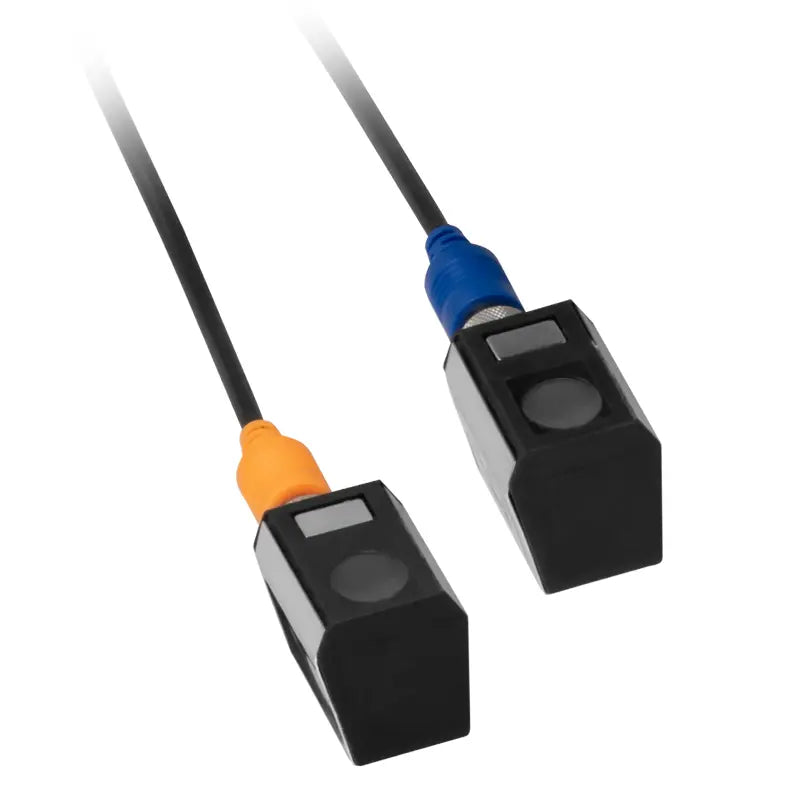

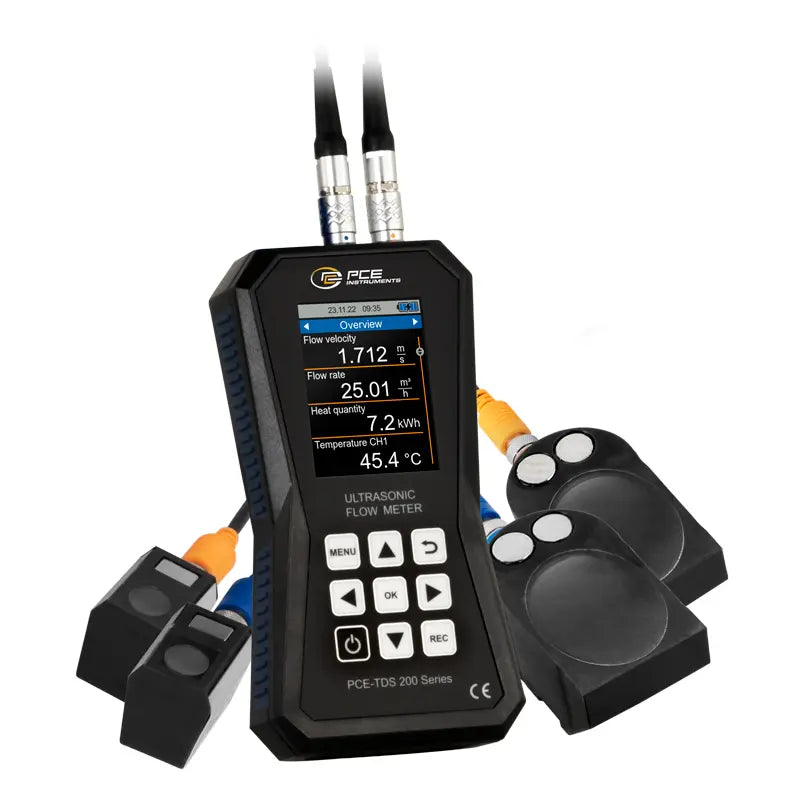

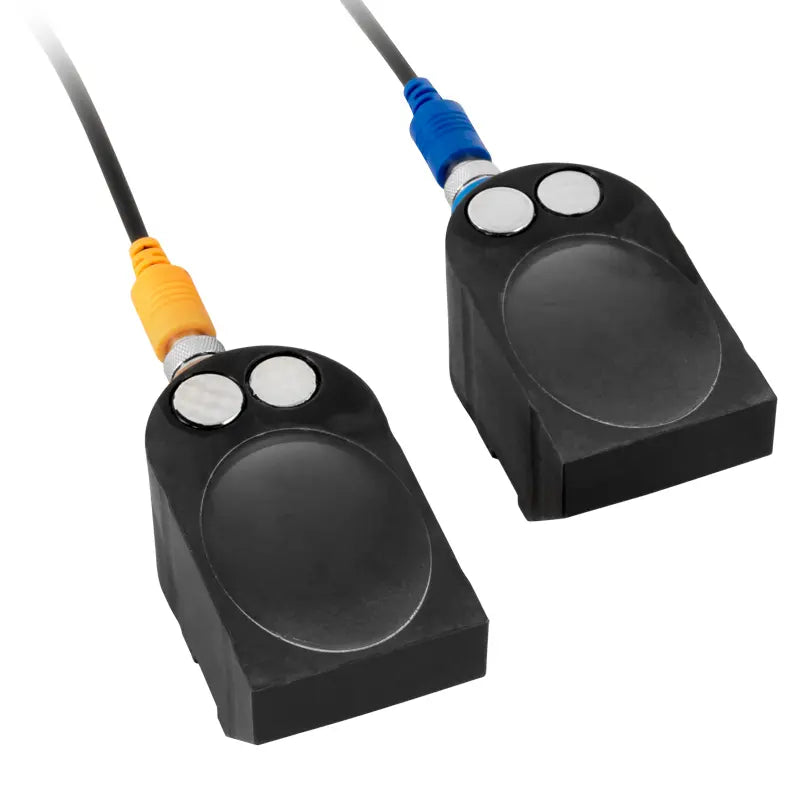

Discover the capabilities of this advanced ultrasonic flowmeter, engineered with a robust 32 GB internal data memory and a wide measuring range of ±32 m/s Boasting impressive reproducibility of ±05% of the measured value, it is suitable for various media and comes with multiple measuring probes The device is equipped with user-defined alarm limits and features a clear 28" LC display for easy monitoring.

Experience remarkable accuracy with readings of ±15% for pipe diameters DN of 50 and above, and ±35% for diameters below DN 50 For optimal performance, an installation aid is included to assist in sensor placement, which is vital for precise measurements The flowmeter calculates flow velocity, volume flow, and overall volume based on the user's pipe and medium specifications, offering versatile units such as m³, l, and gal.

Data logging capabilities allow for the storage of up to 10 million measurement points, accessible through optional software for comprehensive analysis and exportation in csv format Additionally, this device can measure heat quantities when paired with extra thermocouples, making it an excellent choice for evaluating heating systems The user-friendly 28" LC display facilitates interaction, and calibration certificates from ISO or DAkkS can be provided upon request.

Features and Benefits:

•Measuring range ±32 m/s.

•High reproducibility of ±0.5 % of measured value.

•32 GB internal memory for up to 10 million measuring points.

•Data logger function with adjustable storage intervals.

•Optional software for detailed analysis and reporting.

•Capability to measure heat quantities with additional thermocouples.

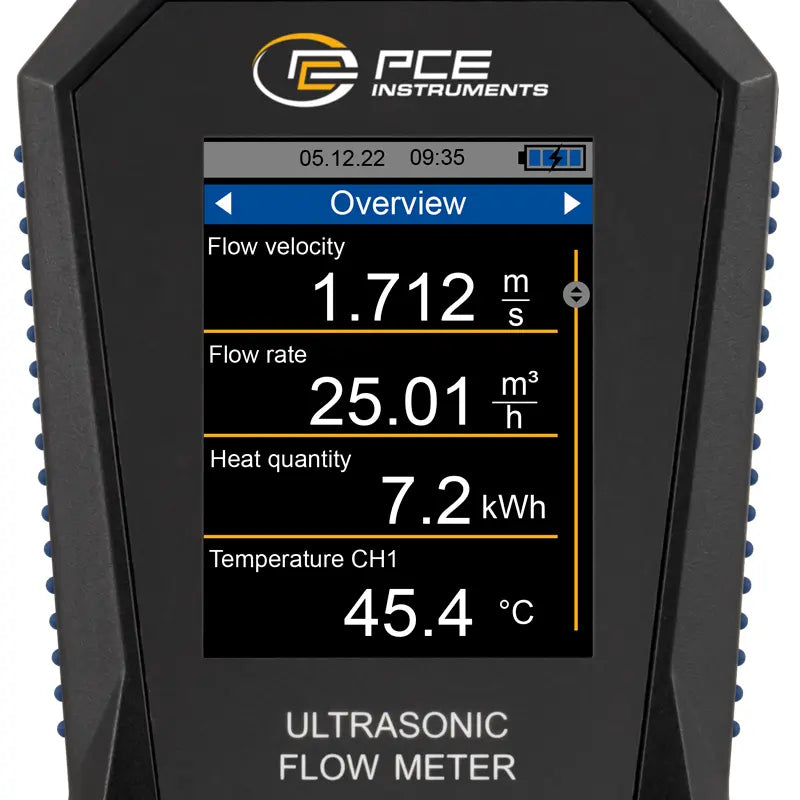

•Easy-to-read 2.8" LC display.

•Option for ISO or DAkkS calibration certificate.

•Flow measurement of various liquids including water, oil, and fuel.

•Inspection of heating systems.

•Measuring flow velocity, volume flow, and heat quantity.

Specifications:
