Description:

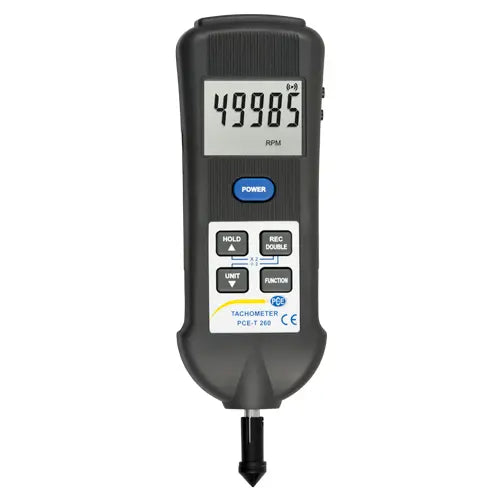

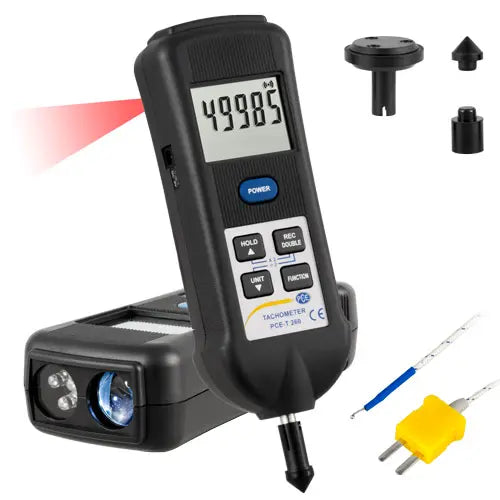

Introducing the PCE-T 260 Tachometer, a versatile device that excels in both optical and contact speed measurements, alongside temperature readings using IR, PT 1000, or Type K sensors Enclosed in a sturdy ABS shell, this tachometer features an RS232 interface for easy connectivity and the capability to retain the most recent measurements along with minimum and maximum values

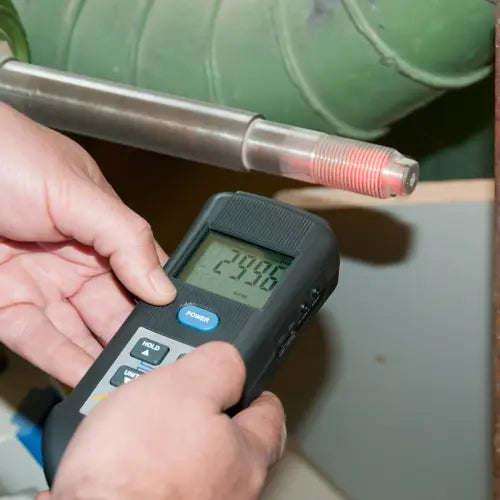

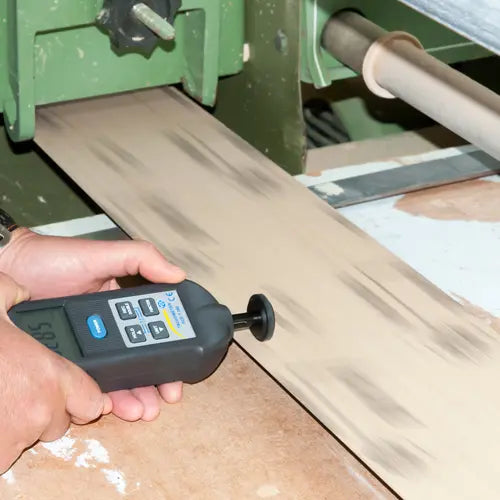

Designed for both maintenance and production settings, this multifunctional tachometer-stroboscope is perfect for assessing the rotational speeds and temperatures of various machinery, including centrifuges, motors, and fans utilized in industrial and research environments.
With a measurement range of 05 to 99,990 rpm, it operates efficiently with low energy consumption and requires minimal maintenance User-friendly push buttons allow for quick adjustments in both coarse and fine settings.
Features and Benefits:
•Easy to handle.
•Powerful LEDs.
•Non-contact temperature measurement.

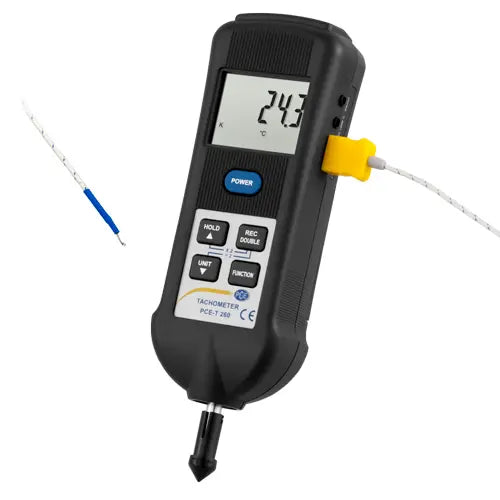

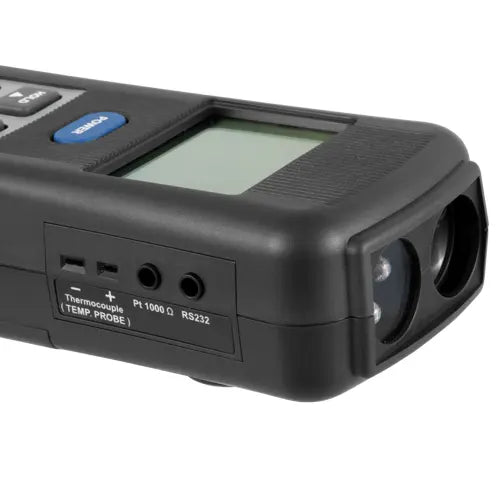

•Temperature measurement using sensor type K or PT 1000.
•Robust ABS plastic housing.
•5-digit 10 mm LCD display.
•Last measured value, min/max memory.

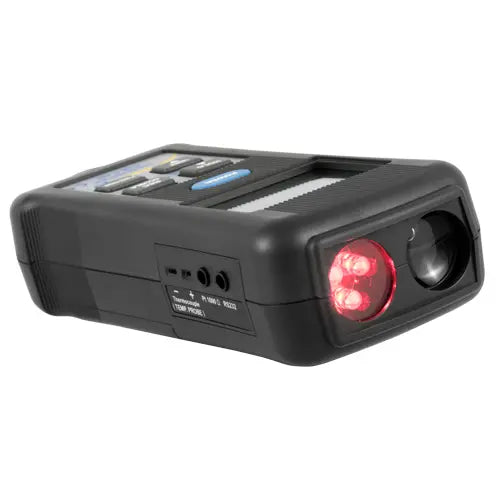

•Red strobe light.
•Suitable for industrial and research applications involving the testing of rotational speeds and temperatures of machines.
Specifications:
| Measuring range (Optical Tachometer) | 0.5 ... 99.990 rpm |
| Resolution (Optical Tachometer) | 0.5 rpm (< 1000 rpm), 1 rpm (> 1000 rpm) |
| Accuracy (Optical Tachometer) | ±0.05% + 1 Digit |
| Distance to measuring object | 50 ... 150 mm / 2 x 5.9 in, max. 300 mm / 12 in (depending on ambient light) |
| Measuring range (Contact Tachometer) | 0.5 ... 19999 rpm |
| Resolution (Contact Tachometer) | 0.5 rpm (< 1000 rpm), 1 rpm (> 1000 rpm) |
| Accuracy (Contact Tachometer) | ±0.05% + 1 Digit |
| Measuring range (Stroboscope) | 100 ... 99990 FPM |
| Resolution (Stroboscope) | 0.1 FPM (< 1000 FPM), 1 FPM (1000 ... 30000 FPM), 5 FPM (30000 ... 50000 FPM), 1 FPM (50000 ... 99990 FPM) |
| Accuracy (Stroboscope) | ±0.1% + 2 Digit |
| Flash lamp | 3 x LED (red) |
| Measuring range (Temperature Type K) | -100 ... 1300°C / -148 ... 2372°F |
| Resolution (Temperature Type K) | 0.1°C |
| Accuracy (Temperature Type K) | ±0.4% + 1°C / 33°F (-100 ... -50°C / -148 ... -58°F), ±0.4% + 0.5°C / 32°F (-50 ... 1300°C / -148 ... 2372°F) |
| Measuring range (Temperature PT 1000) | -10 ... 70°C / 14 ... 158°F |
| Resolution (Temperature PT 1000) | 0.1°C / 32°F |
| Accuracy (Temperature PT 1000) | ±1.2°C / 34°F |
| Measuring range (Temperature IR) | -30 ... 305°C / -22 ... 581°F |
| Resolution (Temperature IR) | 0.5°C / 33°F |
| Accuracy (Temperature IR) | ± 3% or ± 3°C / ± 37°F |
| Emissivity | 0.95 fixed |
| Spectral range | 6 ... 14 µm |
| Optical resolution | 3:1 |
| Display | 5 Digits LCD |
| Interface | RS 232 |
| Power supply | 4 x 1.5V AA (UM-3) / Power supply DC 9V |
| Power consumption | ca. 52-mA |
| Environmental conditions | 0 ... 50°C / 122°F < 80 % rH. |
| Memory | Last value, Min, Max |
| Dimensions | 207 x 67 x 39 mm / 8.1 x 2.6 x 1.5 in |
| Weight | 255 g / < 1 lb without batteries |
