PCE-PDA 1000L - Digital Pressure Manometer, -100 to 2000 kPa, USB, Data Logger

PCE-PDA 1000L - Digital Pressure Manometer, -100 to 2000 kPa, USB, Data Logger

SKU: PCE-PDA 1000L   Download PDF

Select a Variant:
  • PCE-PDA 1000L - Digital Pressure Manometer, -100 to 2000 kPa, USB, Data Logger
Qty:
Now $859.00   Web pricing policy
BEFORE   $0.00 Now $859.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

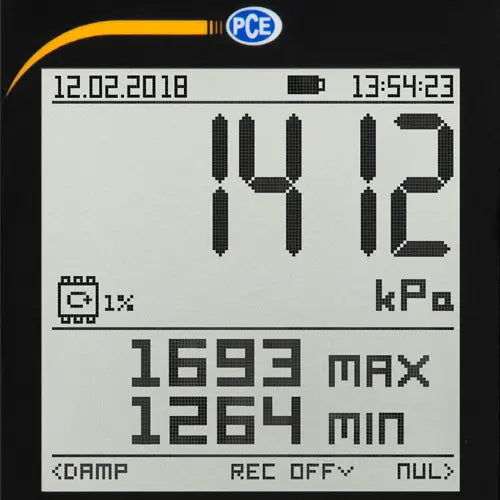

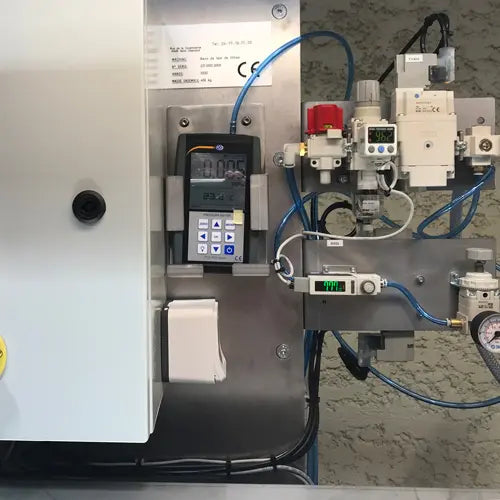

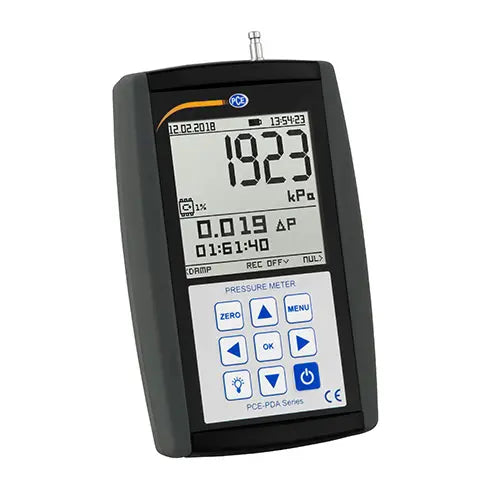

Introducing the PCE-PDA 1000L Digital Pressure Manometer, a reliable tool for measuring relative pressure in a range of -100 to 2000 kPa This pressure meter is designed for use on machines and systems, offering a quick coupling connection for easy application of air or water pressure directly to the device Beyond kPa, it supports various other pressure units for versatile measurement The manometer features a large graphic LCD that continuously displays real-time measured values.

Users can easily lock in maximum or minimum readings using the Max-Min-Hold function Additionally, the device can show system temperature or pressure differences, which is particularly useful during leak tests Equipped with a data logger, the PCE-PDA 1000L allows you to save data with 1024 memory locations, each capable of storing recordings for up to 255 hours To help analyze the recorded data, compatible software is provided.

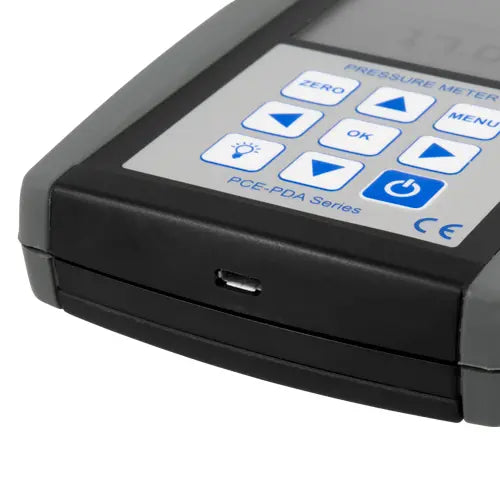

Powered by two AA batteries, users have the option to utilize standard batteries or rechargeable ones For added convenience, the manometer can be charged via a micro USB port when using rechargeable batteries Experience precision and practicality with the PCE-PDA 1000L for all your pressure measurement needs.

Features and Benefits:

    •Graphic LCD.

    •USB interface.

    •Data logger.

    •Relative pressure and vacuum measurement.

    •Adjustable measuring units.

    •MAX MIN HOLD functions.

    •Measured value smoothing.

Specifications:

 Pressure measuring range -100 ... 2000 kPa relative
 Resolution 0.01 kPa, 0.1 kPa
 Accuracy <± 0.5% of the measuring range
 Nominal pressure 2000 kPa
 Overpressure 2000 kPa
 Burst pressure 3000 kPa
 Media Liquids, Air, Non-explosive gases
 Measuring rate 10 Hz
 Measurement units (adjustable) Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
 Principle Relative pressure

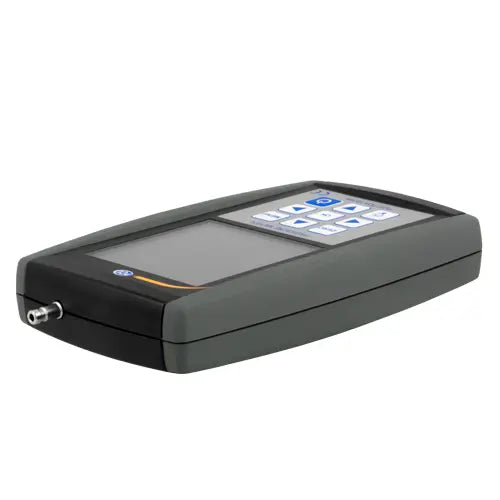

 Pressure connections 5 mm (0.2 in) nipple for quick connection
 Max, min and hold functions Yes
 Data logger 1024 memory slots, 1 s ... 255 h recording time per memory location, 1 s ... 24 h recording interval
 Medium For air and non-explosive gases
 Zero correction Yes, with a zero key
 Averaging Yes, between 0.1 ... 9.9 s
 Display Graphic LCD with backlight
 Ingress protection (IP) rating IP41
 Power supply 2 x 1.2V NiMh batteries, 5V / 500-mA USB power adapter
 Current consumption 50-mA (with backlight), 10-mA (without backlight)
 Operating temperature 0 ... 50°C / 32 ... 122°F
 Storage temperature 10 ... 55°C / 50 ... 131°F
 Dimensions 145 x 85 x 35 mm / 5.71 x 3.35 x 1.38 in
