PCE-WT1N - Robust Sawdust Moisture Meter for Precision Readings

PCE-WT1N - Robust Sawdust Moisture Meter for Precision Readings

SKU: SKU: PCE-WT1N Download PDF

Variant:
  • PCE-WT1N - Robust Sawdust Moisture Meter for Precision Readings
Regular price Now $983.00
Regular price BEFORE   $0.00 Sale price Now $983.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Efficiently assess moisture levels with the PCE-WT1N moisture meter, specifically engineered for measuring the absolute humidity in sawdust and various biomass materials, including wood chips, hay, and straw This professional-grade device features a durable measuring chamber, making it an excellent choice for quality control in sawmills and for inspections at pellet production facilities or briquette makers.

The user-friendly design allows you to simply fill the sample, insert it into the meter, and select the appropriate sample type to obtain accurate moisture readings using the electrical resistance method Compact and sturdy, this moisture meter offers rapid results and comes factory calibrated for reliable accuracy.

Features and Benefits:

    •Fast moisture determination.

    •Electrical resistance method.

    •Suitable for biomass such as straw, hay, and sawdust.

    •Sample size up to 120 cm³.

    •Simple and fast operation.

    •Robust design with overpressure protection.

    •Battery operated.

    •Includes carrying case.

    •Professional moisture measurement in sawmills.

    •Entrance inspection in pelleting plants.

    •Use in manufacturers of heating briquettes.

Specifications:

 Measuring range (sawdust and wood chips) 8 ... 30%
 Measuring range (straw and hay) 8 ... 25%
 Resolution 0.1%
 Accuracy ± 10% of measured value

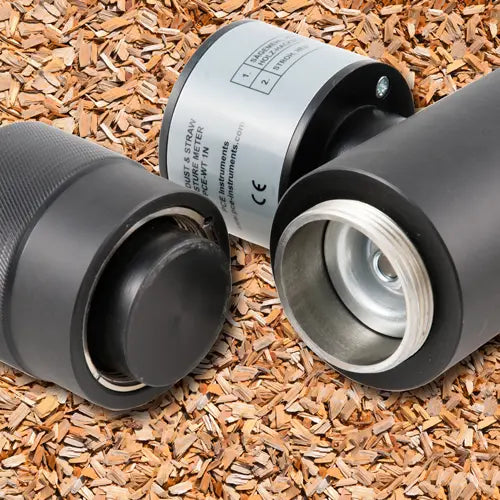

 Volume of measuring chamber 120 cm³
 Sample size for wood chips Max. 20 x 15 x 15 mm
 Pressure during measurement About 0.2 MPa
 Temperature compensation Digital adjustable

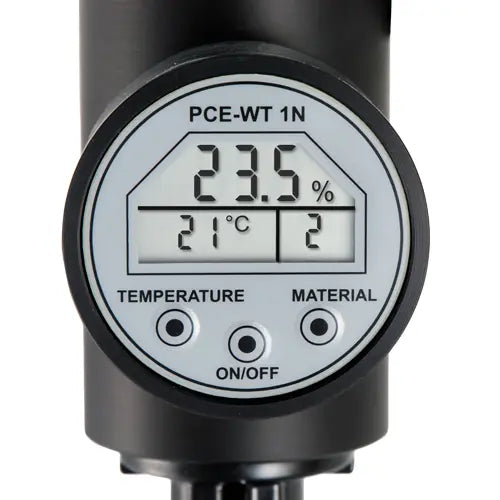

 Display 3-digit LCD
 Battery type 12V, type 23A
 Ambient temperature range 0 ... 50°C / 32 ... 122°F
 Dimensions 300 x 220 x 65 mm / 11.8 x 8.7 x 2.6 in
