PCE-VT 3800 - Advanced Accelerometer with Peak Measurement and USB Connectivity

PCE-VT 3800 - Advanced Accelerometer with Peak Measurement and USB Connectivity

SKU: PCE-VT 3800   Download PDF

Select a Variant:
  • PCE-VT 3800 - Advanced Accelerometer with Peak Measurement and USB Connectivity
Qty:
Now $1,168.00   Web pricing policy
BEFORE   $0.00 Now $1,168.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

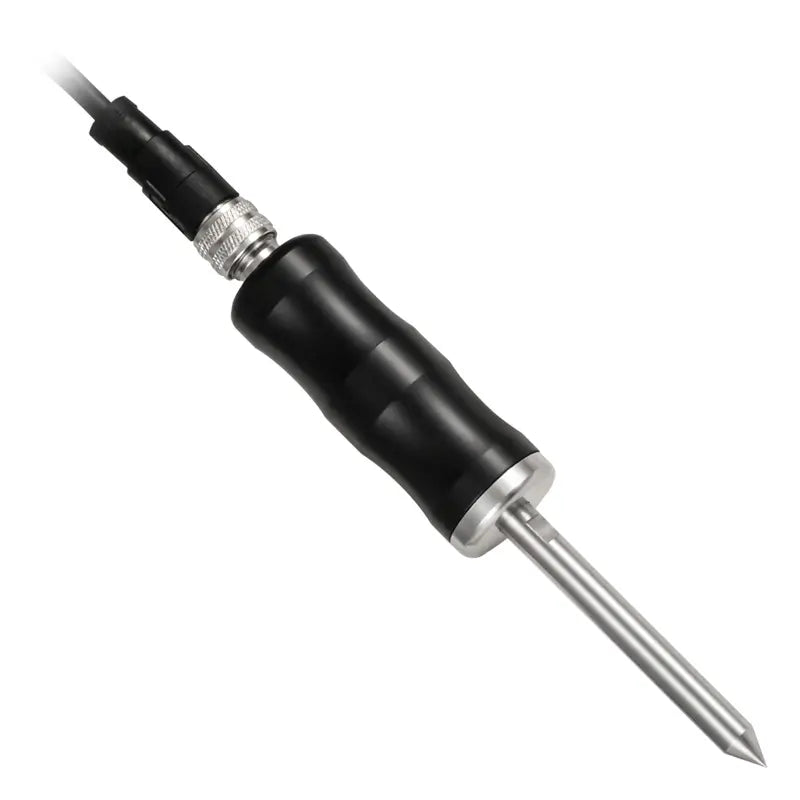

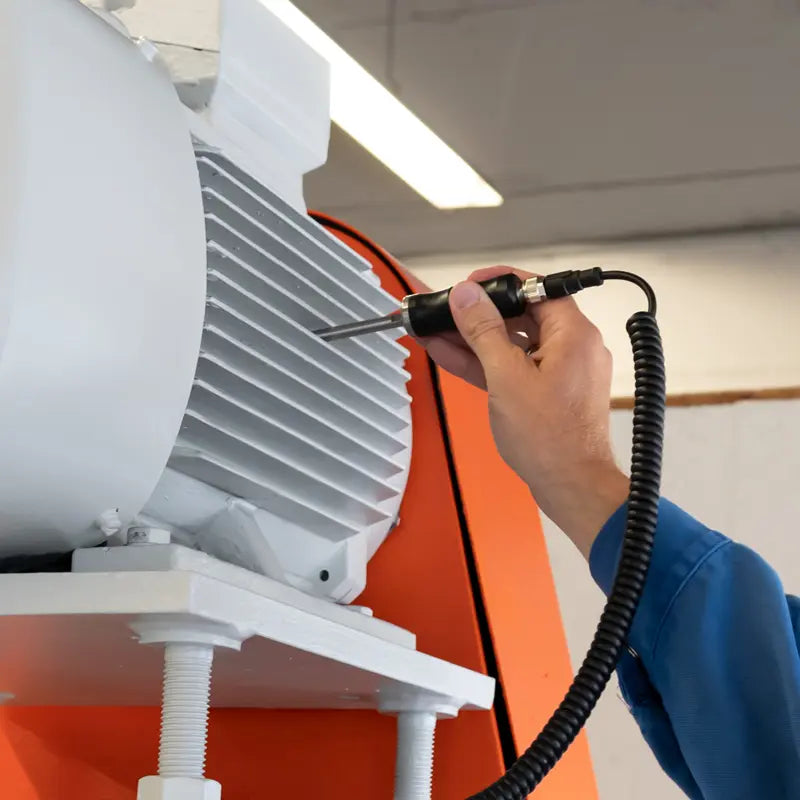

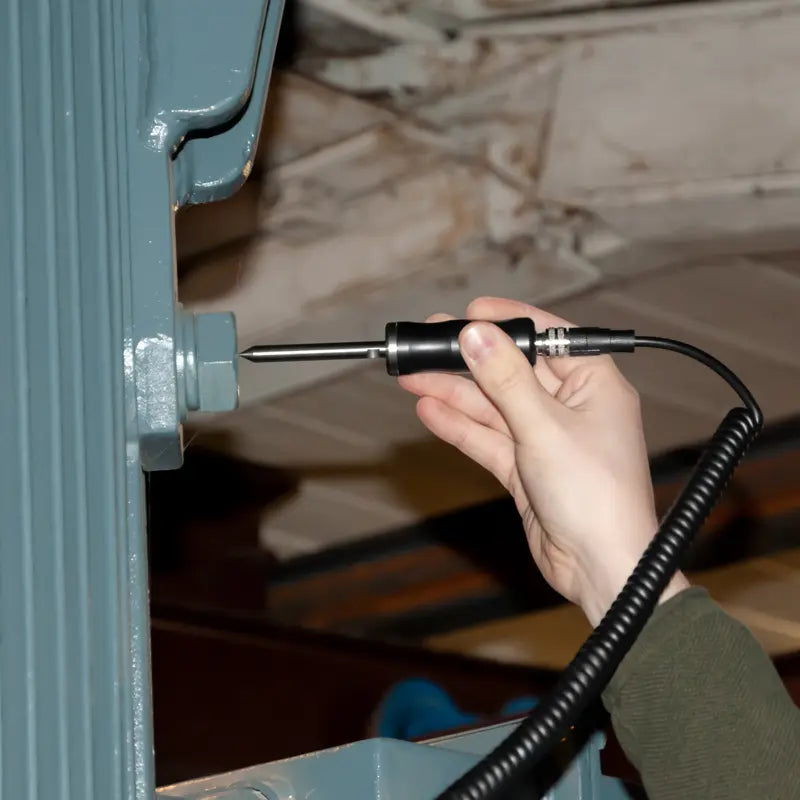

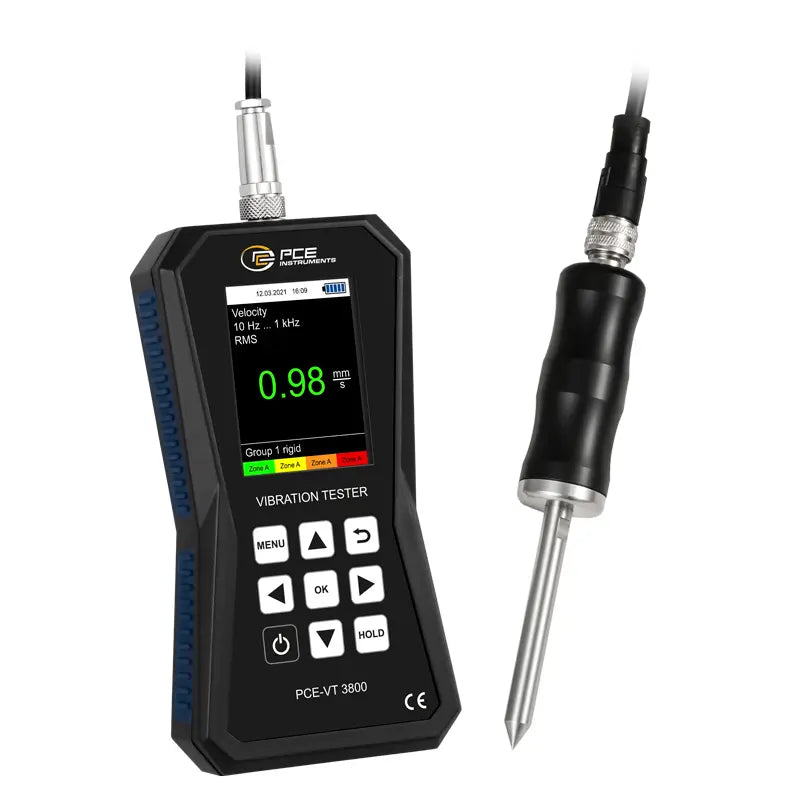

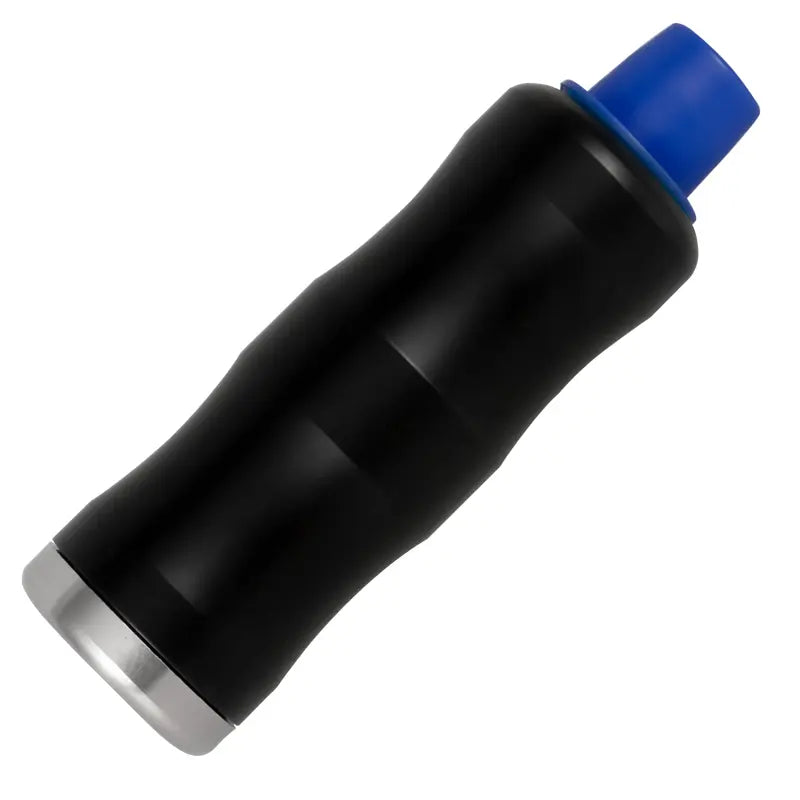

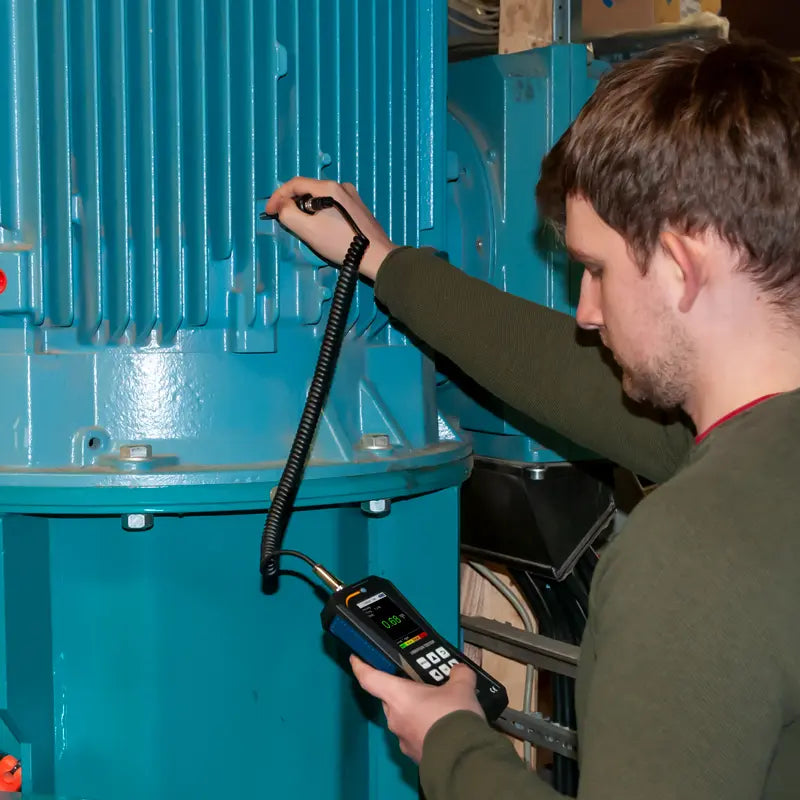

Introducing the PCE-VT 3800S accelerometer, an essential tool for the analysis of vibrating components, machinery, and industrial plants This device is equipped with an external sensor and has the capability to measure peak values, providing reliable data for professionals It comes with options for ISO factory certification and supports multiple menu languages for user convenience The PCE-VT 3800S includes a micro USB connection to your PC and features internal memory, allowing you to save and evaluate critical vibration measurements such as displacement, velocity, and acceleration.

It is designed to store data efficiently, and automatic evaluations can be performed in accordance with ISO 10816-3, facilitating machine condition assessments With a built-in rechargeable LiPo battery, this device ensures up to 20 hours of continuous use, making it a versatile choice for various applications in the field.

Features and Benefits:

    •Data logger function.

    •Automatic ISO 10816-3 evaluation.

    •Measuring range up to 399.9 m/s² / 15744 in/s².

    •Hand-held device for mobile vibration measurement.

    •Rechargeable battery.

    •2.48 inch LC display.

Specifications:

 Measuring range Acceleration 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²
 Resolution Acceleration 0.1 m/s² / 3.94 in/s²
 Accuracy @ 160 Hz Acceleration ±2 %
 Frequency range Acceleration 10 Hz ... 10 kHz
 Measuring range Velocity 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s
 Resolution Velocity 0.1 mm/s / 0.0039 in/s
 Accuracy @ 160 Hz Velocity ±2 %
 Frequency range Velocity 10 Hz ... 1 kHz
 Measuring range Displacement 0.000 ... 3.9 mm / 0.000 - 0.154 in
 Resolution Displacement 1 µm / 39.4 µin
 Accuracy @ 160 Hz Displacement ±2 %
 Frequency range Displacement 10 Hz ... 200 Hz
 Measurement parameters RMS, Peak, Peak-Peak, Crest factor
 Manual memory 99 folders with 50 measured values each
 Data logger Various start/stop triggers
 Measurement interval between 1 s … 12 h
 Units can be switched to metric / imperial
 Display 2.8 inch LC display
 Menu languages English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
 Power supply internal LiPo battery (3.7 V, 2500 mAh)
 Power supply external USB 5 VDC, 500 mA
 Operating time ca. 15 … 20 h (depending on display brightness)
 Operating and storage conditions temperature -20 ... +65 °C / -4 ... 149 °F
 Operating and storage humidity 10% RH ... 95% RH, non-condensing
 Protection Class IP52
 Dimensions 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"
 Weight 239 g / 8.4 oz
