PCE-VA 11 - HVAC Meter for Airflow & Temperature with ISO Calibration

PCE-VA 11 - HVAC Meter for Airflow & Temperature with ISO Calibration

SKU: SKU: PCE-VA 11   Download PDF

Select a Variant:
  • PCE-VA 11 - HVAC Meter for Airflow & Temperature with ISO Calibration
Qty:
Regular price Now $267.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $267.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-VA 11-ICA HVAC Meter, a versatile tool expertly designed for measuring air temperature and infrared temperature, complete with an ISO Calibration Certificate for accuracy This device not only monitors air velocity but also calculates volume flow, featuring a user-friendly backlit LCD display for ease of use, even in dimly lit spaces With the ability to display measurements in various units such as °C, °F, m/s, km/h, ft/min, knot, and mph, it caters to a range of applications.

The quick response time allows for instantaneous readings, and the large screen shows data right after attaching the impeller For targeted temperature assessments, simply use the intuitive controls paired with the laser pointer for precise measurement locations This multifunctional meter is ideal for gauging both airflow and air temperature, enhancing its utility in diverse settings.

Features and Benefits:

    •Suitable for low air velocities.

    •Measuring units: m/s, km/h, ft/min, knot, mph.

    •Large LCD display.

    •Max and Min value measurement.

    •Data Hold function.

    •High precision.

    •Includes ISO Calibration Certificate.

Specifications:

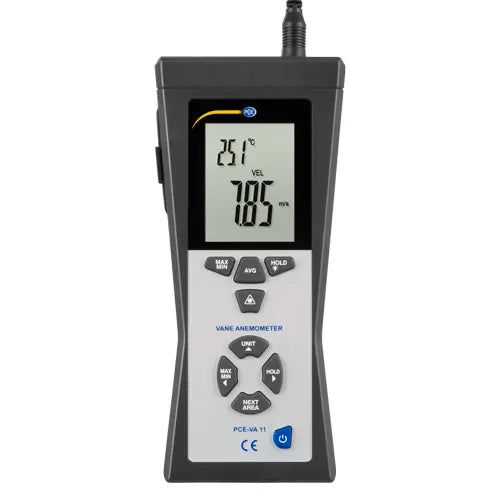

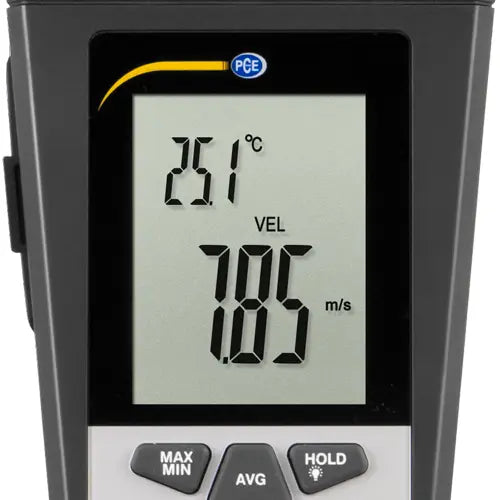

 Display Backlit LCD
 Functions Automatic shutdown, Hold, Extreme value measurement (Min / Max), Average, Range Selection
 Cable length 1.2 m / 3.9 ft
 Power supply 9V block battery
 Airspeed Measuring Range (m/s) 0.4 ... 30
 Airspeed Measuring Range (ft/min) 80 ... 5900
 Airspeed Measuring Range (km/h) 1.4 ... 108
 Airspeed Measuring Range (MPH) 0.9 ... 67
 Airspeed Measuring Range (Knots) 0.8 ... 58
 Airspeed Resolution (m/s) 0.1
 Airspeed Resolution (ft/min) 1
 Airspeed Resolution (km/h) 0.1
 Airspeed Resolution (MPH) 0.1
 Airspeed Resolution (Knots) 0.1
 Airspeed Accuracy (m/s) ± 3% ± 20 m/s
 Airspeed Accuracy (ft/min) ± 3% ± 40 ft/min
 Airspeed Accuracy (km/h) ± 3% ± 0.8 km/h
 Airspeed Accuracy (MPH) ± 3% ± 0.4 MPH
 Airspeed Accuracy (Knots) ± 3% ± 0.4 Knots
 Air temperature Measuring Range -10 ... 60°C / 14 ... 140°F
 Air temperature Resolution 0.1°C / 0.18°F
 Air temperature Accuracy ± 2°C / 3.6°F
 Infrared temperature Measuring Range -50 ... 500°C / -58 ... 932°F
 Infrared temperature Resolution 0.1°C / 0.18°F
 Infrared temperature Accuracy at -50 ... -20°C / -58 ... -4°F: ± 5°C / 41°F; at -20 ... 500°C / -4 ... 932°F: ± 2% of measured value / ± 2°C / 3.6°F
