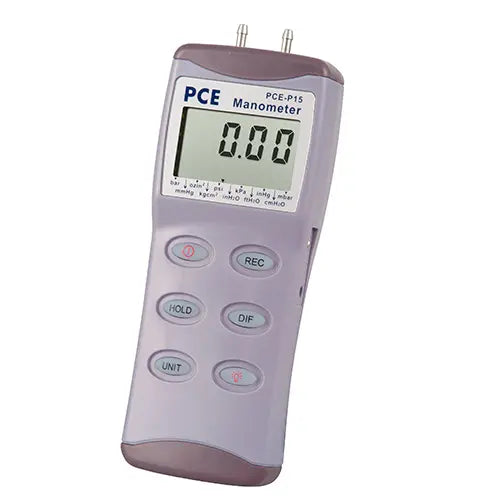

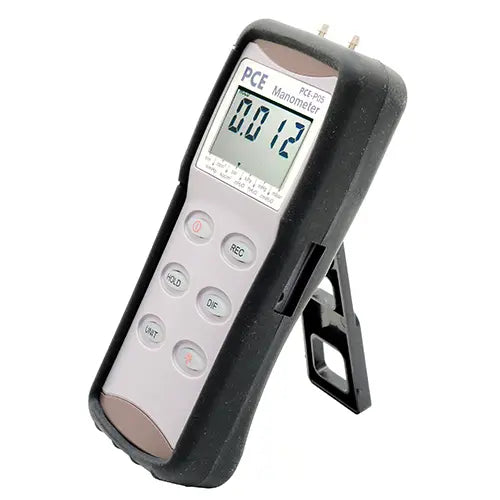

PCE-P15 - High-Precision Differential Pressure Gauge with RS232 Interface

PCE-P15 - High-Precision Differential Pressure Gauge with RS232 Interface

SKU: PCE-P15   Download PDF

Select a Variant:
  • PCE-P15 - High-Precision Differential Pressure Gauge with RS232 Interface
Qty:
Now $284.00   Web pricing policy
BEFORE   $0.00 Now $284.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-P15 Pressure Gauge, an advanced instrument equipped with an RS232 interface and compatible software, perfect for measuring both overpressure and underpressure, as well as differential pressure in air and gas applications This precision device guarantees top-notch accuracy and performance With the ability to seamlessly transfer pressure readings to a PC or laptop, it’s not just a measuring tool; it enhances your data handling capabilities.

Engineered for use in industrial settings, service applications, and laboratories, this differential pressure gauge excels when measuring non-corrosive media It features robust overload protection—capable of handling twice the measuring range—ensuring reliability in demanding environments Plus, with nine different display units available, this manometer caters to various practical needs, eliminating the hassle of manual conversions for pressure measurement.

Features and Benefits:

    •9 selectable units.

    •Digital display of over, under (vacuum) or differential pressure.

    •Min / Max memory.

    •Data hold function.

    •Backlit LCD display.

    •Impact-resistant ABS housing.

    •Auto-power-off function.

    •Pneumatic area, on compressors and pumping systems.

    •Chemical area for process control, measurements on pressure tanks.

    •Manufacturing area, for compressed air press processes e.g. in the plastics industry.

    •Checking valve controls (before- after- loss of compressed air).

    •Research and development area.

    •In general for optimization and testing in the process.

    •Authorization area for heating and air conditioning systems.

Specifications:

 Max. Pressure positive/negative or overpressure/vacuum 30 psi
 Range (PSI) 0...±15
 Resolution (mbar) 0.01
 Range (inH2O) 0...±1000
 Resolution (inH2O) 1
 Range (inHg) 0...±415
 Resolution (inHg) 0.3
 Range (mmHg) 0...±30.5
 Resolution (mmHg) 0.005
 Range (kPa) 0...±750
 Resolution (kPa) 0.5
 Range (cmH2O) 0...±100
 Resolution (cmH2O) 0.1
 Range (Kg/cm²) 0...±1050
 Resolution (Kg/cm²) 0.001
 Data format Baud rate: 2400 baud,1 stop bit, 8 data bits
 Accuracy ±0.3 % (full range, @ +25°C / +77°F)
 Repeatability ±0.2 % (max. ±0.5 % of full scale)
 Duration 0.3 ms
 Operating temperature max +50 °C / +122 °F
 Battery 1 x 9 V - block battery PP3
 Dimensions 182 x 72 x 30 mm / 7.1 x 2.8 x 1.1"
