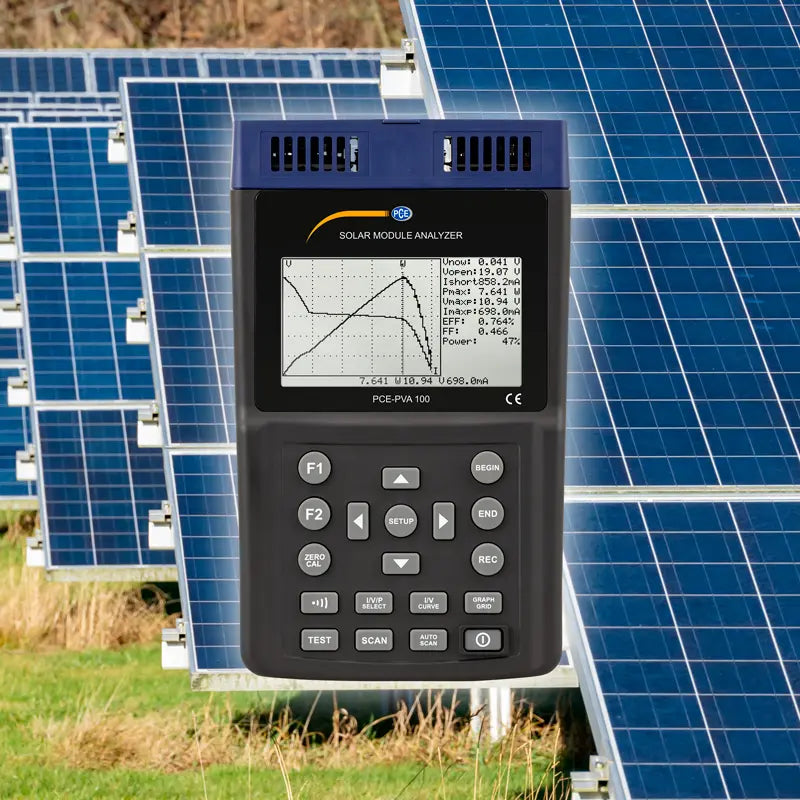

PCE-PVA 100 - 4.8" LCD Environmental Meter for Solar Module Analysis

PCE-PVA 100 - 4.8" LCD Environmental Meter for Solar Module Analysis

SKU: PCE-PVA 100 Download PDF

Variant:
  • PCE-PVA 100 - 4.8" LCD Environmental Meter for Solar Module Analysis
Now $1,518.00
BEFORE   $0.00 Now $1,518.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Optimize your solar energy assessments with the Environmental Meter, expertly crafted for testing solar cells and their properties Boasting an impressive measuring range of 0 to 12 A DC and a voltage capacity from 0 to 60 V, this device is versatile enough for various solar modules Its 48-inch LCD display offers clear visibility, while the built-in data memory can accommodate up to 100 readings, making it perfect for thorough analysis.

Powered by a rechargeable battery, this meter can achieve around 400 measurements on a single charge For added assurance, it comes with an optional ISO calibration certificate With both automatic and manual modes available, you can effortlessly analyze the efficiency and fill factor of solar modules based on stored data This environmental meter is an essential tool for photovoltaic systems and research applications, featuring functionalities tailored to enhance your analysis experience.

Features and Benefits:

    •Measuring range of 0 ... 12 A DC.

    •Data memory for 100 measurements.

    •Three different test functions.

    •PC interface for easy data transfer.

    •Switchable graphic view for analysis.

    •Optional ISO calibration certificate.

    •Examination of solar modules for their effectiveness.

    •Use in photovoltaic systems and research facilities.

Specifications:

 DC Voltage Measuring Range 0 … 10 V
 DC Voltage Resolution 0.001 V
 DC Voltage Accuracy ±1 % ±(1 % of Vopen ±0.1 V)
 DC Current Measuring Range 0.01 … 10 A
 DC Current Resolution 1 mA
 DC Current Accuracy ±1 % ±(1 % of Ishort ±9 mA)
 Adjustable Photovoltaic Area 0.001 … 9999 m²
 Adjustable Irradiance 10 … 1000 W/m²
 Display 4.8“ LC display
 Fuse F250 V, 12 A
 Storage Rate 0 … 99 minutes
 Battery Life approximately 400 linear measurements
 Power Supply Battery 11.1 V, 3400 mAh lithium battery
 Power Supply Mains Adapter Primary: 100 … 240 V AC 50/60 Hz, Secondary: 15 V DC / 3A
 Degree of Pollution 2
 Temperature Coefficient 0.1 % of the measuring range / °C / °F at temperatures <18 °C / 64 °F and >28 °C / 82 °F
 Operating Conditions -20 … 60 °C / -4 ... 140 °F <75 % RH, non-condensing
 Dimensions 257 x 155 x 57 mm / 10.1 x 6.1 x 2.2 in
