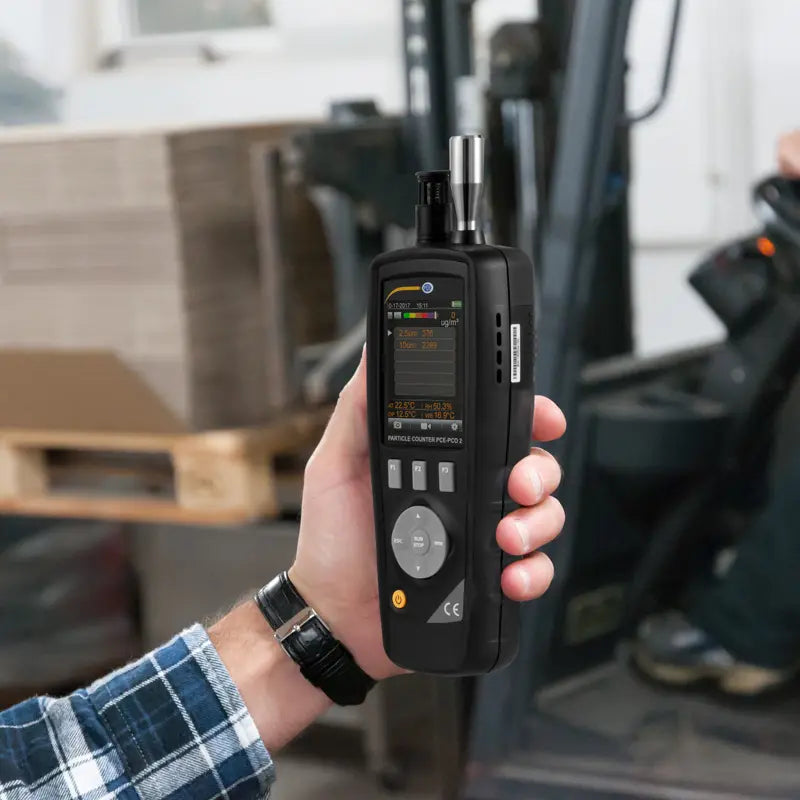

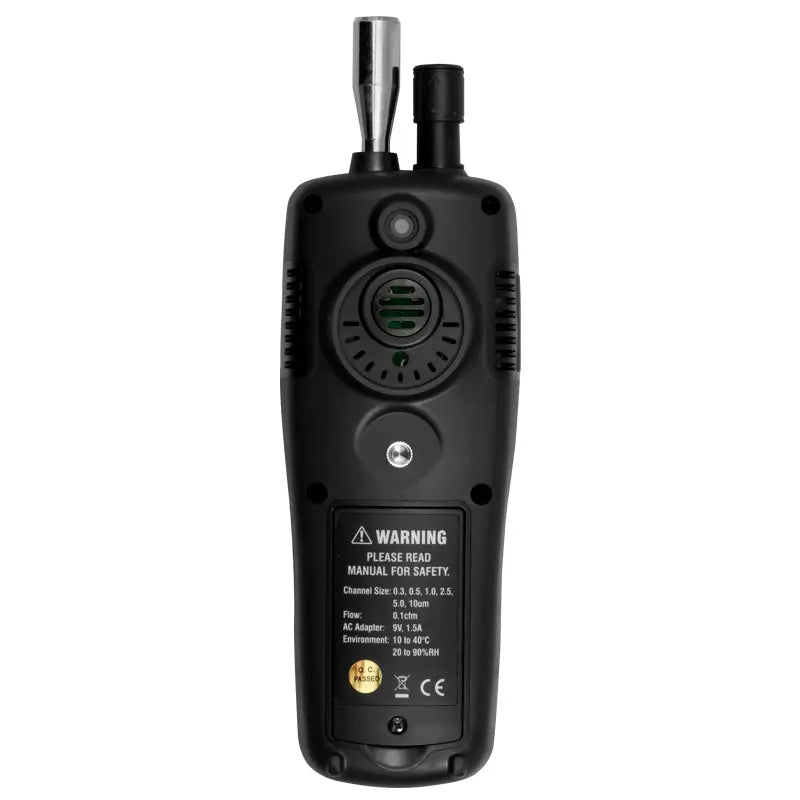

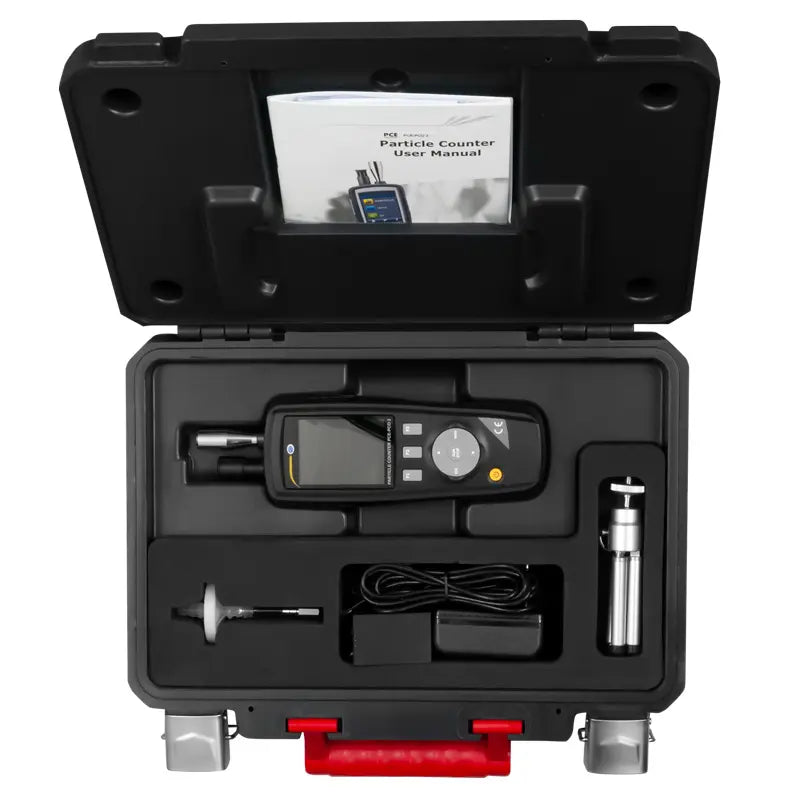

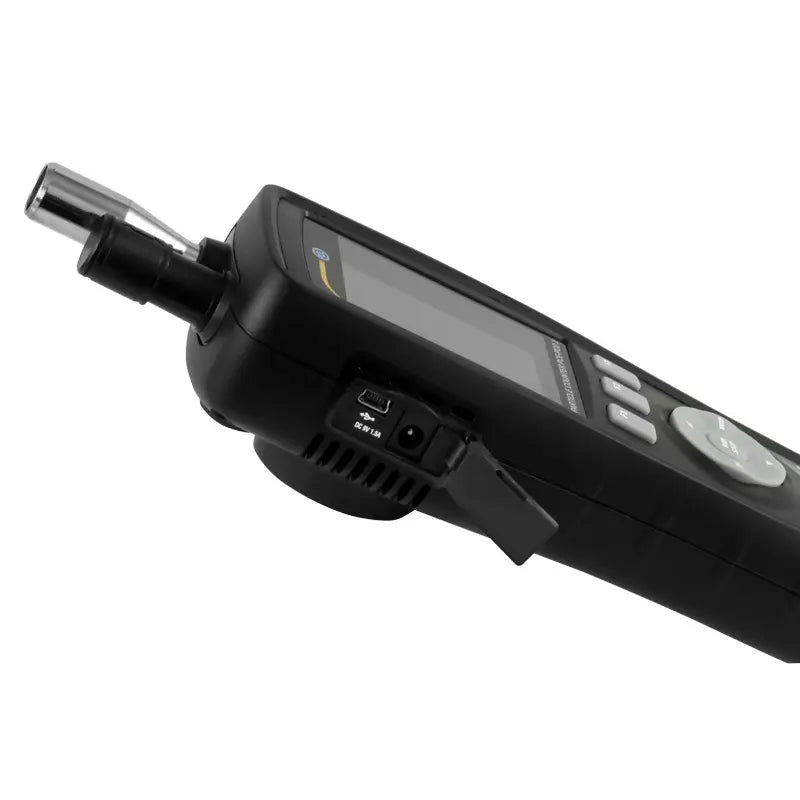

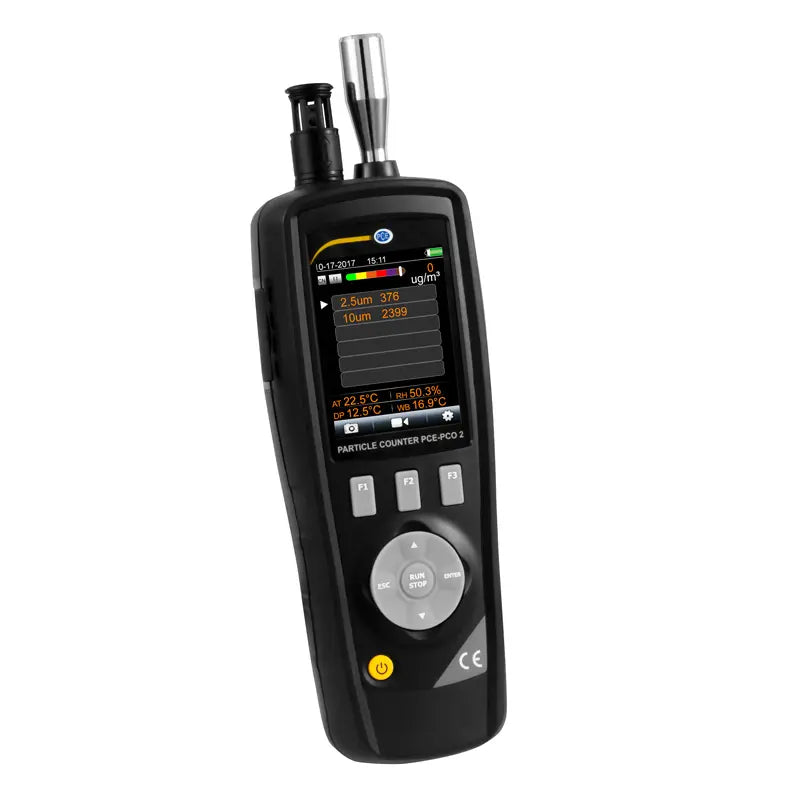

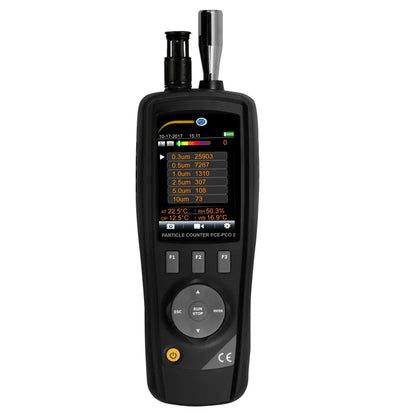

PCE-PCO 2 - Handheld Air Sampler for PM, Temp, Humidity Tracking

PCE-PCO 2 - Handheld Air Sampler for PM, Temp, Humidity Tracking

SKU: SKU: PCE-PCO 2   Download PDF

Select a Variant:
  • PCE-PCO 2 - Handheld Air Sampler for PM, Temp, Humidity Tracking
Qty:
Regular price Now $1,371.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $1,371.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

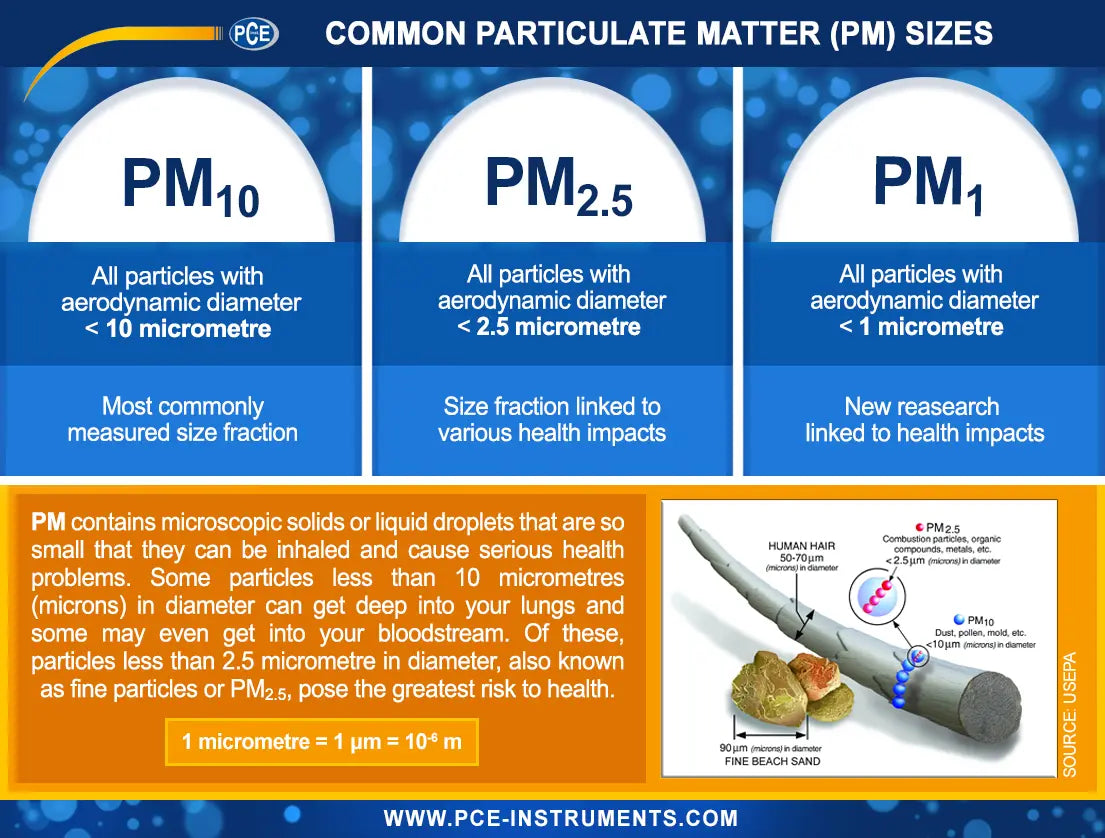

Keep the air you breathe safe and clean with the portable PCE-PCO 2 Air Sampler This handheld device effectively measures particulate matter concentrations in various sizes, including 03 µm, 05 µm, 10 µm, 25 µm, 50 µm, and 10 µm It goes beyond just particle measurement by also analyzing air temperature, dew point, and relative humidity, making it an essential instrument for evaluating indoor air quality.

The sampler is particularly useful in clean rooms and for monitoring hazardous air pollutants, especially airborne combustible dust from various materials that could pose health risks Additionally, its functionality supports assessments of HVAC system performance and safety in occupational settings, ensuring a healthier environment by tracking particulate exposure levels.

Features and Benefits:

    •Captures 6 particle sizes.

    •Measures air temperature, dew point, and relative humidity.

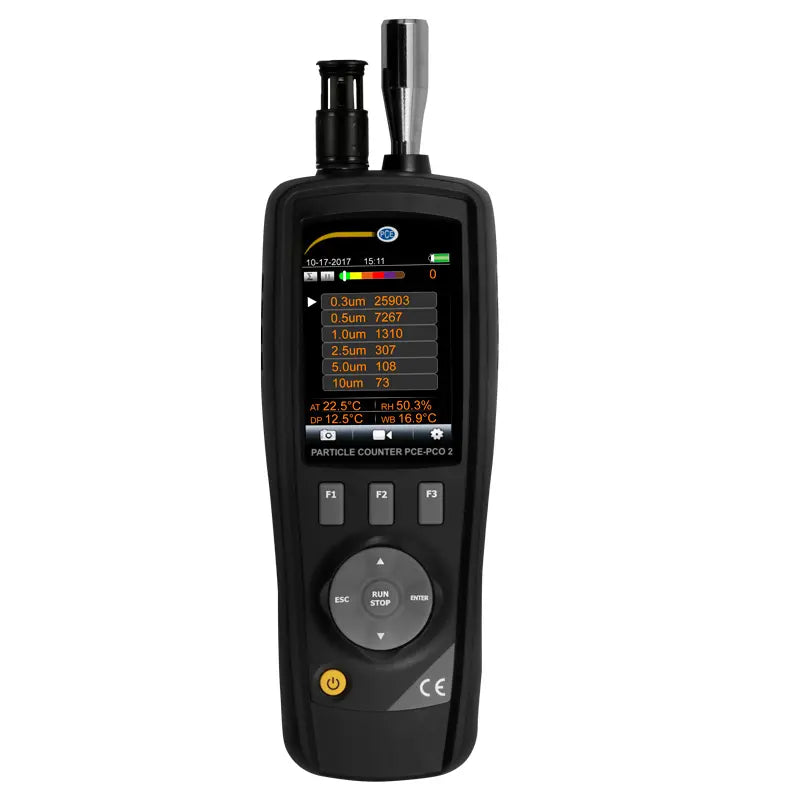

    •2.8" TFT full-color LCD screen.

    •Built-in camera for image and video recording.

    •Cumulative, differential, and concentration particle counting modes.

    •Stores up to 5,000 data sets to memory.

    •Power-saving automatic shutdown feature.

    •Monitoring clean rooms.

    •Assessing indoor air quality (IAQ).

    •Evaluating occupational health and safety risks.

    •HVAC system performance and filtration audits.

Specifications:

 Particulate matter channels PM 2.5 / PM 10
 Particle concentrations 0 ... 2000 μg / m³
 Resolution 1 μg / m³
 Particle sizes (in micrometers) 0.3 / 0.5 / 1.0 / 2.5 / 5.0 / 10 μm
 Flow rate 2.83 l / min
 Coincidence error < 5 % at 2,000,000 particles per cubic foot
 Counting efficiency 50 % at 0.3 μm; 100 % with particle size > 0.45 μm
 Memory capacity Stores up to 5,000 data sets
 Counting modes Cumulative, differential, concentration
 Air temp. measuring range 0 ... +50 °C / +32 ... +122 °F
 Dew point temp. measuring range 0 ... +50 °C / +32 ... +122 °F
 Humidity measuring range 0 ... 100 % RH
 Air temp. accuracy +10 ... +40 °C / +50 ... +104 °F: ± 0.5 °; Others: ± 1 °
 Dew point temp. accuracy 0 ... +10 °C / +32 ... +50 °F: ± 1 °; +10 ... +40 °C: / +50 ... +104 °F ± 0.5 °
 Humidity accuracy 0 ... 20 % RH: ± 5 %; 20 ... 40 % RH: ± 3.5 %; 40 ... 60 % RH: ± 3 %; 60 ... 80 % RH: 3.5 %; 80 ... 100 % RH: ± 5 %
 Operating conditions 0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH, non-condensing
 Storage conditions -10 ... +60 °C / +14 ... +140 °F, 10 ... 90 % RH, non-condensing
 Display 2.8", 320 x 240 pixel, backlit, TFT full-color LCD screen
 Power supply 7.4 V, 1200 mAh (Li-Polymer)
 Battery life operating time appr. 4 hours
 Battery recharge time Approx. 2 hours using AC charger
