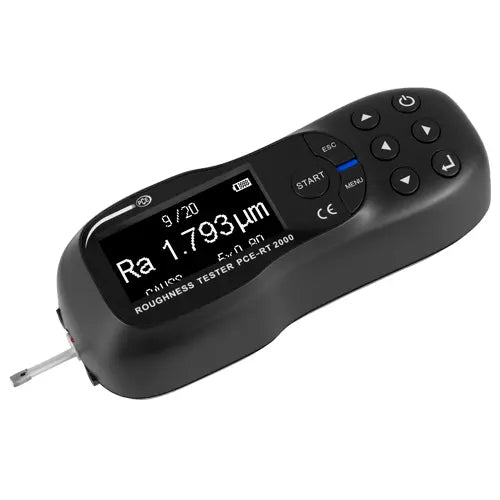

PCE-RT 2000BT - Portable Bluetooth Profilometer for Accurate Surface Measurement

PCE-RT 2000BT - Portable Bluetooth Profilometer for Accurate Surface Measurement

SKU: PCE-RT 2000BT   Download PDF

Select a Variant:
  • PCE-RT 2000BT - Portable Bluetooth Profilometer for Accurate Surface Measurement
Qty:
Now $2,541.00   Web pricing policy
BEFORE   $0.00 Now $2,541.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

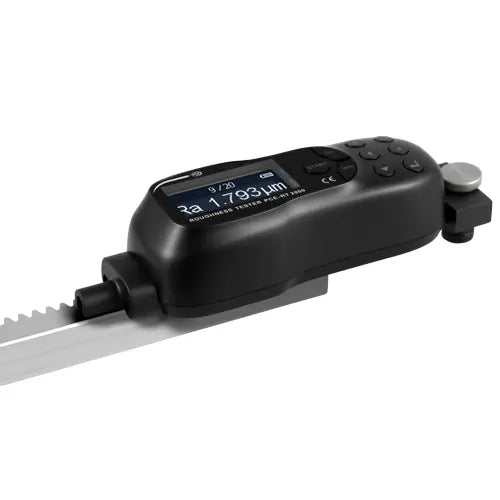

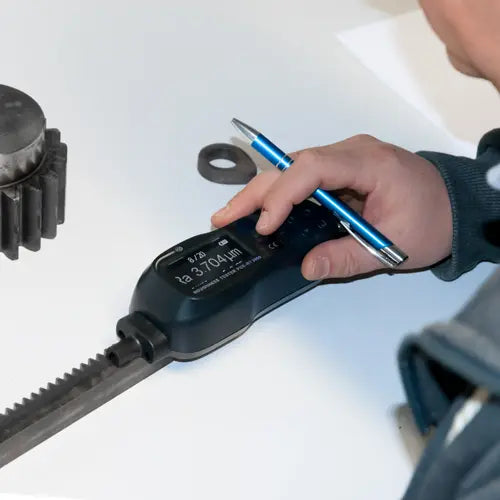

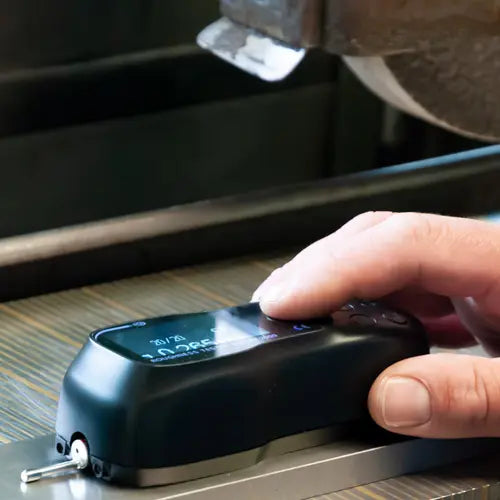

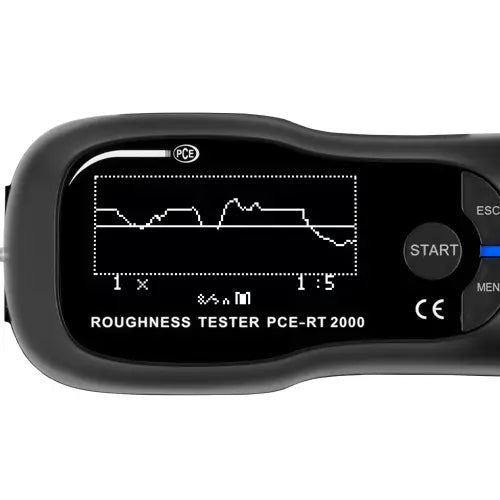

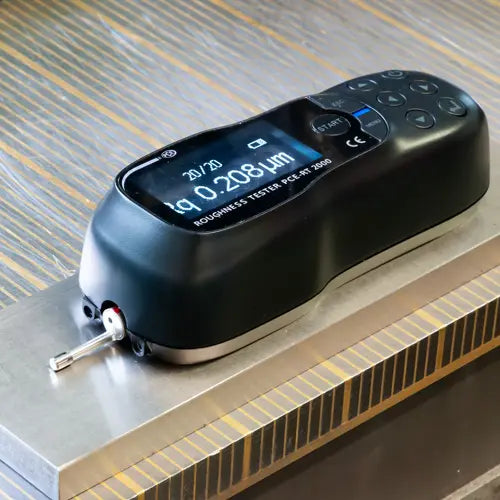

Introducing the PCE-RT 2000BT Bluetooth Profilometer, a highly portable tool engineered for accurate surface roughness evaluations This device comes equipped with a micro USB interface and features a practical positioning device for easy alignment on a variety of surfaces With a simple button press, you can initiate measurements, which are displayed along with a progress diagram for your convenience.

The PCE-RT 2000BT retains data from up to 20 measurements, allowing for detailed analysis on your PC via the micro USB connection Additionally, its Bluetooth functionality enables seamless direct connectivity with Android devices, providing real-time analysis and control over measurement settings while ensuring no vibrations affect precision.

Features and Benefits:

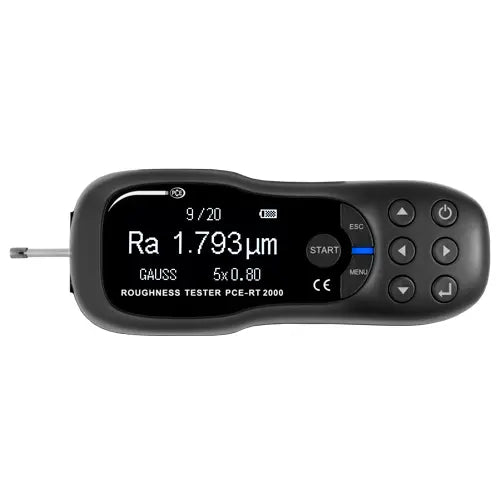

    •OLED display for clear visibility of results.

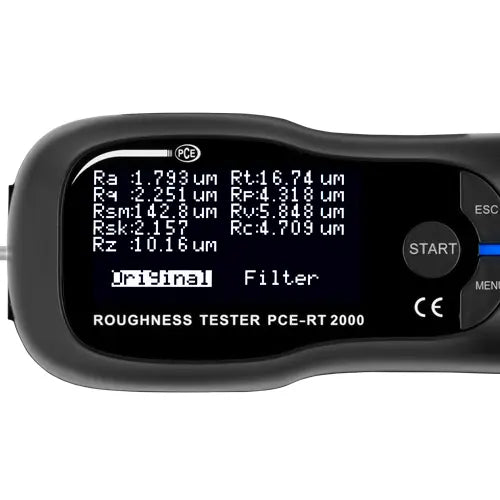

    •Measures multiple roughness parameters including Ra, Rq, Rz, and more.

    •Numerical and graphical display of measurements.

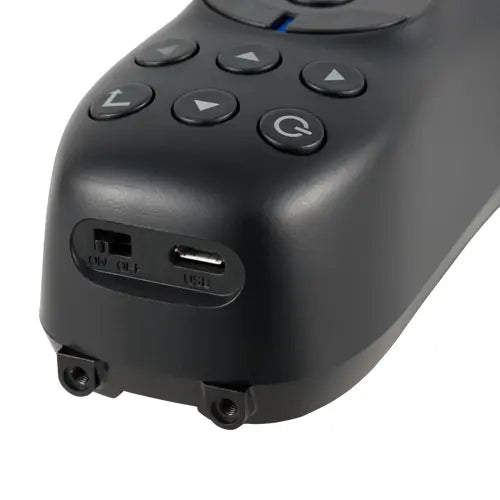

    •Micro USB interface for PC connectivity.

    •Statistical functions for comprehensive analysis.

    •Battery operation for portability.

    •Bluetooth connectivity for data export and remote control.

    •Free app available for download from the Google Play Store.

Specifications:

 Measurement parameters Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc
 Measuring ranges Ra, Rq, Rc: 0.005 μm ... 16 μm; Rz, Rt, Rp, Rv: 0.02 μm ... 200 μm; Rsm: 5 μm ... 1000 μm; Rsk: -1 ... 1

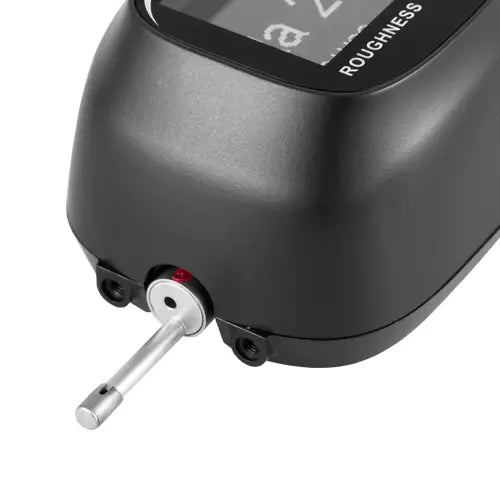

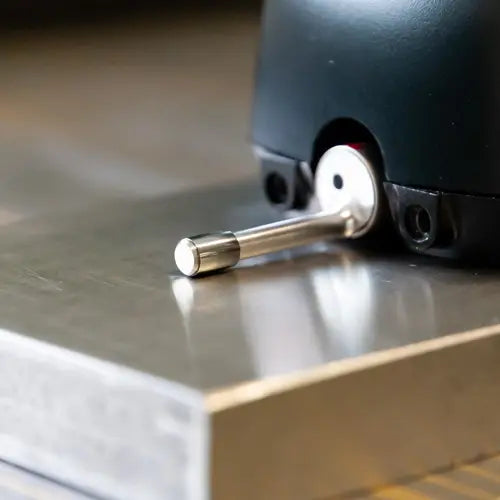

 Radius stylus tip 5 μm
 Material stylus tip Diamond, 90° angled
 Max. recommended force for static measurement 4 mN (0.4 gf)
 Measuring principle Inductive

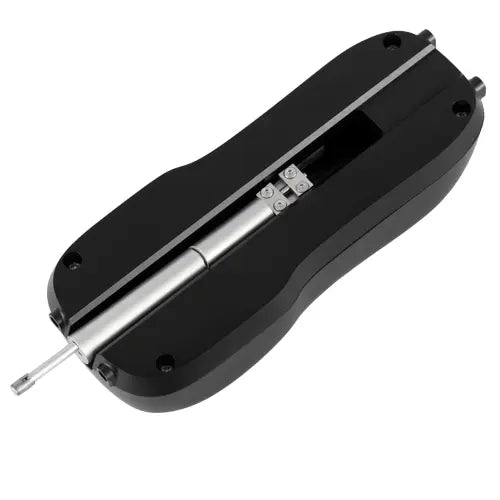

 Radius longitudinal guide bar 45 mm / 1.8 in
 Standards ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
 Maximum driving distance 15 mm / 0.6 in
 Cut-off wavelength (cut off) 0.135 mm/s at cut-off wavelength: 0.25 mm; 0.5 mm/s at cut-off wavelength: 0.8 mm; 1 mm/s at cut-off wavelength: 2.5 mm
 Reversing speed 1 mm/s
 Measurement accuracy <± 10%
 Repeatability <6%
 Display OLED
 Units μm / μinch (switchable)
 Interface Micro USB, Bluetooth
 Power supply Rechargeable Li-ion battery
