Description:
Introducing an essential tool for machine vibration analysis, this user-friendly handheld device is perfect for entry-level monitoring It features a HOLD function and peak value measurement, making it ideal for routine checks on vibrating components, machines, and systems Designed for convenience, it includes automatic evaluation based on ISO 10816-3 standards and comes with a headset for enhanced usability.
This reliable accelerometer allows maintenance professionals to quickly assess vibration acceleration, velocity, and displacement directly on its clear display By promptly identifying machine imbalances that could cause bearing damage, it helps ensure operational efficiency
The device is equipped with a mode that performs ISO 10816-3 evaluations while analyzing noise levels, automatically displaying results for easy interpretation.

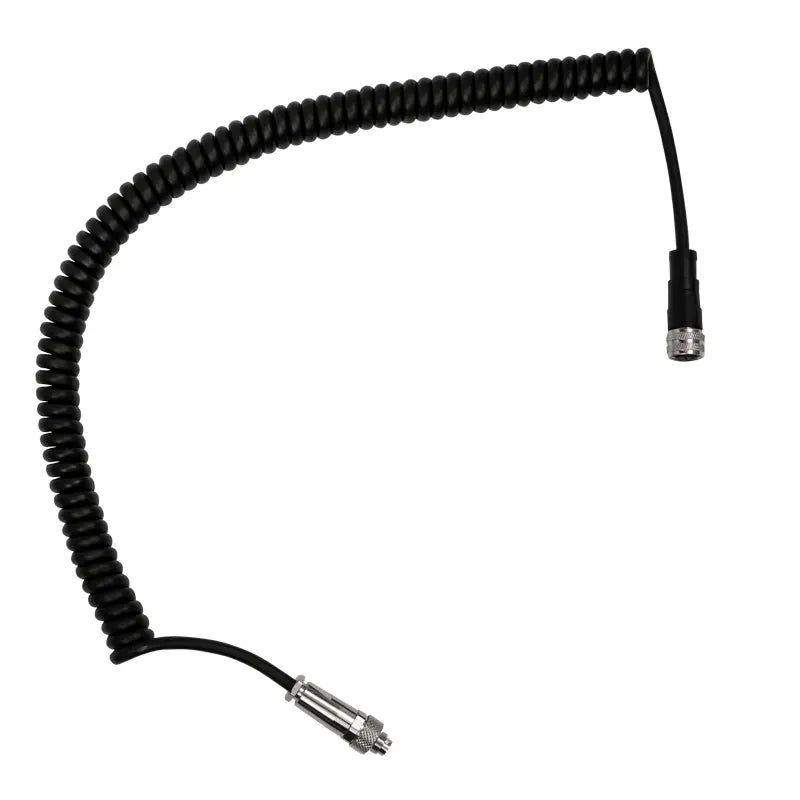

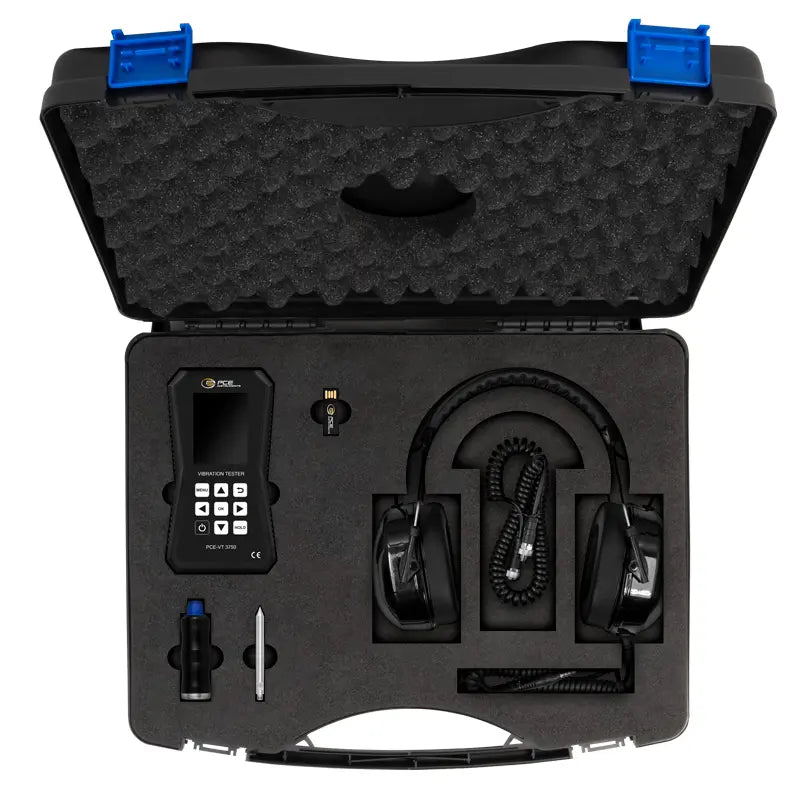

Included in the package are a sensor connected via a spiral cable, a magnet adapter, a service bag, and batteries The colorful graphic display enhances user experience with straightforward instructions and menu options, supporting 12 different languages for added accessibility.
Features and Benefits:
•Automatic ISO 10816-3 evaluation.
•Easy to handle for mobile vibration measurement.
•Measurement unit can switch between metric and imperial systems.
•Includes colored graphic display.
•Peak-hold function.
•Includes headset.
Specifications:
| Measuring range Acceleration | 0.0 ... 399.9 m/s² / 0.0 - 15744 in/s² |
| Resolution Acceleration | 0.1 m/s² / 3.94 in/s² |
| Accuracy @ 160 Hz Acceleration | ±2 % |
| Frequency range Acceleration | 10 Hz ... 10 kHz |
| Measuring range Velocity | 0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s |
| Resolution Velocity | 0.1 mm/s / 0.0039 in/s |
| Accuracy @ 160 Hz Velocity | ±2 % |
| Frequency range Velocity | 10 Hz ... 1 kHz |
| Measuring range Rotational Speed | 600 ... 50000 RPM |
| FFT acceleration | 10 Hz ... 8 kHz |
| FFT velocity | 10 Hz… 1 kHz |
| Accuracy @ 160 Hz | ± 2% |
| Number of FFT lines | 2048 |
| Route measurement | 100 routes each with 100 machines each with 100 measuring points with 1000 measured values each |
| Measuring range Displacement | 0.000 ... 3.9 mm / 0.000 - 0.154 in |
| Resolution Displacement | 1 µm / 39.4 µin |
| Accuracy @ 160 Hz Displacement | ±2 % |
| Frequency range Displacement | 10 Hz ... 200 Hz |
| Measurement parameters | RMS, Peak, Peak-Peak |
| Crest factor | |
| Manual memory | 99 folders with 50 measured values each |
| Data logger | Various start/stop triggers |
| Measurement interval | between 1 s … 12 h |
| Memory locations | 50 with 43200 measured values each |
| Units | can be switched to metric / imperial |
| Display | 2.8" LC display |
| Menu languages | English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese |
| Power supply internal | LiPo battery (3.7 V, 2500 mAh) |
| Power supply external | USB 5 VDC, 500 mA |
| Headphone connection | 3.5 mm jack plug |
| Operating time | about 15 … 20 h (depending on display brightness) |
| Operating and storage conditions temperature | -20 ... +65 °C / -4 ... 149 °F |
| humidity | 10% RH ... 95% RH, non-condensing |
| Protection class | IP52 |
| Dimensions | 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3" |
| Technical Data Vibration Sensor Resonance frequency | 24 kHz |
| Transverse sensitivity | ≤ 5% |
| Destruction limit | 5000 g (peak) |
| Operating and storage temperature | -55 °C … +150 °C / -67 °F ... 302 °F |
| Housing material | stainless steel |
| Mounting thread | ¼ - 28“ |
| Dimensions Sensor | Ø 17 x 46 mm / 0.67 x 1.8" |
| Weight sensor (without cable) | 52 g / 1.8 oz |
