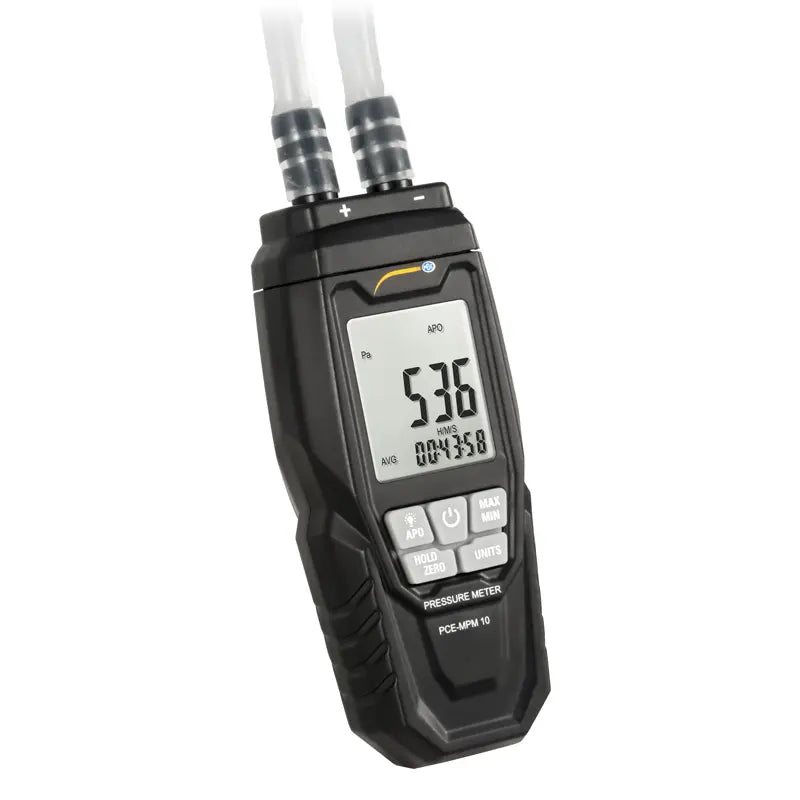

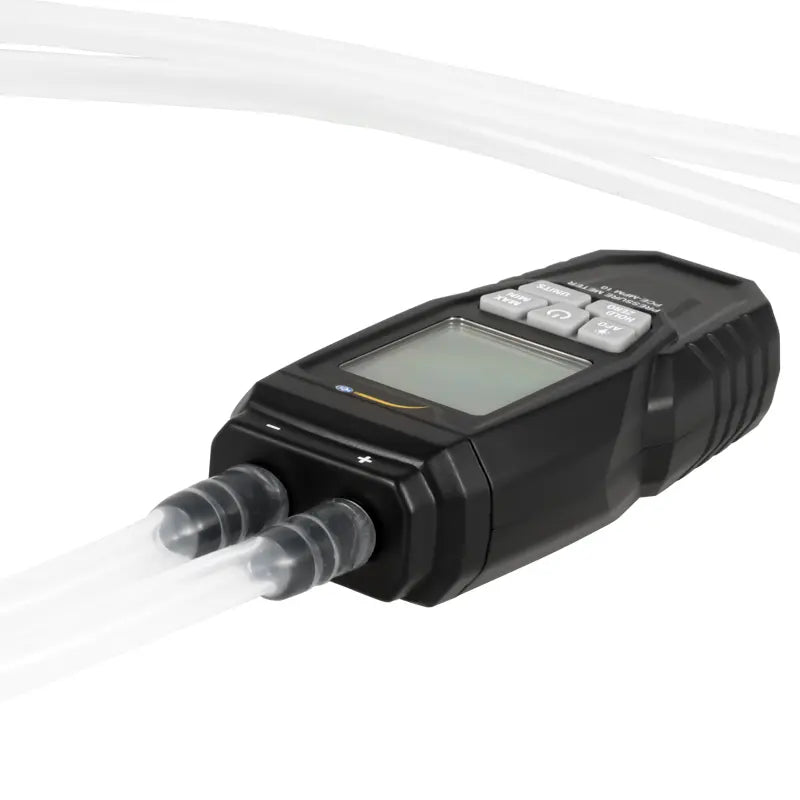

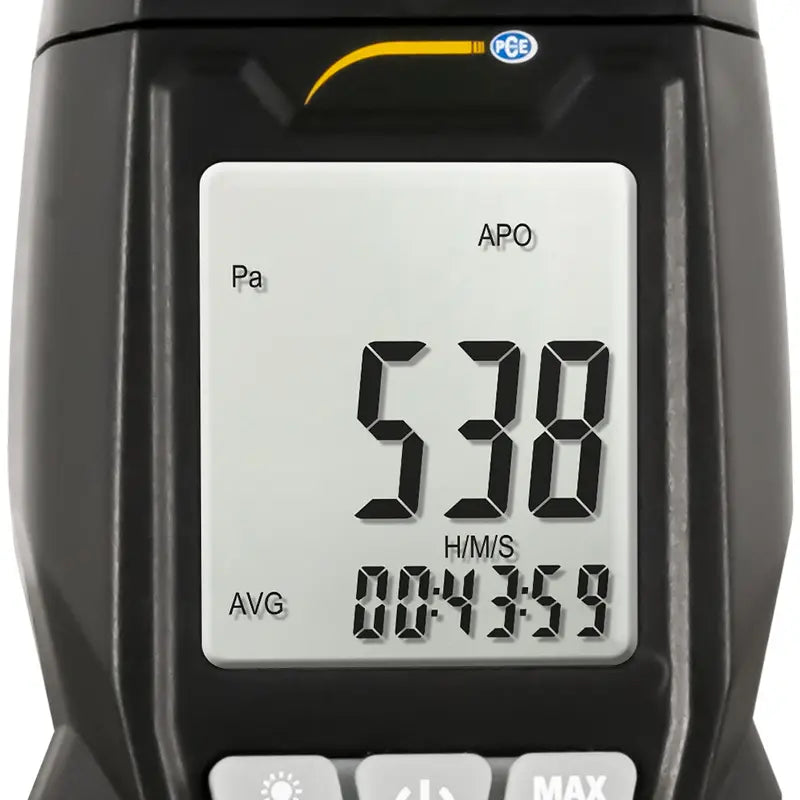

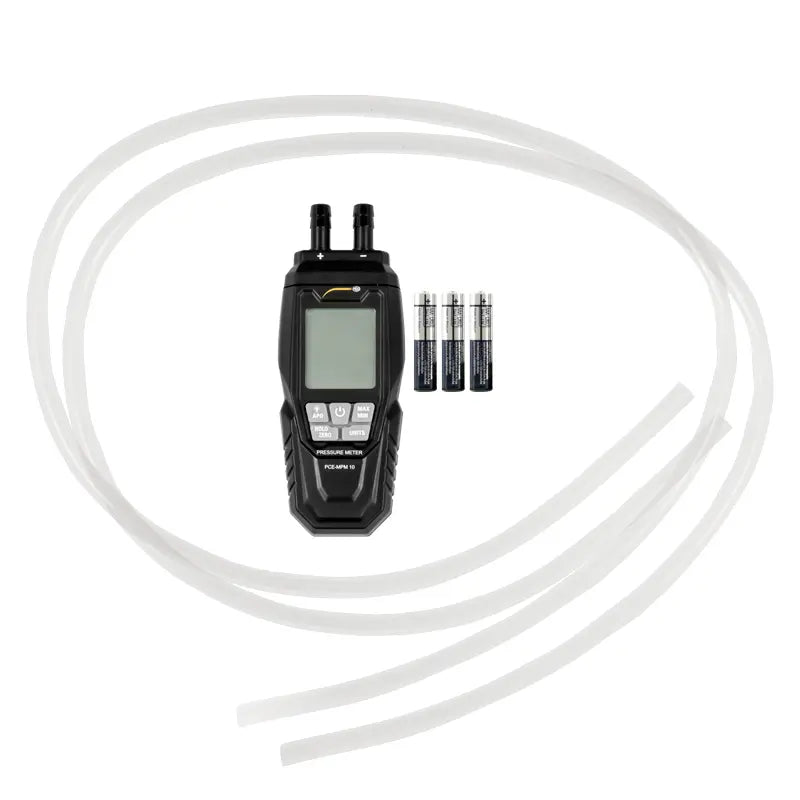

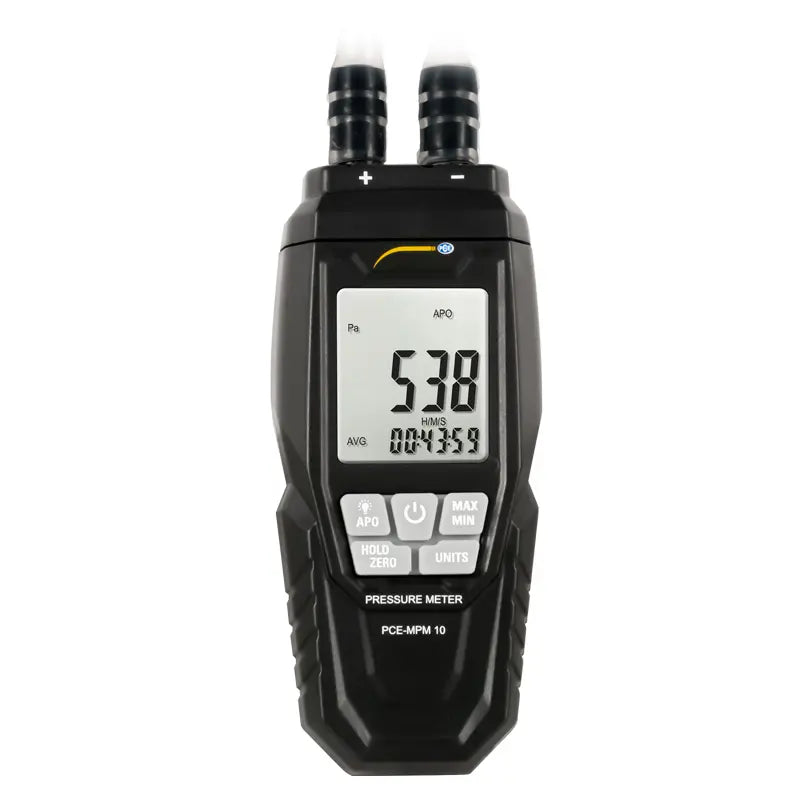

PCE-MPM 10 - Compact Differential Manometer with LC Display, ±5000 Pa

SKU: SKU: PCE-MPM 10 Download PDF

Select a Variant:

PCE-MPM 10 - Compact Differential Manometer with LC Display, ±5000 Pa

SET THE QTY:

Now $100.00 Web pricing policy

~~BEFORE $0.00~~ Now $100.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-MPM 10, a lightweight and portable manometer tailored for measuring differential air pressure in gaseous environments It boasts an easy-to-read LC display and offers a measurement capability of ±5000 Pa This versatile device allows users to view readings in 11 different pressure units, making it user-friendly for various applications Additionally, the manometer can record and showcase the smallest, largest, and average values, enabling detailed analysis of your measurements.

To enhance battery efficiency, the device automatically powers down after five minutes of inactivity.

Features and Benefits:

•Compact and handy design for mobile use.

•Displays measurements in 11 different pressure units.

•Zero point calibration for enhanced accuracy.

•Capable of displaying smallest, largest, and average measured values.

•Automatic shutdown after 5 minutes to save battery.

•Ventilation and air conditioning technology.

•Educational institutions such as technical colleges and universities.

Specifications:

Measuring range Pa	±5000 Pa
Resolution Pa	1 Pa
Measuring range hPa	±50.00 hPa
Resolution hPa	0.01 hPa
Measuring range mBar	±50.00 mbar
Resolution mBar	0.01 mbar
Measuring range mmH2O	±509.9 mmH2O
Resolution mmH2O	0.1 mmH2O
Measuring range mmHg	±37.50 mmHg
Resolution mmHg	0.01 mmHg
Measuring range inH2O	±20.07 inH2O
Resolution inH2O	0.01 inH2O
Measuring range inHg	±1.476 inHg
Resolution inHg	0.001 inHg
Measuring range psi	±0.725 psi
Resolution psi	0.001 psi
Measuring range ozin²	±11.60 ozin²
Resolution ozin²	0.01 ozin²
Measuring range bar	±0.050 bar
Resolution bar	0.001 bar
Measuring range kPa	±5.000 kPa
Resolution kPa	0.001 kPa
Display	LCD
Accuracy	±0.3 % of full scale @25 °C / 77 °F
Repeatability	±0.2 % of full scale (maximum ±0.5 % of full scale)
Linearity	±0.29 % of full scale
Medium	gaseous
Maximum pressure	2 psi
Measuring rate	2 Hz
Battery status display	display when the battery voltage is too low
Exceeding the measuring range	OL display
Operating conditions	0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions	-10 ... 60 °C / 14 ... 140 °F, <90 % RH, non-condensing
Hose connection	2 x 8 mm / 0.078 x 0.315"
Power supply	3 x 1.5 V batteries
Dimensions	140 x 52 x 28 mm / 5.5 x 2.0 x 1.1"
