PCE-RT 11 - Portable Surface Roughness Tester with High Accuracy

PCE-RT 11 - Portable Surface Roughness Tester with High Accuracy

SKU: PCE-RT 11   Download PDF

Select a Variant:
  • PCE-RT 11 - Portable Surface Roughness Tester with High Accuracy
Qty:
Now $1,650.00   Web pricing policy
BEFORE   $0.00 Now $1,650.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

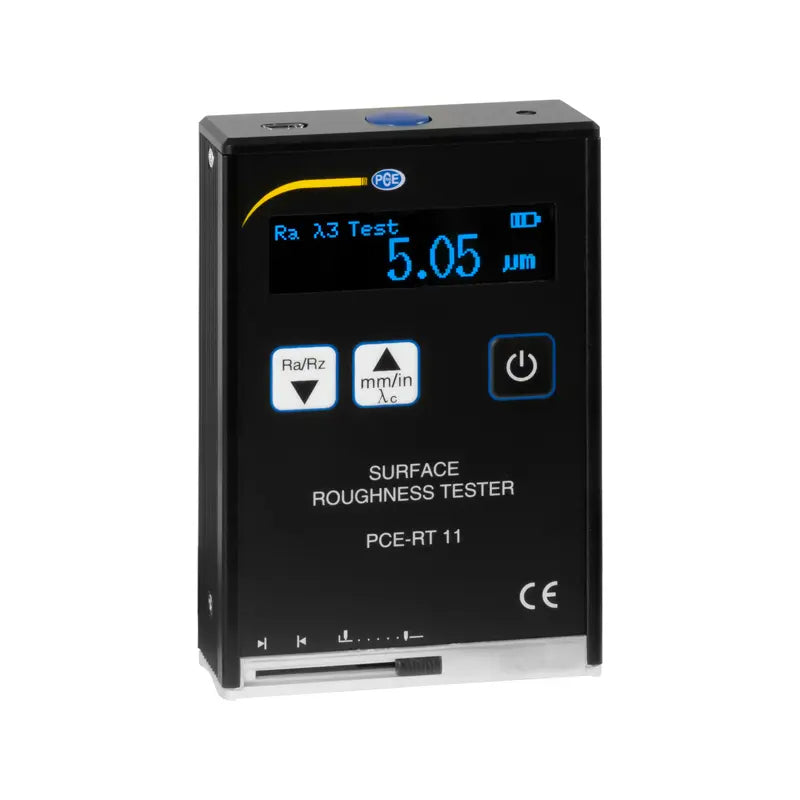

Introducing the PCE-RT 11 Profilometer, a versatile and portable device designed specifically for measuring surface roughness with precision This instrument evaluates roughness parameters such as Ra, Rz, Rq, and Rt, all within a single compact unit Utilizing a piezoelectric micro probe technology similar to that found in high-end laboratory tools, this profilometer offers speed and accuracy in surface measurement.

With its user-friendly design and exceptional repeatability, obtaining surface roughness readings has never been easier Simply press the button, and the micro probe will swiftly scan the surface, displaying the chosen roughness value—Ra, Rz, Rq, or Rt—on its digital screen, according to the set cut-off length Ideal for various industrial applications, the PCE-RT 11 is a reliable choice for precision surface analysis.

Features and Benefits:

    •With real time battery display.

    •USB interface.

    •Simple calibration.

    •Also for cylinder and inclined area.

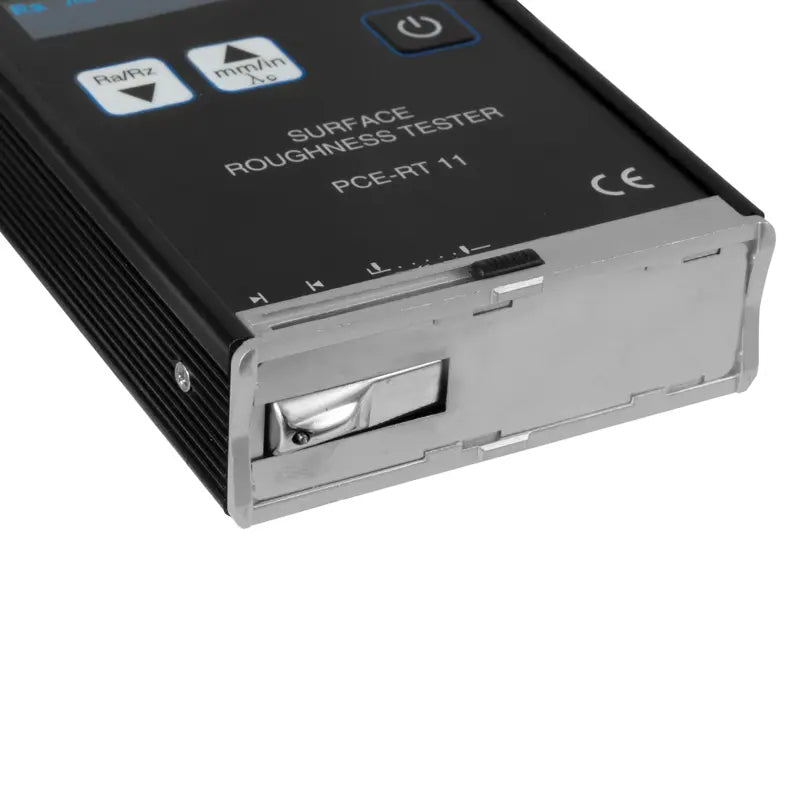

    •With slider to protect the probe.

    •Wide measuring area.

    •OLED display.

    •With roughness standard.

    •Piezoelectric probe.

    •With backlight.

Specifications:

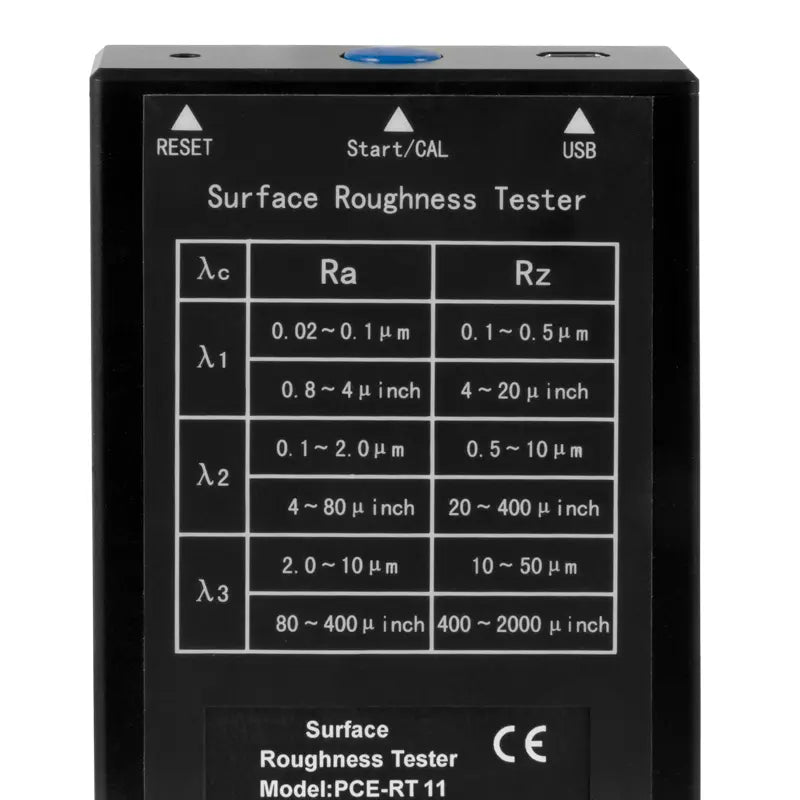

 Roughness parameters Ra, Rz, Rq, Rt
 Accuracy ± 15%
 Repeatability < 12%
 Measuring area Rz, Rt 0.1 … 50 µm
 Measuring area Ra, Rq 0.05 … 10 µm
 Cut-off length f0.25 mm, 0.8 mm, 2.5 mm
 Scanning path in total 6 mm
 Probing speed 1 mm / s
 Probe system Piezoelectric probe
 Probe diameter 10 µm ± 1 µm tip radius
 Inclination angle OLED display
 Ambient temperature -20 … 40°C / -4 ... 104°F
 Humidity < 90 %
 Power supply 3.7 V Li-Ion battery
 Load-time 3 hours
 Dimension 106 x 70 x 24 mm / 4.2 x 2.8 x 1 in
