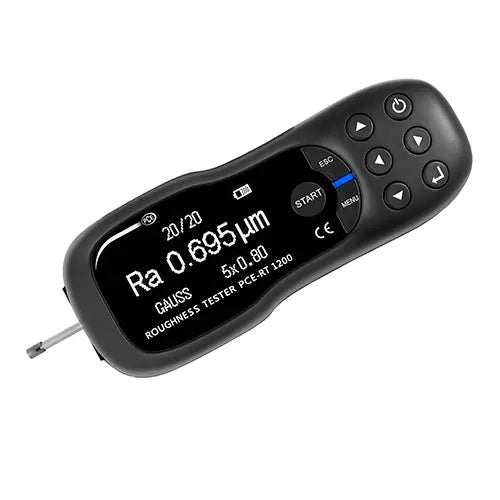

PCE-RT 1200BT - Bluetooth Surface Roughness Tester with OLED Display

PCE-RT 1200BT - Bluetooth Surface Roughness Tester with OLED Display

SKU: SKU: PCE-RT 1200BT   Download PDF

Select a Variant:
  • PCE-RT 1200BT - Bluetooth Surface Roughness Tester with OLED Display
Qty:
Regular price Now $2,247.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $2,247.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the PCE-RT 1200BT Bluetooth handheld surface roughness tester, a versatile tool designed for precise surface assessments This innovative device, featuring a micro USB interface, allows you to measure a variety of surface roughness parameters quickly and accurately Its user-friendly design includes a positioning device for easy alignment during measurements, which can be initiated at the touch of a button.

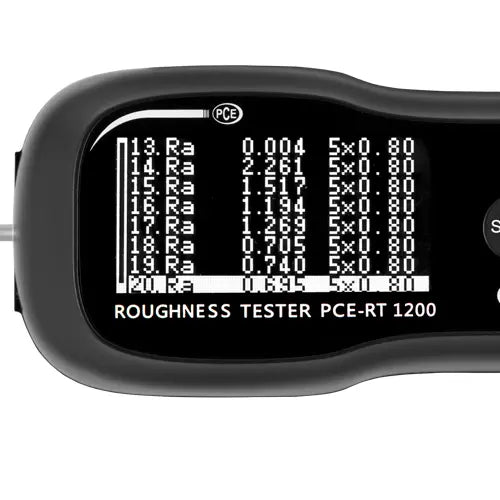

Upon completing a measurement, results are conveniently displayed on the OLED screen, offering a progress diagram along with clear results in both table and graph formats The device boasts a memory capacity to store up to 20 measurements for effortless retrieval For enhanced data analysis, you can connect the tester to a PC via the micro USB port and utilize the accompanying software Additionally, the Bluetooth functionality allows real-time data display and transfer to Android devices, boosting the overall user experience.

Compact and easy to handle, this surface roughness tester is powered by a rechargeable battery that provides enough energy for up to 3000 measurements on a single charge, ensuring you can rely on it time after time.

Features and Benefits:

    •Compact and easy to handle.

    •Large OLED display for clear result presentation.

    •Capable of measuring four roughness parameters.

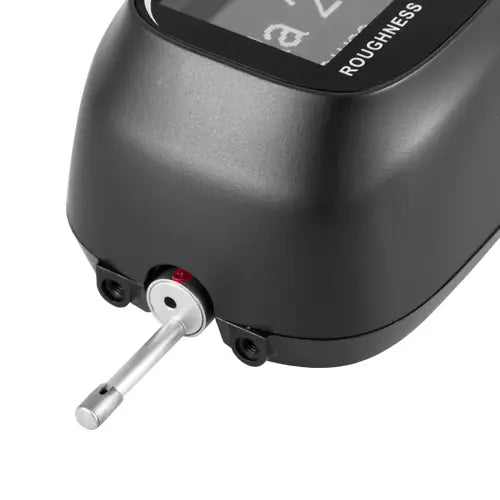

    •High-quality diamond probe tip for accuracy.

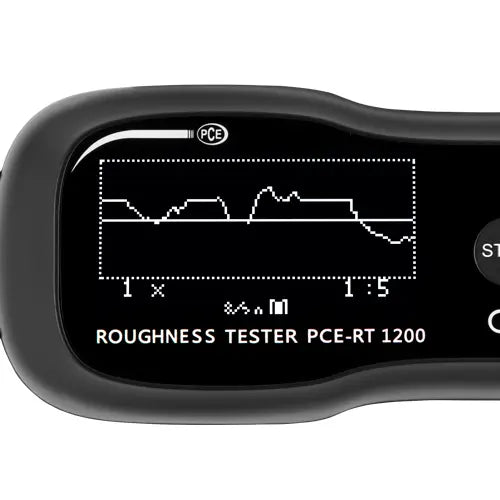

    •Results can be displayed in tabular and graphical formats.

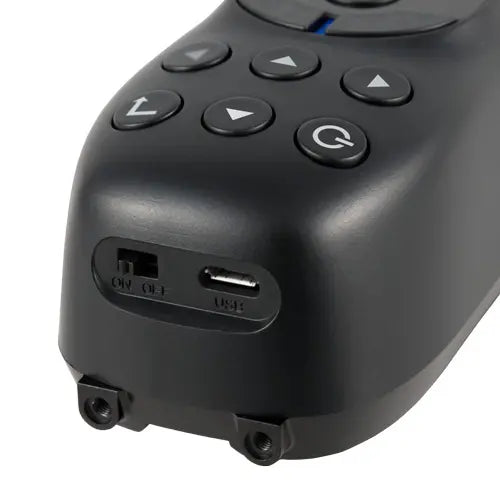

    •Micro-USB interface for data transmission to a PC.

    •Internal rechargeable battery lasting for 3000 measurements per charge.

    •Bluetooth capability for enhanced connectivity with Android devices.

    •Direct control and data analysis via mobile device.

    •Surface roughness measurement in various industries.

    •Quality control and assessment in manufacturing and production processes.

    •Laboratory research requiring precision surface measurements.

Specifications:

 Measurement parameters Ra, Rz, Rq, Rt
 Measuring ranges Ra, Rq: 0.005 ... 16.00 µm / 0.197 ... 629.921 µin; Rz, Rt: 0.002 ... 200.0 µm / 0.079 ... 7874.016 µin
 Radius probe tip 5 µm/ 196.850 µin
 Material probe tip Diamond, 90° angled
 Max. recommended force for static measurement 4 mN (0.4 gf)
 Radius longitudinal guide bar 45 mm / 1.77"
 Standards ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)
 Maximum driving distance 15 mm / 0.59"
 Measuring principle Inductive
 Cut-off wavelength 0.25 mm / 0.8 mm / 2.5 mm / 0.009" / 0.03" / 0.098"
 Testing speed 0.135 mm/s at cut-off wavelength: 0.25 mm; 0.5 mm/s at cut-off wavelength: 0.8 mm; 1 mm/s at cut-off wavelength: 2.5 mm; Reversing speed: 1 mm/s
 Measuring accuracy < ± 10%
 Repeatability < 6%
 Display OLED
 Units μm / μinch (switchable)
 Interface Micro-USB, Bluetooth
 Power supply Rechargeable Li-ion battery
 Dimensions L x W x H 150 x 60 x 43 mm / 5.9 x 2.36 x 1.69 in
