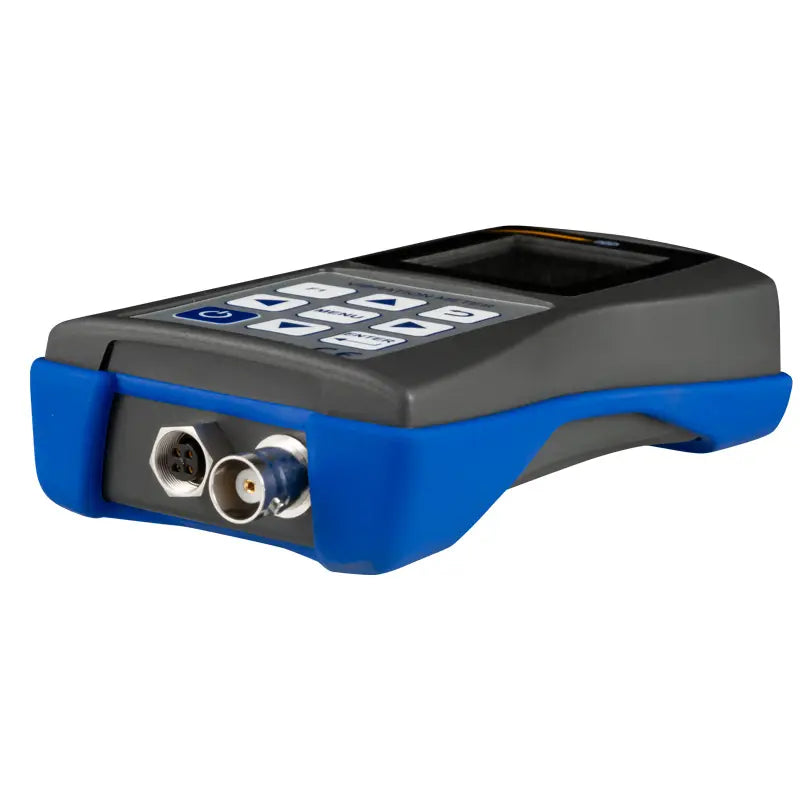

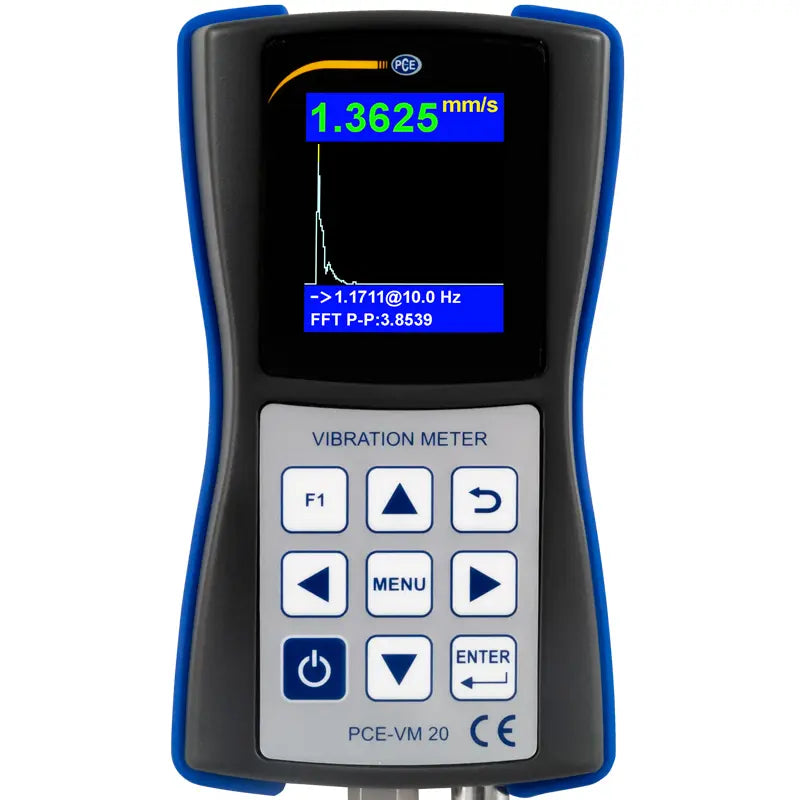

PCE-VM 20 - Compact Vibration Meter with FFT Analysis and LiPo Battery

PCE-VM 20 - Compact Vibration Meter with FFT Analysis and LiPo Battery

SKU: PCE-VM 20   Download PDF

Select a Variant:
  • PCE-VM 20 - Compact Vibration Meter with FFT Analysis and LiPo Battery
Qty:
Now $2,495.00   Web pricing policy
BEFORE   $0.00 Now $2,495.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

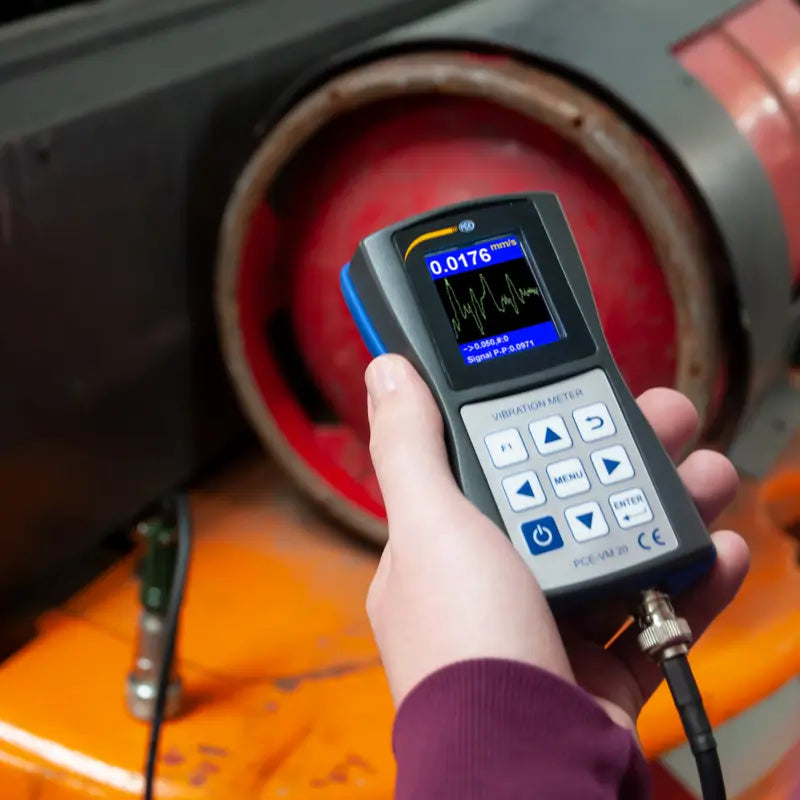

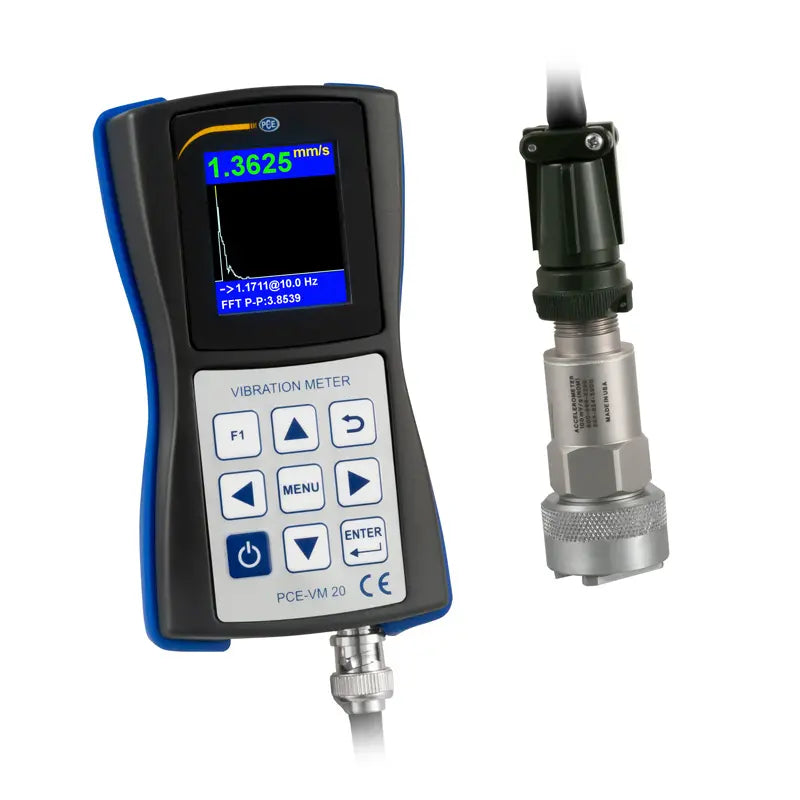

Introducing the PCE-VM 20, a specialized device crafted for assessing machine vibration performance This compact tool adheres to DIN ISO 10816 standards for straightforward evaluation and features multiple measurement modes, including real-time FFT analysis It accurately captures a range of vibration metrics, such as vibration acceleration, velocity, and displacement Compatible with both IEPE standard piezoelectric sensors and charge output sensors, this device boasts a sturdy housing and comes equipped with an integrated LiPo battery for enhanced reliability and portability.

Features and Benefits:

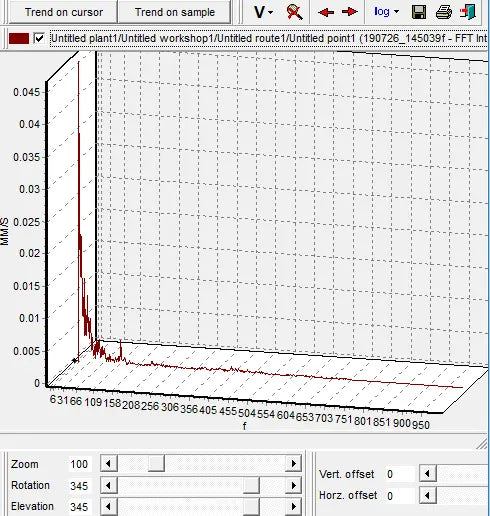

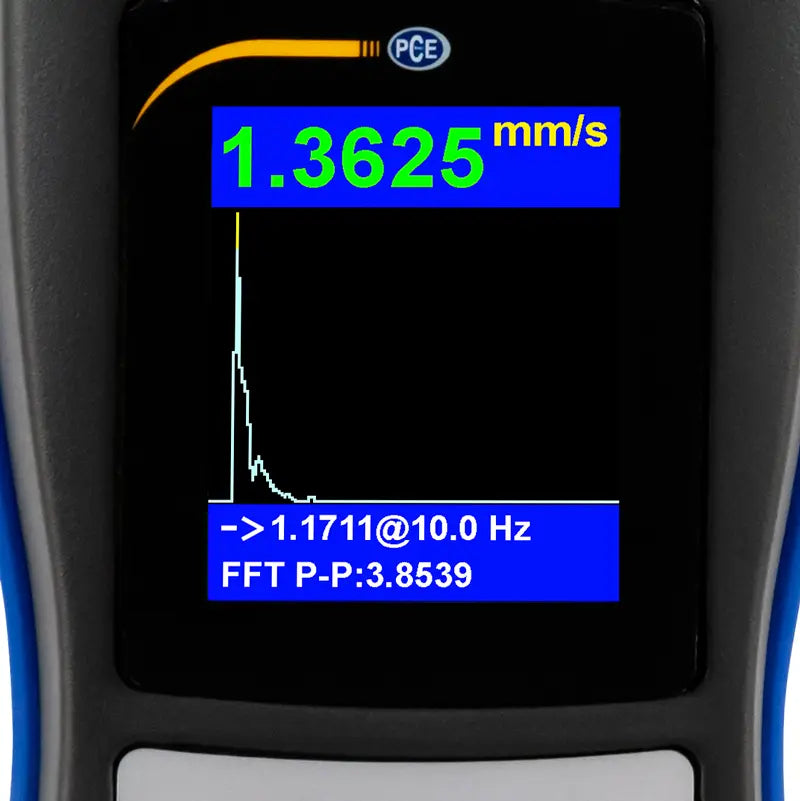

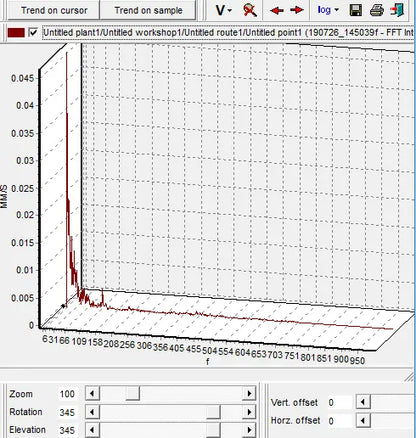

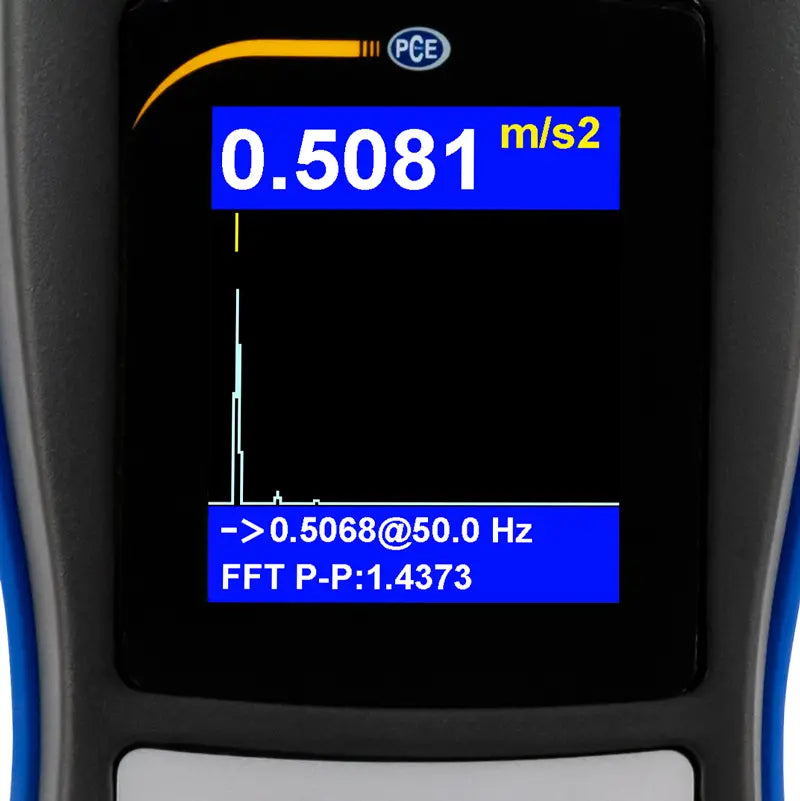

    •Real-time FFT analysis.

    •Robust housing.

    •Measures multiple vibration parameters.

    •Direct evaluation according to DIN ISO 10816.

    •Integrated LiPo battery.

Specifications:

 Vibration acceleration 0 ... 200 m/s², RMS and Peak-Peak
 Vibration velocity 0 ... 200 mm/s, RMS
 Vibration displacement 0 ... 2000 μm, Peak-Peak
 Accuracy vibration ± 5%

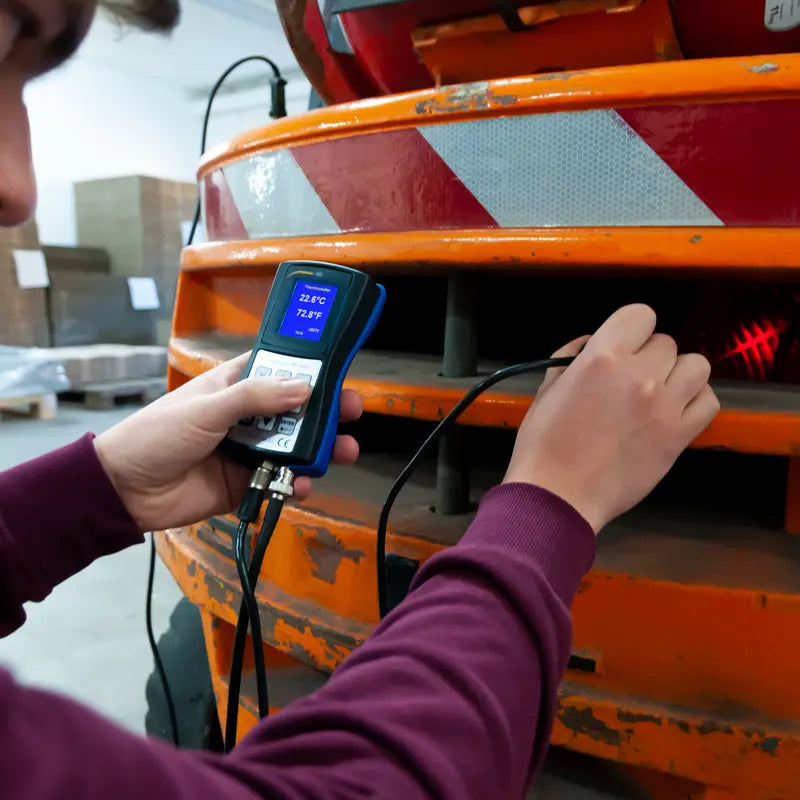

 Operating modes Vibration, temperature, speed
 Representable measured variables Frequency, Vibration acceleration, Vibration velocity, Vibration, FFT spectrum

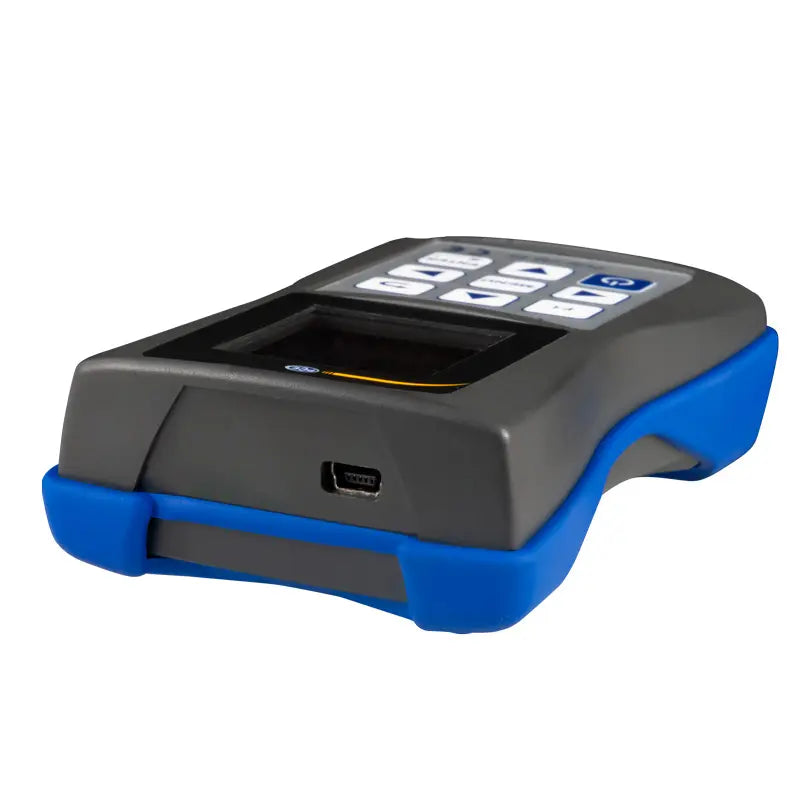

 Interface USB 2.0
 Storage 4GB micro SD card
 Battery life Up to 8 h continuous operation
 Battery type Lithium polymer
 Display 128 x 160 pixel color LCD
 Environmental conditions -50 ... 121 °C / -58 ... 249.8 °F
 Dimensions 132 x 70 x 33 mm / 5.2 x 2.8 x 1.3 in (L x W x D)
 Weight of device About 150 g / < 1 lb
 Sensitivity 100 mV / g
 Frequency response (± 3 dB) 0.5 ... 15,000 Hz
 Frequency response (± 10%) 2.0 ... 10,000 Hz
 Dynamic range ± 50 g, peak
 Power supply (IEPE) 18 ... 30V DC
 Constant current source 2 ... 10-mA
 Spectral noise at 10 Hz 14 μg / √Hz
 Spectral noise at 100 Hz 2.3 μg / √Hz
 Spectral noise at 1000 Hz 2 μg / √Hz
 Output impedance < 100 Ω
 Bias voltage 10 ... 14V DC
 Housing insulation > 100 MΩ
 Maximum impact protection 5000 g, peak
 Resonant frequency 23,000 Hz

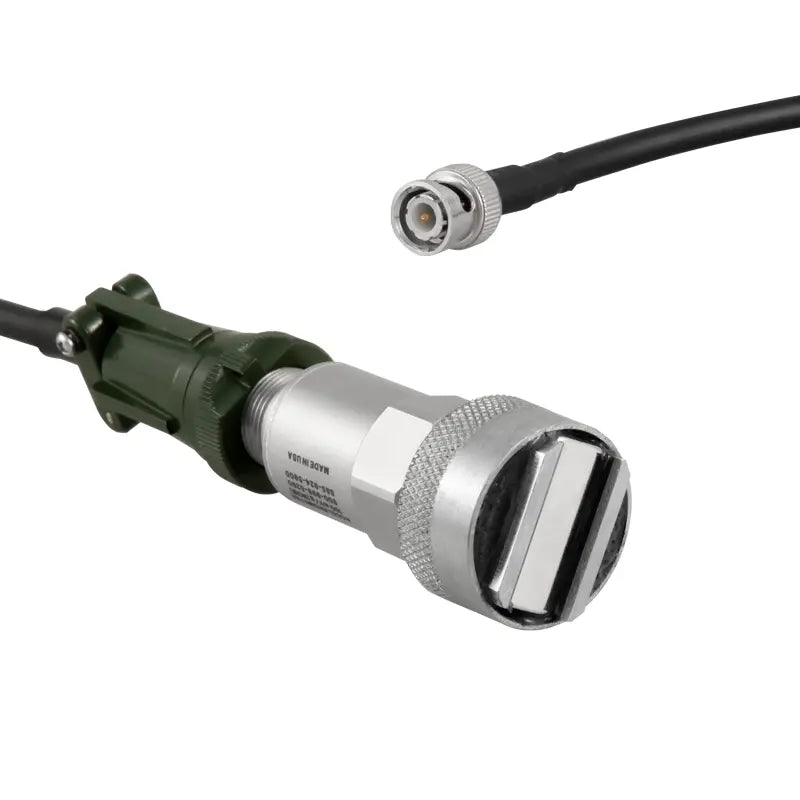

 Housing material 316L stainless steel
 Connection 2 Pin MIL-C-5015
 Protection IP68
 Weight of sensor 90 g / < 1 lb
