PCE-PWT 10 - Compact Ultrapure Water Conductivity Tester with Temp Compensation

PCE-PWT 10 - Compact Ultrapure Water Conductivity Tester with Temp Compensation

SKU: PCE-PWT 10   Download PDF

Select a Variant:
  • PCE-PWT 10 - Compact Ultrapure Water Conductivity Tester with Temp Compensation
Qty:
Now $198.00   Web pricing policy
BEFORE   $0.00 Now $198.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

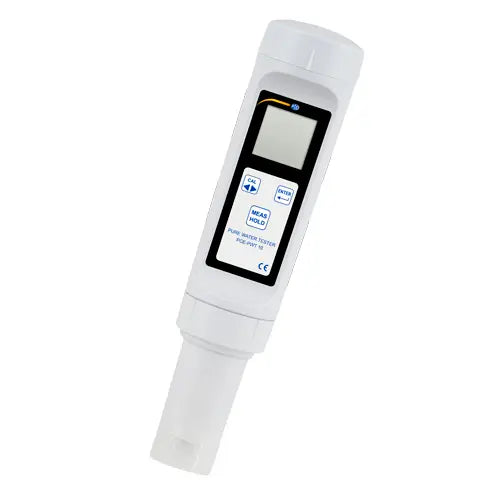

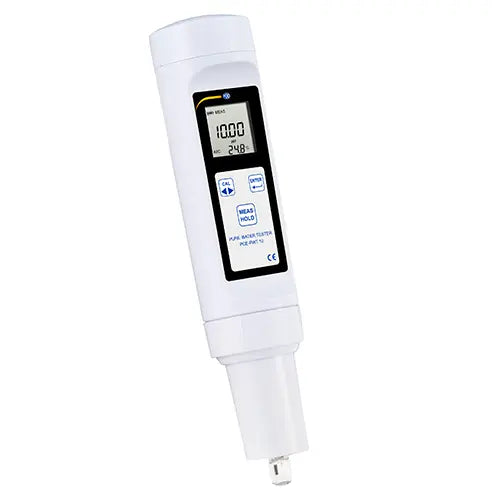

Introducing the PCE-PWT 10 Conductivity Meter, a compact and portable tester specifically engineered for ultrapure water applications This device features an integrated temperature sensor that provides optimal temperature compensation, ensuring precision in readings With a measuring range of just 0 to 20 µS/cm, it effectively gauges the salinity levels in various liquids The meter is equipped with automatic temperature compensation capabilities that function up to 60 °C and employs a reliable three-point calibration system for improved measurement accuracy.

This tool is essential for the desalting phase in water purification processes, including electrodialysis and reverse osmosis, making it a crucial instrument for monitoring water quality.

Features and Benefits:

    •Smallest measuring range up to 20 µS/cm.

    •Compact design of pure water tester housing.

    •Automatic temperature compensation.

    •Salinity measurement capability.

    •Internal three-point conductivity calibration.

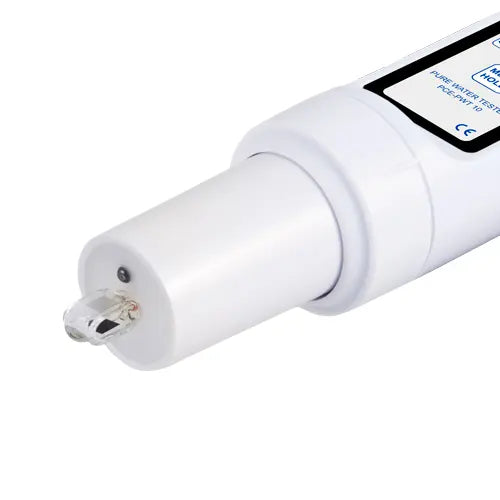

    •Changeable conductivity electrode.

    •Desalting stage of water purification.

    •Monitoring salt separation in electrodialysis and reverse osmosis.

    •Determining total ion concentration in wastewater.

Specifications:

 Conductivity measuring range 0 ... 20 µS/cm, 0 ... 200 µS/cm, 0 ... 2000 µS/cm, 0 ... 20.00 mS/cm
 Resolution 0.01 / 0.1 / 1
 Accuracy ± 1 % of measuring range
 Salinity measuring range 0.00 ... 10.00 ppt
 Salinity resolution 0.01 ppt
 Salinity accuracy ± 1 % of measuring range
 Temperature measuring range 0 ... 60 °C / 32 ... 140 °F
 Temperature resolution 0.1 °C
 Temperature accuracy ± 1 °C
 Temperature compensation range 0 ... 60 °C / 32 ... 140 °F
 Temperature coefficient 2 % / °C
 Number of calibration points 1 ... 3
 Calibration points 84 µS/cm, 1413 µS/cm, 12.88 mS/cm
 Cell constant K=1
 Normal media temperature 25 °C / 77 °F
 Hold function By pressing a button
 Automatic shutdown 8 minutes after the last key press
 Power supply 2 x 1.5 V AAA batteries
 Operating time ca. 200 hours
 Dimensions 185 x 40 mm / 7.2 x 1.5"
