PCE-VE 320HR - 1m Borescope with 6 LED Lights for Inspection

PCE-VE 320HR - 1m Borescope with 6 LED Lights for Inspection

SKU: PCE-VE 320HR   Download PDF

Select a Variant:
  • PCE-VE 320HR - 1m Borescope with 6 LED Lights for Inspection
Qty:
Now $1,181.00   Web pricing policy
BEFORE   $0.00 Now $1,181.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

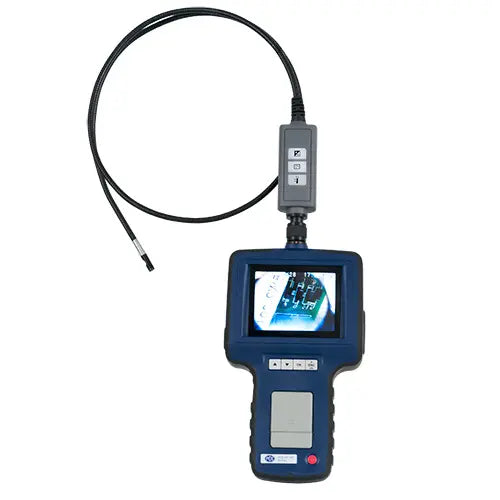

Introducing the PCE-VE 320HR, an advanced videoscope designed for non-destructive inspection (NDI) of engines, machinery, and more This industrial-grade inspection camera is your go-to solution for diagnosing problems in difficult-to-access areas Equipped with a waterproof camera head, it boasts 6 built-in LED lights—4 positioned at the front and 2 on the sides—to enhance visibility in dark spaces Featuring a zoom capability that magnifies images up to 2 times, the borescope also includes a boost function for enhanced image clarity in dim conditions.

Recorded content can be directly saved onto the included SD card, enabling straightforward transfers to your computer With a flexible cable measuring 1 meter (328 feet) in length and a slim diameter of 55 mm (022 inches), this inspection camera provides unprecedented access to various tight spaces, including walls, pipes, vents, ducts, engines, and machinery, thereby saving you time and costly disassembly.

Professionals across multiple fields, including mechanical engineering, manufacturing, automotive, aviation, construction, plumbing, HVAC, and refrigeration, will find this versatile video inspection camera invaluable for a wide range of applications.

Features and Benefits:

    •Features a 5.5 mm / 0.22 in diameter waterproof camera head, picture and video recording.

    •1 m / 3.28 ft long semi-flexible / semi-rigid cable.

    •Comes with a 3.7V rechargeable lithium-ion battery.

    •3.5 in TFT LCD monitor.

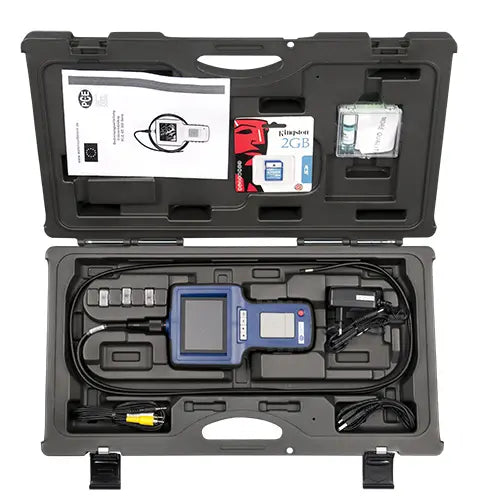

    •Includes an SD memory card, hard carrying case, cleaning kit and mirror attachment for 90° angle viewing.

    •6 LEDs (2 at the front, 2 at the sides for better illumination when using the mirrors).

    •Boost function offers improved image quality in dark environments.

    •Non-destructive inspection (NDI) of engines and machines.

    •Mechanical engineering.

    •Manufacturing.

    •Automotive.

    •Aviation.

    •Construction.

    •Plumbing.

    •Heating, ventilation, air conditioning and refrigeration (HVACR).

Specifications:

 Cable diameter 5.5 mm / 0.22 in
 Cable length 1 m / 3.28 ft
 Depth of field 1.5 … 10 cm / 0.59 ... 3.94 in
 Field of view 67°
 Bending radius 90 mm / 3.54 in
 Illumination 6 LEDs (4 front, 2 side)
 Boost function For improved image quality in the dark
 Image sensor CMOS
 Picture rate 30 frames per second (fps)
 Display 88.9 mm / 3.5 in TFT LCD monitor
 Interface Mini USB 1.1 / AV out
 Storage options Image or video
 Storage 8 GB memory card (can be increased to 32 GB)
 Compression format MPEG 4
 Picture format JPEG (640 x 480 pixel resolution)
 Video output format NTSC / PAL
 Video format ASF (320 x 240)
 Operation and storage temperature -10 ... 60°C / 14 ... 140°F
 Voltage supply Rechargeable 3.7 V lithium-ion battery
 Dimensions, handheld device 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in
 Protection type, camera IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.9 ft
