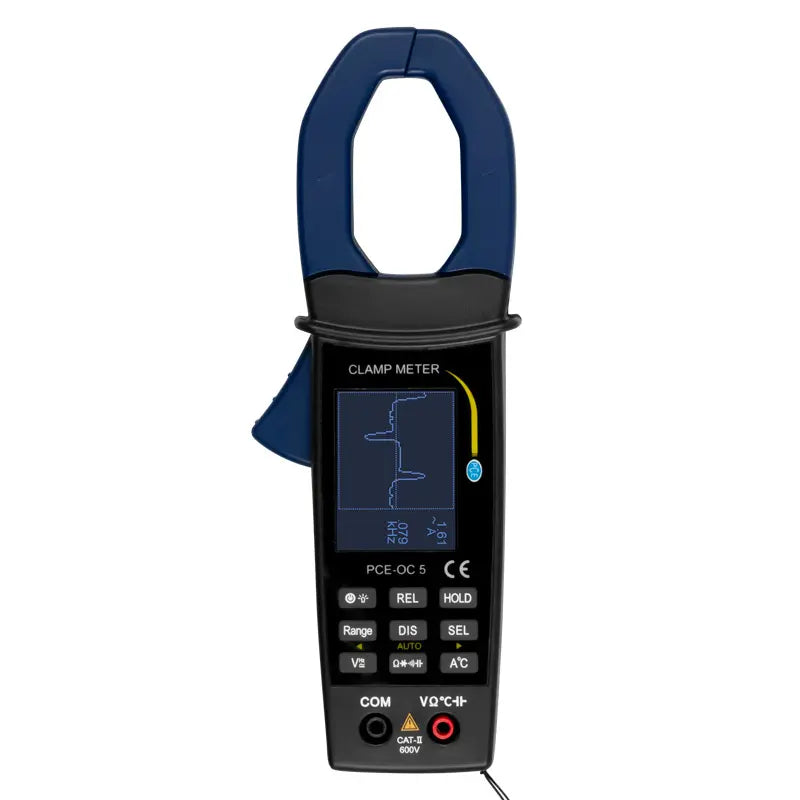

PCE-OC 5 - 400 A AC Clamp Meter with Oscilloscope Function & TRMS Multimeter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Experience precision with the versatile Clamp Meter, a sophisticated tool equipped with oscilloscope capabilities This device can measure currents up to 400 A AC and voltages up to 600 V AC/DC, in addition to offering temperature measurements Featuring TRMS multimeter functions with a bandwidth of 2 kHz, it also excels in oscilloscope mode with an impressive 200 kHz bandwidth, suitable for monitoring frequency converters.

Engineered for both technicians in the field and laboratory environments, this clamp meter enables you to visualize both direct and alternating voltage and current seamlessly It can accommodate conductors with diameters of up to 35 x 46 mm Powered by 15 V AAA batteries, the unit boasts a graphic LCD display that clearly presents measured values and graphs Additionally, it includes a memory function capable of storing 100 values in multimeter settings and 10 graphs in oscilloscope mode, enhancing your measurement efficiency and data analysis.

Features and Benefits:

•3 in 1 clamp meter.

•LC display.

•Current measurement up to 400 A AC.

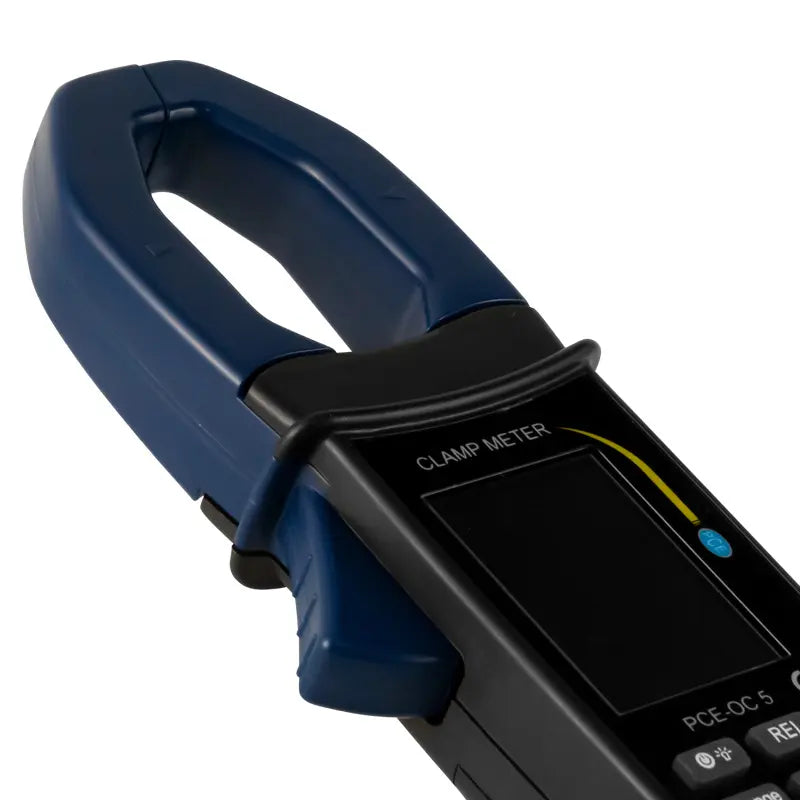

•35 x 49 mm pliers opening.

•Temperature measurement.

•Easy to use.

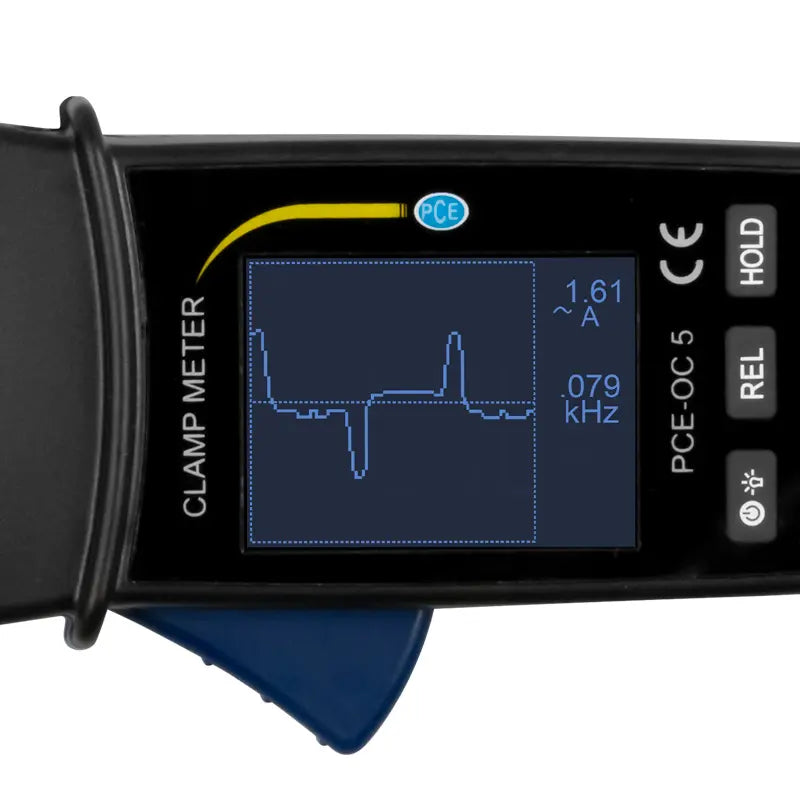

•Graphic display of the measurement signal.

•Memory function.

Specifications:
