PCE-PHC 10 - 2-Point pH Controller for Water Treatment & Fish Farming

PCE-PHC 10 - 2-Point pH Controller for Water Treatment & Fish Farming

SKU: PCE-PHC 10   Download PDF

Select a Variant:
  • PCE-PHC 10 - 2-Point pH Controller for Water Treatment & Fish Farming
Qty:
Now $317.00   Web pricing policy
BEFORE   $0.00 Now $317.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-PHC 10 pH Meter, a reliable 2-point pH controller perfect for a range of applications including fish farming, electroplating, and water treatment This device not only measures pH but also expertly regulates it, enabling you to adjust the pH levels towards acidic or alkaline as needed Featuring a straightforward 3-point calibration process, the controller's limit values can easily be set using the intuitive buttons located on the front panel.

The built-in LED display provides real-time readings of the current pH levels, ensuring you have quick and accurate access to water quality data, particularly in industrial processes Experience efficient and precise pH management with the PCE-PHC 10.

Features and Benefits:

    •Small dimensions.

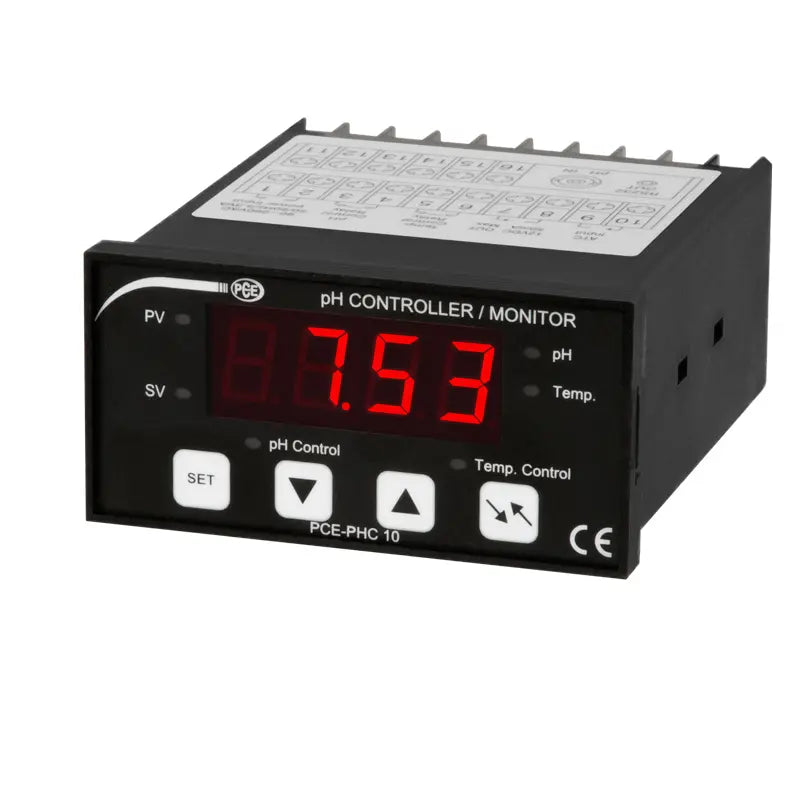

    •Large LED display.

    •2 control relays for pH and temperature.

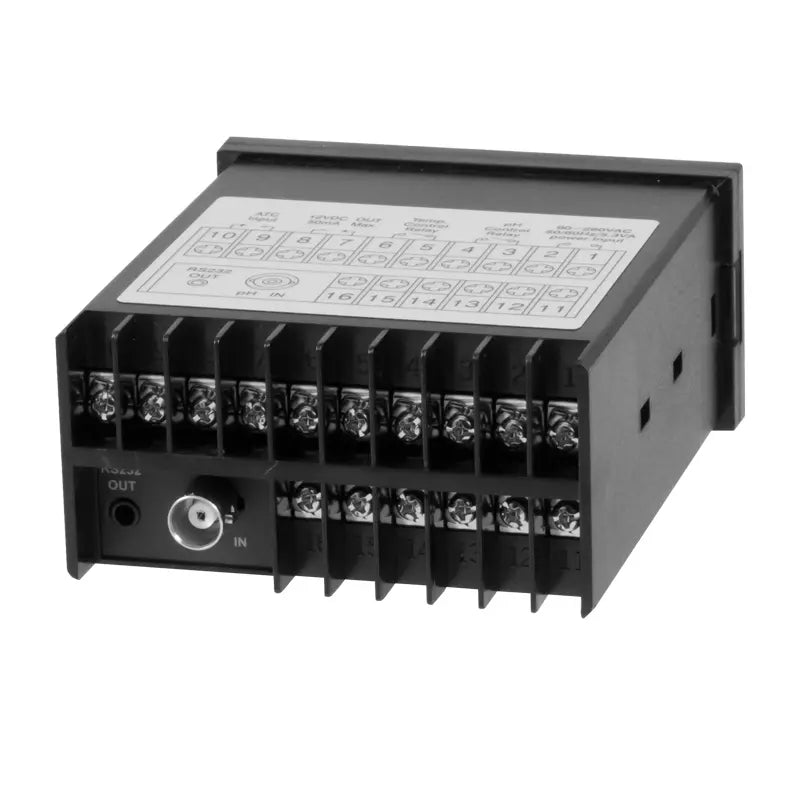

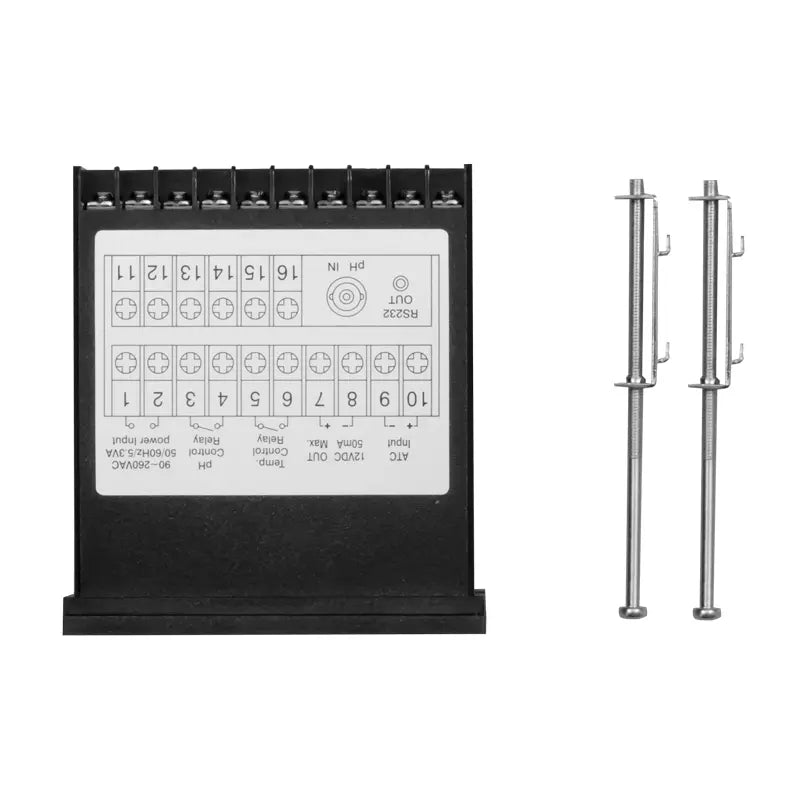

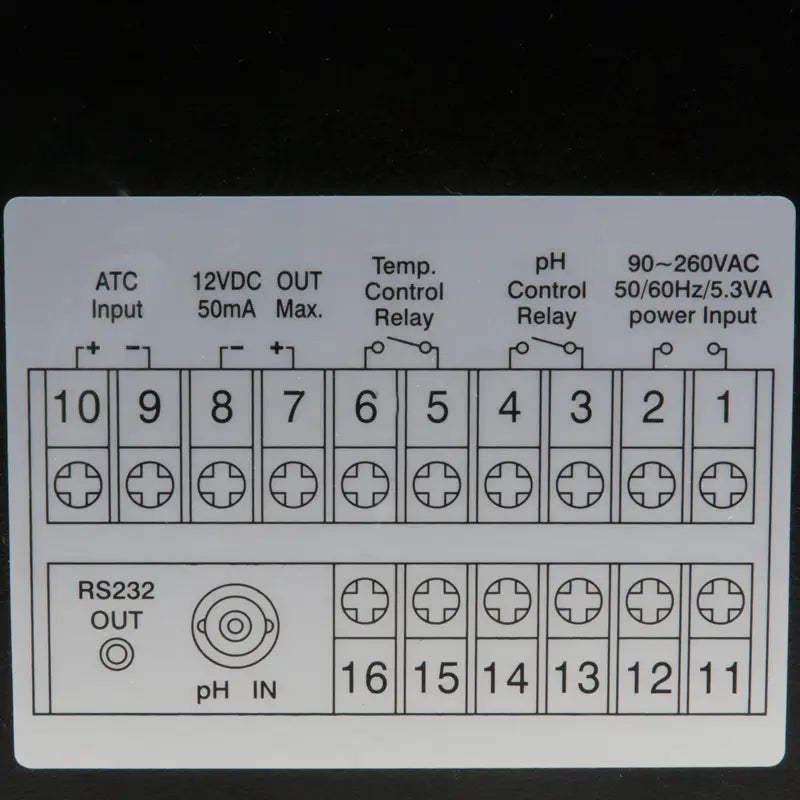

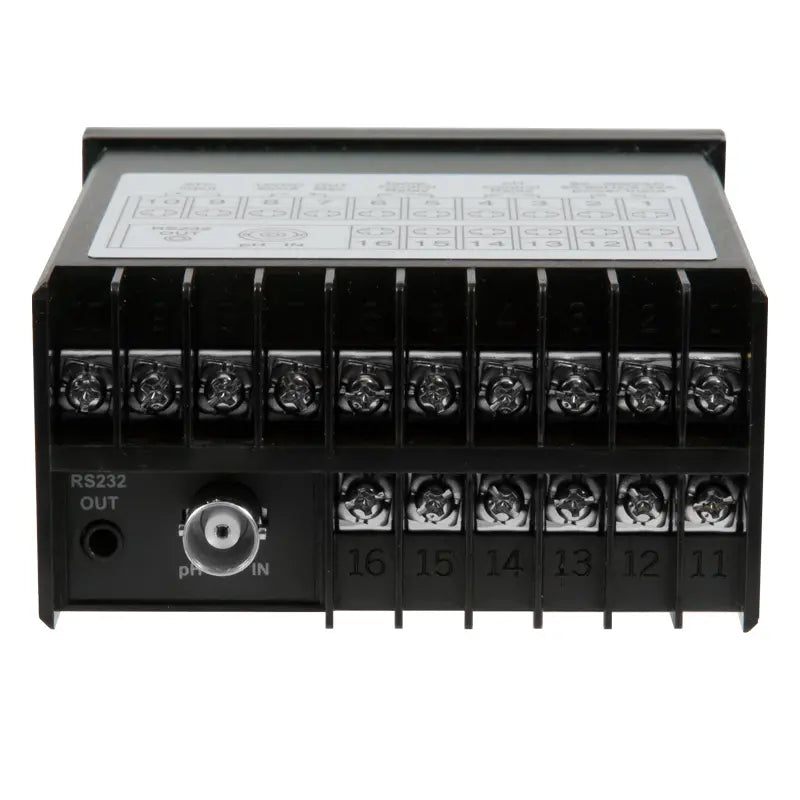

    •Connection via BNC and screw contacts.

    •For water treatment, electroplating ....

    •3-point calibration.

    •Electroplating.

    •Control of fresh and wastewater.

    •Wastewater neutralization.

Specifications:

 Measured variable pH
 Measuring range 0 ... 14 pH
 Resolution 0.01 pH
 Accuracy ± (0.02 pH + 2 digits)
 Measured variable temperature
 Temperature measuring range 0 ... 65°C / 32 ... 149°F
 Temperature resolution 0.1°C / 0.18°F
 Temperature accuracy ± 0.8°C / 1.44°F
 pH input impedance 10^12 ohms
 Manual temperature compensation -30 ... 100°C / -22 ... 212°F
 Automatic temperature compensation 0 ... 65°C / 32 ... 149°F
 3-point calibration points pH 7, pH 4, pH 10
 Connection pH electrode BNC
 Sampling rate About 1 second
 Display 4 digit LED display
 Digit height 14 mm
 NO relay 250V AC / 0.5A, 24V DC / 0.5A
 Voltage output 12V / 0.05A DC
 Interface Serial RS232
 Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
 Power supply 90 ... 260V AC / 50/60 Hz
 Input power Approx. 4.7 VA at 110V AC, Approx. 5.3 VA at 220V AC
 Dimensions 96 x 48 x 107 mm / 3.8 x 1.9 x 4.2 in
 Front panel dimensions 92 x 46 mm / 3.6 x 1.8 in
