PCE-VMM 50 - 7-Inch Camera Microscope with 4.5x Zoom and LED Lighting

PCE-VMM 50 - 7-Inch Camera Microscope with 4.5x Zoom and LED Lighting

SKU: SKU: PCE-VMM 50 Download PDF

Variant:
  • PCE-VMM 50 - 7-Inch Camera Microscope with 4.5x Zoom and LED Lighting
Regular price Now $1,821.00
Regular price BEFORE   $0.00 Sale price Now $1,821.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

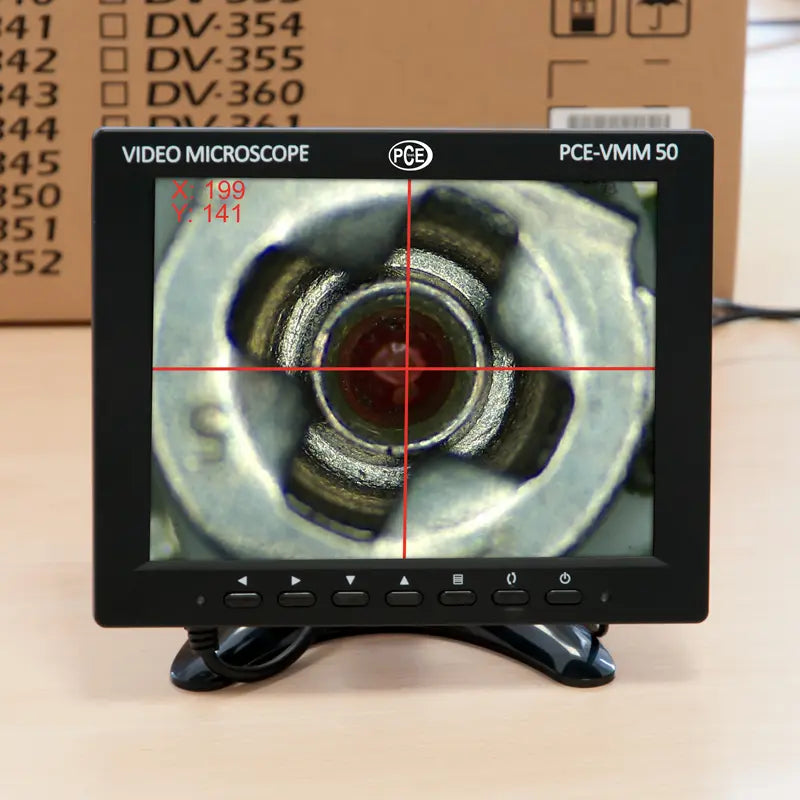

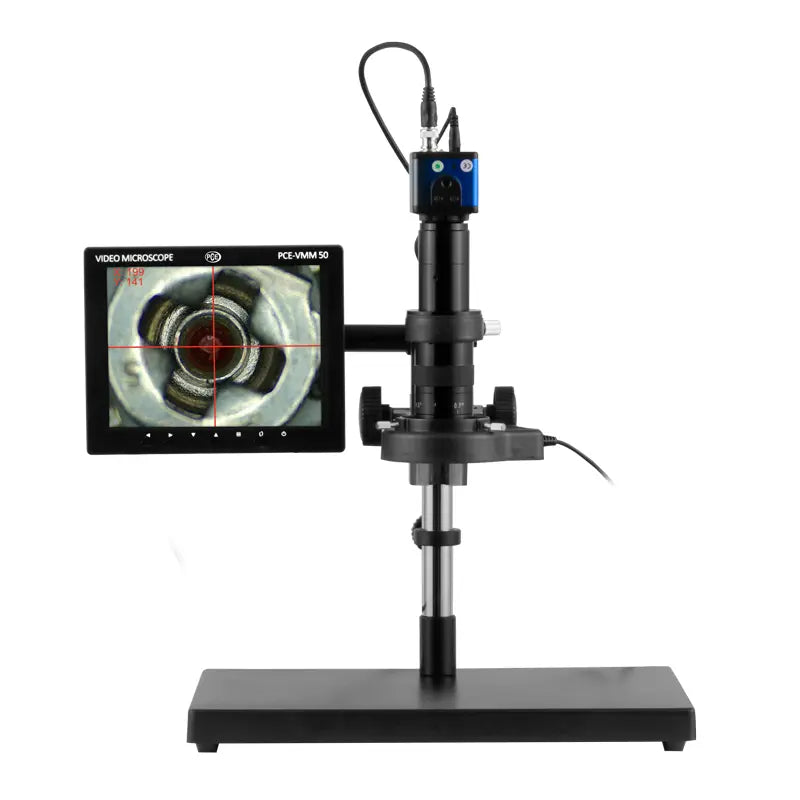

Explore the world of microscopy with the PCE-VMM 50 camera microscope Featuring an expansive 7-inch display, this device provides a clear view of your samples, allowing for straightforward analysis It boasts a 45x optical zoom to enhance every detail The microscope is equipped with adjustable height features, reaching up to 290 mm (114 inches), making it suitable for examining taller specimens with ease.

With a generous sample support surface measuring 380 x 225 mm (15 x 89 inches), you can easily position larger items for thorough observation The integrated 48 SMD LED lighting ensures your samples are illuminated perfectly Plus, the screen is removable, allowing for flexible positioning using the included stand, ideal for your workspace needs Built robustly, the PCE-VMM 50 camera microscope is particularly well-suited for educational settings, universities, and workshops, delivering reliable performance and versatility.

Features and Benefits:

    •Sample support surface of 380 x 225 mm / 15 x 8.9 in.

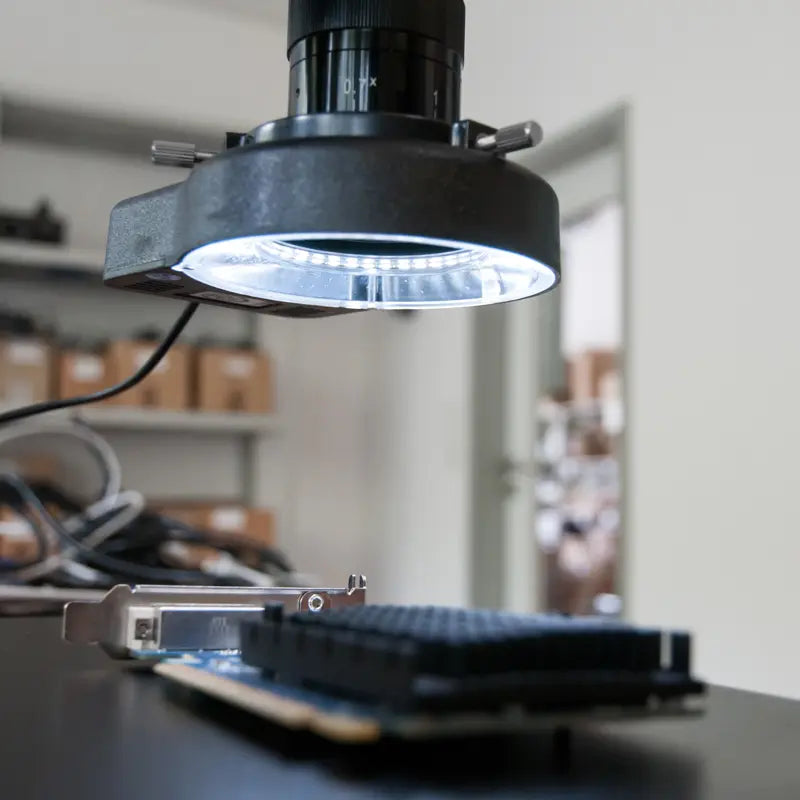

    •Incident light illumination (by LED).

    •LCD monitor.

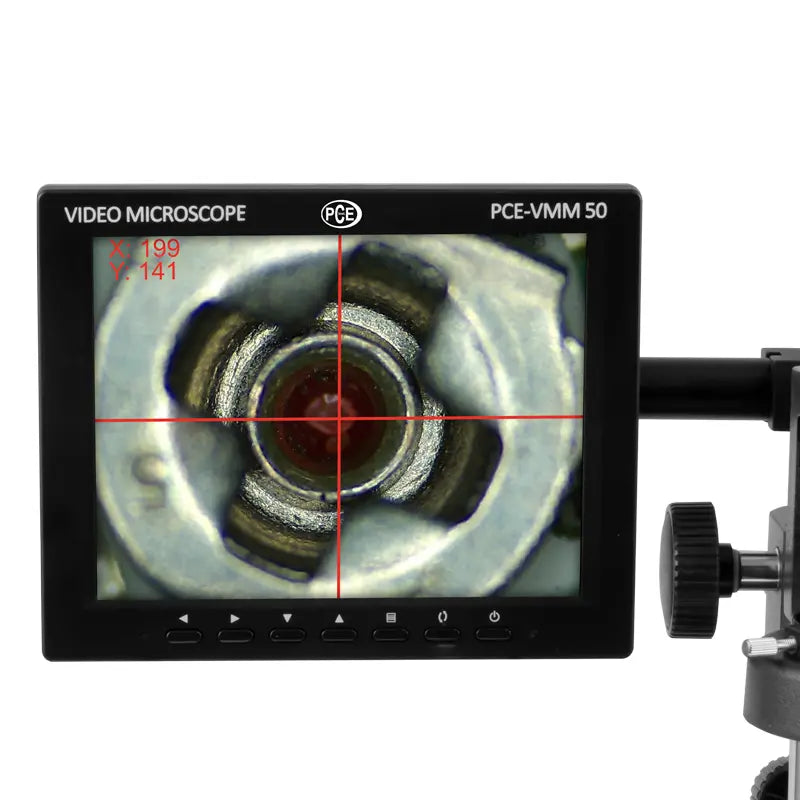

    •Removable LCD.

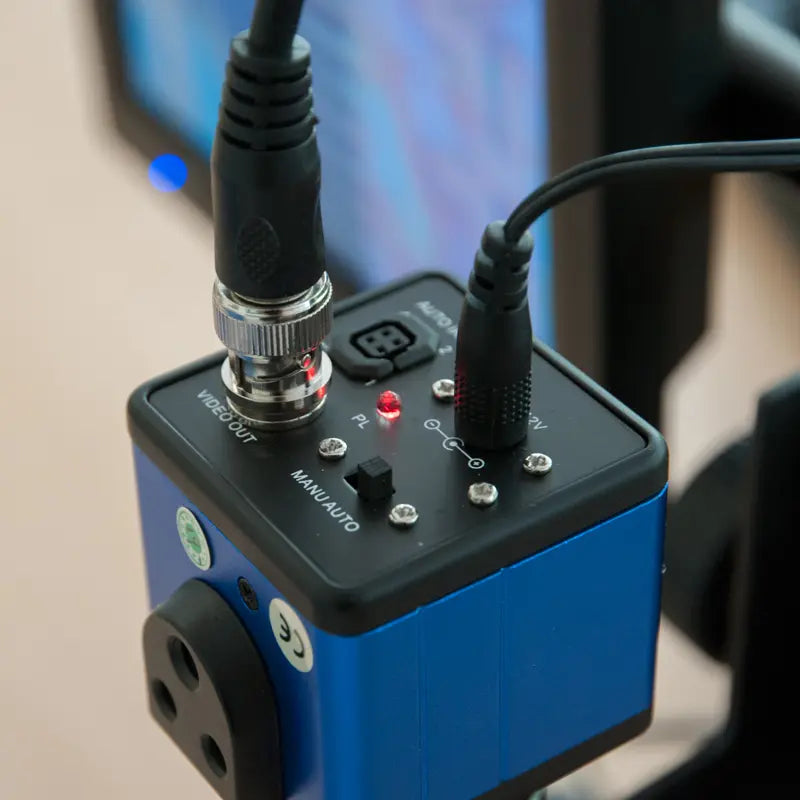

    •Integrated camera.

    •Robust construction.

    •Suitable for use in schools, universities or in workshops..

Specifications:

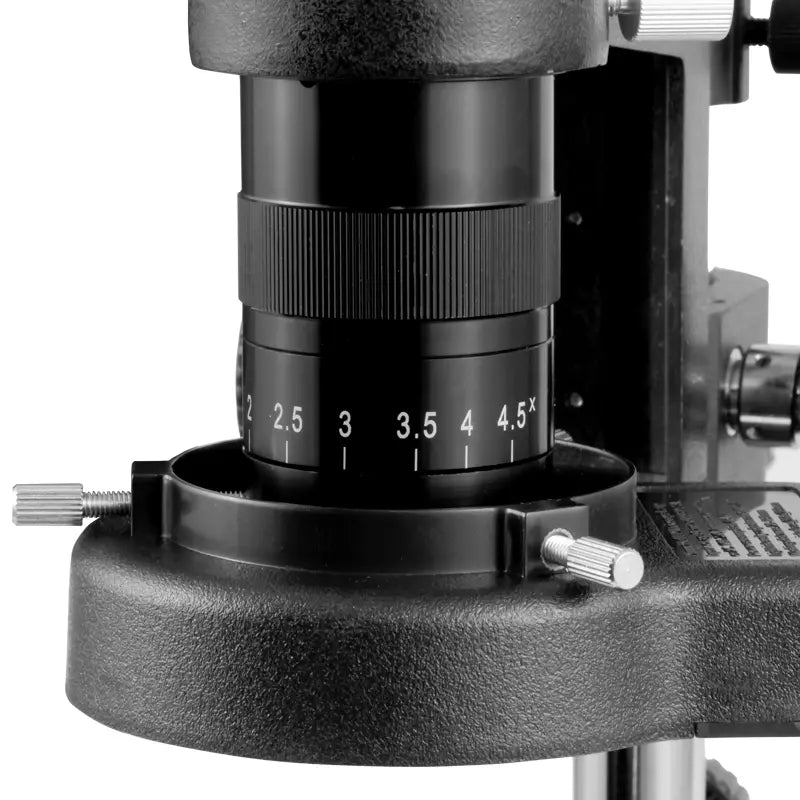

 Enlargement: 0.7 ... 4.5 times (optical and stepless)
 Eyepiece: 0.5 times
 Conversion lens: 2 times
 Working distance: 156 mm / 6.1 in
 Focusing: 60 mm / 2.4 in
 Height adjustment: 290 mm / 11.4 in
 Bearing surface: 380 x 225 x 20 mm / 15 x 8.9 in
 Lens size: 1/3 inch
 Display chip: Sony
 Horizontal visual resolution: 720 TVL
 Video output: 1.0 Vpp, 75 Ω
 Video format: PAL / NTSC
 Power supply (camera): 12V DC
 Display: 7 inches (4:3 LCD)
 Pixel: 800 * 600
 Signal inputs: VGA / AV / TV with BNC
 Video input: PAL / NTSC
 Power supply (display): 12V DC
 Input (display): 10W
 LED number: 48 SMD LEDs
 Connection diameter: 65 mm
 Adjustment: 0 ... 100% light intensity, stepless
 Power supply (LED): 5V
 Input (LED): 4 ... 6 W
