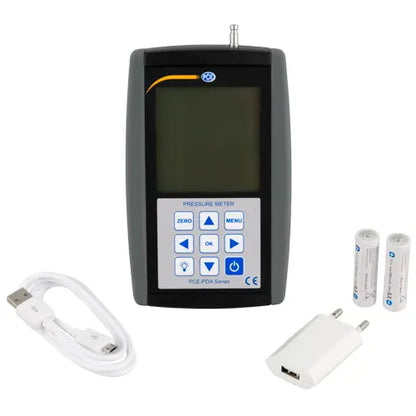

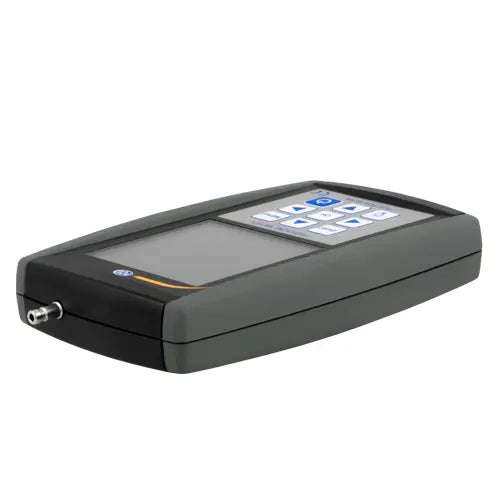

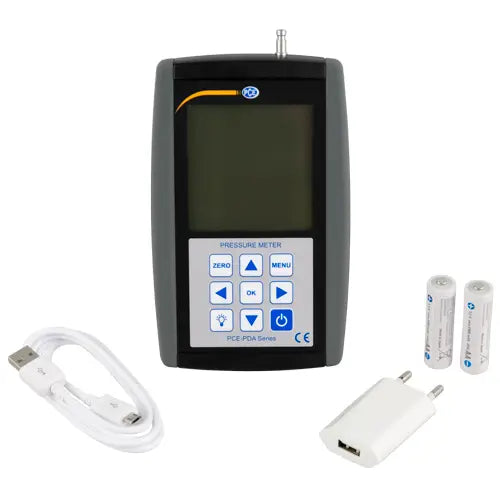

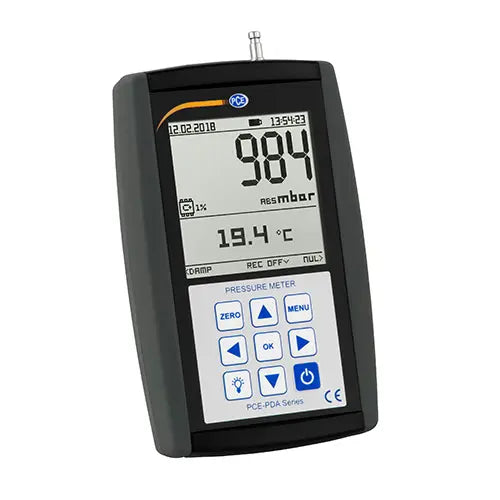

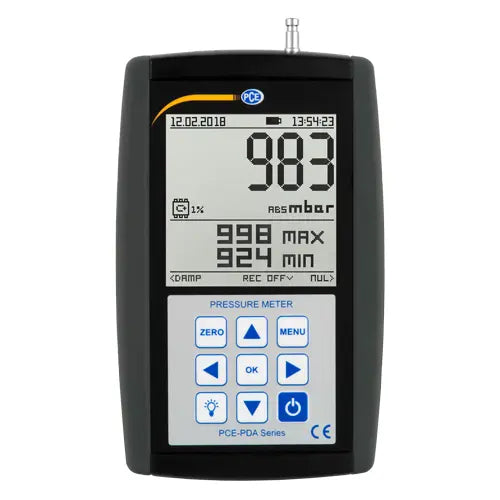

PCE-PDA A100L - 200 kPa Data Logger Manometer with LCD Display

PCE-PDA A100L - 200 kPa Data Logger Manometer with LCD Display

SKU: PCE-PDA A100L   Download PDF

Select a Variant:
  • PCE-PDA A100L - 200 kPa Data Logger Manometer with LCD Display
Qty:
Now $923.00   Web pricing policy
BEFORE   $0.00 Now $923.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the PCE-PDA A100L Manometer, an advanced instrument designed for barometric absolute pressure measurement, capable of reading up to 200 kPa This device features a built-in data logger and a user-friendly graphic LCD for display clarity It offers a USB connection alongside a MAX MIN HOLD function, making it perfect for accurately gauging atmospheric pressure from absolute zero to 200 kPa.

The manometer can function with either standard or rechargeable batteries; plus, when in battery mode, the USB port allows for convenient battery charging Its large, illuminated LCD screen ensures clear visibility, even in low-light conditions Pressure readings are taken using a precise internal sensor, and it includes a plug-in nipple for seamless connections to quick couplings for both air and liquid measurements.

For users seeking enhanced accuracy, a precision mode is available, along with features to display maximum and minimum values Additionally, this device incorporates temperature measurement capabilities and a data logging function to facilitate comprehensive documentation of your readings.

Features and Benefits:

    •Graphic LCD for easy visibility.

    •USB interface for charging and data transfer.

    •Integrated data logger with 1024 memory slots for long-term measurement storage.

    •Absolute pressure measurement capability.

    •Different measurement units available.

    •MAX MIN HOLD function for tracking peak values.

    •Measured value smoothing feature.

    •Temperature measurement integrated.

    •Ideal for mobile applications in industry and crafts.

    •Can measure atmospheric pressure.

    •Suitable for monitoring liquids, air, and non-aggressive gases.

Specifications:

 Measuring range pressure 0 ... 200 kPa absolute
 Resolution 0.01 kPa, 0.1 kPa
 Accuracy <± 0.5% of the measuring range
 Nominal pressure 200 kPa
 Overpressure 200 kPa
 Burst pressure 300 kPa
 Media Liquids, Air, Non-aggressive gases
 Measuring rate 10 Hz
 Measurement units Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF
 Pressure connections 5 mm nipple for quick connectors
 Max, Min and Hold function Yes
 Data logger 1024 memory slots, 1 s ... 255 h recording time per memory location, 1 s ... 24h recording interval
 Zero correction Yes, with a zero key
 Averaging Yes, between 0.1 ... 9.9 s
 Display Graphic LCD with backlight
 Protection IP41
 Power supply 2 x 1.5V AA battery / 1.2V NiMh battery, 5V / 500-mA USB power adapter
 Current consumption 50-mA (with backlight), 10-mA (without backlight)
 Operating temperature 0 ... 50°C / 32 ... 122°F
 Storage temperature 10 ... 55°C / 50 ... 131°F
 Dimensions 145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in
