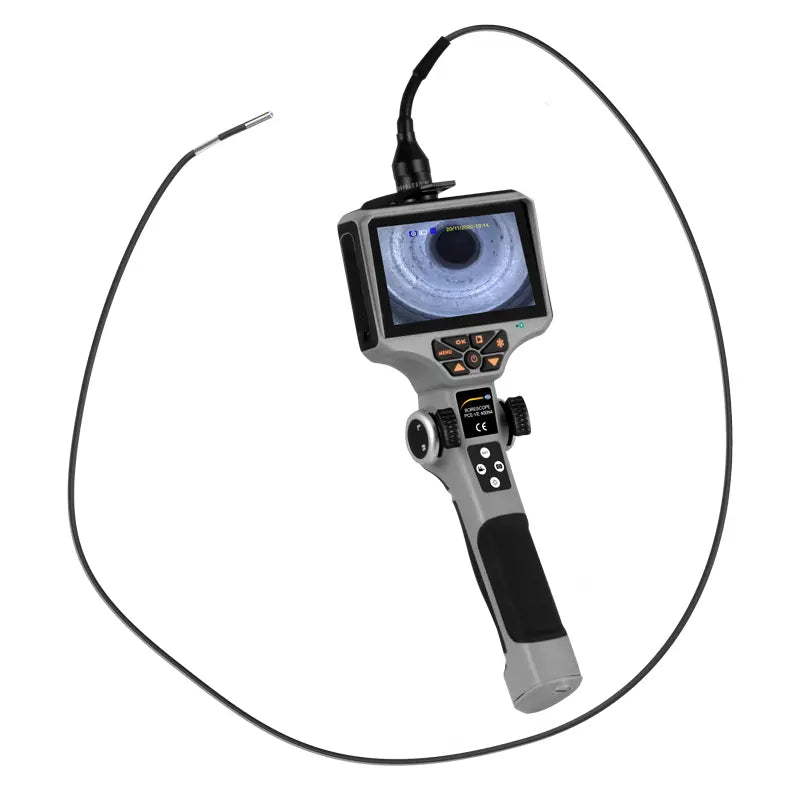

PCE-VE 400N4 - 1.5m Inspection Camera with 4-Way Head and LED Lighting

PCE-VE 400N4 - 1.5m Inspection Camera with 4-Way Head and LED Lighting

SKU: SKU: PCE-VE 400N4   Download PDF

Select a Variant:
  • PCE-VE 400N4 - 1.5m Inspection Camera with 4-Way Head and LED Lighting
Qty:
Regular price Now $6,138.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $6,138.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of the Condition Monitoring Inspection Camera, featuring a compact 4 mm diameter for accessing tight spaces like machine parts and cavities Equipped with adjustable LED lighting and a camera head that pivots in four directions, this tool is invaluable for inspecting hard-to-reach areas in engines and turbines The camera boasts a resolution of 1,000,000 pixels, delivering clear images even with a 90° field of view, allowing for detailed documentation of damage through still images or videos.

With a 15 m (49 ft) endoscope cable, you can navigate through confined areas effortlessly Powered by a rechargeable Li-Ion battery, it can also be used with a power pack for extended sessions The IP67 rating indicates its durability, making it suitable for challenging industrial conditions This inspection camera is an essential companion for thorough maintenance and condition monitoring.

Features and Benefits:

    •4 mm camera head.

    •1.5 m / 4.9 ft endoscope cable.

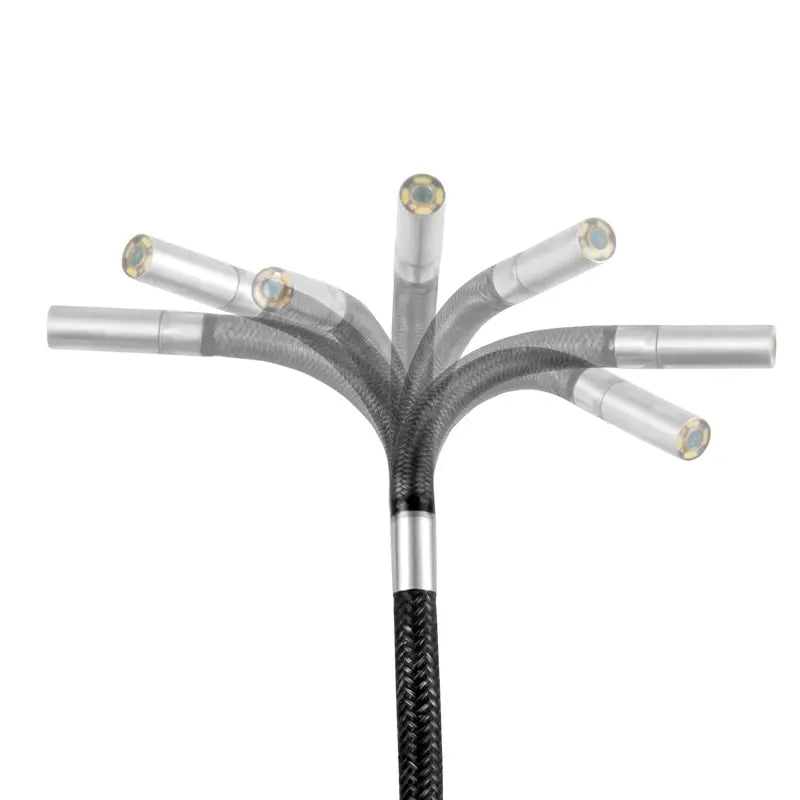

    •4-way camera head.

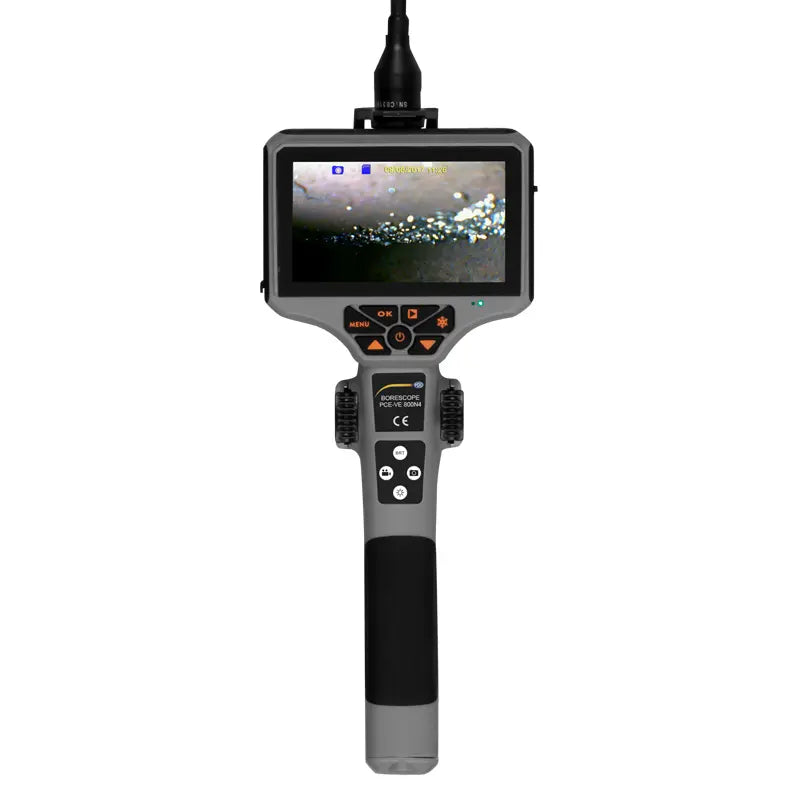

    •5" monitor.

    •Image and video memory.

    •IP67 camera cable.

    •1,000,000 pixel image resolution.

    •10 ... 100 mm focus distance.

    •Maintenance of engines.

    •Inspection of drains in the sanitary area.

    •Building protection for checking houses for pests.

Specifications:

 Cable / head diameter 4 mm
 Direction of movement camera head 4-way
 Length of camera head 18 mm
 Bending radius 8 mm
 Camera head material Titanium alloy
 Camera lens material Glass
 Perspective 90°
 Line of sight
 Focus area 10 ... 100 mm
 Image sensor 1/9" color
 Resolution 1,000,000 pixels
 Refresh rate 30 Hz
 Endoscope cable length 1.5 m / 4.9 ft
 Endoscope cable material Tungsten
 Degree of protection endoscope cable IP67
 Operating conditions Main unit: 0 ... 45°C / 32 ... 113°F, 15 ... 90% rH; Cable: 0 ... 60°C / 32 ... 140°F
 Display LCD 5" 16:9 display

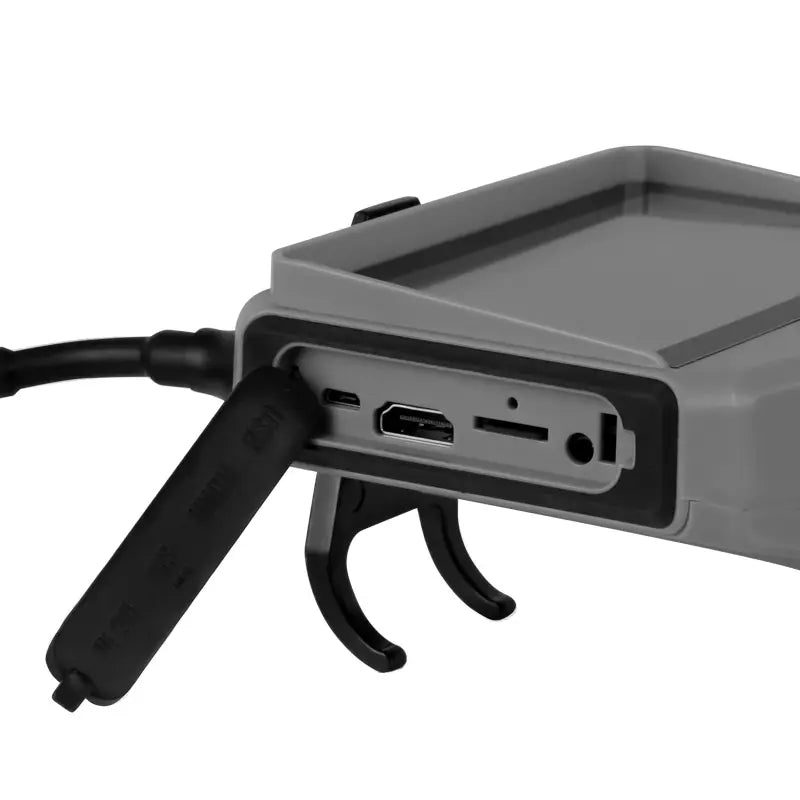

 Interface Micro USB
 Video output HDMI
 Storage SDHC memory card up to 64 GB
 Power supply Li-ion battery 3350-mAh, 5V power supply
 Dimensions 33.5 x 14.5 x 8 cm
