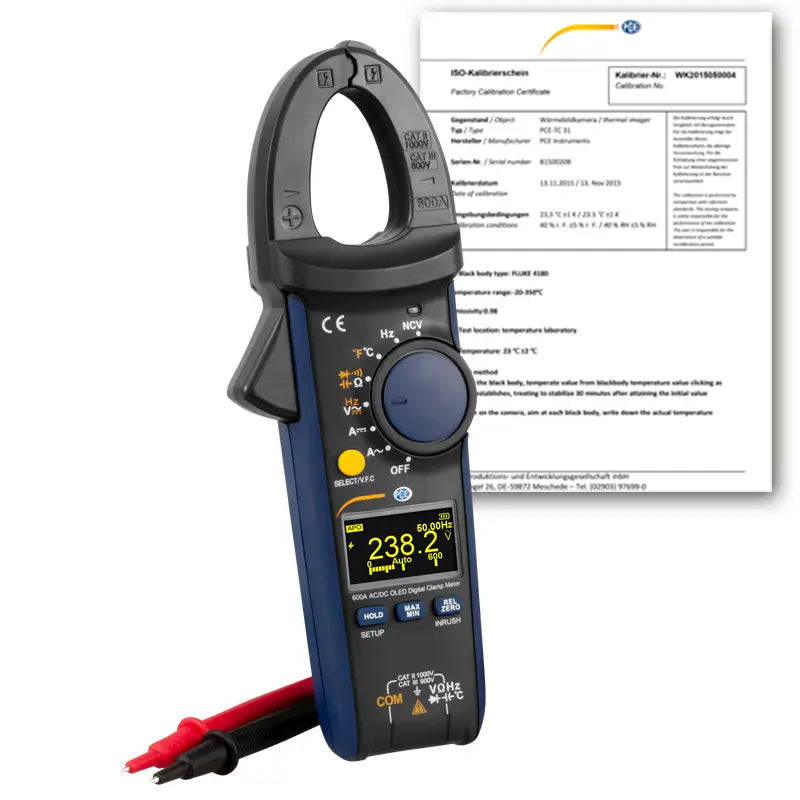

PCE-OCM 10 - 600A Clamp Meter with OLED Display & ISO Calibration

PCE-OCM 10 - 600A Clamp Meter with OLED Display & ISO Calibration

SKU: SKU: PCE-OCM 10   Download PDF

Select a Variant:
  • PCE-OCM 10 - 600A Clamp Meter with OLED Display & ISO Calibration
Qty:
Regular price Now $132.00   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $132.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

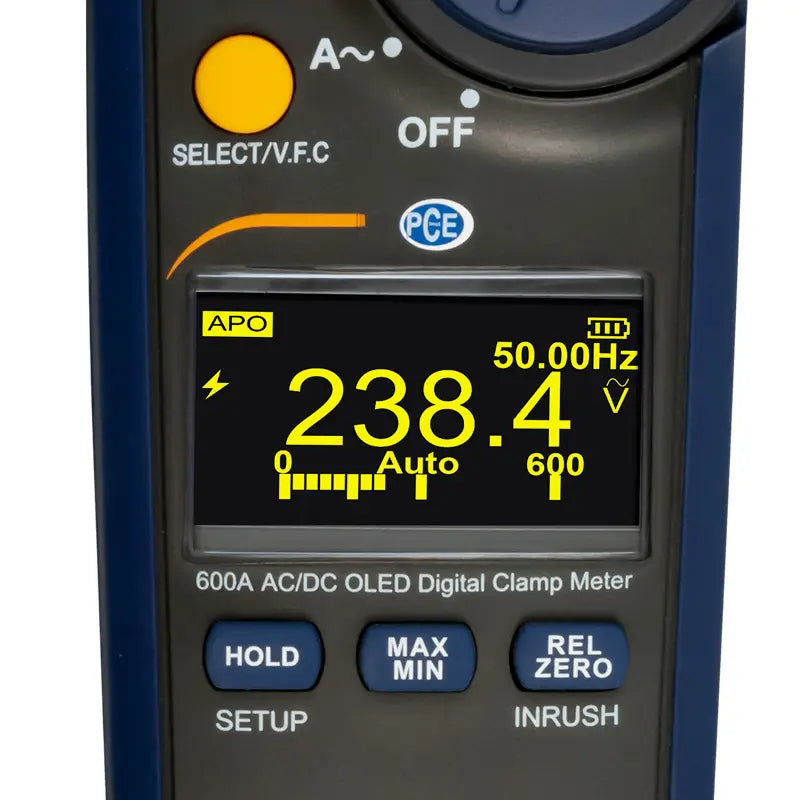

Discover the versatility of this advanced clamp meter, complete with an ISO Calibration Certificate for reliable performance The standout feature of this device is its self-luminous OLED display, which allows for easy visibility, even in low-light conditions Capable of measuring both AC and DC currents up to 600 A, this meter is also equipped to handle start-up current measurements efficiently In addition to current readings, it can measure AC voltage up to 750V and DC voltage up to 1000V.

This clamp meter incorporates standard multimeter functions, including resistance, diode testing, capacitance measurement, and continuity tests For added functionality, it also supports temperature measurements using an external thermocouple Engineered especially for industrial environments, this current clamp is an essential tool for electricians and is well-suited for a variety of measuring tasks.

With a broad range of capabilities and practical features, including a front LED for additional visibility, this meter is designed to meet your professional needs effortlessly.

Features and Benefits:

    •Inrush measurement.

    •MAX-MIN measured value memory.

    •OLED display.

    •NCV function.

    •TRMS AC A.

    •Clamp with multimeter functions.

    •Measurable up to 600 A.

    •6000 digit display.

    •Includes ISO Calibration Certificate.

    •Industrial applications.

    •Daily use by electricians.

Specifications:

 Measuring function
 Measuring range
 Resolution
 Accuracy
 Alternating current max. 600 A AC RMS / @50/60 Hz
 Direct current max. 600 A DC
 AC voltage @45 ... 400 Hz
 DC voltage max. 1000 V DC
 Resistance
 Continuity test
 Diode test
 Capacity
 Temperature
 Display 6000 digit OLED
 Sampling rate 3 Hz
 Clamp opening diameter 30 mm / 1.18"
 Power supply 3 x 1.5 V AAA battery
 Automatic switch-off 1 ... 30 minutes (adjustable)
 Operating conditions
 Storage conditions
 Dimensions 228 x 72 x 29 mm / 9 x 2.8 x 1.1"
