PCE-THB 40 - Climate Meter with SD Card, LCD, ISO Certified

PCE-THB 40 - Climate Meter with SD Card, LCD, ISO Certified

SKU: SKU: PCE-THB 40 Download PDF

Variant:
  • PCE-THB 40 - Climate Meter with SD Card, LCD, ISO Certified
Regular price Now $303.00
Regular price BEFORE   $0.00 Sale price Now $303.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

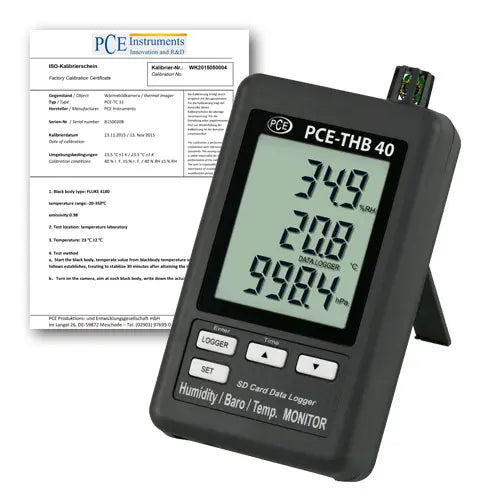

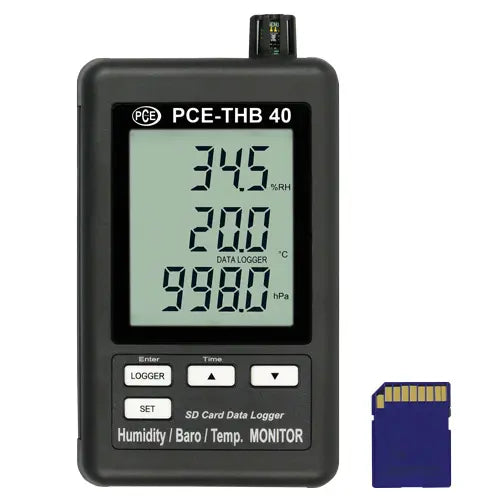

Introducing the Climate Meter, a precision instrument equipped with an SD memory card and an ISO Calibration Certificate This device is specifically engineered to monitor air temperature, relative humidity, and barometric pressure The large LCD display enhances readability, while the flexibility for battery or mains operation ensures convenience in any setting With the capability to store data on an SD card of up to 16 GB, it is perfect for long-term usage in food-related applications, such as refrigerated counters and transport, as well as in various industrial processes.

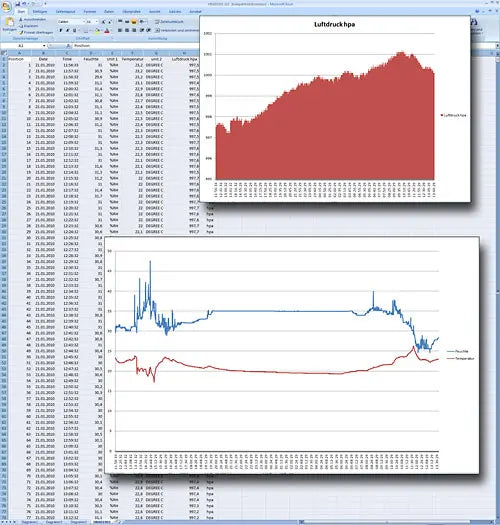

Data logging is made simple, as the stored information can easily be transferred to a PC for visual analysis and event tracking, all housed in a sturdy design that withstands industrial conditions.

Features and Benefits:

    •Measures temperature, humidity, and barometric pressure.

    •Flexible internal real-time data storage via SD memory card (1 ... 16GB).

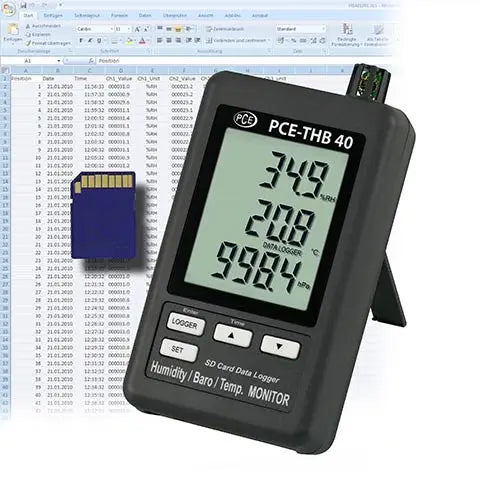

    •Data saved directly as an Excel file on the SD card.

    •Selectable pressure units: hPa, mmHg, and inHg.

    •Low battery display and large LCD display.

    •Adjustable measuring rate and easy to use.

    •Robust housing suitable for industrial use.

    •Optional software kit for online data transfer.

    •Long-term monitoring in the food sector: refrigerated counters, refrigerated transports, warehouses.

    •Measurement and recording in heating and cooling processes, machine temperatures, and product storage.

Specifications:

 Measurement ranges - Temperature 0 ... 50°C / 32 ... 122°F
 Measurement ranges - Relative humidity 10 ... 90% RH
 Measurement ranges - Barometric pressure 10 ... 1100 hPa / 7.5 ... 825 mmHg / 0.29 ... 32.48 inHg
 Resolution - Temperature 0.1°C / 0.18°F
 Resolution - Relative humidity 0.1% RH
 Resolution - Barometric pressure 0.1 hPa: 10 ... 1000 hPa, 1 hPa: 1001 ... 1100 hPa / 0.1 mmHg / 0.01 inHg
 Accuracy - Temperature ± 0.8°C / ± 1.4°F
 Accuracy - Relative humidity ± 4% RH: < 70% RH; ± ( 4% reading + 1% RH): ≥ 70% RH
 Accuracy - Barometric pressure ± 2 hPa: 10 ... 1000 hPa, ± 3 hPa: 1001 ... 1100 hPa / ± 1.5 mmHg / ± 0.1 inHg
 Sampling interval 5, 10, 30, 60, 120, 300 or 600 seconds, or automatic (data stored when change occurs)
 Memory SD card memory up to 16 GB (an SD card is included)
 Operating temperature 0 ... 50ºC / 32 ... 122ºF < 90% RH

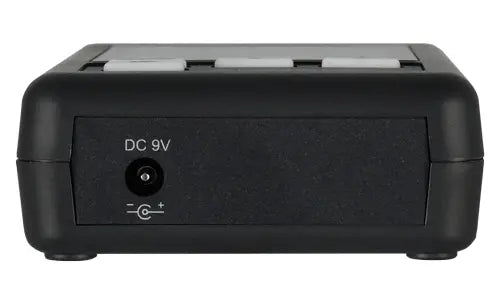

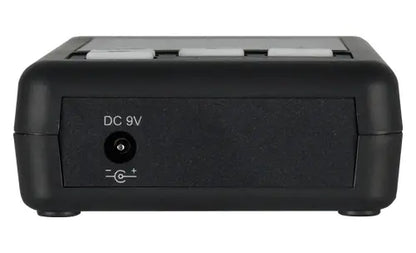

 Power 6 x 1.5V AAA batteries or 1 x 9V electric power supply (optional)
 Dimensions 132 mm x 80 mm x 32 mm / 5.1 in x 3.1 in x 1.3 in
