PCE-WMM 100 - CO2 & Oxygen Meter with Remote Display and Alarms

PCE-WMM 100 - CO2 & Oxygen Meter with Remote Display and Alarms

SKU: PCE-WMM 100   Download PDF

Select a Variant:
  • PCE-WMM 100 - CO2 & Oxygen Meter with Remote Display and Alarms
Qty:
Now $963.00   Web pricing policy
BEFORE   $0.00 Now $963.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

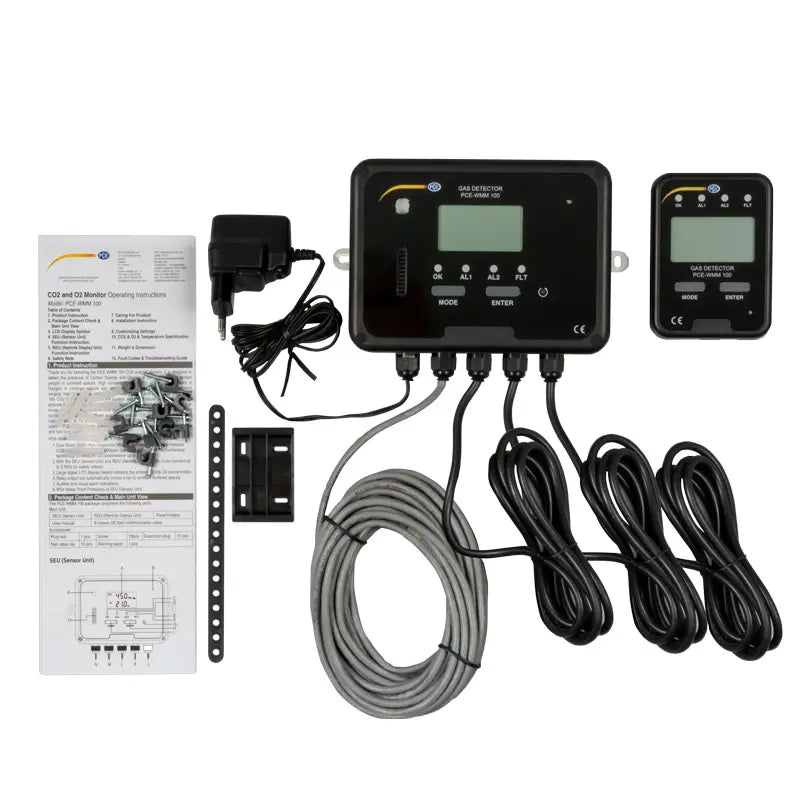

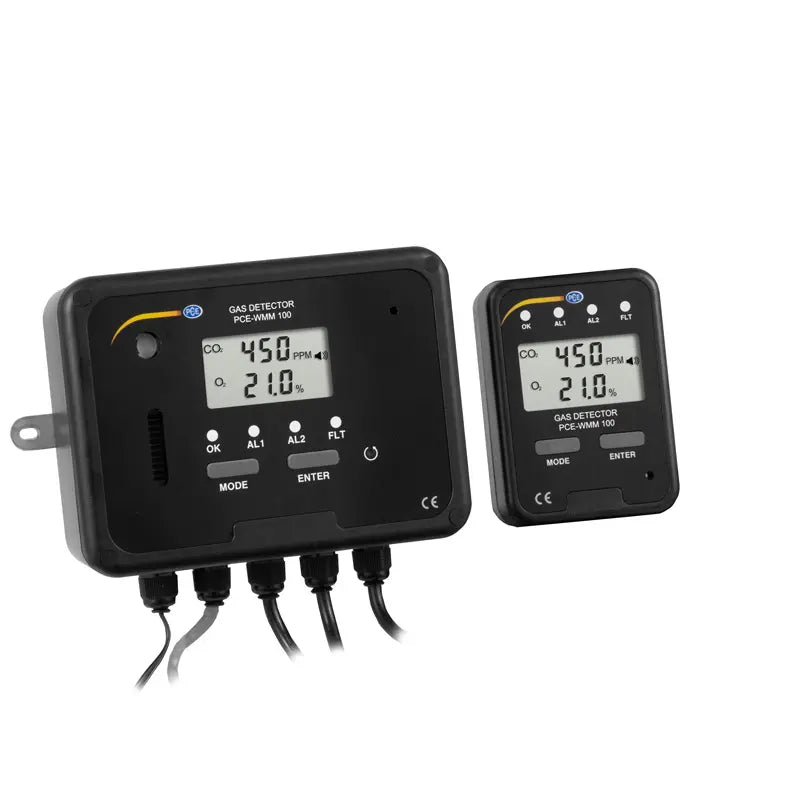

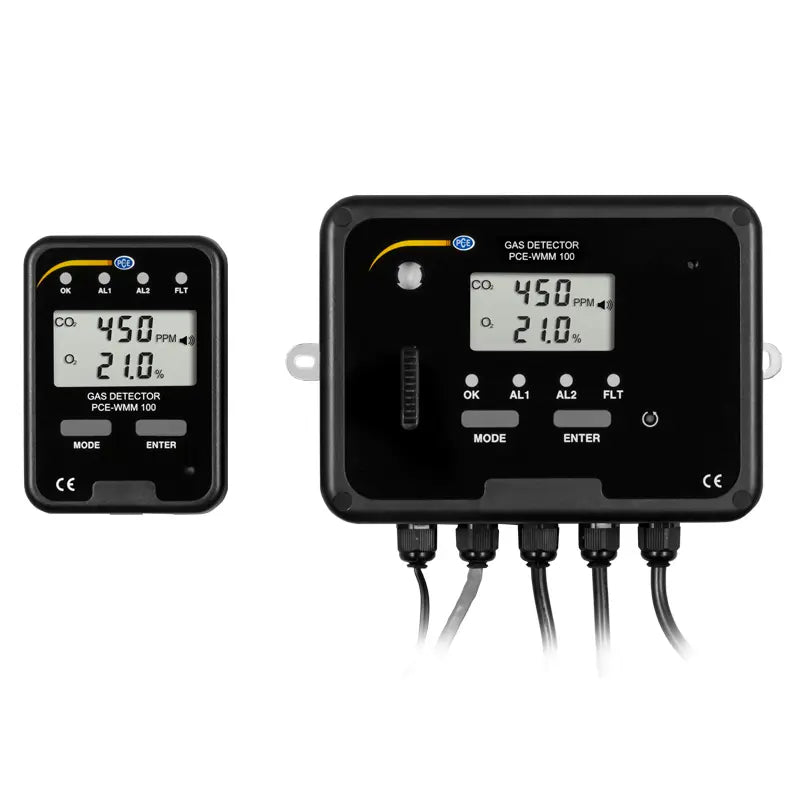

Introducing the PCE-WMM 100 Oxygen Meter, an essential CO2 monitoring device that effectively measures levels of carbon dioxide and oxygen in various environments This unit comes with a main device and a convenient remote display, featuring adjustable alarm settings and a clear 4-digit LCD screen The PCE-WMM 100 acts as a vital safety tool, alerting users to potentially dangerous low oxygen levels and ensuring protection against the presence of the odorless CO2 gas.

With its LCD display, the meter shows real-time readings and is equipped with two relays to link with alarm systems, such as lights or sound alerts In case of an alert, the built-in acoustic alarm emits a robust 80 db signal, providing a clear warning This device is versatile, suitable for use in locations like warehouses, breweries, wine cellars, and restaurants Additionally, it boasts an IP54 rating, ensuring reliable protection against dust and water splashes.

Features and Benefits:

    •CO2 and O2 sensor.

    •Includes main and remote unit.

    •Alarm relay for alert systems.

    •4 ... 20 mA analog output.

    •Integrated acoustic alarm with 80 db sound level.

    •Temperature measurement capability.

    •Ideal for use in environments where CO2 may be released, such as warehouses, breweries, wine cellars, and restaurants..

Specifications:

 Measuring function CO2: Detects carbon dioxide
 Measuring range CO2: 0 .... 50000 ppm
 Resolution CO2: <10000 ppm: 10 ppm; >10001 ppm: 100 ppm
 Accuracy CO2: ± 100 ppm / 5 % of measured value
 Measuring function O2: Detects oxygen
 Measuring range O2: 0 ... 30 %
 Resolution O2: 0.1 %
 Accuracy O2: < 3 % of measured value
 Measuring function Temperature: Detects temperature
 Measuring range Temperature: 0 ... 50 °C / 32 ... 122 °F
 Resolution Temperature: 0.1 °C
 Accuracy Temperature: ± 1 °C
 Response time CO2: T90 < 60s
 Response time O2: T90 < 30s
 Alarm 1 CO2: 5000 ppm and various thresholds
 Alarm 2 CO2: Up to 4 % with multiple thresholds
 Power supply: Power adapter 100 ... 240 V AC / 6 V DC / 0.5 A
 Operating conditions: 0 ... 40 °C / 32 ... 104 °F / max 95 % r.H.
 Storage conditions: -20 ... 60 °C / -4 ... 140 °F / max. 95 % r.H.
 Degree of protection: Main unit: IP54
 Dimensions Main unit: 170 x 63 x 26 mm / 6.6 x 2.4 x 1.0"
 Dimensions Remote unit: 80 x 35.7 x 10 mm / 3.1 x 1.4 x 0.3"
