PCE-MTS500-DFG N 5K FD 300 KIT - Motorized Test Stand, 5000 N Capacity

PCE-MTS500-DFG N 5K FD 300 KIT - Motorized Test Stand, 5000 N Capacity

SKU: PCE-MTS500-DFG N 5K FD 300 KIT   Download PDF

Select a Variant:
  • PCE-MTS500-DFG N 5K FD 300 KIT - Motorized Test Stand, 5000 N Capacity
Qty:
Now $4,785.00   Web pricing policy
BEFORE   $0.00 Now $4,785.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

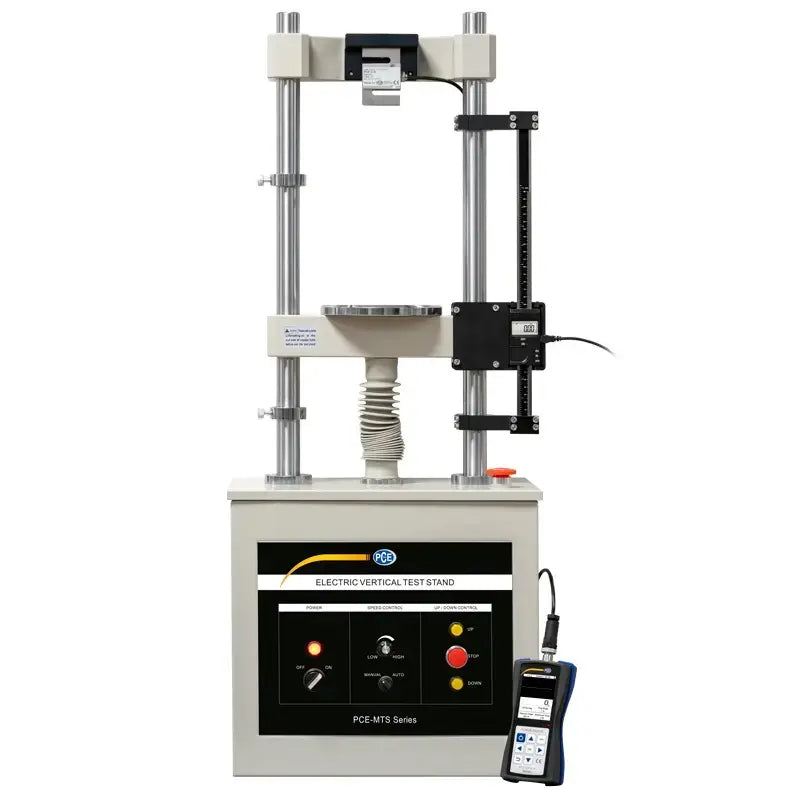

This motorized test stand boasts a remarkable force capacity of up to 5000 N (equivalent to 500 kg) It is compatible with all PCE series force measuring instruments, supporting both internal and external load cells Featuring an extensive adjustable stroke and a variable feed speed that ranges from 30 mm/min to 230 mm/min, it guarantees accurate measurements for your testing needs The stand does require a power connection and is versatile enough for a range of applications.

For specific tests involving user interaction, a risk analysis might be required Additionally, an accessory mounting plate, ADP-UNI, is necessary when using internal load cell force gauges.

Features and Benefits:

    •Adjustable feed speed.

    •Robust steel design.

    •Adjustable travel.

    •Large force measuring range.

    •Mains connection.

    •Compatibility with all PCE devices.

    •Manual or automatic operation.

    •USB interface for data transmission.

    •Graphic display for measurements.

    •Fast response time.

    •Included PC software for analysis.

    •Memory capacity for 100 measurements.

    •Easily exchangeable measuring cells.

Specifications:

 Maximum Force Range 5000 N (500 kg / 1100 lbs)
 Travel Distance 300 mm / 11.8"
 Feed Rate 30 ... 230 mm/min / 1.18 ... 9.05 in/min
 Test Table Diameter 160 mm / 6.3"
 Maximum Sample Width 200 mm / 7.9"
 Guide Columns Diameter 32 mm / 1.3"
 Dimensions 1020 x 400 x 250 mm / 40.2 x 15.7 x 9.8"
 Force Gauge Model PCE-DFG N 5K
 Force Gauge Measuring Range 0 ... 5,000 N / 1,124 lbs
 Force Gauge Resolution 1 N / 0.22 lbs
 Force Gauge Accuracy ± 0.1% of the measuring range
 Force Gauge Display 2.8" TFT graphic display
 Force Gauge Power Supply NiMH battery, 6V / 1600-mAh
 Force Gauge Battery Life About 10 hours
 Force Gauge Protection Class IP 54
 Operating Conditions -10 ... 50°C / 14 ... 122°F
 Humidity Conditions 5 ... 95% rh non-condensing

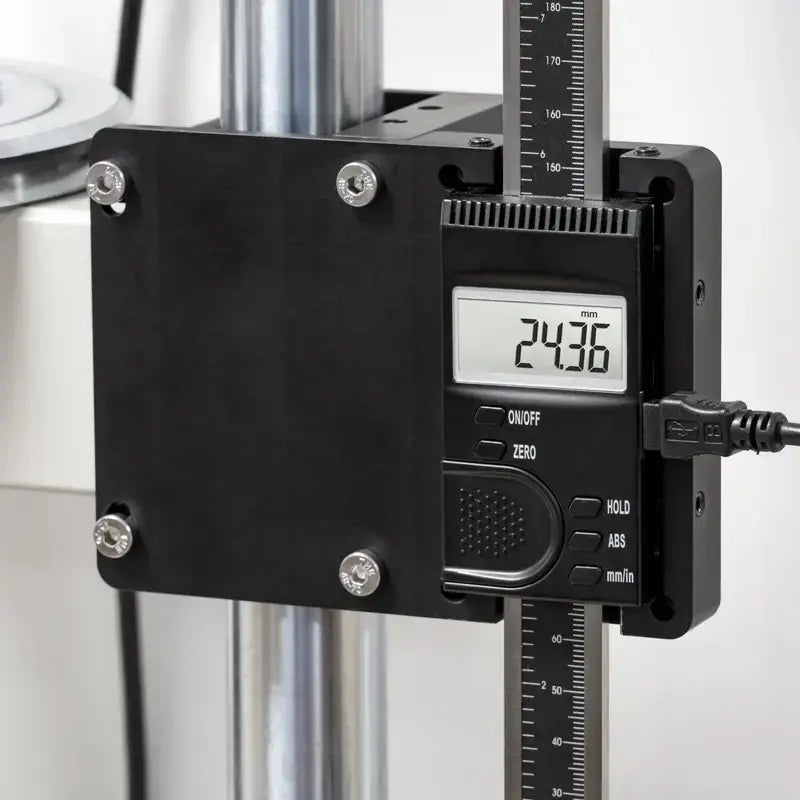

 Length Measuring Device Range -150 … 150 mm / -5.9 … 5.9"
 Length Measuring Device Resolution 0.01 mm / 0.0004"
 Length Measuring Device Operating Conditions Temperature: 0 … +50 °C / 32 … 122 °F
 Length Measuring Device Storage Conditions Temperature: -20 … +65 °C / -4 … 149 °F, Humidity: 10 … 95 % RH, non-condensing
