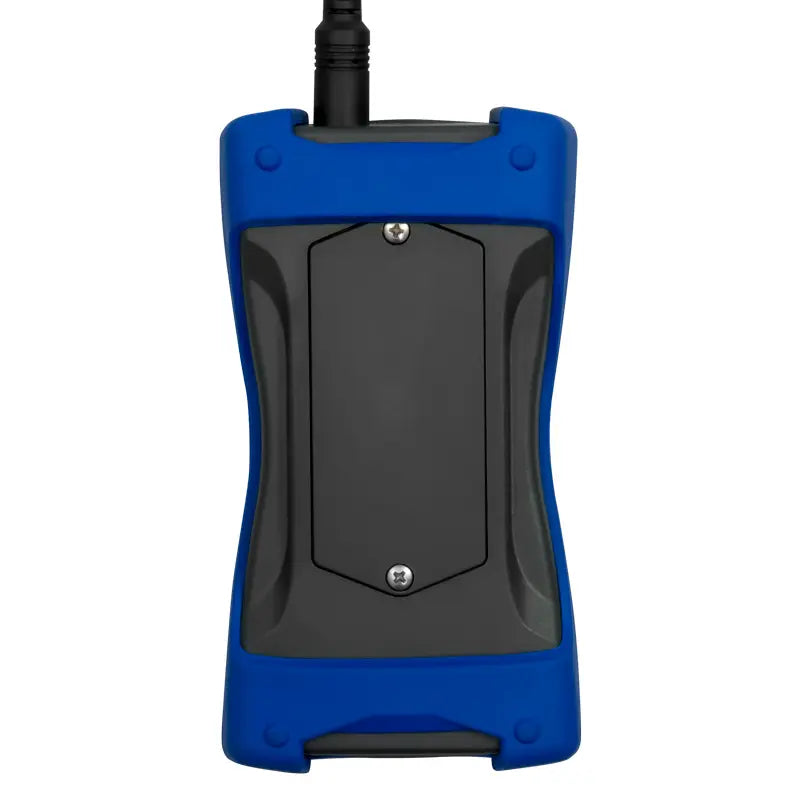

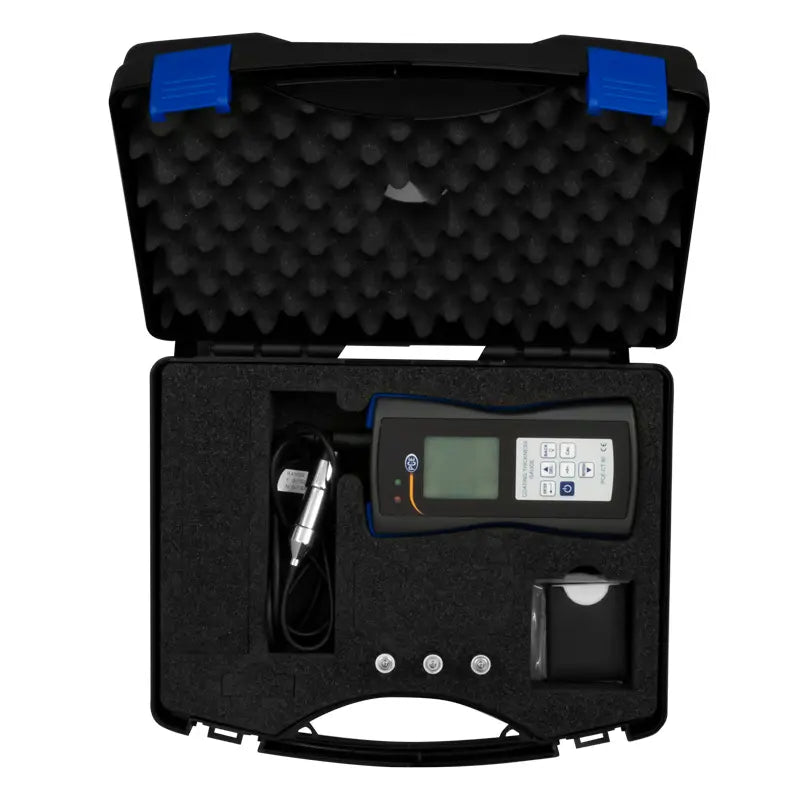

PCE-CT 80-F5N3 - Non-Destructive Car Coating Measurement Tool

PCE-CT 80-F5N3 - Non-Destructive Car Coating Measurement Tool

SKU: PCE-CT 80-F5N3   Download PDF

Select a Variant:
  • PCE-CT 80-F5N3 - Non-Destructive Car Coating Measurement Tool
Qty:
Now $1,174.00   Web pricing policy
BEFORE   $0.00 Now $1,174.00 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

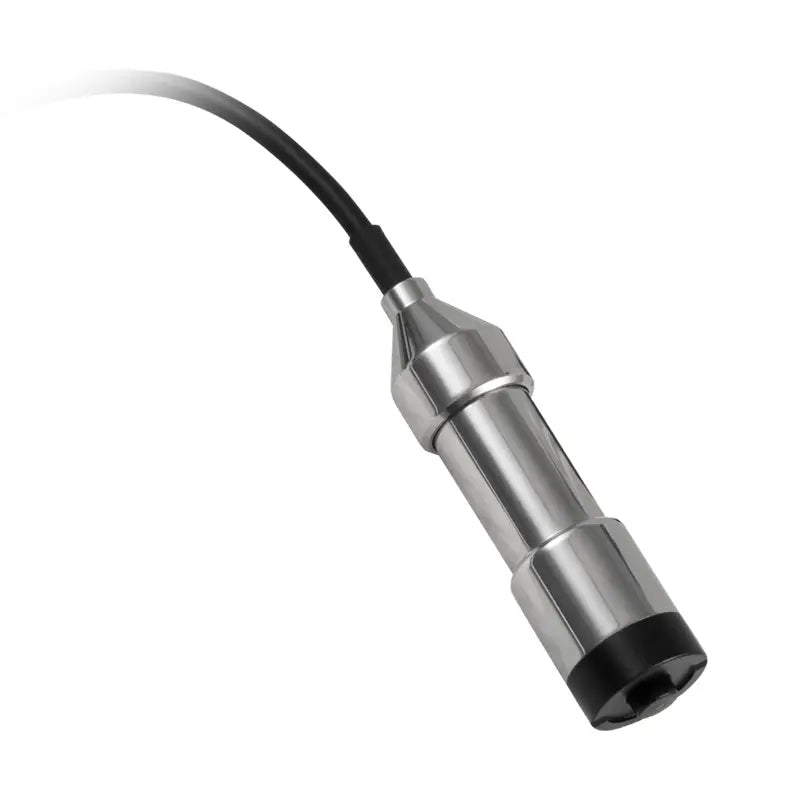

Introducing the innovative car measuring device, designed specifically for non-invasive evaluation of various coatings such as paints, varnishes, and plastics on both ferrous and non-ferrous metals This device boasts a specialized sensor that grants easy access to challenging measuring locations Its user-friendly menu navigation allows for seamless adjustments and settings, making it indispensable for control measurements in production settings, workshops, and quality assurance processes.

Moreover, it excels in assessing vehicle accident damage and can be utilized in industrial contexts for thorough incoming and outgoing inspections, alongside material testing The ergonomically designed device delivers quick and precise measurements for non-magnetic layers including paint, chrome, plastic, copper, zinc, and more across various metal surfaces.

Features and Benefits:

    •Non-destructive measurement on iron/steel and non-ferrous metals.

    •Vibration-influenced measurements are mitigated.

    •Practical V-groove for easy measurements.

    •Ergonomic design for user comfort.

    •Warning messages for out-of-range measurements.

    •Wear-resistant, spring-mounted measuring head for precise results.

    •Used in workshops for quality assurance.

    •Assessment of vehicle accident damage.

    •Industrial applications for material testing.

    •Incoming and outgoing inspections.

Specifications:

 Measuring range Fe: 0 ... 5000 µm
 Measuring range NFe: 0 ... 3000 µm
 Accuracy: ±(2 % of reading + 1 µm)
 Resolution: 0.1 µm (<100 µm), 1 µm (>100 µm)
 Measurable materials: Iron/steel and non-ferrous metals
 Min. radius of curvature convex: 5 mm / 0.19"
 Min. radius of curvature concave: 25 mm / 0.98"
 Min. measuring surface: Ø17 mm / 0.67"
 Min. substrate thickness: 0.2 mm / 0.008" (magnetic materials), 0.05 mm / 0.002" (non-magnetic materials)
 Probe mode: Autom. mode with material detection (Fe + NFe), Magnetic mode (Fe), Eddy current mode (NFe)
 Calibration: Multipoint calibration (1 ... 4 points for each group), Zero-point calibration
 Units: µm, mm, mils
 Data transfer: USB 2.0
 Memory: Volatile measuring group (DIR mode), Four measuring groups with max. 2000 readings (GEN mode)
 Statistical functions: Number of measured values, mean, minimum, maximum, standard deviation
 Alarm: Display when adjustable alarm limits are exceeded
 Operating time: Autom. shutdown mode (3 min.)
 Power supply: 3 x 1.5 V AAA batteries
 Display: 128 x 128 px LCD display
 Indicators: Battery status, Fault detection
 Operating conditions: 0 ... +50 °C / 32 ... 122 °F, 20 ... 90 % RH non-condensing
 Storage conditions: -10 ... +60 °C / 14 ... 140 °F, 20 ... 90 % RH non-condensing
 Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5" (L x W x H)
