PCE-AQD 20 - Air Quality Logger with Temp, Humidity, CO2, PM2.5 Monitoring

SKU: SKU: PCE-AQD 20 Download PDF

Select a Variant:

PCE-AQD 20 - Air Quality Logger with Temp, Humidity, CO2, PM2.5 Monitoring

SET THE QTY:

Now $917.00 Web pricing policy

~~BEFORE $0.00~~ Now $917.00 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the PCE-AQD 20, a versatile air quality data logger designed to monitor critical environmental factors, including temperature, humidity, CO2 levels, PM25, and air pressure With its built-in SD card storage, transferring data directly to Excel in XLS format is a breeze This device is perfect for ongoing air quality assessments in the workplace and can be powered by batteries or an adapter.

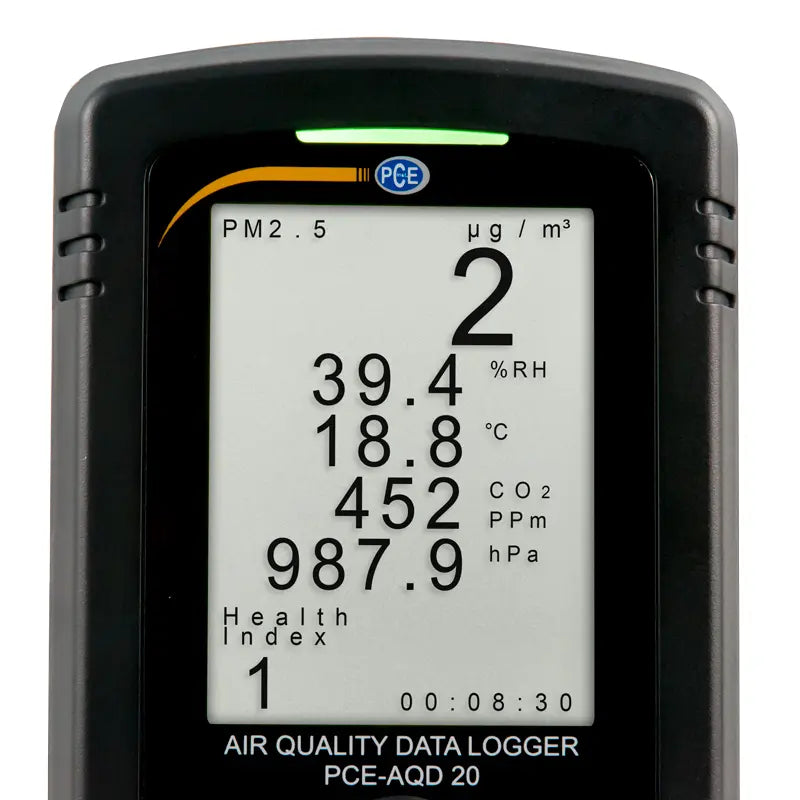

Its large, illuminated display enhances readability, and an integrated alarm alerts you when any monitored parameter surpasses specified limits Additionally, the current time is conveniently shown alongside the measurement data, keeping you informed at a glance.

Features and Benefits:

•5 measuring functions.

•Excel data logger on SD card.

•Large display with backlight.

•Battery and power adapter operation.

•Ideal for workplace monitoring.

•Alarm function.

•Monitoring air quality in workplaces.

Specifications:

Measurement function PM2.5	Measuring range 0 ... 250 μm / m³, Resolution 1 μm / m³, Accuracy ± (10% of rdg. + 15 μm)
Measurement function humidity	Measuring range 5 ... 95% rh, Resolution 0.1% RH, Accuracy > 70% RH: ± (3% of the prev + 1% RH), <70% RH: ± 3% RH
Measurement function temperature	Measuring range 0 ... 50°C / 32 ... 122°F, Resolution 0.1°C / 0.18°F, Accuracy ± 0.8°C / 1.44°F
Measurement function CO2	Measuring range 0 ... 10,000 ppm, Resolution 1 ppm, Accuracy < 1000 ppm: ± 40 ppm, < 3000 ppm: ± (50 ppm + 3% of rdg.), > 3000 ppm: ± (50 ppm + 5% of rdg.)
Measurement function air pressure	Measuring range 10 ... 1100 hPa, Resolution 0.1 hPa, Accuracy ± 1.5 hPa
Display	LCD display with backlight
Storage	SD card max. 32 GB
Storage rate	2 ... 3,600 s
Memory error	< 0.1% of the completely stored data
Measuring rate	About 1 s
Interface	Serial for live visualization on computers (Data cable SOFT-LUT-USB sold separately)
Alarm output	OC output 24V / 70-mA DC
Power supply	6 x 1.5V AA battery, 9V / 1 A power adapter
Current consumption	230-mA without lighting, approx. 250-mA with lighting
Operating conditions	0 ... 50°C / 32 ... 122°F, max. 80% rh
Dimensions	164 x 93 x 72 mm / 6.5 x 3.7 x 2.8 in
