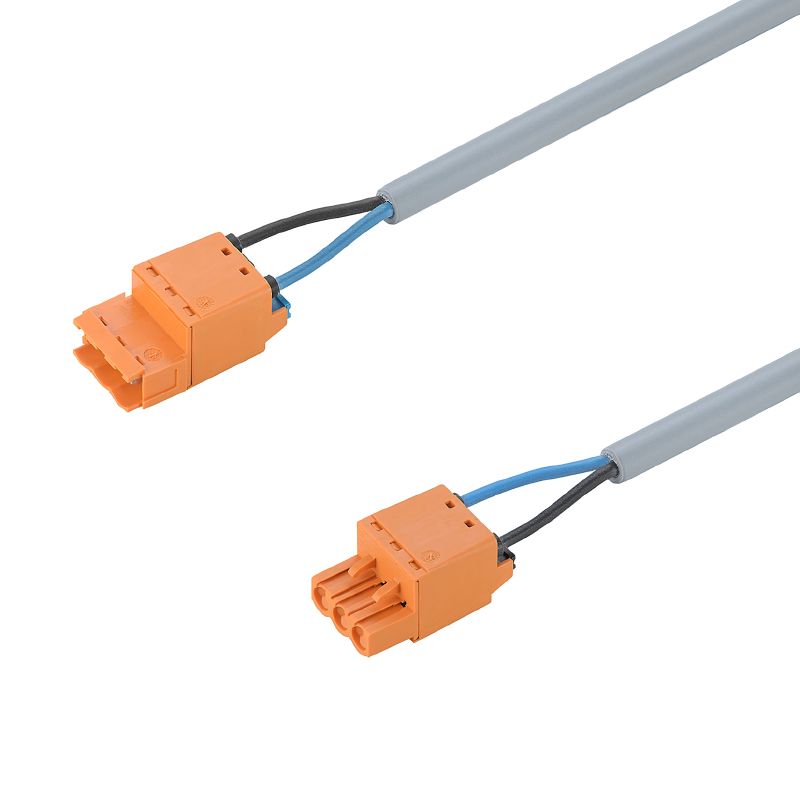

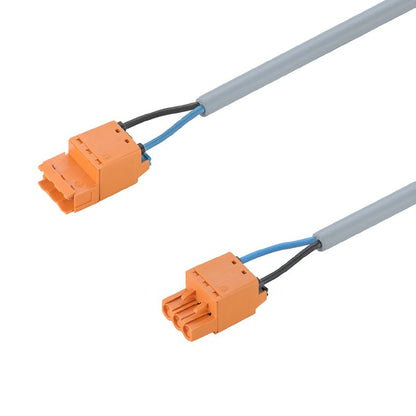

2853620080 - High Voltage 6 kV Smart Metering Cable Assembly, 0.33 m (Pack of 10)
2853620080 - High Voltage 6 kV Smart Metering Cable Assembly, 0.33 m (Pack of 10)
SKU: SKU: 2853620080 Download PDF
- 2853620080 - High Voltage 6 kV Smart Metering Cable Assembly, 0.33 m (Pack of 10)
- 2853620080 - High Voltage 6 kV Smart Metering Cable Assembly, 0.33 m (Pack of 10)
Couldn't load pickup availability
Description:
Introducing the Smart Metering Cable Assemblies, engineered for high-voltage environments with a rating of 6 kV and a nominal current capacity of 185 A These assemblies are equipped with a socket connector boasting an IP20 protection level, enabling them to manage a nominal voltage of 600 V effectively Crafted from resilient materials, they fully comply with RoHS standards, ensuring safety and environmental responsibility.
Perfect for various demanding applications.
Features and Benefits:
•Compliant with RoHS regulations.
•Rated impulse withstand voltage of 6 kV.
•Lightweight at 60.65 g.
•Utilizes PUR/TPE materials for flexibility and durability.
•Optimal bending radius for both moving and stationary applications.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Cable length | 0.33 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
