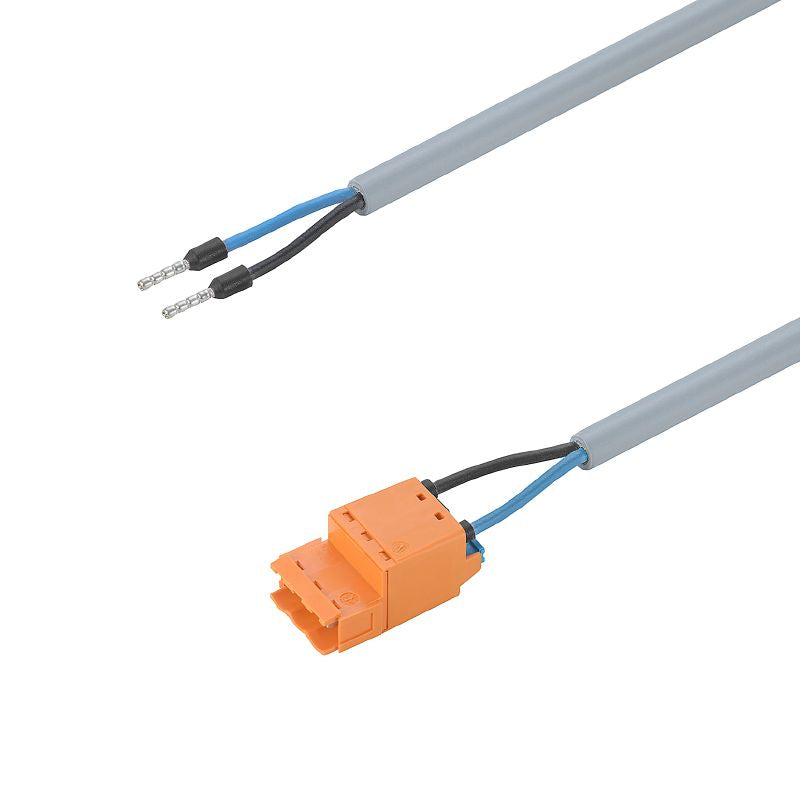

2784120033 - 0.33m Smart Metering Cable Assembly, IP20, PUR/TPE Material (Pack of 10)
2784120033 - 0.33m Smart Metering Cable Assembly, IP20, PUR/TPE Material (Pack of 10)
SKU: SKU: 2784120033 Download PDF
- 2784120033 - 0.33m Smart Metering Cable Assembly, IP20, PUR/TPE Material (Pack of 10)
- 2784120033 - 0.33m Smart Metering Cable Assembly, IP20, PUR/TPE Material (Pack of 10)
Couldn't load pickup availability
Description:
Optimize your metering needs with this Smart Metering Cable Assembly, expertly engineered for high-performance applications Rated for an impulse withstand voltage of 6 kV and a nominal voltage of 600 V, this assembly guarantees reliable connections Measuring 033 meters in length, it is crafted from durable PUR/TPE materials and features a 15 mm² core cross-section Designed with two poles and straight cable entry, it meets RoHS compliance, ensuring safety and environmentally-friendly use.
Features and Benefits:
•Nominal current of 18.5 A.
•Two-pole configuration.
•Protection class IP20.
•Compliant with RoHS without exemption.
•Temperature ranges from -40 °C to 90 °C.
Specifications:
| Dimensions: | 0.33 m |
| Cable Material: | PUR/ TPE |
| Core cross-section: | 1.5 mm² |
| Number of wires: | 2 |
| Outside diameter: | 6.4 mm ± 0.25 mm |
| Bending radius, min., moving: | 15 x cable diameter |
| Bending radius, min., stationary: | 10 x cable diameter |
| Insulation: | PP |
| Halogen: | No |
| Shielded: | No |
| Temperature range, moving, max.: | 90 °C |
| Temperature range, moving, min.: | -25 °C |
| Temperature range, stationary, max.: | 90 °C |
| Temperature range, stationary, min.: | -40 °C |
| Number of poles (Connector 1): | 3 |
| Number of poles (Connector 2): | 1 |
| Type (Connector 1): | Male |
| Type (Connector 2): | Male |
