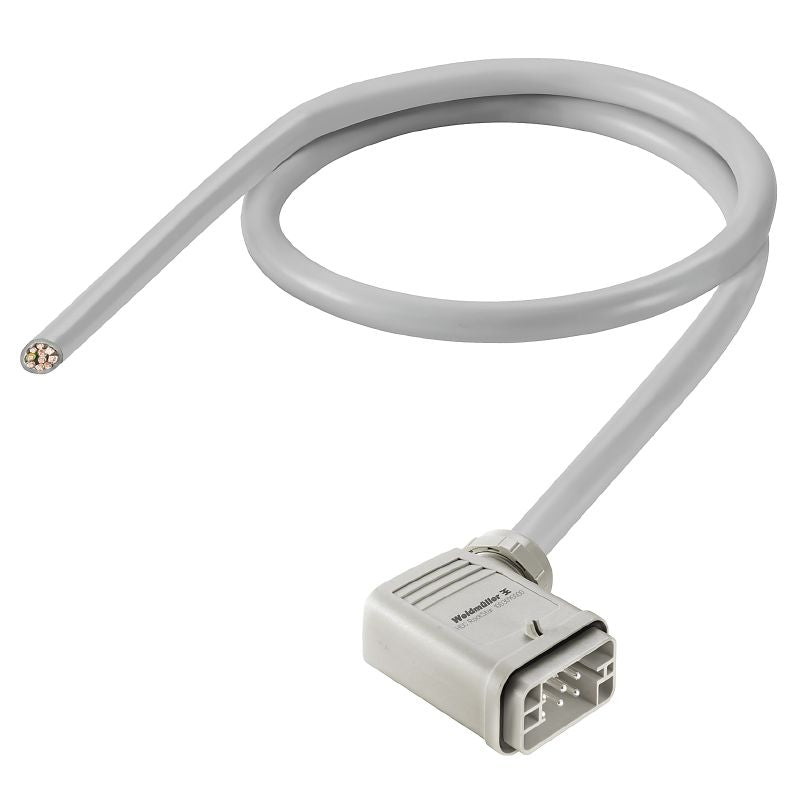

2712490200 - 8-Pole Heavy Duty Connector Assembly, 2m, RoHS Compliant
2712490200 - 8-Pole Heavy Duty Connector Assembly, 2m, RoHS Compliant
SKU: SKU: 2712490200 Download PDF
- 2712490200 - 8-Pole Heavy Duty Connector Assembly, 2m, RoHS Compliant
- 2712490200 - 8-Pole Heavy Duty Connector Assembly, 2m, RoHS Compliant
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the Heavy Duty Connector Assemblies, expertly crafted with a pin configuration of 1:1 and featuring 8 poles These connectors are RoHS compliant and can withstand temperatures ranging from -40 °C to 80 °C Part of the HQ series, each male connector housing is made from sturdy plastic and weighs approximately 746345 grams For optimal performance, note the minimal bending radius: 75 times the cable diameter for moving applications, and 4 times the diameter when stationary.
The grey PVC sheathing provides added durability, ensuring compliance with various environmental regulations Perfect for robust and reliable electrical connections.
Features and Benefits:
•Compliant with RoHS and specific exemptions.
•IP65 protection degree.
•Fixed and moving temperature ranges.
•Nominal voltage of 500 V.
Specifications:
| Limit temperature | -40 °C ... 80 °C |
| Number of poles | 8 |
| Connector type | Male |
| Cable length | 2 m |
| Core cross-section | 2.5 mm² |
| Outside diameter | 14.8 mm |
| Insulation | PVC |
| Sheath material | PVC |
| Bending radius, min., moving | 7.5 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Halogen | Yes |
| Temperature range, moving, max. | 80 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
