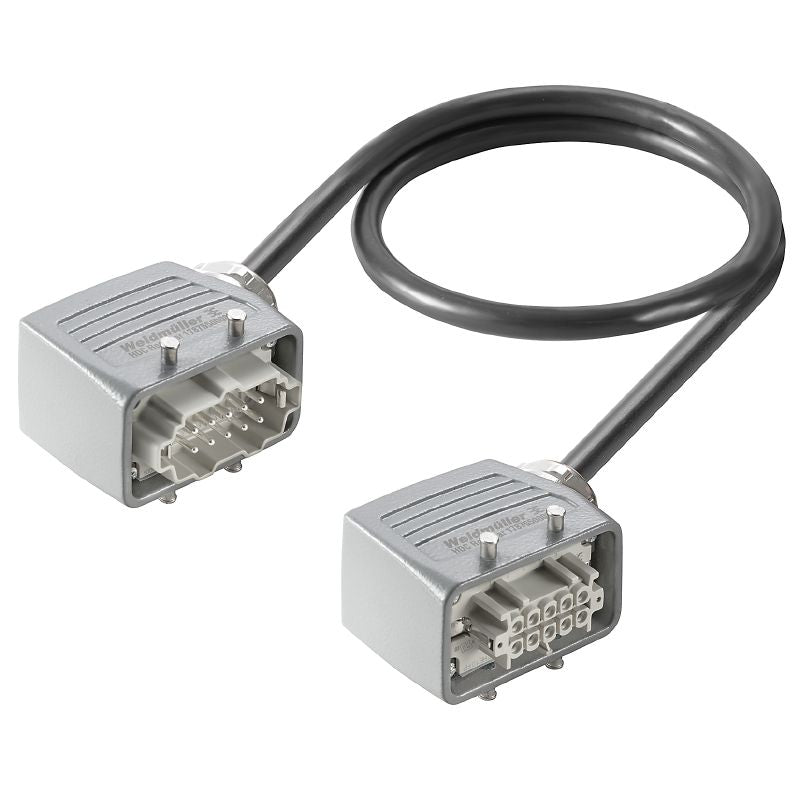

2712280200 - 10-Pole Heavy Duty Connector Assembly, 2m Length, 12mm Diameter
2712280200 - 10-Pole Heavy Duty Connector Assembly, 2m Length, 12mm Diameter
SKU: SKU: 2712280200 Download PDF
- 2712280200 - 10-Pole Heavy Duty Connector Assembly, 2m Length, 12mm Diameter
- 2712280200 - 10-Pole Heavy Duty Connector Assembly, 2m Length, 12mm Diameter
Couldn't load pickup availability
Description:
Experience reliable connectivity with these heavy-duty connector assemblies designed for strength and versatility Featuring a pin/socket design, these connectors utilize Lapp ÖLFLEX CLASSIC 110 BK 12G15 or a similar equivalent With a total of 10 poles and a non-shielded configuration, they are ideal for various demanding applications that require secure and robust connections.
Features and Benefits:
•Compliant with RoHS exemption 6c.
•IP65 protection degree.
•Diecast aluminium housing.
•Angled cable entry for easier installation.
•Halogen-free materials.
Specifications:
| Diameter | 12 mm |
| Limit temperature | -40 °C ... 80 °C |
| Nominal voltage | 500 V |
| Number of poles | 10 |
| Pin arrangement | 1:1, numbered cores |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Insulation | PVC |
| Sheath material | PVC |
| Number of wires | 12 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 |
