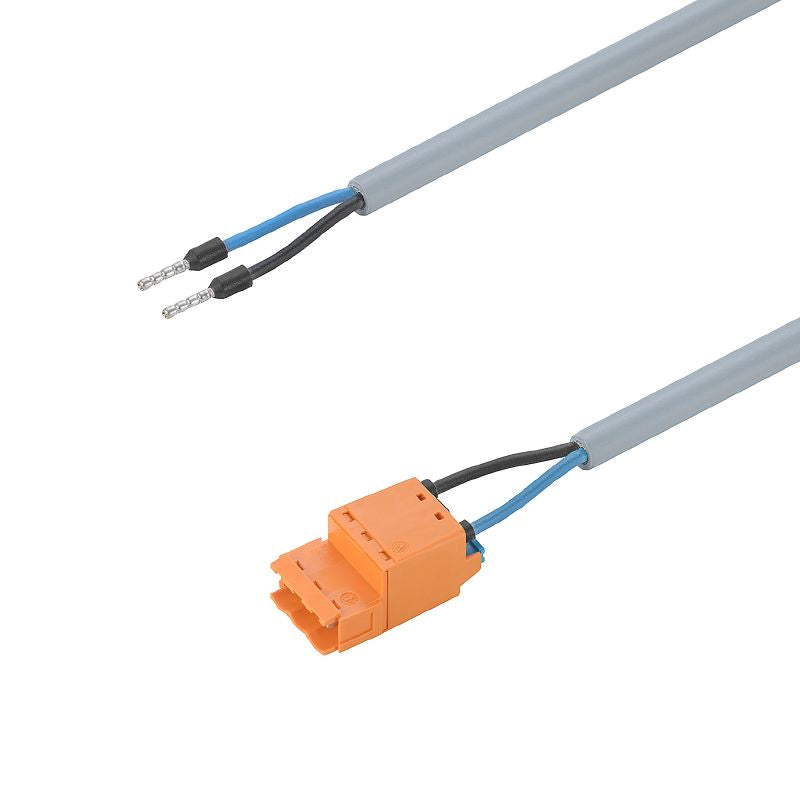

2784120080 - 0.8m Smart Metering Cable Assembly, 18.5A, 6kV Rated (Pack of 10)
2784120080 - 0.8m Smart Metering Cable Assembly, 18.5A, 6kV Rated (Pack of 10)
SKU: SKU: 2784120080 Download PDF
- 2784120080 - 0.8m Smart Metering Cable Assembly, 18.5A, 6kV Rated (Pack of 10)
- 2784120080 - 0.8m Smart Metering Cable Assembly, 18.5A, 6kV Rated (Pack of 10)
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:
Introducing the Smart Metering Cable Assemblies, expertly crafted for metering applications boasting a nominal voltage rating of 600 V and a robust maximum impulse withstand voltage of 6 kV These assemblies deliver a remarkable current capacity of 185 A, facilitating efficient electrical connections With RoHS compliance, they adhere to stringent environmental safety guidelines Featuring a two-pole design and an IP20 protection rating, these cables are ideal for use in controlled indoor settings, ensuring reliability and performance.
Features and Benefits:
•RoHS compliant without exemption.
•Features a maximum temperature range of 90 °C.
•Minimum bending radius of 15 times the cable diameter for moving applications.
•Protective housing made of plastic for durability.
•Cable assembled with halogen-free materials.
Specifications:
| Nominal current | 18.5 A |
| Nominal voltage | 600 V |
| Number of poles | 2 |
| Protection degree | IP20 |
| Rated impulse withstand voltage | 6 kV |
| Cable length | 0.8 m |
| Cable Material | PUR/ TPE |
| Core cross-section | 1.5 mm² |
| Insulation | PP |
| Outside diameter | 6.4 mm ± 0.25 mm |
| Temperature range, moving, max. | 90 °C |
| Temperature range, moving, min. | -25 °C |
| Temperature range, stationary, max. | 90 °C |
| Temperature range, stationary, min. | -40 °C |
