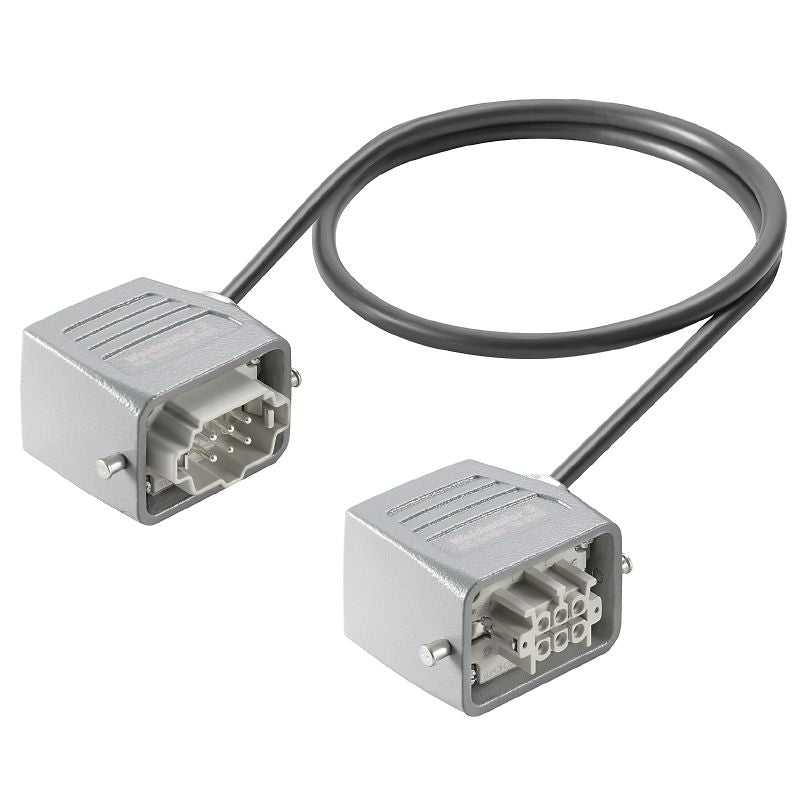

2712240500 - RoHS Compliant Heavy-Duty 6-Pole Connector Assembly, 5m Length
2712240500 - RoHS Compliant Heavy-Duty 6-Pole Connector Assembly, 5m Length
SKU: SKU: 2712240500 Download PDF
- 2712240500 - RoHS Compliant Heavy-Duty 6-Pole Connector Assembly, 5m Length
- 2712240500 - RoHS Compliant Heavy-Duty 6-Pole Connector Assembly, 5m Length
Couldn't load pickup availability
Description:
Introducing a robust connector assembly featuring a pin and socket design, specifically the Lapp ÖLFLEX CLASSIC 110 BK 7G15 or a compatible model This unshielded assembly consists of 6 poles and is built to meet RoHS standards It operates efficiently within a temperature range of -40 °C to 80 °C Weighing approximately 1,940483 grams, this product also includes various identification numbers for easy reference.
Features and Benefits:
•IP65 protection degree.
•Diecast aluminium housing.
•Configured with a pin arrangement of 1:1, with numbered cores.
•Halogen-free insulation.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 6 |
| Cable length | 5 m |
| Core cross-section | 1.5 mm² |
| Cable entry | angled |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Outside diameter | 8.9 mm |
| Sheath material | PVC |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
