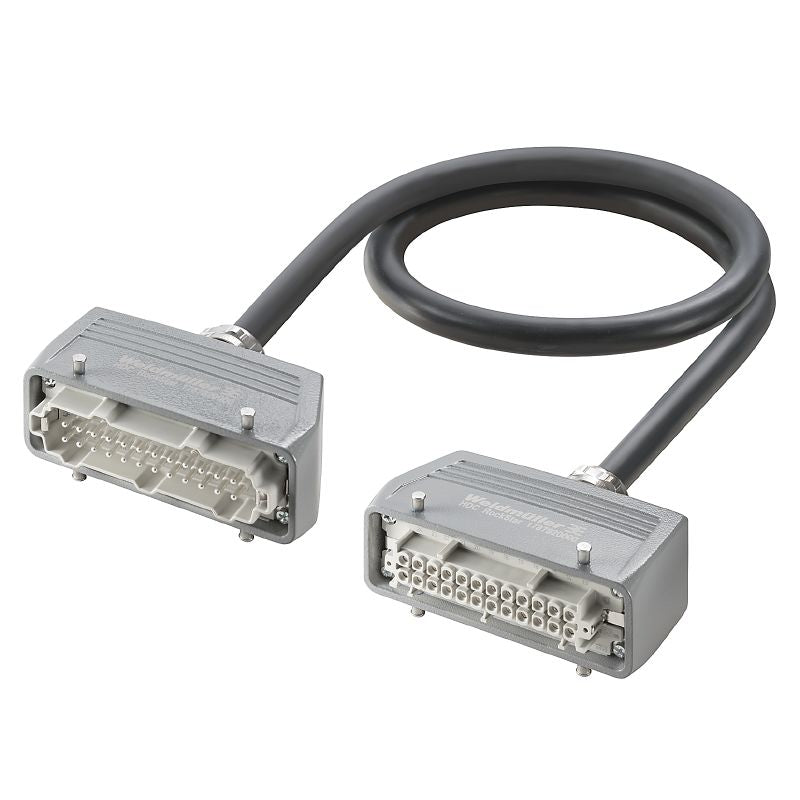

2712350200 - 2m Heavy Duty Connector Assembly, 24 Poles, RoHS Compliant
2712350200 - 2m Heavy Duty Connector Assembly, 24 Poles, RoHS Compliant
SKU: SKU: 2712350200 Download PDF
- 2712350200 - 2m Heavy Duty Connector Assembly, 24 Poles, RoHS Compliant
- 2712350200 - 2m Heavy Duty Connector Assembly, 24 Poles, RoHS Compliant
Couldn't load pickup availability
Description:
Discover the robust connector assembly designed for heavy-duty performance, featuring both pin and socket connectors compatible with Lapp ÖLFLEX CLASSIC 110 BK 12G15 and other equivalent options This assembly encompasses a total of 24 poles, ensuring reliable connectivity It complies with environmental standards, including RoHS, and operates effectively in a wide temperature range from -40 °C to 80 °C.
Ideal for industrial settings, this versatile assembly combines durability and functionality to meet demanding application needs.
Features and Benefits:
•Compliant with RoHS and REACH regulations.
•Connector made of diecast aluminium material.
•Meets IP65 protection degree for dust and water resistance.
•24 numbered cores for easy identification.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 24 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 2 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 12G1.5 or similar |
| Number of wires | 25 |
| Outside diameter | 16.9 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max | 70 °C |
| Temperature range, moving, min | -15 °C |
| Temperature range, stationary, max | 80 °C |
| Temperature range, stationary, min | -40 °C |
