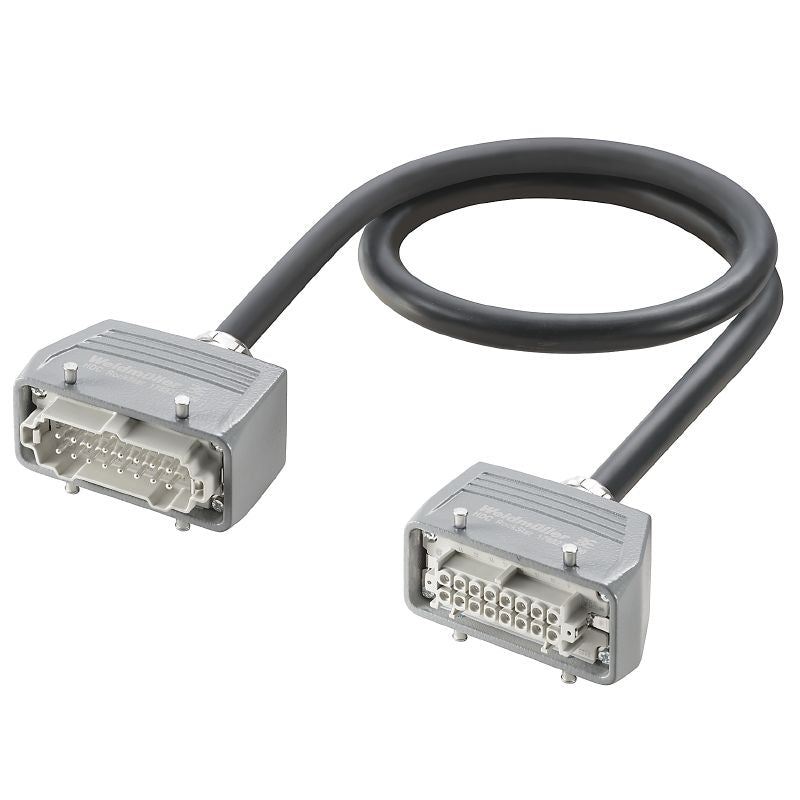

2712330100 - 1m Heavy-Duty 16-Pole Connector Assembly, 500V, RoHS Compliant
2712330100 - 1m Heavy-Duty 16-Pole Connector Assembly, 500V, RoHS Compliant
SKU: SKU: 2712330100 Download PDF
- 2712330100 - 1m Heavy-Duty 16-Pole Connector Assembly, 500V, RoHS Compliant
- 2712330100 - 1m Heavy-Duty 16-Pole Connector Assembly, 500V, RoHS Compliant
Couldn't load pickup availability
Description:
Introducing a robust connector assembly with a reliable pin and socket design featuring 16 poles This assembly meets the Lapp ÖLFLEX CLASSIC 110 BK 18G15 specifications or comparable alternatives It operates without a shield and supports a nominal voltage of 500 V Compliant with RoHS regulations, it includes a specific exemption With an impressive temperature range from -40 °C to 80 °C, this connector is built to withstand challenging environments, ensuring versatility and durability for various applications.
Features and Benefits:
•Conforms to RoHS standards.
•Includes both pin and female connectors.
•Designed for robust use with diecast aluminum housing.
•Simple straight cable entry for ease of installation.
Specifications:
| Nominal voltage | 500 V |
| Number of poles | 16 |
| Bending radius, min., moving | 10 x cable diameter |
| Bending radius, min., stationary | 4 x cable diameter |
| Cable length | 1 m |
| Core cross-section | 1.5 mm² |
| Halogen | Yes |
| Insulation | PVC |
| Line type | Lapp ÖLFLEX CLASSIC 110 BK 18G1.5 or similar |
| Number of wires | 18 |
| Outside diameter | 14.4 mm |
| Sheath material | PVC |
| Shielded | No |
| Temperature range, moving, max. | 70 °C |
| Temperature range, moving, min. | -15 °C |
| Temperature range, stationary, max. | 80 °C |
| Temperature range, stationary, min. | -40 °C |
